ABB DSDX451 5716075-K Retrofit-Ready Digital I/O for Advant

ABB DSDX451 5716075-K Retrofit-Ready Digital I/O for Advant Control Systems

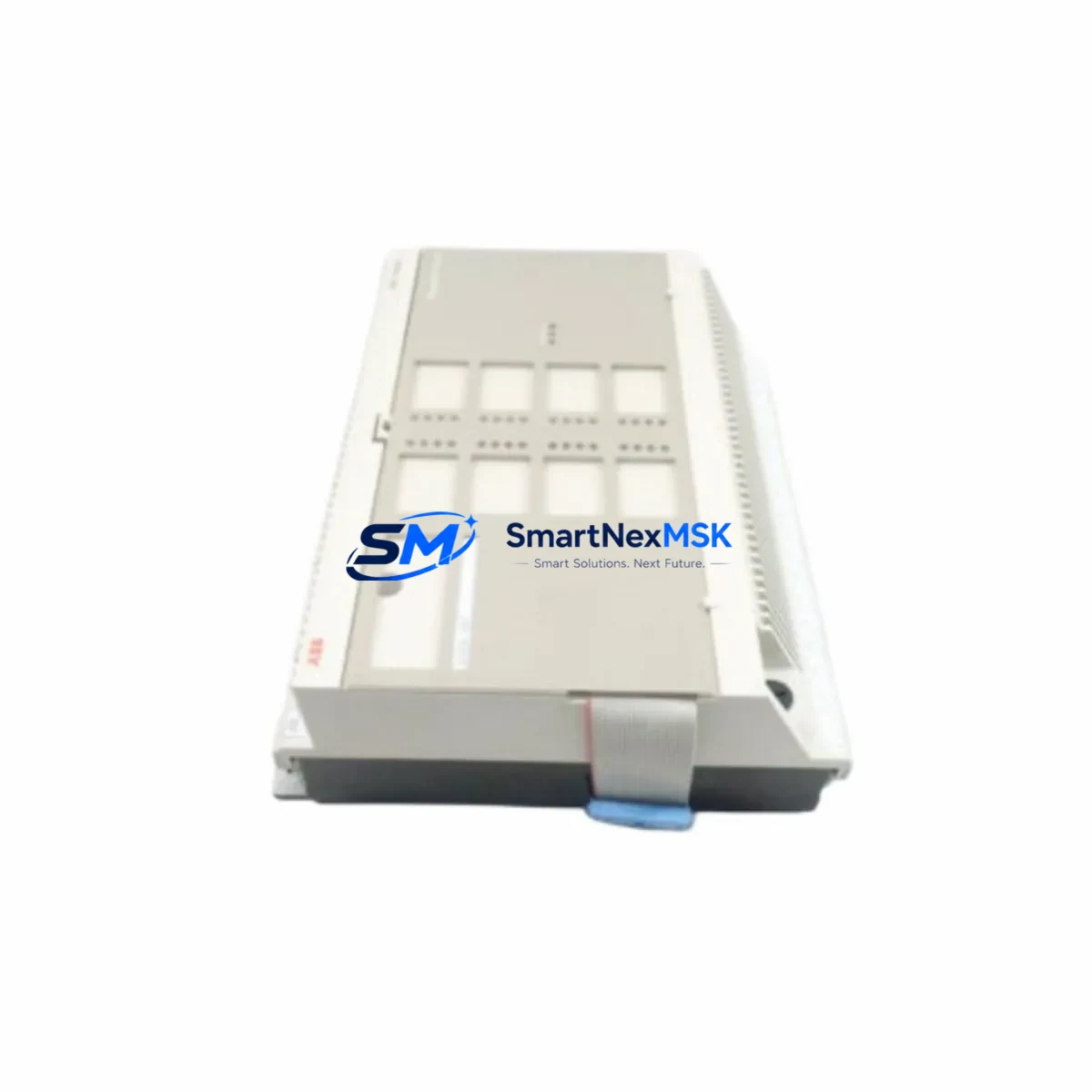

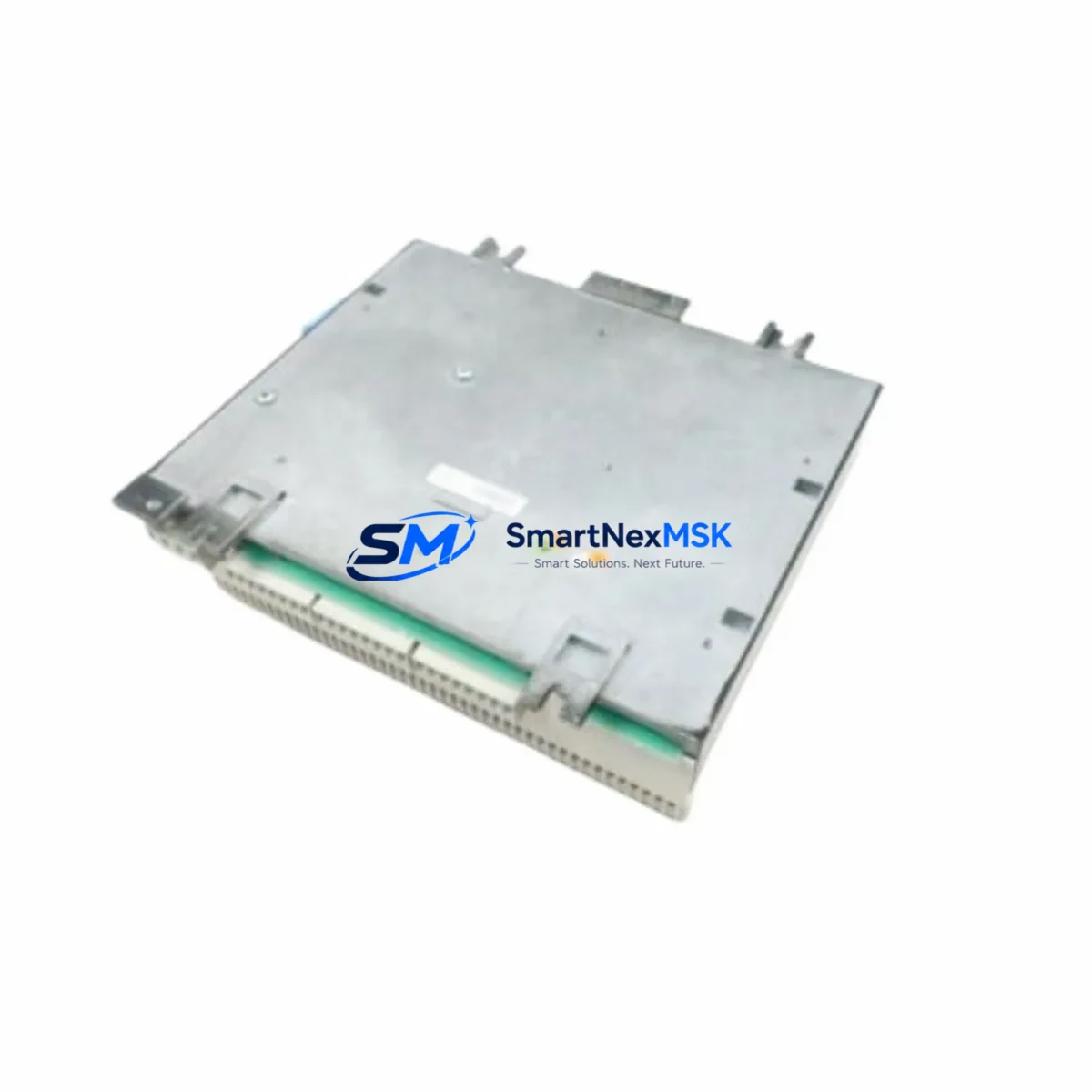

The ABB DSDX451 (Part No. 5716075-K) is a digital I/O expansion module engineered for the ABB Advant OCS and MOD 300 distributed control system platforms. As legacy Advant installations approach end-of-life and OEM support windows close, the DSDX451 5716075-K has become one of the most sought-after retrofit and replacement components for engineers tasked with extending the operational life of existing control cabinets — or executing a structured migration to a modern DCS architecture without full system replacement.

This module provides reliable digital input/output expansion within the Advant rack environment, interfacing directly with the DSBC 172 or DSBC 176 bus connection units and communicating over the RCOM internal bus. It is fully compatible with the Advant Controller AC 450 and AC 410 families, and can be integrated alongside other I/O modules such as the DSAI 130 analog input module and DSAO 120 analog output module without requiring firmware changes or hardware re-addressing in most retrofit scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the DSDX451 5716075-K into an aging Advant installation requires a structured pre-replacement audit. Before removing the failed module, engineers should document the existing module address set via the onboard DIP switches, the I/O channel assignments as configured in the Advant engineering database, and the terminal block wiring layout using the original cabinet drawings. In most cases, field wiring connected to the 40-pin terminal block can be transferred directly to the replacement unit without re-termination, significantly reducing downtime.

Power budget verification is a critical step that is frequently overlooked. The DSPU 410 rack power supply unit must have sufficient headroom to support the DSDX451 alongside co-installed modules such as the DSDP 140 pulse counter module or additional DSDI 110 digital input modules. Overloading the 24 VDC rail is a common cause of intermittent faults in retrofitted cabinets. Measure actual rail current draw before and after module installation.

For sites running MasterBus 300 or INSUM communication segments, confirm that the DSDX451’s RCOM address does not conflict with other nodes on the same rack. Address conflicts will prevent the module from being recognized by the AC 450 controller during the initialization scan. If the control system uses a DSMB 127 MasterBus interface module, verify that the bus load remains within specification after adding the replacement I/O node.

HMI screens built on MasterView 800 or migrated to a modern SCADA platform via OPC-DA/OPC-UA should be reviewed to confirm that all digital signal tags mapped to the DSDX451 channels are correctly bound after the swap. Tag re-binding is typically not required for a like-for-like replacement, but must be validated if the module address was changed during the retrofit. For sites that have partially migrated to ABB System 800xA, the Advant Connect interface layer handles tag translation automatically, but a forced re-scan of the I/O tree is recommended post-installation.

Where the retrofit involves expanding I/O capacity rather than simple replacement — for example, adding new field instruments to an existing control loop — the DSBC 176 bus connection unit must have an available slot, and the Advant engineering database must be updated to include the new module instance before downloading the revised configuration to the controller. Programming changes in AMPL or Function Chart language should be tested offline using the Composer simulation environment before live download to minimize process disruption.

Downtime Control During System Migration

Minimizing unplanned downtime during a DSDX451 replacement or Advant system upgrade requires a disciplined hot-swap and pre-staging protocol. Where the process permits, the replacement module should be pre-configured — address switches set, firmware version confirmed, and functional test completed on a bench rack — before the maintenance window opens. This reduces in-cabinet work time to a terminal transfer and bus re-scan, typically achievable within 30–45 minutes for an experienced controls technician.

For critical loops that cannot tolerate interruption, consider placing the affected I/O channels in manual mode at the DCS operator station before pulling the module. The AC 450 controller will hold the last known output state for a configurable watchdog period, providing a short window for physical module exchange without triggering process trips. Confirm the watchdog timeout value in the controller configuration before proceeding.

Original program logic stored in the AC 450 does not need to be modified for a like-for-like DSDX451 replacement. The controller will automatically re-establish communication with the module once it is powered and the RCOM bus scan completes. Post-swap, verify all channel status indicators on the module faceplate and confirm signal health in the DCS diagnostic display before returning loops to automatic control. All replacement units supplied by SMARTNEXMSK are pre-tested under load conditions prior to shipment, reducing the risk of DOA failures during critical maintenance windows.

Retrofit Support FAQ

Q1: Is the DSDX451 5716075-K a direct replacement for all DSDX451 variants?
The 5716075-K is the standard production revision of the DSDX451 and is compatible with all Advant OCS and MOD 300 racks that accept the original DSDX451. Minor hardware revision differences (e.g., PCB revision markings) do not affect functional compatibility. If your existing module carries a different suffix, contact our technical team with the full nameplate data for confirmation before ordering.

Q2: Do I need to modify field wiring when replacing a failed DSDX451?
In a direct like-for-like replacement, existing field wiring connected to the 40-pin terminal block can be transferred without modification. Photograph or document the wiring layout before removal. If the replacement is part of a broader I/O expansion or cabinet upgrade, new terminal assignments must be reflected in the updated engineering database and cabinet drawings.

Q3: What commissioning steps are required after installing the replacement module?
After physical installation, verify the module address DIP switch matches the original configuration. Power up the rack and confirm the RCOM bus scan completes without errors in the AC 450 diagnostic log. Check all digital I/O channel status indicators on the module faceplate. Validate signal mapping in MasterView 800 or your SCADA system. For sites using System 800xA, perform a forced I/O tree re-scan via the Control Builder engineering tool.

Q4: What does the 12-month warranty cover?
All DSDX451 5716075-K units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal industrial operating conditions. Each unit undergoes pre-shipment functional testing. Warranty claims are supported by our technical team with RMA processing and priority replacement dispatch. The warranty does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the module’s rated specification.
