ABB DSPC172H Retrofit-Ready CPU for AC 450 Control Systems

ABB DSPC172H Retrofit-Ready CPU for AC 450 Control Systems: Compatible Upgrade for Legacy DCS Modernization

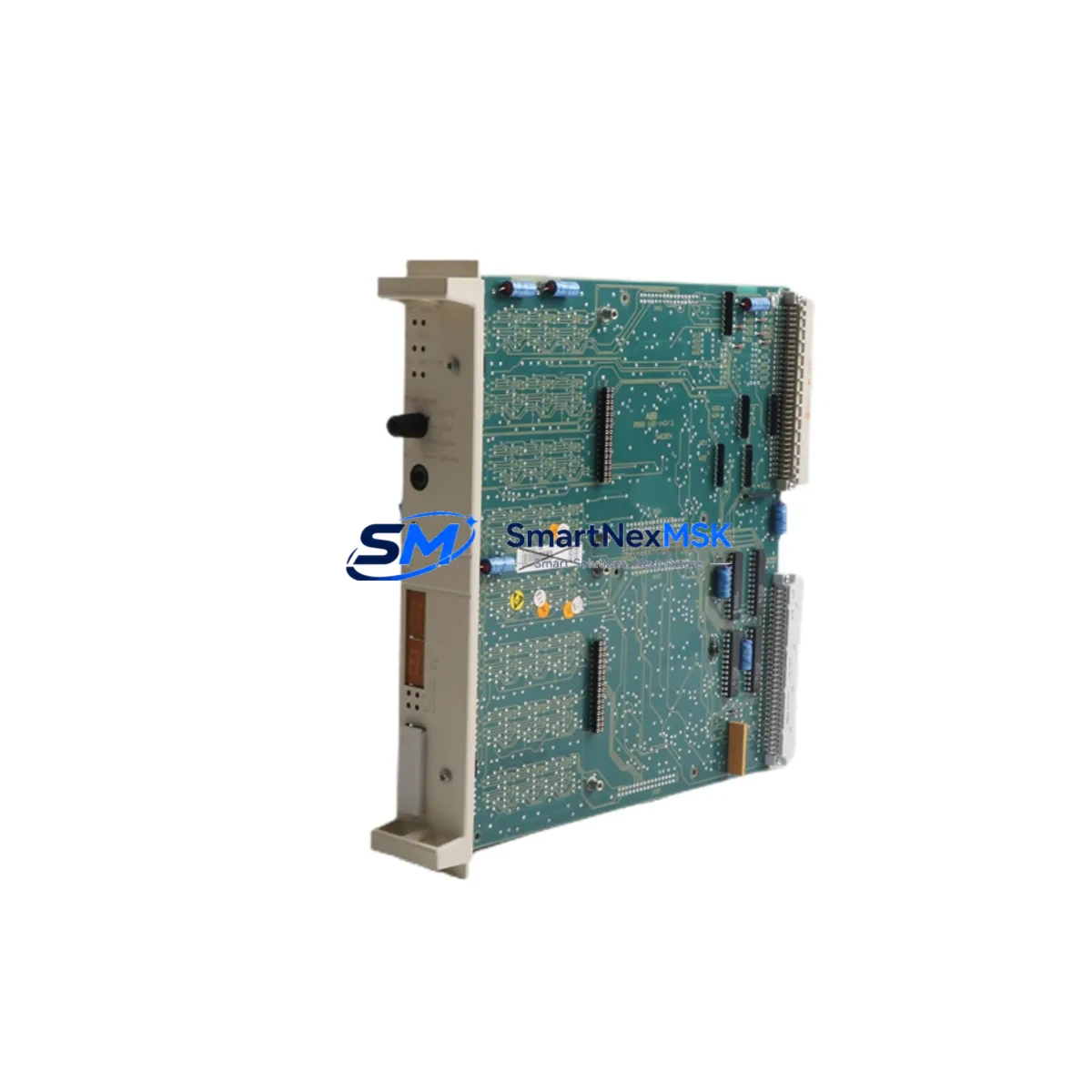

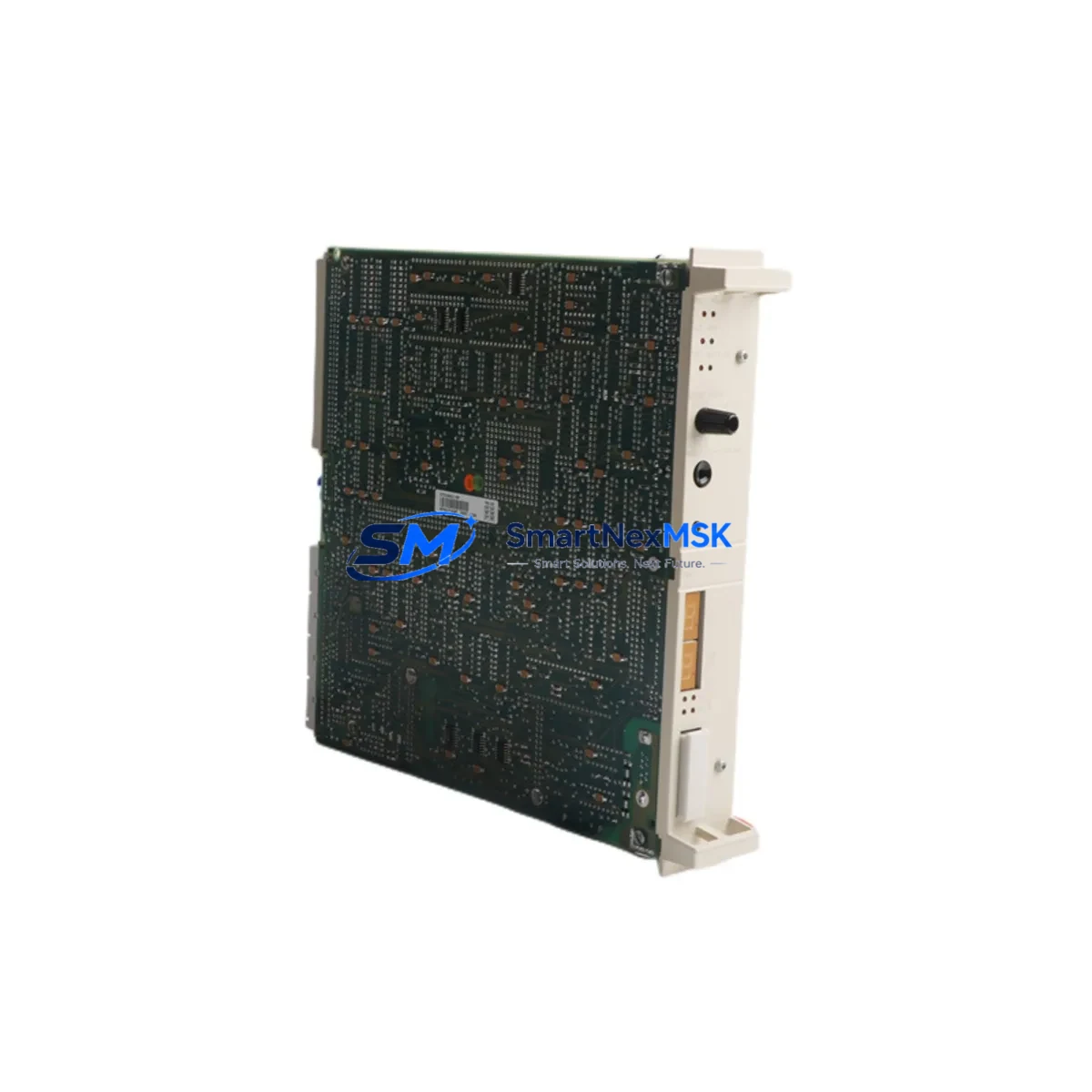

The ABB DSPC172H is a Master CPU module engineered for the Advant OCS and AC 450 Distributed Control System platforms. As legacy DCS installations age and original spare parts become increasingly scarce, the DSPC172H has become a critical component in retrofit projects, emergency replacements, and planned system upgrades across process industries including oil & gas, power generation, pulp & paper, and chemical manufacturing.

This module serves as the central processing unit within the Advant controller rack, coordinating communication between I/O modules, operator stations, and field devices. When a DSPC172H fails or reaches end-of-life, the entire control loop is at risk. Sourcing a verified, tested replacement unit is the fastest path to restoring system integrity without committing to a full platform migration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DSPC172H in an operational plant requires careful pre-planning to avoid unintended process interruptions. Before removing the failed module, engineers should document the current rack configuration, including the slot positions of adjacent I/O modules such as the DSDI110A digital input module and the DSDO110A digital output module. These modules communicate directly with the CPU over the Modulebus backplane, and their addressing must be preserved after the swap.

Power supply integrity is a common oversight in CPU replacement projects. The DSPS110 or DSPS130 power supply modules feeding the controller rack must be verified to provide stable 24 VDC within tolerance before the new DSPC172H is seated. Voltage fluctuations during startup can corrupt the module’s internal memory or prevent successful boot.

Communication continuity is equally critical. If the AC 450 system is connected to an operator station via MasterBus 300, the network node address assigned to the DSPC172H must be re-entered after replacement. Sites using PROFIBUS DP for field device communication should verify that the GSD file and master configuration in the PROFIBUS master — often a DSSB110 or DSCS110 communication module — remain intact and do not require re-parameterization.

For plants that have integrated the Advant OCS with a SCADA or HMI layer, the HMI tag database and graphic displays referencing controller variables should be tested after the CPU swap. In many installations, the DSPC172H holds the application program in battery-backed RAM. If the backup battery in the original module has degraded, the program may need to be reloaded from the engineering workstation using ABB MasterPiece or Advant Builder software. Always retain a current backup of the application program before beginning any hardware replacement.

Rack and chassis integrity should also be inspected during the retrofit. The DSPC172H is typically installed in an ABB Advant S100 or S400 controller rack. Inspect the backplane connectors for oxidation or mechanical damage, particularly in high-humidity or high-vibration environments. If the rack itself is compromised, a rack replacement may be necessary alongside the CPU module swap.

Sites planning a broader migration from the AC 450 platform to a modern ABB System 800xA or AC 800M architecture should treat the DSPC172H replacement as a bridge solution. During the transition period, maintaining a tested spare DSPC172H on-site ensures that the legacy system remains operational while the migration project is executed in phases.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any plant engineer managing a CPU replacement on a live DCS. The DSPC172H replacement procedure should be executed during a scheduled maintenance window whenever possible. Prior to the window, the following steps should be completed: full backup of the application program, documentation of all module addresses and communication parameters, and pre-testing of the replacement unit in a bench environment if available.

During the replacement, field devices connected through DSAI130 analog input modules and DSAO120 analog output modules will lose their control signals while the CPU is offline. Process engineers should place affected control loops in manual mode at the field level before the CPU is removed. This prevents actuators and control valves from responding to stale or zero-value signals during the transition.

After the new DSPC172H is seated and powered, the application program should be reloaded and verified section by section before returning loops to automatic control. Communication links to the operator station and any remote I/O nodes should be confirmed active before the system is handed back to operations. A structured commissioning checklist — covering power-on sequence, program load confirmation, I/O status verification, communication link validation, and HMI display check — reduces the risk of post-maintenance incidents and supports a controlled, documented return to service.

All units supplied by SMARTNEXMSK are subject to functional testing prior to shipment. Each DSPC172H is verified for power-on behavior, communication response, and basic I/O interaction before dispatch, reducing the risk of receiving a non-functional unit and extending unplanned downtime.

Retrofit Support FAQ

Q: Is the DSPC172H a direct drop-in replacement for the DSPC172?
A: In most cases, yes. The DSPC172H is the hardware-revised successor to the DSPC172 and is designed for direct slot-compatible replacement within the same Advant OCS or AC 450 rack. However, firmware revision compatibility should be confirmed with your site documentation or ABB service records before installation, as some early-generation racks may require a firmware update on adjacent modules.

Q: Do I need to reconfigure the PROFIBUS or MasterBus network after replacing the CPU?
A: The network node address and communication parameters are stored in the application program, not in the CPU hardware itself. If the application program is successfully reloaded from backup after the swap, communication configuration is typically restored automatically. Manual re-parameterization is only required if the backup program is unavailable or if the network topology has changed.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Units that fail to power on, fail communication self-tests, or exhibit I/O faults within the warranty period are eligible for replacement or refund. Physical damage caused by incorrect installation, overvoltage, or environmental exposure is not covered. Warranty claims are processed directly through SMARTNEXMSK with a target response time of 48 hours.

Q: Can SMARTNEXMSK provide pre-shipment test documentation for the DSPC172H?
A: Yes. Upon request, a functional test report confirming power-on status, communication response, and basic operational verification can be provided with each unit. This documentation supports incoming inspection procedures and quality records for regulated industries.
