ABB DSQC1050 3HAC064474-001 Maintenance-Ready Spare IRC5 Automation

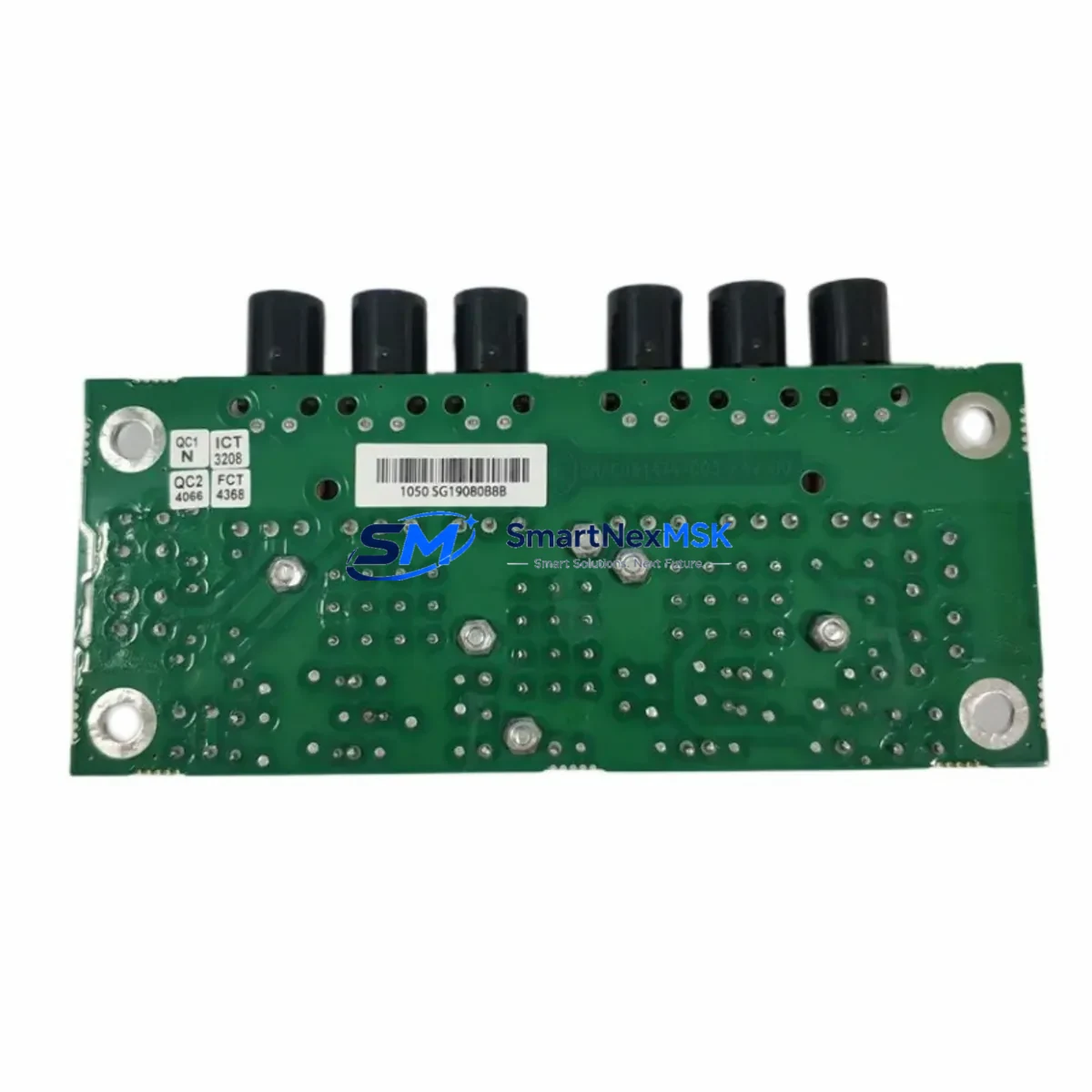

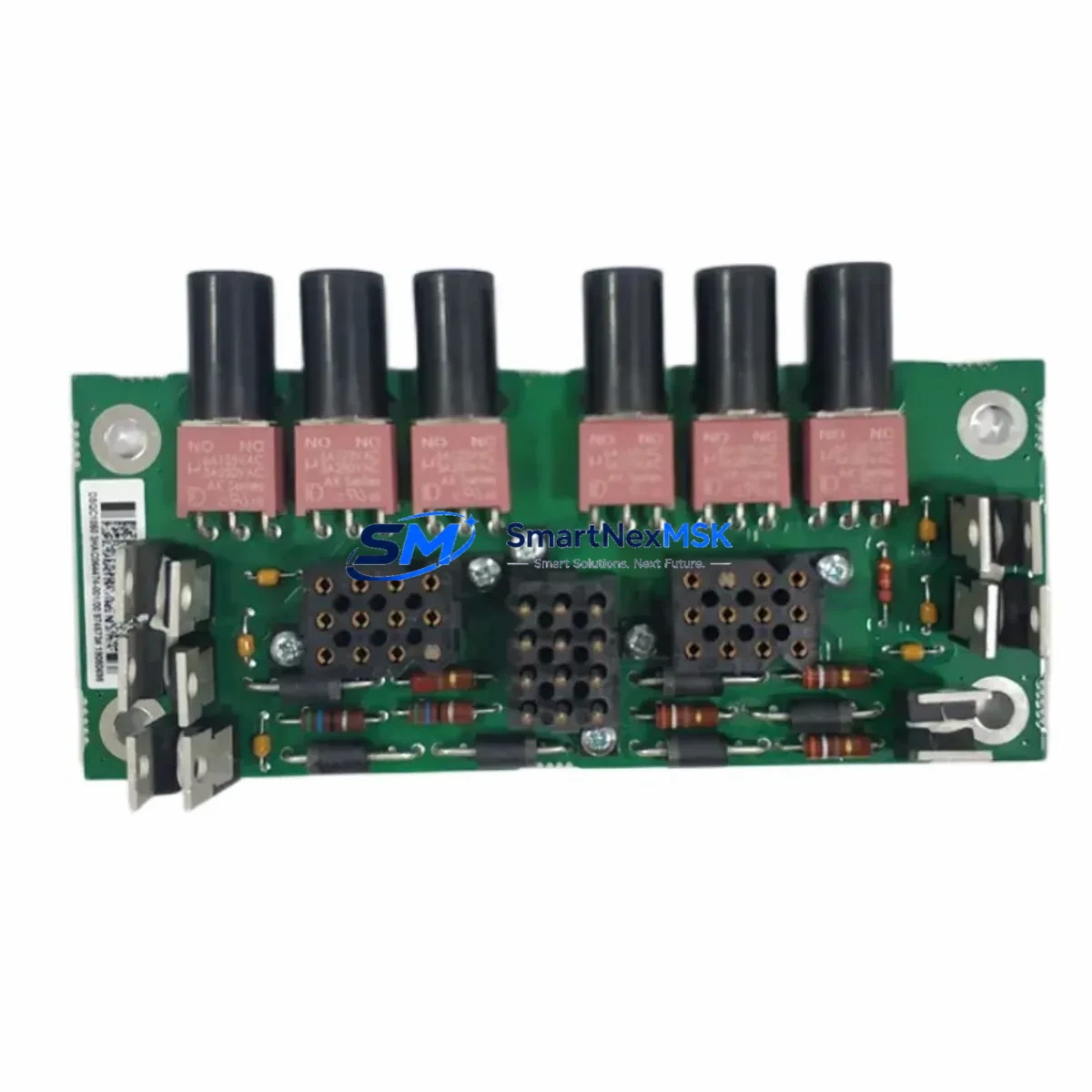

The ABB DSQC1050 (part number 3HAC064474-001) is an original brake plate designed for ABB IRC5 robot controller systems. In industrial automation environments where uptime is non-negotiable, having a verified, maintenance-ready spare of the DSQC1050 on hand is a critical element of any proactive maintenance strategy. Whether you are managing a single robot cell or a multi-axis production line, the DSQC1050 brake plate plays a direct role in safe axis braking, controlled deceleration, and motor protection during emergency stops and power-off sequences.
Sourced as an original ABB component manufactured in Germany, this spare is fully compatible with the IRC5 single-cabinet and dual-cabinet controller variants. It is tested prior to shipment and backed by a 12-month warranty, making it suitable for both planned maintenance stock and emergency replacement scenarios. Maintenance engineers and procurement teams can rely on this part to restore robot operation quickly, minimizing unplanned downtime and protecting production schedules.
Spare Maintenance Table
| Part Number | 3HAC064474-001 |
| Model / SKU | DSQC1050 |
| Brand | ABB Robotics |
| Series Compatibility | IRC5 Single Cabinet, IRC5 Dual Cabinet |
| Component Type | Brake Plate |
| Country of Origin | Germany (DE) |
| Weight | Approx. 80 g |
| Application | Axis brake control, motor braking circuit, emergency stop protection |
| Installation Environment | IRC5 controller cabinet, industrial robot cell |
| Condition | Original OEM, new |
| Pre-Shipment Testing | Yes — functional verification before dispatch |
| Warranty | 12 Months |
| Maintenance Recommendation | Inspect during scheduled IRC5 cabinet overhaul; replace if brake response is degraded or error codes indicate brake circuit fault |
Maintenance Planning for Continuous Operation
When a DSQC1050 brake plate fault is identified during routine inspection or triggered by an IRC5 system alarm, the replacement procedure should be treated as part of a broader cabinet health check. Experienced maintenance engineers know that a brake plate failure rarely occurs in isolation — it is often accompanied by stress on adjacent components within the same power and braking circuit.
During a DSQC1050 replacement, it is advisable to simultaneously inspect the DSQC1000 drive unit and DSQC1018 axis computer, as these modules share the same IRC5 backplane and power distribution path. The DSQC609 power supply unit should be checked for output voltage stability, since a degraded PSU can accelerate brake plate wear. If the robot cell uses a DSQC652 digital I/O module or DSQC651 analog I/O board, verify that brake interlock signals are being correctly processed and that no I/O channel has drifted out of specification.
For systems with fieldbus communication, the DSQC688 DeviceNet gateway or DSQC378B profibus adapter should be confirmed operational, as communication faults can mask or misreport brake circuit errors. Terminal blocks and wiring harnesses within the cabinet should be inspected for heat damage or loose connections, particularly on the brake release circuit. If the IRC5 system includes a FlexPendant (DSQC679), verify that the teach pendant cable and connector are undamaged, as pendant faults can interfere with brake release commands during manual jogging.
Maintaining a minimum spare inventory of one DSQC1050 per IRC5 controller cluster is recommended for facilities running continuous or multi-shift operations. For older IRC5 systems approaching end-of-support, stocking two units provides additional buffer against lead-time risk.
Site Replacement Workflow
The DSQC1050 is a direct replacement for earlier brake plate revisions used in IRC5 controllers. Before installation, confirm the controller firmware version is compatible with the replacement part revision — ABB RobotWare release notes should be consulted if the system is running firmware older than RobotWare 6.x.
Step 1 — Safe Shutdown: Execute a controlled power-off sequence via the IRC5 main switch. Confirm all axes are in a safe, mechanically supported position before releasing brakes manually.
Step 2 — Cabinet Access: Open the IRC5 cabinet door and locate the brake plate assembly on the drive module rack. Document the existing wiring layout with photographs before disconnection.
Step 3 — Component Removal: Disconnect brake circuit connectors and carefully remove the DSQC1050. Inspect the mounting surface and connector pins for corrosion or mechanical damage.
Step 4 — Installation: Seat the new DSQC1050 firmly, reconnect all brake circuit wiring per the original layout, and verify connector locking.
Step 5 — Functional Test: Power up the IRC5 controller and run a brake test sequence via RobotStudio or the FlexPendant. Confirm no brake-related error codes are present and that all axes hold position correctly under gravity load.
This workflow minimizes downtime by ensuring the replacement is completed in a single maintenance window, with no secondary call-back required for commissioning.
Spare Parts Support FAQ
Q1: Is the DSQC1050 (3HAC064474-001) compatible with all IRC5 variants?
The DSQC1050 is designed for the ABB IRC5 controller family, including single-cabinet and dual-cabinet configurations. Compatibility with specific robot models (IRB 1600, IRB 2600, IRB 4600, IRB 6700, etc.) should be verified against the robot’s spare parts manual or by cross-referencing the 3HAC064474-001 part number in ABB’s documentation. Contact our team for compatibility confirmation before ordering if you are unsure.
Q2: What is the warranty coverage and what does it include?
All DSQC1050 units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional verification testing prior to dispatch to ensure it meets OEM performance standards.
Q3: How quickly can the DSQC1050 be shipped, and is long-term supply guaranteed?
In-stock units are dispatched within 1–3 business days. For customers requiring ongoing supply for multi-site maintenance programs or annual MRO contracts, we support scheduled delivery arrangements to ensure consistent availability without lead-time risk.
Q4: Can the DSQC1050 replace older brake plate revisions in legacy IRC5 systems?
Yes. The 3HAC064474-001 revision is the current OEM part and is backward compatible with earlier IRC5 brake plate variants in most configurations. For systems running legacy RobotWare versions, we recommend confirming the firmware compatibility window before installation. Our technical support team can assist with revision cross-referencing for older IRC5 installations.
