ABB DSQC541 Safety-Enhanced Backplane Module for Harsh Industrial Sites

ABB DSQC541 Safety-Enhanced Backplane Module for Harsh Industrial Sites

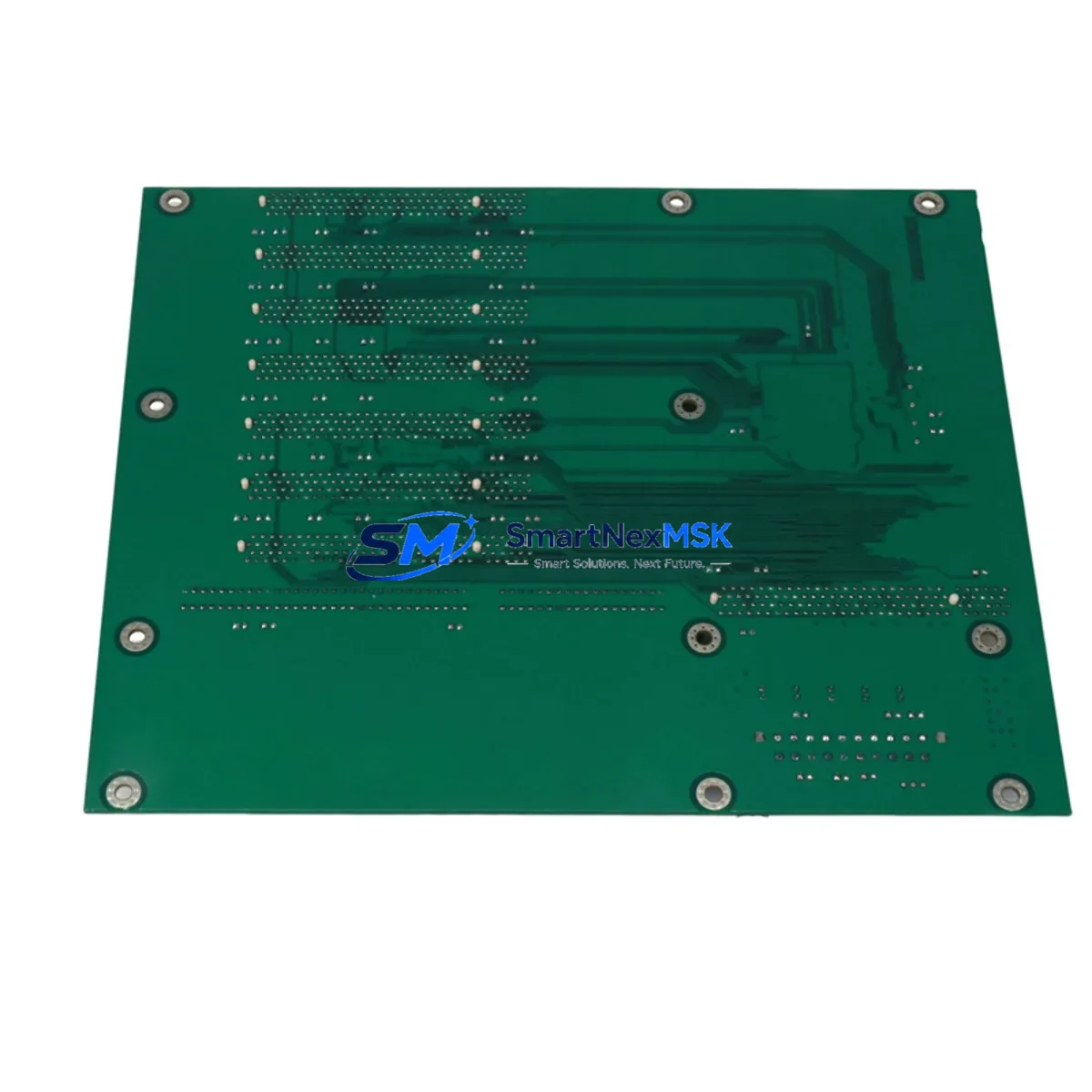

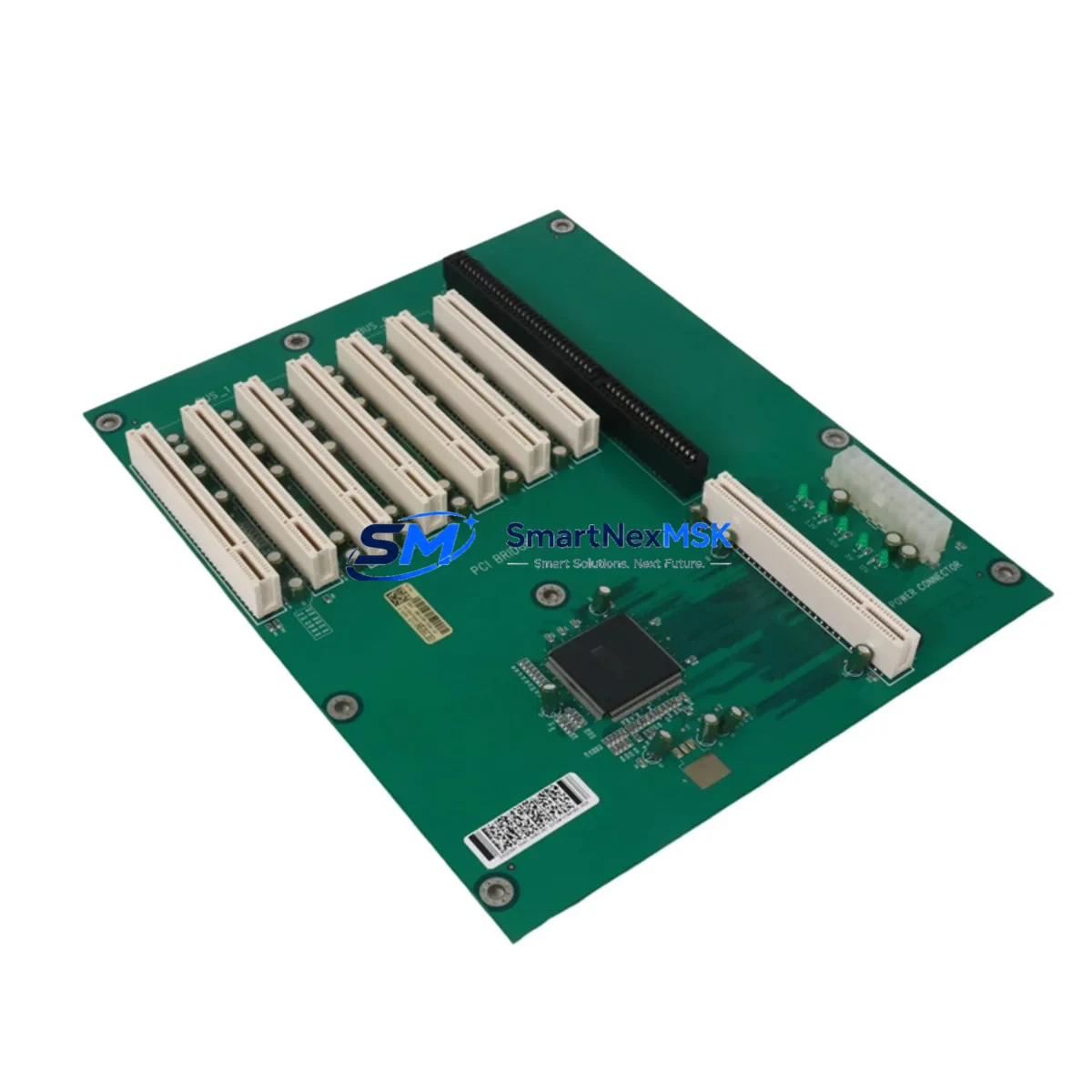

The ABB DSQC541 (also referenced as 3HAC025338-001) is a ruggedized backplane module engineered for the ABB IRC5 robot controller platform — one of the most widely deployed motion-control architectures in global industrial automation. In high-demand production environments where control continuity is non-negotiable, the DSQC541 serves as the central interconnect backbone that binds the IRC5 controller’s internal subsystems: drive units, I/O boards, computer modules, and safety-rated communication buses all depend on this backplane for stable, low-latency signal routing.

Designed and manufactured in Germany to ABB’s stringent quality standards, the DSQC541 is built to sustain reliable operation across the full spectrum of harsh industrial conditions — from the vibration-intensive floors of automotive body shops and heavy press lines, to the thermally aggressive interiors of steel mill control cabinets, to the chemically corrosive atmospheres found in petrochemical processing facilities. Its robust PCB construction and gold-plated connector interfaces resist oxidation, micro-arcing, and contact degradation that commonly cause intermittent faults in lesser-grade backplane assemblies.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered IRC5 control cabinet, the DSQC541 backplane module does not operate in isolation — it is the structural foundation upon which a layered protection strategy is built. The ABB DSQC609 power supply unit delivers the regulated 24 VDC that feeds the backplane’s internal rails; any instability in this supply — caused by grid fluctuations, capacitor aging, or inrush events — will manifest as erratic behavior across every module seated on the DSQC541. Pairing the DSQC541 with a verified DSQC609 eliminates this upstream risk.

The ABB DSQC662 fieldbus adapter and DSQC688 DeviceNet board connect to the backplane’s communication slots, enabling real-time I/O exchange with field devices, safety PLCs, and distributed control systems. Signal integrity on these buses is directly dependent on the backplane’s impedance characteristics and ground plane quality — both of which the DSQC541 maintains to ABB factory specification. In safety-critical interlock circuits, where a missed I/O signal can trigger an unplanned shutdown or, worse, a hazardous machine state, this signal fidelity is not a convenience — it is a safety requirement.

The ABB DSQC563 I/O board and DSQC652 digital I/O unit mount directly to the backplane and handle discrete safety signals — emergency stop chains, light curtain inputs, door interlock relays, and two-hand control circuits. A degraded backplane connector can introduce intermittent open-circuit conditions on these safety channels, causing nuisance trips or, in worst-case scenarios, masking a genuine safety fault. Replacing an aged or damaged DSQC541 with a tested unit restores the integrity of these safety signal paths.

For motion control continuity, the ABB DSQC508 axis computer and DSQC532 drive system interface rely on the backplane’s high-speed data bus to synchronize servo commands with encoder feedback. In high-cycle applications — automotive spot welding, palletizing lines, or continuous casting operations — even microsecond-level communication latency introduced by a failing backplane can cause position errors, torque faults, or axis following errors that halt production. The DSQC541’s bus architecture is designed to sustain deterministic communication timing across all connected drive and compute modules.

Surge events — whether from nearby VFD switching, capacitor bank discharge, or lightning-induced transients on incoming power — represent one of the most common causes of backplane damage in industrial environments. Incorporating a Phoenix Contact TRABTECH or equivalent DIN-rail surge protection device upstream of the IRC5 cabinet’s power entry point, combined with a properly grounded ABB DSQC541 backplane, provides a two-layer defense against transient overvoltage propagation into the controller’s internal bus.

Critical Industrial Safety Applications

Petrochemical and Refinery Automation: In continuous process plants where robot-assisted valve actuation, pipeline inspection, and hazardous material handling are performed, the IRC5 controller must maintain uninterrupted operation across multi-week production campaigns. The DSQC541 backplane’s resistance to chemical vapor ingress and its stable bus performance under sustained thermal load make it the preferred replacement component for maintenance teams managing ATEX-zone robot installations.

Electric Power Generation and Transmission: Substation automation and turbine control rooms deploy ABB IRC5 systems for precision positioning of high-voltage switching equipment and transformer tap changers. In these environments, electromagnetic interference from high-current bus bars and switching transients is severe. The DSQC541’s shielded backplane architecture maintains signal integrity in these high-EMI conditions, preventing spurious axis commands that could cause equipment damage or personnel hazards.

Mining and Mineral Processing: Underground and open-pit mining operations use IRC5-controlled robots for drilling, blasting preparation, and ore handling in environments characterized by extreme vibration, dust ingress, and wide temperature swings. The DSQC541’s mechanical robustness and vibration-rated connector system ensure that the backplane maintains electrical continuity even under the shock loads typical of blast-adjacent installations.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on automated robot systems for pipe inspection, chemical dosing, and UV treatment cell maintenance. The high-humidity, chemically aggressive atmosphere of these facilities accelerates connector corrosion on standard backplane modules. The DSQC541’s gold-plated contacts and conformal-coated PCB resist this degradation, extending service intervals and reducing unplanned maintenance events.

Metallurgy and Steel Production: Continuous casting lines, rolling mills, and ladle handling systems operate around the clock in environments where ambient temperatures routinely exceed 45°C and radiant heat from molten metal adds additional thermal stress to control cabinet components. The DSQC541’s rated operating temperature envelope and thermal design ensure stable backplane performance in these demanding metallurgical applications.

Port and Container Terminal Automation: Automated stacking cranes and ship-to-shore gantry systems in port environments expose IRC5 controllers to salt-laden air, wide diurnal temperature cycles, and high-vibration operating conditions. Scheduled replacement of the DSQC541 backplane module as part of a preventive maintenance program — rather than reactive replacement after failure — is the standard practice recommended for maintaining crane availability targets above 98%.

Safety and Quality FAQ

Q: What does the 12-month warranty cover for the DSQC541?
A: The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified backplane interconnect function within the warranty period, we provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery.

Q: What outgoing inspection and testing is performed before shipment?
A: Every DSQC541 unit undergoes a full functional test prior to dispatch. This includes power-on verification, bus continuity testing across all connector positions, and visual inspection for physical damage, connector pin integrity, and PCB condition. Units that do not pass all test criteria are quarantined and not shipped.

Q: Is this DSQC541 compatible with all IRC5 controller variants?
A: The DSQC541 (3HAC025338-001) is compatible with the full range of ABB IRC5 controller variants, including the IRC5 Single Cabinet, IRC5 Compact, and IRC5 Panel Mounted Controller configurations. If you are unsure about compatibility with a specific IRC5 revision or robot model, please contact our technical team with your controller serial number for confirmation before ordering.

Q: Can you support long-term supply for ongoing maintenance programs?
A: Yes. We maintain standing inventory of the DSQC541 and other critical IRC5 spare parts to support planned maintenance schedules, annual shutdown programs, and emergency replacement requirements. For customers managing fleets of IRC5 robots, we offer reserved stock arrangements and priority dispatch to ensure that a backplane failure never becomes a multi-day production stoppage. Contact our team to discuss your ongoing supply requirements.
