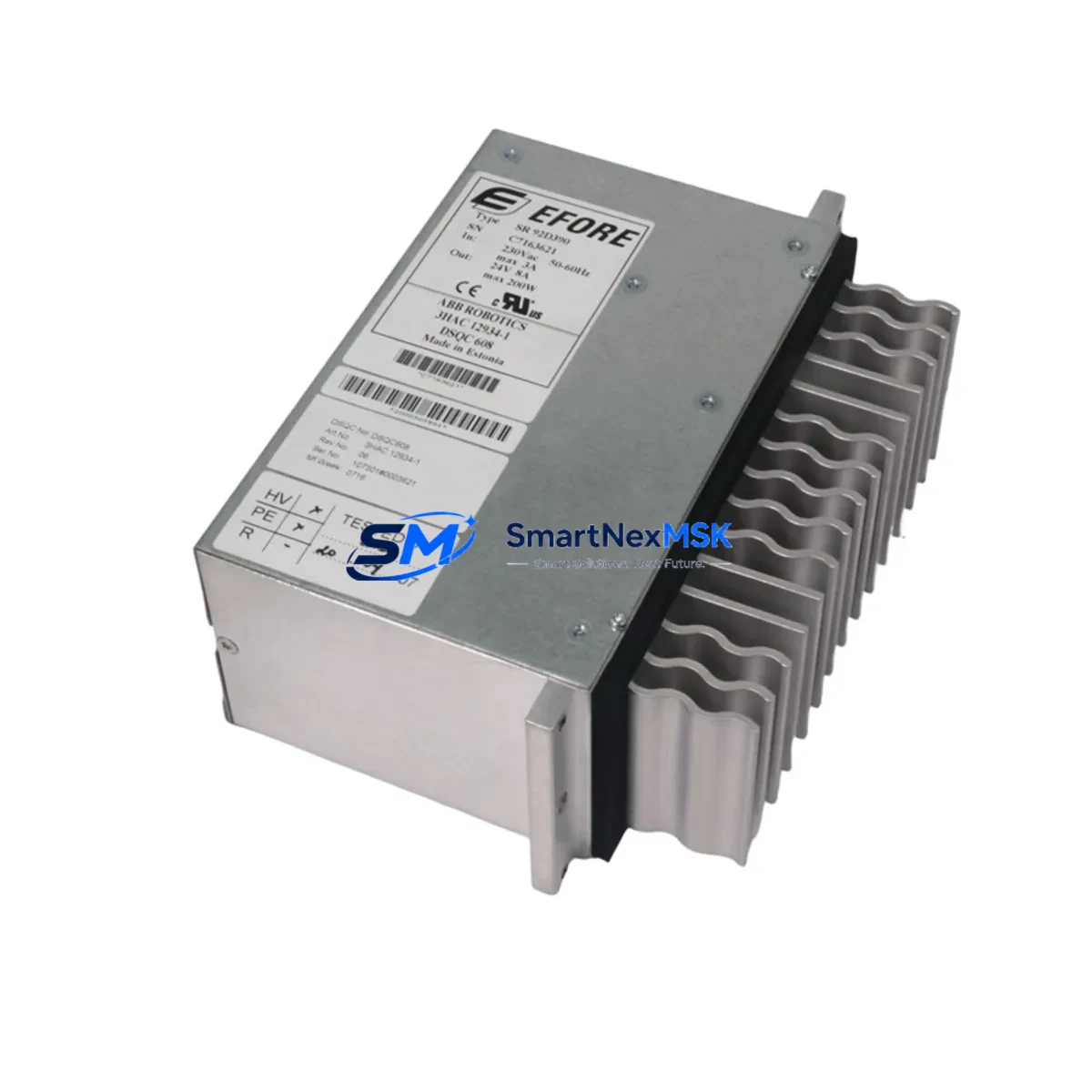

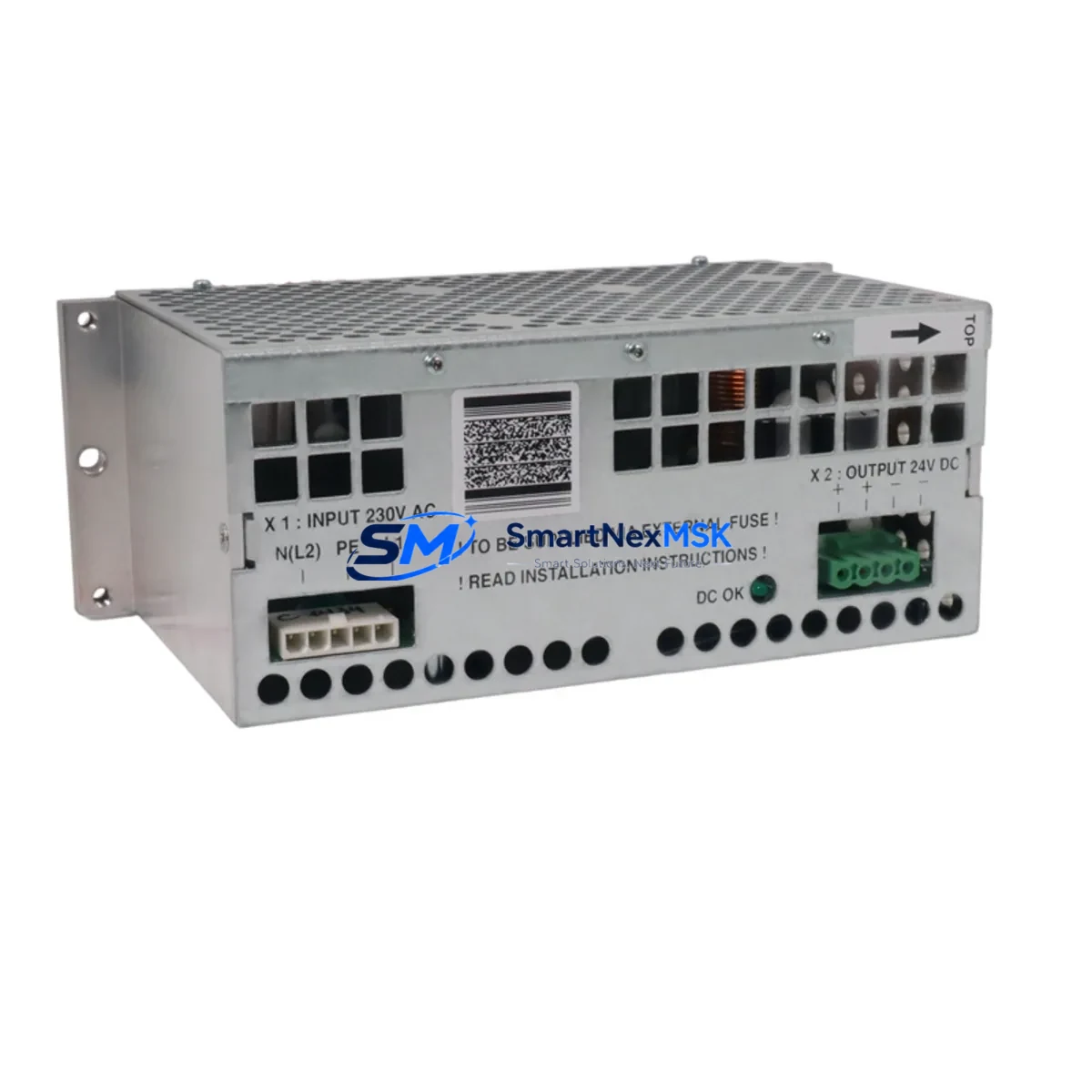

The ABB DSQC608 is an original Customer I/O Power Supply Module designed for ABB IRC5 robot controller cabinets. As a critical power distribution component within the IRC5 control architecture, the DSQC608 supplies regulated DC power to customer-side I/O circuits, ensuring stable signal integrity across digital input/output channels during continuous production cycles. When this module fails or degrades, the entire robot cell faces unplanned downtime — making rapid, verified spare availability a top priority for maintenance and procurement engineers alike.

Sourced as a genuine ABB spare, the DSQC608 carries full traceability and is tested prior to shipment to confirm electrical performance within OEM specification. Each unit is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Whether you are managing a planned overhaul, responding to an emergency fault, or building a strategic spare parts buffer for a multi-robot cell, the DSQC608 is a direct, plug-compatible replacement for the original module installed in IRC5 single-cabinet and dual-cabinet configurations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the DSQC608 in an IRC5 cabinet is rarely an isolated task. Experienced maintenance engineers treat a Customer I/O Power Supply failure as a trigger for a broader cabinet inspection, because power rail instability can stress adjacent modules and mask secondary faults. When servicing the DSQC608, the following components in the same electrical circuit and control architecture should be inspected or staged as concurrent spares:

The DSQC609 (Axis Computer) and DSQC663 (Drive Unit) share the same cabinet power distribution and should be checked for abnormal heat signatures or fault logs after any power supply event. The DSQC611 I/O module and DSQC652 digital I/O board are directly downstream of the DSQC608’s 24 VDC output — any sustained overvoltage or undervoltage from a failing DSQC608 can corrupt I/O channel calibration or damage input protection circuits on these boards. Verify their channel response after replacement.

On the power input side, inspect the DSQC604 main computer power supply and confirm that the 24 VDC bus feeding the customer I/O rail is within tolerance before installing the new DSQC608. A faulty upstream supply will shorten the life of the replacement module. Check the cabinet’s fuse block and circuit breakers — blown fuses on the I/O power rail are a common symptom of a shorted DSQC608 and must be replaced before re-energizing.

For robot cells with external PLC integration, review the DeviceNet or PROFIBUS communication module (such as the DSQC378B or DSQC688) to confirm that fieldbus communication was not interrupted during the fault event. Signal isolation barriers and surge protection devices on the customer I/O terminal strips should also be tested, as transient events that damage the DSQC608 often propagate to connected field wiring. Finally, if the IRC5 cabinet includes an ABB FlexPendant (IRC5 teach pendant) or operator panel, verify that the pendant communication link and emergency stop circuit are fully functional after power restoration.

Maintaining a minimum stock of one DSQC608 per robot cell — or one per every three cells in high-utilization environments — is a widely adopted strategy among maintenance planners to eliminate procurement lead time as a downtime variable.

Site Replacement Workflow

Step 1 — Fault Confirmation: Use the IRC5 FlexPendant or RobotStudio to read active fault codes. Error codes in the 71xxx series (I/O power supply faults) typically point to the DSQC608. Confirm with a calibrated multimeter that the 24 VDC output on the customer I/O rail is absent or out of tolerance.

Step 2 — Safe Isolation: Execute a controlled robot stop (motors off, program stopped). Open the IRC5 cabinet door and isolate the main power disconnect. Follow LOTO (Lockout/Tagout) procedure before touching any internal module.

Step 3 — Module Removal: Disconnect the customer I/O wiring harness connectors from the DSQC608. Note connector positions and cable routing before removal. Unscrew the module retaining screws and slide the module out of its slot. Inspect the slot and backplane connector for burn marks or corrosion.

Step 4 — Replacement Installation: Insert the new DSQC608 into the same slot. Secure retaining screws to the specified torque. Reconnect all wiring harnesses in the original positions. Verify that no cables are pinched by the cabinet door.

Step 5 — Power-Up and Verification: Restore main power. Confirm that the IRC5 controller boots without I/O power fault codes. Measure the 24 VDC output on the customer I/O rail. Run a dry-cycle test of all I/O channels before resuming production. Log the replacement in the maintenance record with date, module serial number, and technician ID.

This workflow is compatible with IRC5 firmware versions from RobotWare 5.x through RobotWare 6.x. No software reconfiguration is required for a like-for-like DSQC608 replacement — the module is hardware-configured and does not carry user-programmable parameters.

Spare Parts Support FAQ

Q1: Is the DSQC608 compatible with all IRC5 cabinet variants?
The DSQC608 is designed for the standard IRC5 single-cabinet and dual-cabinet configurations. Compatibility with IRC5 Compact and IRC5 Panel Mounted Controller variants depends on the specific cabinet revision and RobotWare version. Please provide your cabinet serial number or system revision when ordering to allow our technical team to confirm fit before shipment.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, physical impact, or use outside the specified environmental ratings. Warranty claims are processed with return shipment and replacement or refund at our discretion.

Q3: How is the DSQC608 tested before shipment?
Each DSQC608 unit undergoes electrical function verification prior to dispatch. This includes output voltage measurement under load and visual inspection of the PCB, connectors, and housing. Units that do not meet OEM electrical specifications are quarantined and not shipped. A test report is available upon request for critical applications.

Q4: Can I use the DSQC608 as a long-term spare for an aging IRC5 system?
Yes. The DSQC608 is a direct hardware replacement and does not require firmware updates or software reconfiguration. It is an ideal life-extension spare for IRC5 systems that are no longer covered by ABB’s standard service contracts. Maintaining one or two units in your on-site spare parts inventory eliminates procurement delays and supports a mean-time-to-repair (MTTR) target of under four hours for I/O power supply faults.
