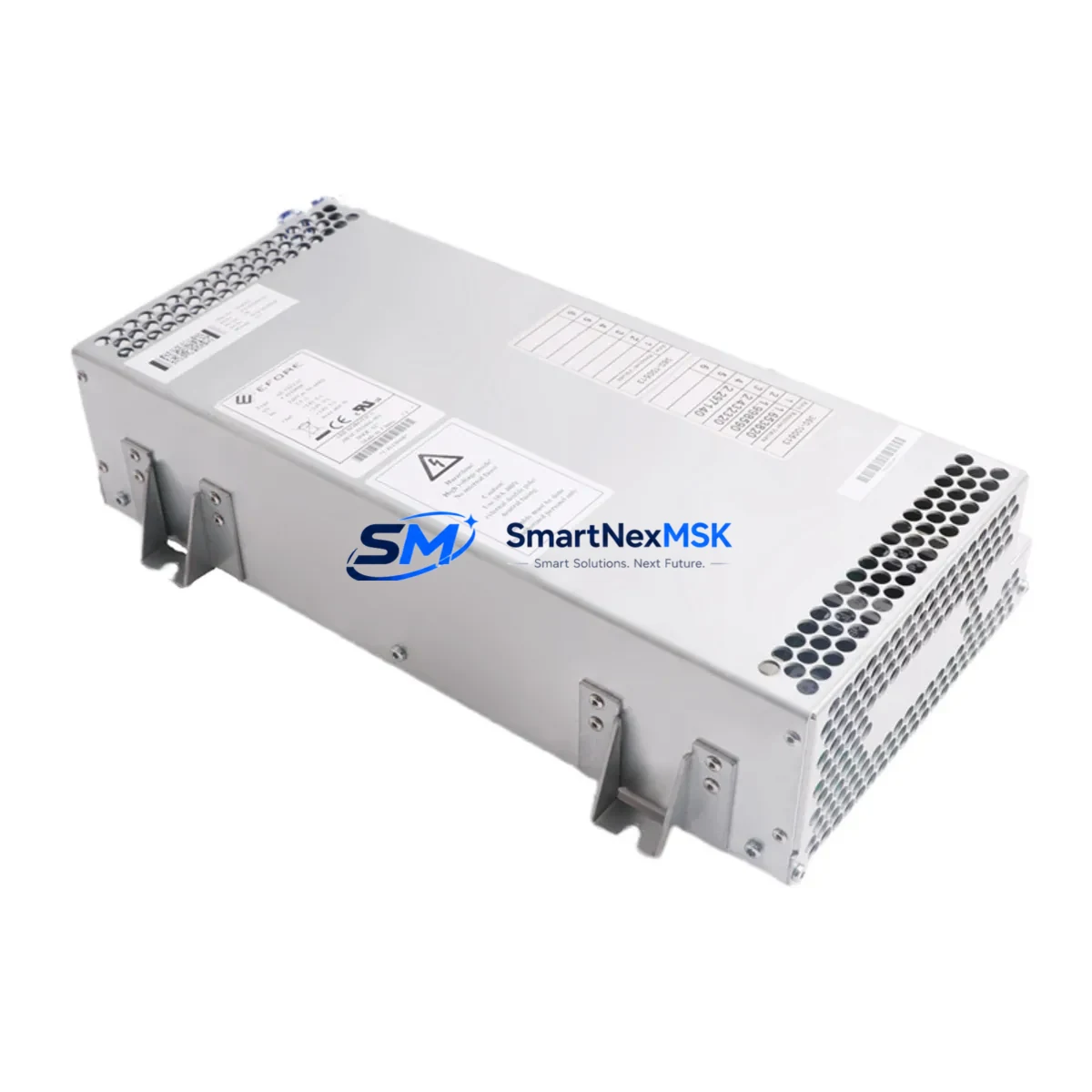

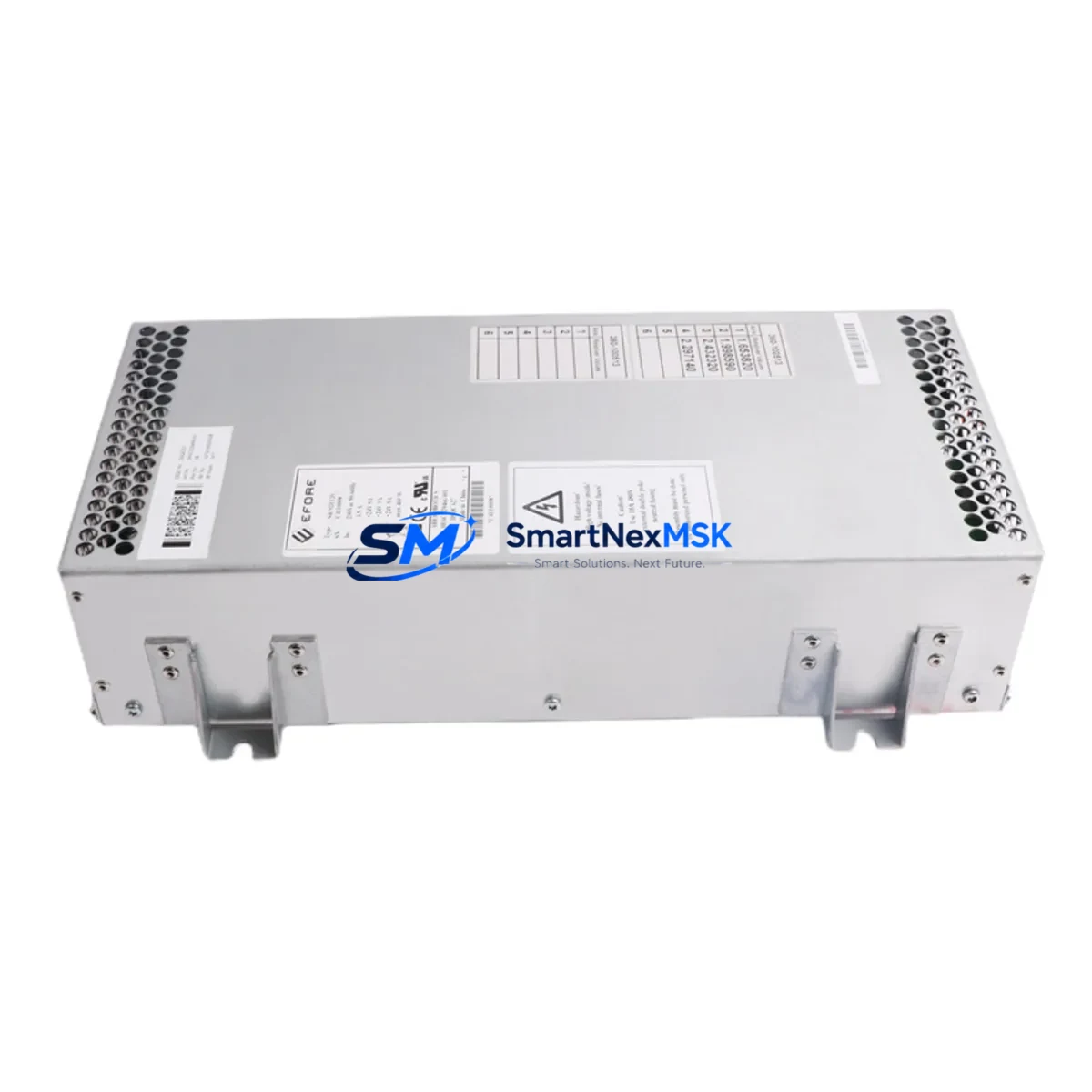

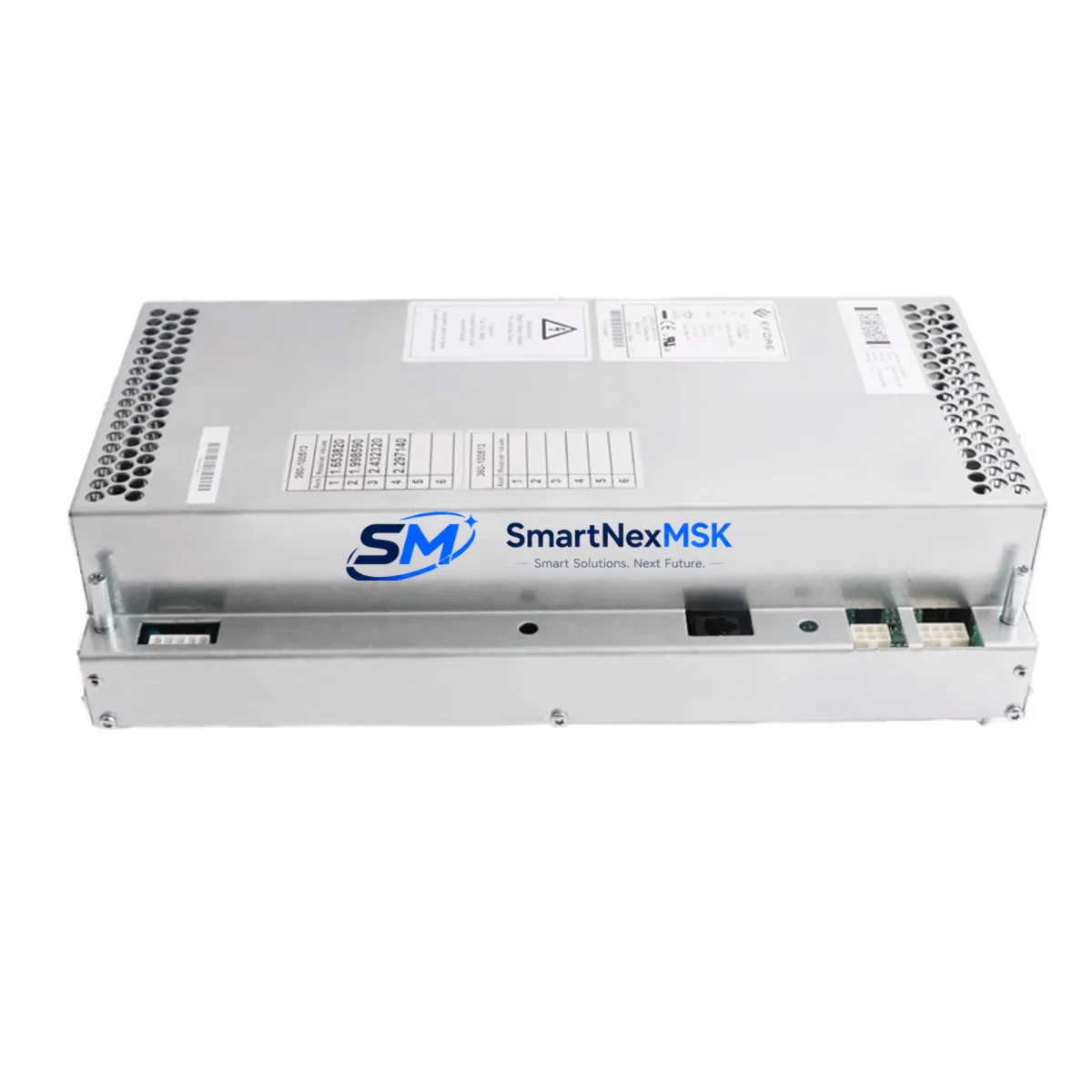

The ABB DSQC627 (part number 3HAC020466-001) is the original 24 VDC system power supply unit designed for the ABB IRC5 robot controller cabinet. In industrial automation environments — automotive body shops, foundry lines, palletizing cells, and precision assembly stations — this module is the backbone of the controller’s internal power distribution. When it fails, the entire robot cell goes offline. Maintaining a verified spare on the shelf is the single most effective strategy to minimize unplanned downtime and protect production continuity.

This listing supplies an original ABB DSQC627 unit, sourced through established industrial channels, individually tested prior to dispatch, and backed by a 12-month warranty. Each unit ships with basic inspection documentation confirming output voltage stability and connector integrity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Experienced maintenance engineers know that a power supply failure in the IRC5 cabinet rarely occurs in isolation. When the DSQC627 is replaced during a planned or emergency shutdown, the surrounding components in the same power distribution circuit should be inspected simultaneously to prevent a repeat failure within the same maintenance window.

Start with the DSQC609 (3HAC025484-001), the IRC5 axis computer board, which draws regulated 24 VDC directly from the DSQC627 output rail. A degraded power supply can cause intermittent axis faults that are misdiagnosed as encoder or drive issues. Inspect the DSQC611 drive unit and the DSQC612 rectifier unit for signs of thermal stress or capacitor bulge — both are in the same power chain and share the same cabinet thermal environment.

Check the DSQC652 digital I/O board and DSQC651 analog I/O board for voltage rail stability. Unstable 24 VDC from a failing DSQC627 can corrupt I/O signal states, leading to false safety trips or missed sensor inputs. While the cabinet is open, inspect the DSQC662 fieldbus communication module — communication dropouts are a common downstream symptom of power rail noise.

The FlexPendant teach pendant and its cable assembly should also be tested after a power supply replacement, as voltage transients during failure can damage the pendant interface. Inspect the DSQC679 main computer unit for any fault logs that accumulated during the power degradation period — clear confirmed faults only after verifying root cause.

For cabinet-level maintenance, verify the condition of the 24 VDC fuse block and terminal strips on the power distribution rail. Loose terminal connections are a leading cause of intermittent power faults that accelerate DSQC627 wear. If the site uses a DSQC633 or DSQC634 safety board, confirm that the safety circuit 24 VDC input is within tolerance after the replacement — safety board undervoltage can prevent the robot from enabling even after a successful power supply swap.

Procurement engineers should consider stocking the DSQC627 alongside the DSQC609 and DSQC652 as a minimum IRC5 critical-spare kit. These three modules cover the majority of IRC5 controller downtime events and can be sourced together to reduce per-unit logistics cost.

Site Replacement Workflow

Step 1 — Isolation: Place the robot in a safe state via the FlexPendant. Switch the IRC5 main breaker to OFF and apply lockout/tagout per site procedure. Allow the cabinet to discharge for a minimum of 5 minutes before opening.

Step 2 — Documentation: Photograph the existing DSQC627 wiring harness routing and connector positions before disconnection. The multi-pin connectors are keyed but documenting the as-found state prevents reassembly errors.

Step 3 — Removal: Disconnect the AC input connector and all 24 VDC output harnesses. Release the DIN rail clip or backplane mounting screws. Slide the unit out of the cabinet slot.

Step 4 — Inspection: Before installing the replacement DSQC627, inspect the cabinet interior for signs of moisture ingress, carbon tracking, or burnt insulation that may have contributed to the original failure. Address root cause before powering up.

Step 5 — Installation: Seat the new DSQC627 into the cabinet slot. Reconnect all harnesses in the documented sequence. Verify connector latch engagement on each plug.

Step 6 — Commissioning: Restore power and observe the IRC5 startup sequence. Confirm 24 VDC output stability using a calibrated multimeter at the distribution rail test points. Clear any residual fault codes via RobotStudio or the FlexPendant. Run a slow-speed test cycle before returning the cell to production.

This workflow supports a target replacement time of under 90 minutes for a trained technician, minimizing production impact and avoiding the need for an OEM field service call.

Spare Parts Support FAQ

Q1: Is this DSQC627 unit compatible with all IRC5 controller variants?
The DSQC627 (3HAC020466-001) is compatible with the standard IRC5 Single Cabinet and Dual Cabinet controllers across the M2004 through M2007 generations. It is not designed for the IRC5 Compact or IRC5 Panel Mounted Controller variants, which use different power supply form factors. If you are unsure of your controller generation, provide the IRC5 serial number and we will confirm compatibility before shipment.

Q2: What pre-shipment testing is performed on each unit?
Every DSQC627 unit is bench-tested for output voltage regulation, load stability, and connector integrity prior to dispatch. Units that do not meet ABB original specification are not shipped. A basic test record is available on request. The 12-month warranty covers functional failure under normal operating conditions from the date of receipt.

Q3: How should the DSQC627 be stored as a long-term shelf spare?
Store in original anti-static packaging in a dry environment between 0°C and +40°C, away from direct sunlight and magnetic fields. Avoid stacking heavy items on the unit. For long-term storage exceeding 12 months, inspect the unit annually and power-cycle it briefly to maintain capacitor health. Label the spare with the purchase date and warranty expiry for inventory management purposes.

Q4: Can the DSQC627 be used to replace an older or discontinued ABB power supply in an IRC5 retrofit?
Yes. The DSQC627 is the current production replacement for earlier IRC5 power supply variants. In retrofit and life-extension projects for older IRC5 cabinets, the DSQC627 is the recommended upgrade path. Confirm that the cabinet firmware and axis computer (DSQC609) are at a compatible revision level before installation. Our technical team can advise on compatibility for specific retrofit scenarios.
