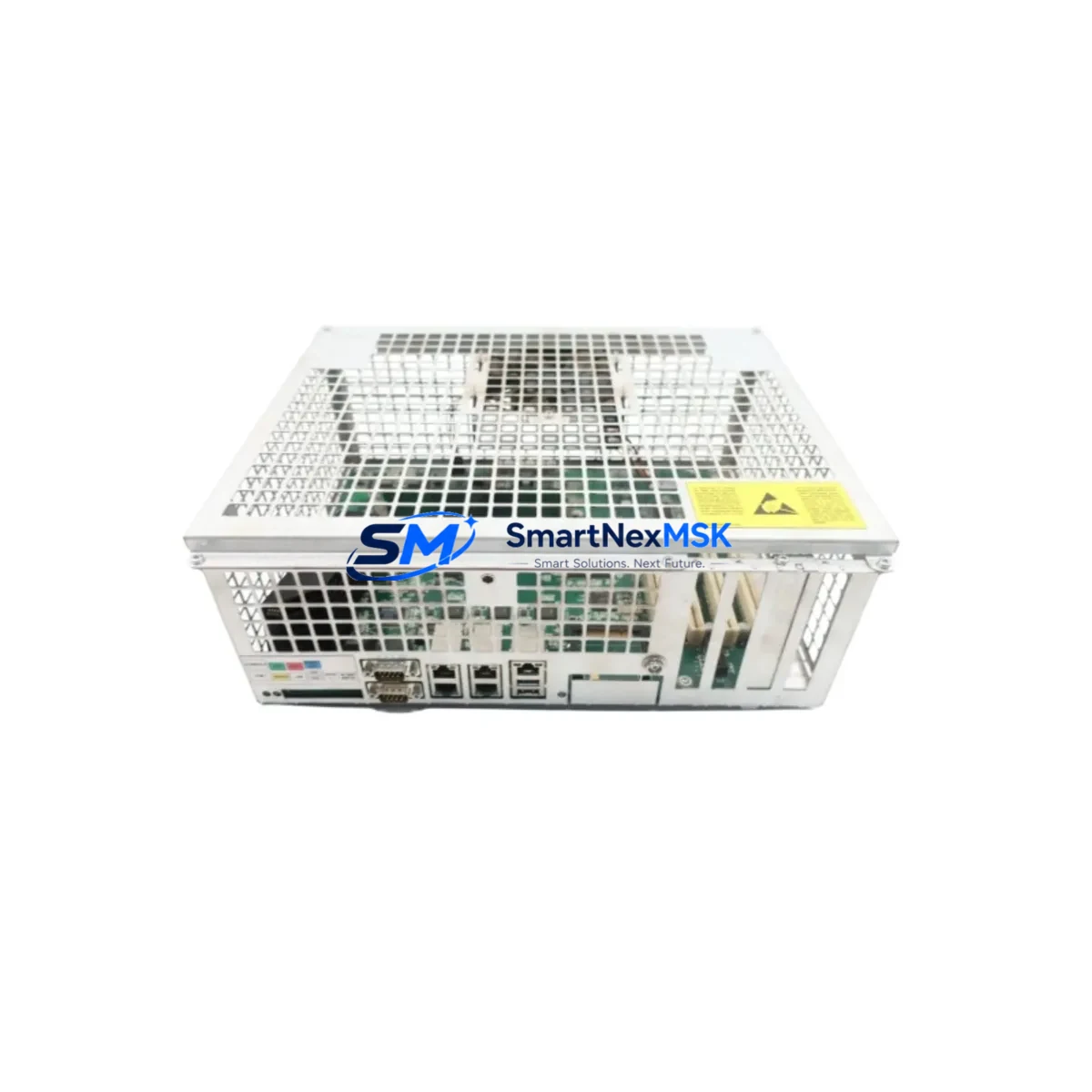

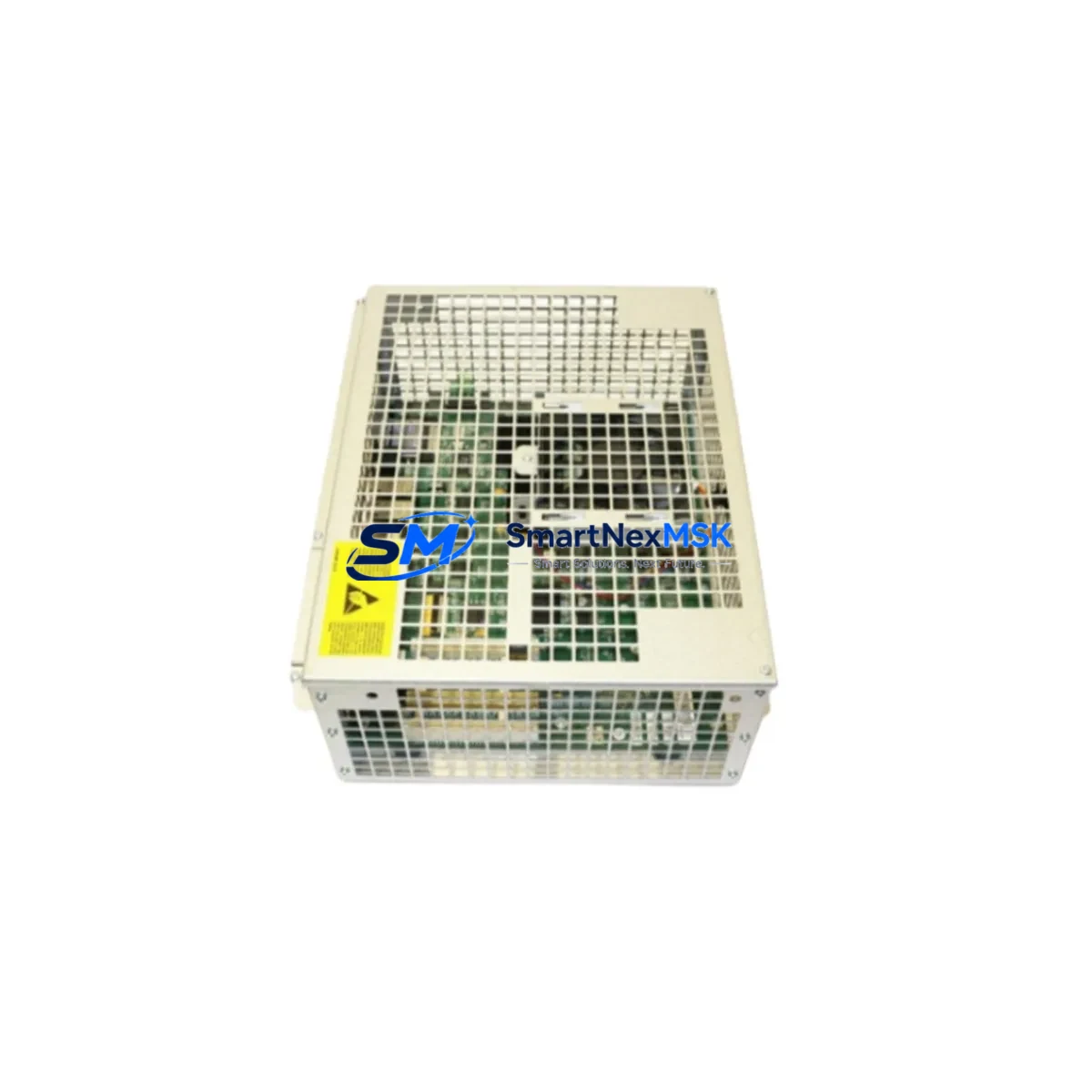

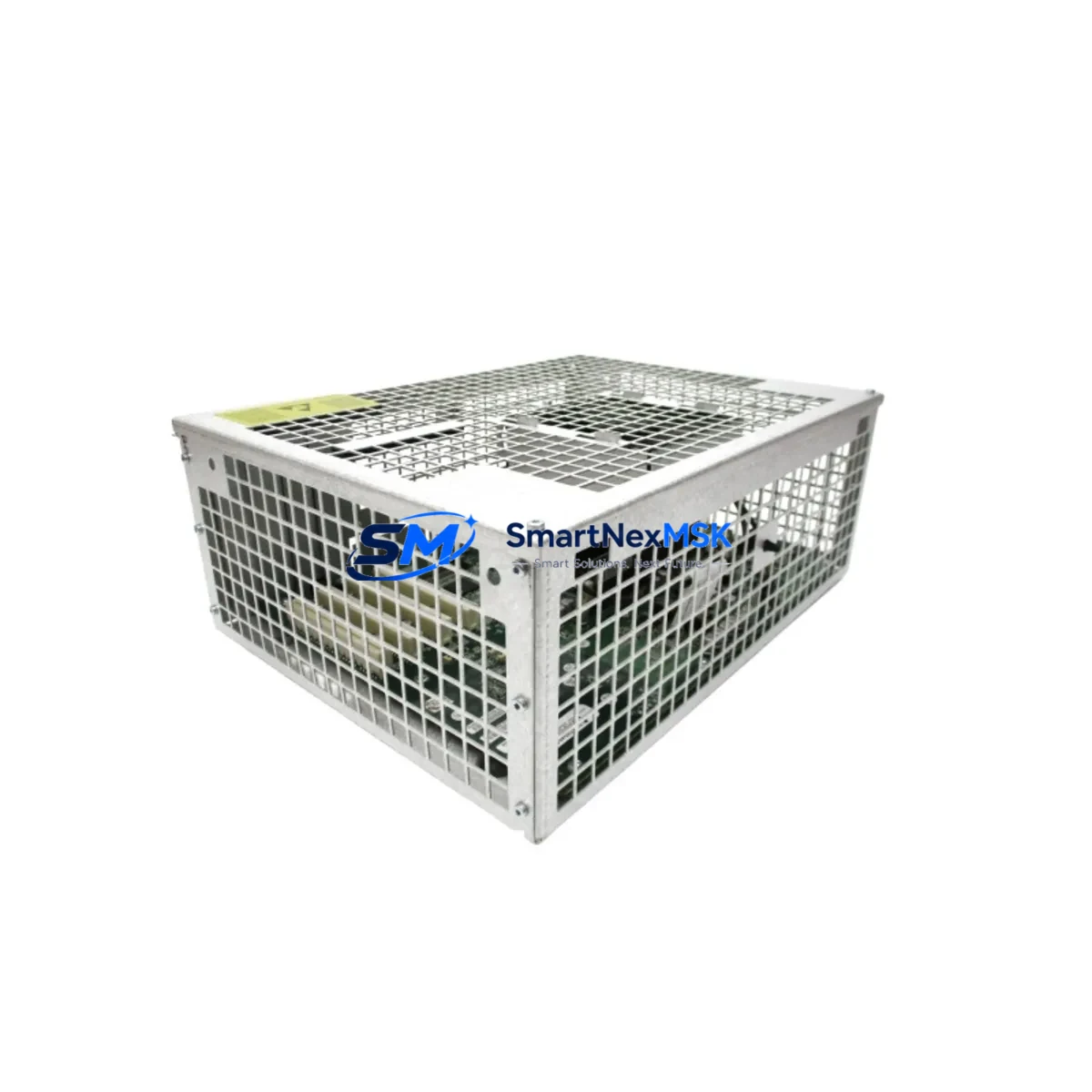

ABB DSQC639 3HAC041443-003 Safety-Enhanced Main Computer

ABB DSQC639 3HAC041443-003 Safety-Enhanced Main Computer for Harsh Industrial Sites

The ABB DSQC639 (part numbers 3HAC041443-003 and 3HAC025097-001) is the central processing and control unit of the ABB IRC5 robot controller cabinet. Engineered to operate continuously in demanding industrial environments — including high-vibration foundries, chemical processing plants, automotive body shops, and heavy-load palletizing lines — this main computer module serves as the command core for motion planning, I/O coordination, safety interlock execution, and real-time communication across the entire robot system. In critical production lines where unplanned downtime translates directly into financial loss and safety risk, the DSQC639 provides the processing stability and fault-tolerance that industrial operators depend on.

Unlike standard computing hardware, the DSQC639 is designed from the ground up for the electrical and mechanical stresses of industrial automation. Its ruggedized architecture resists signal drift caused by electromagnetic interference from variable frequency drives, high-current welding equipment, and large servo motors operating in close proximity. The module maintains stable communication with the IRC5 drive system — including the DSQC663 axis computer and DSQC668 drive unit — even under sustained electrical noise, ensuring that motion commands are executed precisely and safety interlocks are never compromised by communication anomalies.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly configured IRC5 control cabinet, the DSQC639 main computer does not operate in isolation — its reliability is directly tied to the health of every module it communicates with and every power rail it depends on. A surge event or power anomaly reaching the DSQC639 through an unprotected supply line can corrupt active motion programs, trigger unintended safety stops, or cause permanent damage to the processor board. For this reason, industrial engineers protecting critical robot cells typically pair the DSQC639 with a high-quality 24 VDC regulated power supply unit — such as the ABB DSQC609 power supply — to ensure clean, stable voltage delivery even during grid fluctuations or load switching transients on the factory floor.

The axis computer module DSQC663 works in direct coordination with the DSQC639, translating high-level motion commands into precise servo drive signals. Any communication interruption between these two modules — caused by a faulty backplane connector, a degraded ribbon cable, or an EMI-induced data error — can result in axis position errors or emergency stops during production. Maintaining a verified spare DSQC663 alongside the DSQC639 is standard practice in high-availability robot maintenance programs. Similarly, the DSQC668 drive unit and DSQC648 I/O module are integral to the IRC5 cabinet’s functional safety architecture: the DSQC648 handles digital and analog field signals, and any signal integrity failure at the I/O layer can propagate upstream to the main computer, causing false fault conditions or missed safety interlock signals.

For facilities operating multiple IRC5 robots on a shared network, the DSQC377B safety board and DSQC679 teach pendant interface unit are equally important components to maintain in inventory. The DSQC377B manages the hardware emergency stop and safeguard relay chain — a component whose failure can disable an entire robot cell — while the DSQC679 provides the operator interface through which safety parameters are configured and monitored. Protecting the DSQC639 as the system’s computational core means ensuring that every upstream and downstream component in the safety chain is equally reliable, tested, and available for rapid replacement when needed.

Critical Industrial Safety Applications

The ABB DSQC639 is deployed across a wide range of heavy industrial and process-critical environments where robot control reliability is directly linked to personnel safety and production continuity.

In automotive manufacturing — body welding, seam sealing, and assembly lines — IRC5-controlled robots operate in continuous multi-shift cycles with zero tolerance for unplanned stops. The DSQC639’s stable processing architecture ensures that safety zone monitoring, collaborative workspace interlocks, and emergency stop response times remain within certified parameters even after years of continuous operation in high-vibration, high-EMI welding environments.

In petrochemical and refinery facilities, robots equipped with IRC5 controllers and DSQC639 main computers are used for inspection, valve actuation, and material handling in areas where human entry is restricted due to hazardous atmospheres. The reliability of the main computer module in these applications is not merely an operational concern — it is a safety-critical requirement, as a controller failure in a restricted zone can delay emergency response and create secondary hazards.

In metallurgical and foundry operations — including die casting, forging, and hot metal handling — the DSQC639 must maintain stable operation in environments with extreme radiant heat, heavy airborne particulate, and powerful electromagnetic fields generated by induction furnaces and resistance welding equipment. The module’s industrial-grade design tolerances make it one of the few main computer platforms capable of sustaining reliable performance in these conditions without frequent replacement cycles.

In mining and mineral processing plants, where continuous operation of conveyor systems, sorting robots, and automated sampling equipment is essential, the DSQC639 provides the processing backbone for IRC5-controlled systems that must run reliably in dusty, high-humidity, and mechanically harsh conditions. Facilities in these sectors typically maintain on-site spare modules to minimize mean time to repair (MTTR) in the event of a controller fault.

In port and logistics automation — container handling, palletizing, and automated guided vehicle coordination — the DSQC639 supports high-throughput robot operations where a single controller failure can cascade into significant logistical delays. Operators in these environments rely on verified, pre-tested spare modules from trusted suppliers to ensure that replacement units can be installed and commissioned within a single maintenance window.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the DSQC639?
The 12-month warranty covers functional failure of the DSQC639 module under normal operating conditions consistent with ABB IRC5 system specifications. If the module fails to perform its intended control and communication functions within the warranty period, we will provide a replacement or repair at no additional cost. The warranty applies from the date of shipment and is supported by our pre-shipment test documentation.

Q2: How is each DSQC639 unit tested before shipment?
Every DSQC639 unit undergoes a full functional test prior to dispatch. This includes power-on verification, communication interface checks, and confirmation of core processing functions consistent with IRC5 system requirements. A test report is available upon request. We do not ship untested units, and all modules are inspected for physical integrity — including connector condition, board cleanliness, and firmware version — before packaging.

Q3: Is this DSQC639 compatible with all IRC5 controller variants?
The DSQC639 (3HAC041443-003 / 3HAC025097-001) is compatible with ABB IRC5 Single Cabinet and IRC5 Dual Cabinet controllers across a wide range of robot models, including IRB 1600, IRB 2600, IRB 4600, IRB 6640, and IRB 6700 series. Compatibility with specific robot software versions (RobotWare) should be confirmed against your controller’s existing configuration. Our technical team can assist with compatibility verification prior to purchase.

Q4: Can you guarantee long-term supply and replacement support for the DSQC639?
Yes. We maintain dedicated inventory of the DSQC639 and related IRC5 modules to support facilities with ongoing spare parts programs. For production-critical sites that require guaranteed availability, we recommend establishing a standing supply agreement to ensure that replacement units are accessible without lead-time risk. Our team provides consistent supply, technical support, and documentation for all modules we supply, backed by the 12-month warranty and pre-shipment testing standard.
