ABB DSQC663 3HAC029818-001 Retrofit-Ready Main Computer for IRC5 Control Systems

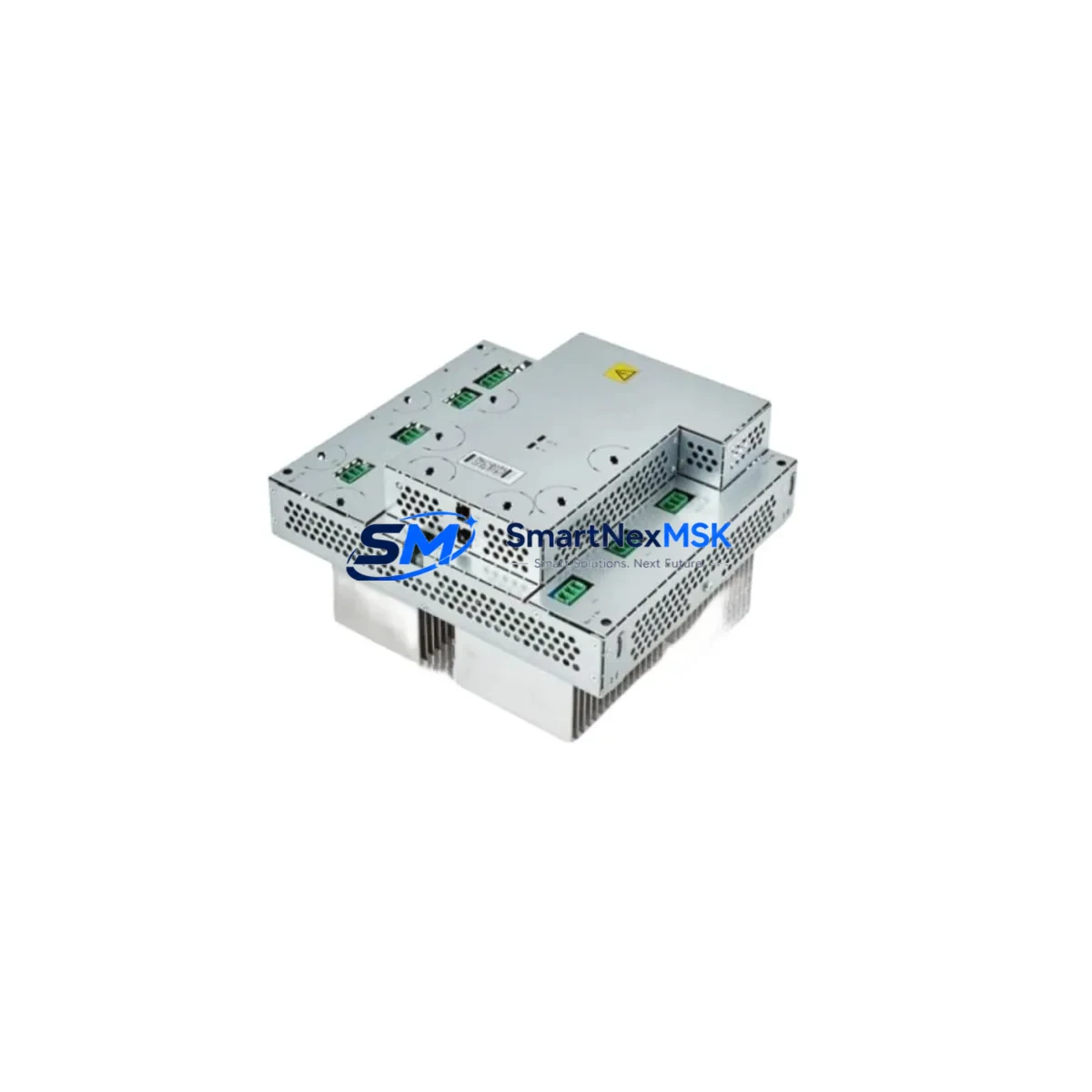

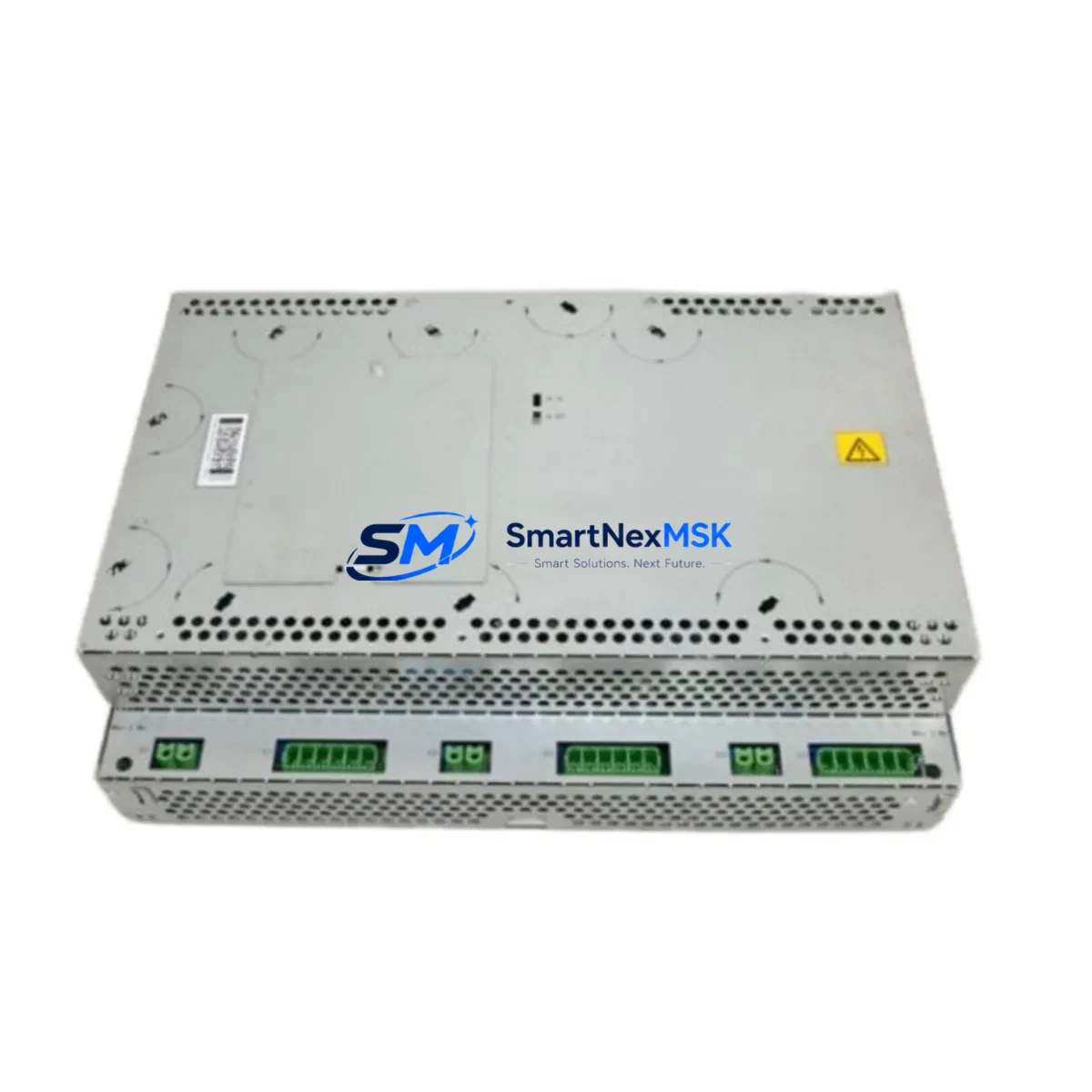

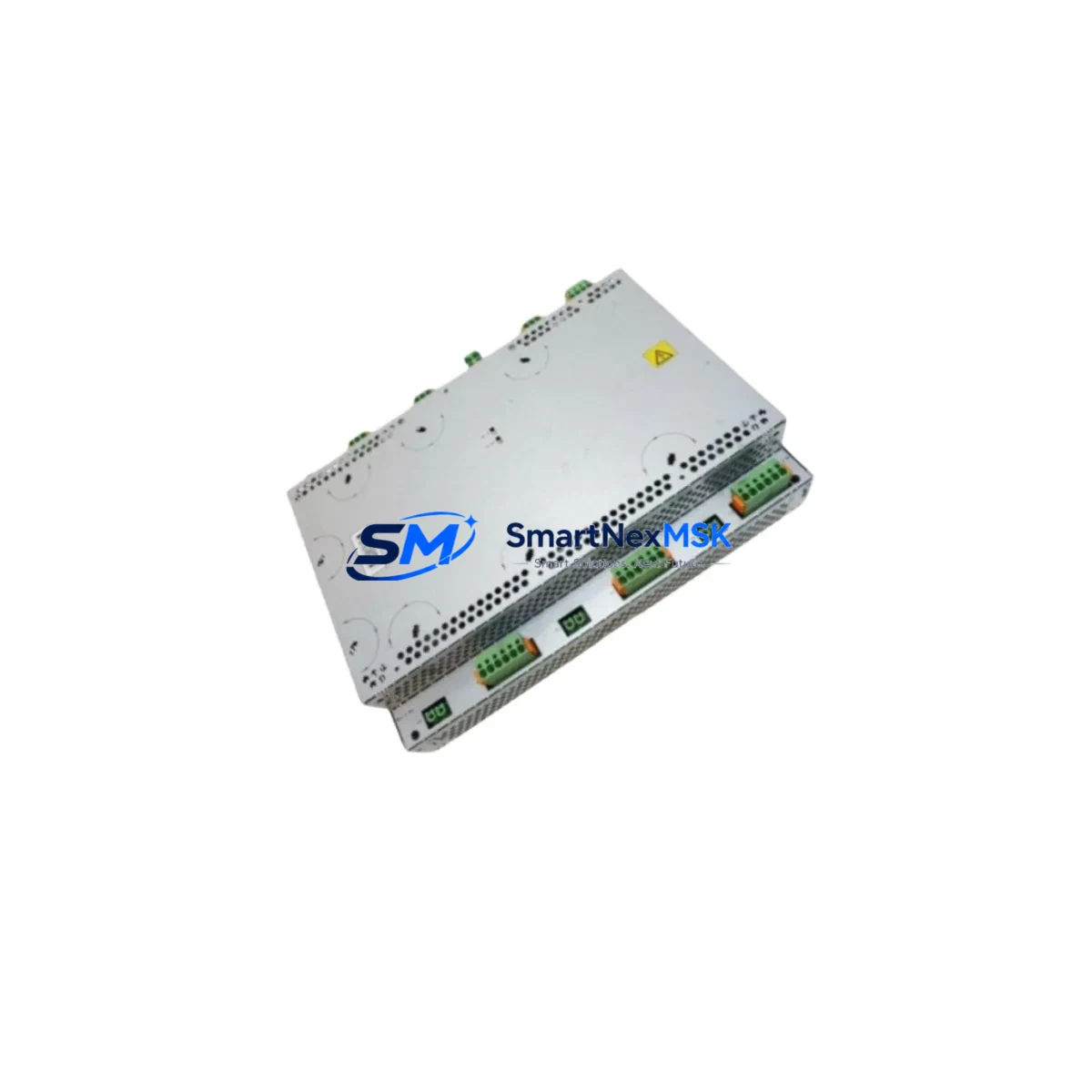

The ABB DSQC663 (Part No. 3HAC029818-001) is the main computer board for the ABB IRC5 robot controller family, serving as the central processing and coordination unit for all motion control, I/O management, and communication tasks within the cabinet. As ABB progressively phases out legacy IRC5 hardware, sourcing a verified, tested DSQC663 replacement has become a critical priority for maintenance engineers, system integrators, and automation managers responsible for keeping production lines operational.

This unit is fully compatible with the standard IRC5 single-cabinet and IRC5 Compact controller configurations. It interfaces directly with the IRC5 drive module, the DSQC609 power supply unit, and the DSQC652 digital I/O board via the internal backplane bus. Engineers retrofitting older IRC5 installations should verify the firmware revision on the existing DSQC663 before replacement, as RobotWare version compatibility between the main computer and the installed software key (FlexPendant license) must be confirmed prior to commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DSQC663 retrofit begins well before the replacement board arrives on-site. Engineers should start by exporting a full system backup from the existing IRC5 controller using RobotStudio or the FlexPendant backup utility. This backup captures the RAPID program, system parameters, I/O configuration, and safety settings — all of which must be restored to the new board after installation.

Within the IRC5 cabinet, the DSQC663 sits in the main computer slot of the controller backplane. Adjacent modules that must remain undisturbed during the swap include the DSQC609 power supply, which provides regulated 24 VDC to the computer section, and the DSQC652 digital I/O board, which handles discrete input and output signals to field devices. If the existing installation also uses a DSQC378 fieldbus adapter for DeviceNet or Profibus communication, the fieldbus node address and baud rate settings stored in the system parameters must be re-applied after the board replacement.

For IRC5 systems integrated with external SCADA or MES platforms via Ethernet, the LAN1 IP address, subnet mask, and gateway settings configured on the original DSQC663 must be documented before removal and re-entered during commissioning. Systems using the DSQC688 Ethernet/IP scanner module or the DSQC690 Profinet device board will require additional verification of the network topology and device mapping tables.

Where the IRC5 cabinet includes a DSQC662 axis computer for coordinated multi-axis motion, engineers should confirm that the axis computer firmware version is compatible with the replacement DSQC663 revision. Mismatched firmware between the main computer and axis computer is a common source of commissioning errors in retrofit projects and can result in motion supervision faults at startup.

If the retrofit scope extends to upgrading the teach pendant, note that the IRC5 FlexPendant (DSQC679) communicates with the main computer over a dedicated Ethernet link. The FlexPendant software version must be compatible with the RobotWare release running on the new DSQC663. In cases where the existing FlexPendant is also end-of-life, a simultaneous replacement of both units is recommended to avoid version mismatch faults.

Terminal wiring to the DSQC663 is limited to the Ethernet patch cables connecting LAN ports to the cabinet switch or external network, and the USB port used for software loading. All high-current power and signal wiring connects to downstream I/O and drive modules rather than to the main computer board directly, which simplifies the physical swap considerably.

Downtime Control During System Migration

Minimizing unplanned downtime during a DSQC663 replacement requires a structured pre-outage preparation protocol. Before scheduling the maintenance window, verify that the replacement board is on-hand and has passed pre-shipment functional testing. Confirm that the system backup is complete and restorable — a test restore in RobotStudio offline mode is strongly recommended before the live swap.

During the outage, follow the IRC5 shutdown sequence: disable the motor power, set the controller to manual mode, and power down the cabinet via the main disconnect. Remove the DSQC663 using ESD-safe handling procedures, noting the orientation and seating of the board in the backplane slot. Install the replacement unit, restore cabinet power, and load the system backup via the FlexPendant. Verify that all I/O signals, motion programs, and communication links are restored before returning the robot to automatic mode.

For production environments where even brief downtime is costly, consider maintaining a pre-configured spare DSQC663 with the current system backup pre-loaded. This approach reduces the live restoration time to under 30 minutes in most IRC5 configurations and protects against extended outages caused by backup corruption or network access issues during the swap.

Retrofit Support FAQ

Q1: Is the DSQC663 (3HAC029818-001) a direct drop-in replacement for the DSQC639?
Yes. The DSQC663 is the designated upgrade replacement for earlier IRC5 main computer revisions including the DSQC639 (3HAC025338-001). The backplane connector and physical form factor are compatible. After installation, restore the system backup and verify RobotWare license compatibility via the FlexPendant boot sequence.

Q2: What commissioning steps are required after replacing the DSQC663?
After physical installation, restore the full system backup (RAPID programs, system parameters, I/O configuration, safety settings) using the FlexPendant or RobotStudio. Re-enter any network IP settings, verify fieldbus node addresses, and perform a controlled test run in manual mode before returning to automatic production operation.

Q3: How do I verify wiring and terminal compatibility before the swap?
The DSQC663 does not carry field wiring directly — all terminal connections for I/O, power, and signals are on downstream modules such as the DSQC652 and DSQC609. The only connections to the main computer board are Ethernet patch cables and USB. No rewiring of field terminals is required for a like-for-like DSQC663 replacement.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. Each unit undergoes full functional testing prior to dispatch. Warranty claims are supported by our technical team — contact sales@smartnexmsk.com with your order reference and fault description for rapid resolution.
