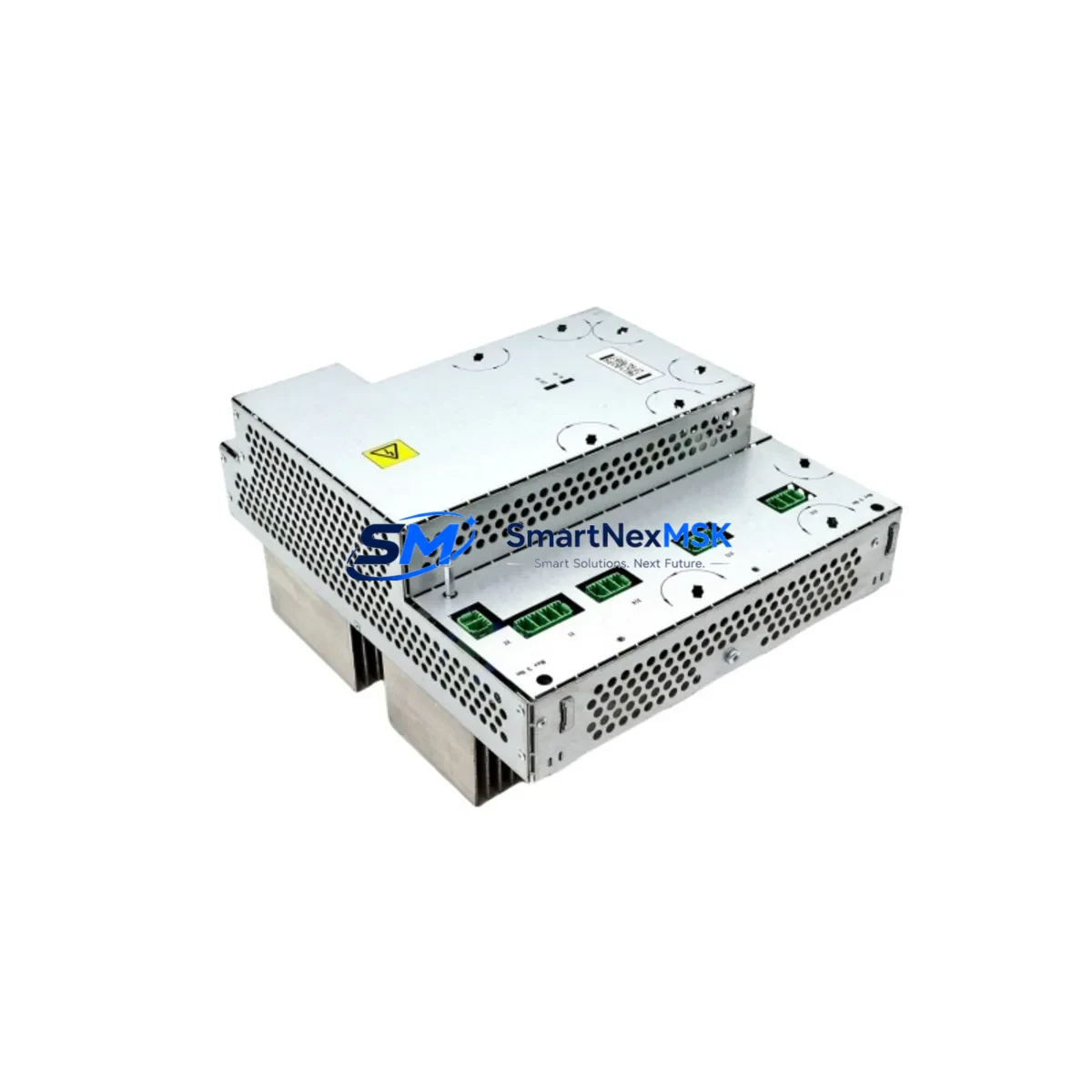

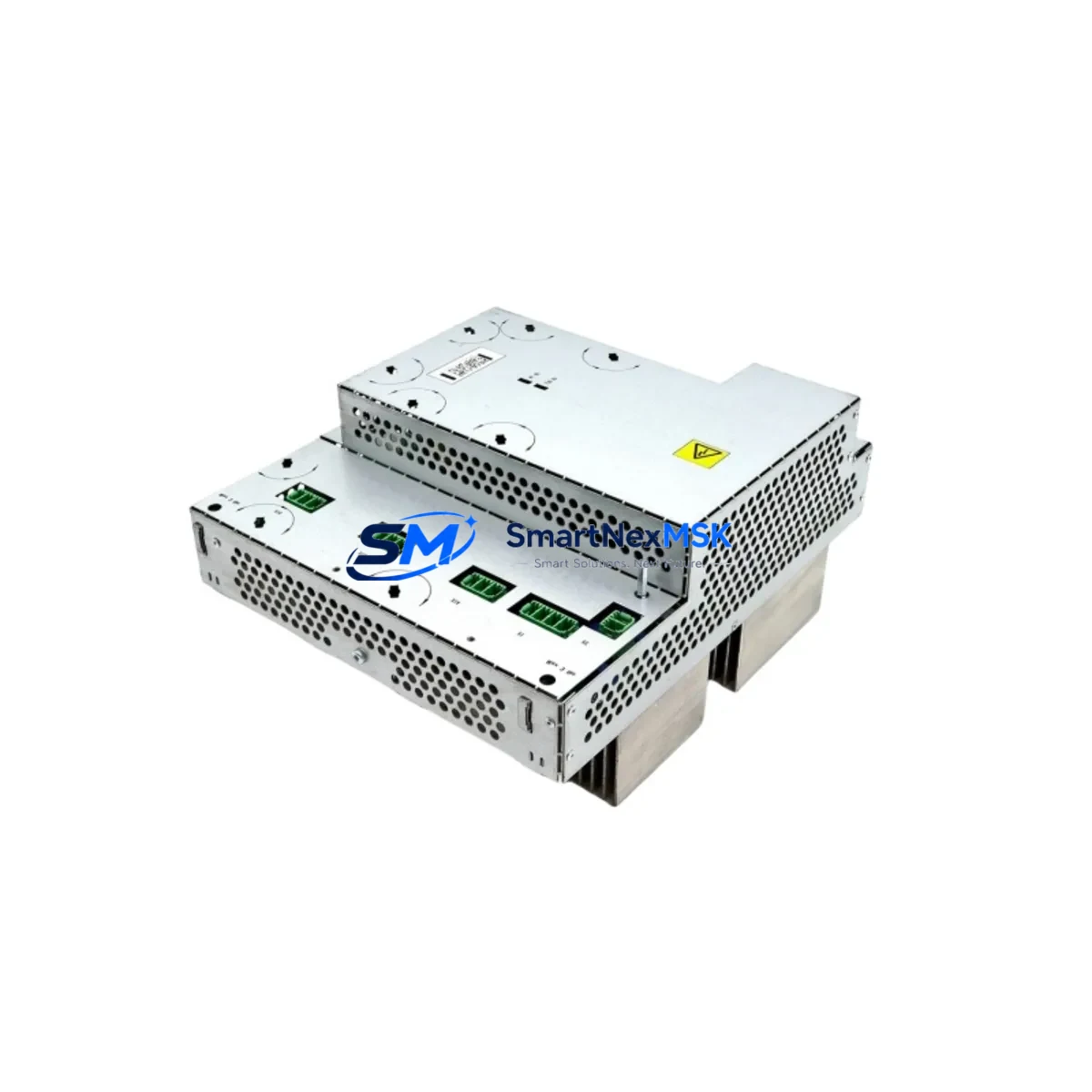

The ABB DSQC664 (part number 3HAC030923-001) is an original axis drive unit designed for the ABB IRC5 robot controller cabinet. In industrial maintenance environments where robot uptime directly impacts production throughput, holding a verified spare of the DSQC664 is a fundamental risk-mitigation strategy. This unit governs axis drive power distribution within the IRC5 cabinet, interfacing directly with the drive system to control servo amplifier outputs across multiple robot axes. When this component fails — whether due to overcurrent events, thermal stress, or aging capacitors — the entire robot cell is rendered inoperative until a replacement is installed and commissioned.

At SMARTNEXMSK, every DSQC664 unit is sourced as an original ABB spare, subject to pre-shipment electrical verification, and backed by a 12-month warranty. Stock is maintained for rapid dispatch to minimize unplanned downtime in automotive, foundry, food processing, and general manufacturing environments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DSQC664 axis drive unit is flagged for replacement during a scheduled inspection or emergency fault response, experienced maintenance engineers know that the drive unit rarely fails in isolation. A thorough cabinet audit at the time of replacement significantly reduces the risk of repeat downtime within the same maintenance cycle.

Begin by inspecting the DSQC661 rectifier unit and DSQC662 capacitor bank, which form the upstream DC bus supply to the DSQC664. Degraded capacitors or a weakened rectifier will stress the replacement drive unit and shorten its service life. Simultaneously, check the DSQC609 I/O unit for any latched fault signals that may have been triggered by the original drive failure — clearing these is essential before recommissioning the robot.

The DSQC679 teach pendant (FlexPendant) and its cable assembly should be inspected for connector wear, as pendant communication faults are frequently misdiagnosed as drive-side errors. If the IRC5 cabinet includes a DSQC688 fieldbus adapter (PROFIBUS, DeviceNet, or EtherNet/IP), verify that the communication module retained its configuration parameters through the fault event — some firmware versions require a parameter reload after a drive-side power interruption.

Terminal blocks and 24 VDC control power wiring within the cabinet should be checked for loose connections, particularly on the axis selection and enable signal circuits. Inspect the DSQC611 axis computer for any error logs that predate the drive fault, as axis computer degradation can manifest as intermittent drive errors before a hard failure occurs. The main computer unit DSQC639 should also be confirmed as fault-free, since a corrupted system parameter file can prevent successful drive initialization after hardware replacement.

For sites running multiple IRC5 cabinets, it is best practice to maintain at least one DSQC664 per robot cell in the on-site spare parts inventory, alongside a DSQC652 safety board and a set of axis drive fuses rated to the cabinet specification. This spare kit approach ensures that a single component failure does not cascade into a multi-day procurement delay.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the IRC5 FlexPendant to record all active fault codes before powering down. Document the axis number, fault category (drive, communication, or safety), and any recent event log entries. This data guides post-replacement commissioning and confirms whether the DSQC664 is the root cause or a secondary failure.

Step 2 — Safe Isolation: Follow ABB IRC5 lockout/tagout procedures. Discharge the DC bus capacitors (minimum 5-minute wait after main power off) before opening the cabinet and handling the drive unit. Verify zero-voltage with a calibrated meter on the DC bus terminals.

Step 3 — Physical Replacement: The DSQC664 is secured to the IRC5 backplane via a standard connector and retention clips. Disconnect the drive bus connector, axis output connectors, and any auxiliary signal cables. Note cable routing and connector labeling before removal. Install the replacement unit, ensuring the backplane connector is fully seated.

Step 4 — Parameter Restore: If the original unit held axis calibration data, restore from the system backup (RobotStudio or teach pendant backup file). Confirm that axis calibration offsets, motor type parameters, and drive configuration match the robot’s original commissioning data.

Step 5 — Functional Test: Power up in manual mode at reduced speed. Jog each axis through its full range of motion and verify that no new fault codes appear. Confirm servo response, brake release, and safety circuit integrity before returning the robot to automatic production mode.

This structured replacement workflow minimizes recommissioning time, preserves system compatibility, and ensures that the replacement DSQC664 operates within its rated parameters from first power-on.

Spare Parts Support FAQ

Q1: Is this DSQC664 unit compatible with all IRC5 variants, including the Panel Mounted Controller (PMC)?
The DSQC664 (3HAC030923-001) is compatible with the standard IRC5 Single Cabinet and Dual Cabinet configurations. Compatibility with the IRC5 Panel Mounted Controller depends on the specific PMC revision and drive system configuration. Please provide your robot serial number and controller revision when ordering to allow our technical team to confirm fitment before shipment.

Q2: What pre-shipment testing is performed on each unit?
Every DSQC664 unit undergoes a power-on functional check, insulation resistance measurement, and drive bus communication verification before dispatch. Units that do not pass all test criteria are not shipped. A test record is available upon request for quality-critical applications.

Q3: How should the DSQC664 be stored if purchased as a long-term spare?
Store in original anti-static packaging in a dry environment at 10°C–40°C with relative humidity below 75% (non-condensing). Avoid storage near strong magnetic fields or vibration sources. Inspect the unit annually and perform a power-on test if stored for more than 24 months before deploying to a live system.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the rated environmental parameters. Warranty claims are processed with a replacement unit dispatched after fault confirmation — no extended RMA delays.
