ABB DSTA131 57120001-CV Retrofit-Ready Termination Unit

ABB DSTA131 57120001-CV Retrofit-Ready Termination Unit for Advant MOD 300 Control Systems

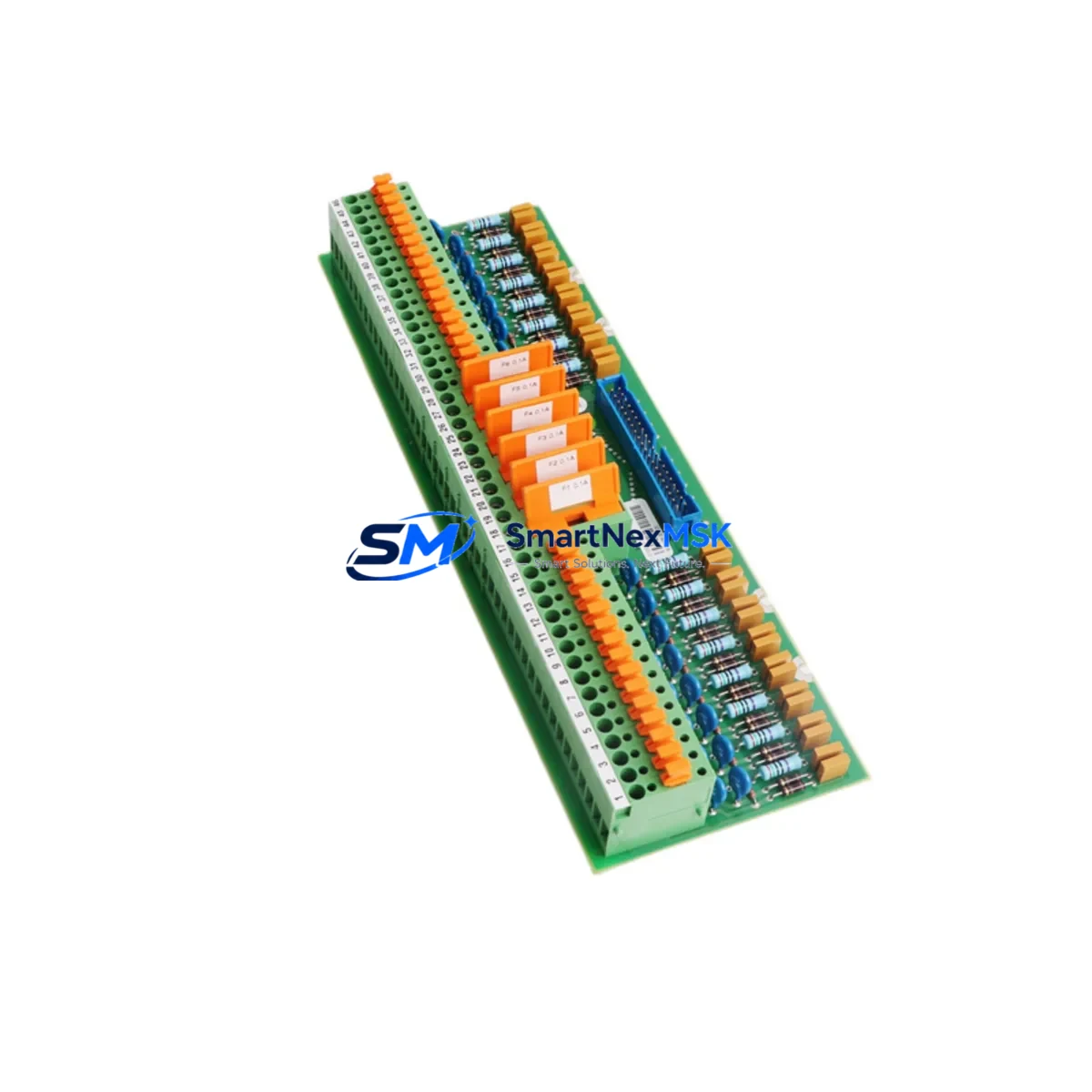

The ABB DSTA131 57120001-CV is an analog termination unit designed for the Advant MOD 300 Distributed Control System (DCS) platform. As legacy MOD 300 installations approach end-of-life support cycles, this module remains a critical component for facilities managing phased retrofits, partial upgrades, and emergency spare replacements. SMARTNEXMSK maintains verified stock of the DSTA131 57120001-CV to support industrial sites that cannot afford unplanned downtime during the transition from legacy ABB Advant architecture to modern control platforms.

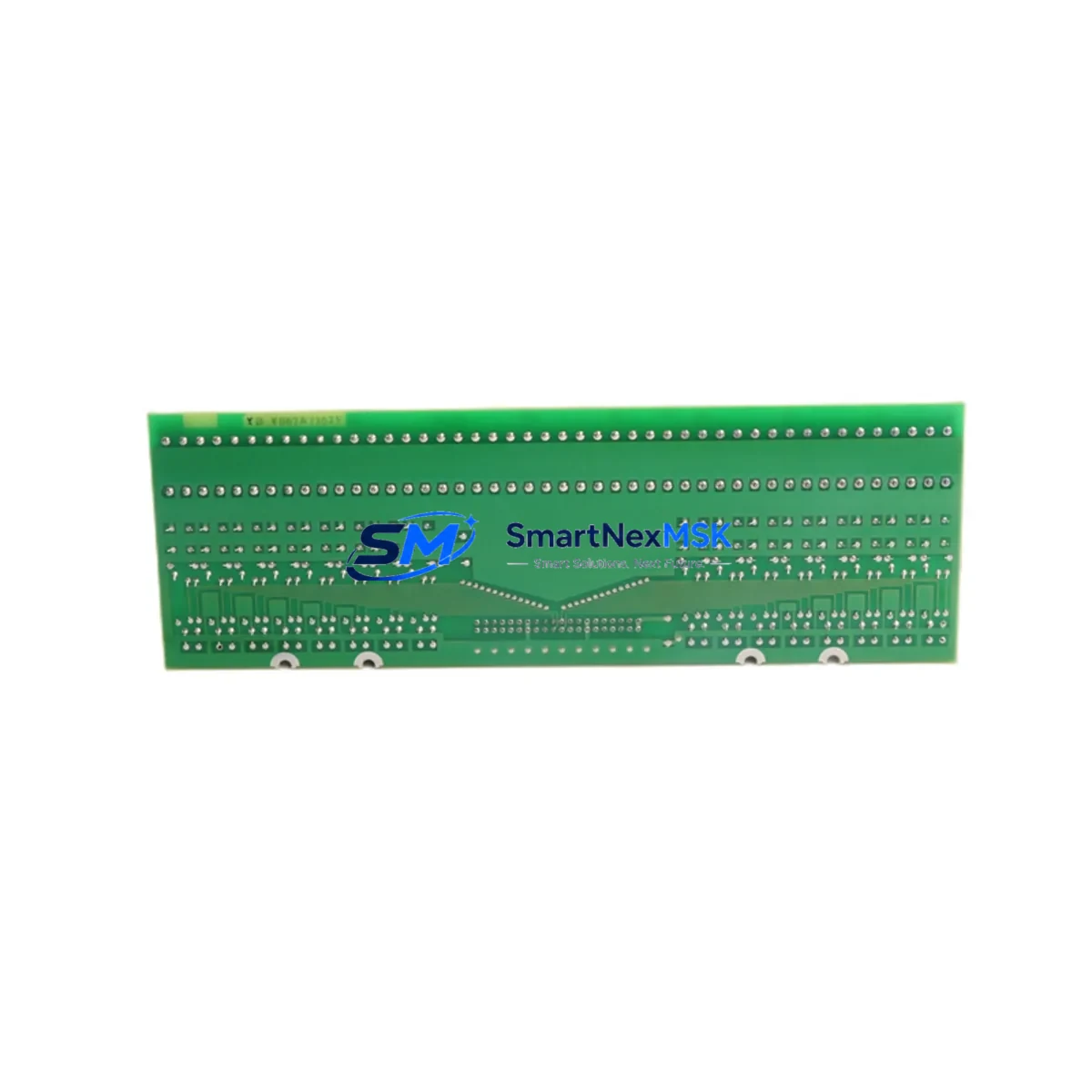

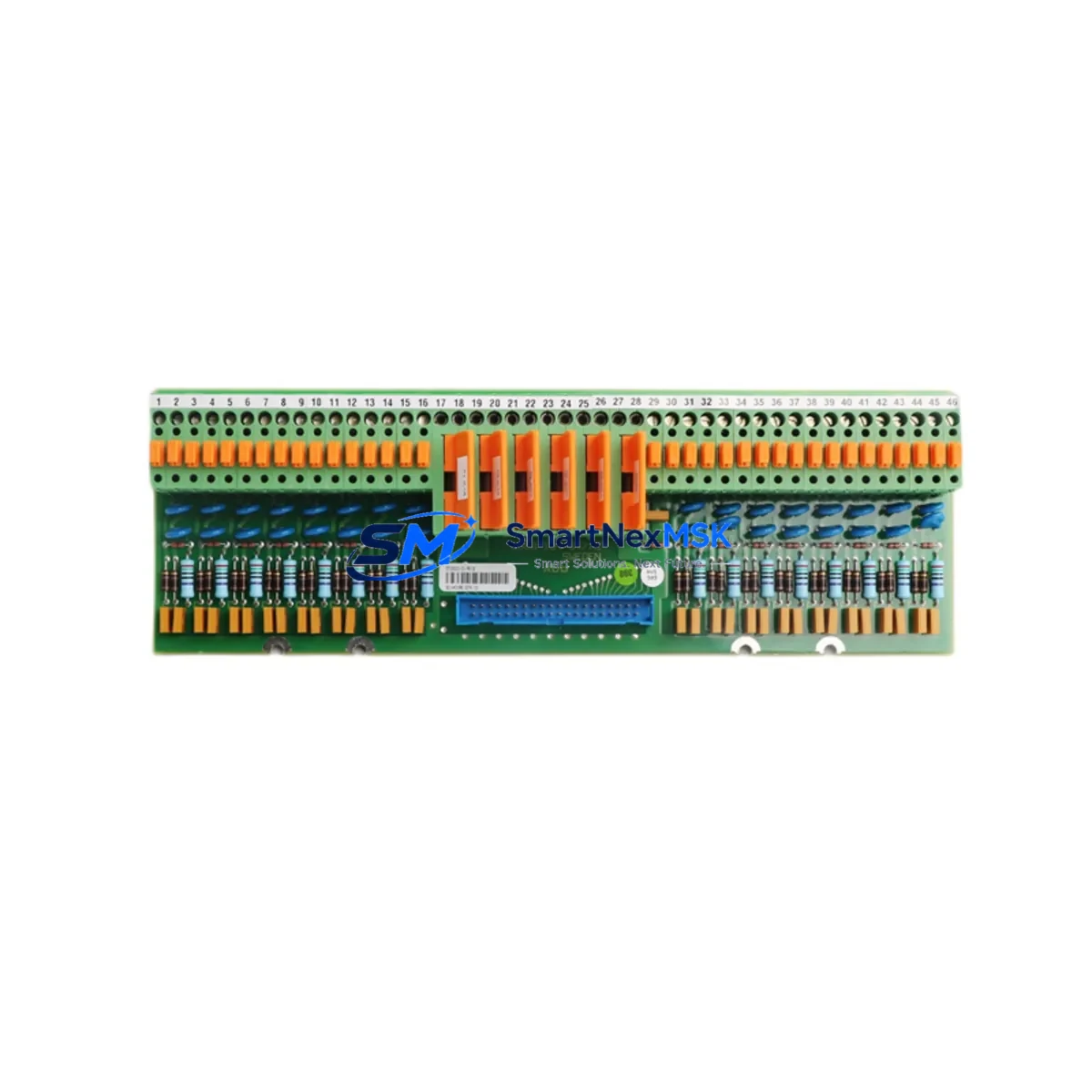

The DSTA131 functions as the field-side termination interface between analog I/O field wiring and the MOD 300 controller backplane. It accepts standard 4–20 mA analog signals and provides the physical terminal block connection point for field instruments including transmitters, positioners, and analog sensors. When replacing a failed or degraded DSTA131, engineers must verify the existing cable schedule against the terminal numbering on the replacement unit, confirm the signal type (current vs. voltage), and validate loop power configuration before energizing the loop.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DSTA131 57120001-CV within an active MOD 300 system requires careful pre-outage planning. Before removal, engineers should document all terminal assignments using the existing loop drawings and cross-reference them against the I/O list in the ABB MOD 300 engineering database. The DSTA131 interfaces directly with the DSAI130 or DSAI155 analog input modules mounted on the MOD 300 S100 I/O bus, and any mismatch in channel mapping will result in incorrect process variable readings at the operator station.

During a typical retrofit, the control cabinet may also house the DSMB127 motherboard, DSBC172 bus connection unit, and DSSB110 signal bus boards — all of which must remain undisturbed during termination unit replacement. If the retrofit scope extends to replacing the analog input module itself, the DSAI130A is the recommended successor for sites still operating within the MOD 300 framework. For sites migrating to the ABB System 800xA platform, the termination strategy shifts to AC800M controller modules with S800 I/O, where the AI810 or AI820 analog input modules replace the legacy DSAI series, and new termination units such as the TB820 or TB840 are used in place of the DSTA131.

Power supply integrity is a prerequisite for any termination unit swap. The MOD 300 cabinet typically draws regulated 24 VDC from a DSPD110 or equivalent power distribution module. Before replacing the DSTA131, verify that the supply rail voltage is within tolerance and that no ground faults exist on the field wiring. Incorrect grounding on the termination unit can introduce noise into the analog signal chain, causing erratic PV readings and potential false alarms at the DCS operator station.

For sites using HART-enabled field devices, note that the DSTA131 does not natively pass HART communication — a HART multiplexer or dedicated HART interface module must be installed in parallel if HART diagnostics are required during or after the retrofit. This is a common consideration when upgrading from legacy analog-only infrastructure to a hybrid analog/HART architecture.

All units supplied by SMARTNEXMSK are functionally tested prior to shipment. Each DSTA131 57120001-CV is verified for terminal continuity, connector integrity, and signal path isolation. Units are shipped with anti-static packaging and include a test report upon request. Standard lead time from confirmed order is 3–7 business days for in-stock units.

Downtime Control During System Migration

Minimizing control system downtime during a DSTA131 replacement requires a structured hot-swap or cold-swap procedure depending on the criticality of the loops served by the termination unit. For non-critical loops, a cold-swap during a planned maintenance window is preferred: isolate the loop, remove field wiring from the terminal block, extract the DSTA131, install the replacement unit, reconnect field wiring in sequence, and perform a loop check before returning the loop to automatic control.

For critical process loops — such as those controlling reactor temperature, pressure relief, or safety interlock functions — the replacement should be coordinated with the site safety officer and DCS engineer. The operator should place the affected loops in manual mode at the DCS workstation before any physical work begins. The existing program logic in the MOD 300 controller does not require modification for a like-for-like DSTA131 replacement, as the module address and channel configuration remain unchanged. This preserves all existing function block connections, PID tuning parameters, and alarm setpoints without requiring a controller download or program re-compilation.

After reinstallation, perform a full loop calibration using a calibrated current source (e.g., 4 mA = 0%, 20 mA = 100%) and verify the engineering unit display at the operator station matches the expected process range. Confirm that the HMI faceplate for the affected loop shows the correct PV, SP, and output values before returning the loop to automatic. Document the replacement in the site maintenance management system (CMMS) and update the as-built drawings to reflect the new unit serial number.

Retrofit Support FAQ

Q1: Is the DSTA131 57120001-CV a direct replacement for all DSTA131 variants?
The 57120001-CV is the standard catalog revision of the DSTA131 analog termination unit for the ABB Advant MOD 300 platform. It is compatible with all standard DSTA131 installation positions within the MOD 300 termination panel. If your existing unit carries a different suffix, contact our technical team with the full part number for cross-reference confirmation before ordering.

Q2: Does replacing the DSTA131 require a controller program download?
No. A like-for-like DSTA131 replacement does not alter the controller configuration, module address, or I/O channel mapping. The MOD 300 controller will resume normal operation after the loop check is completed and the loop is returned to automatic mode. No program download or re-compilation is required.

Q3: What pre-shipment testing is performed on each unit?
Each DSTA131 57120001-CV supplied by SMARTNEXMSK undergoes functional testing including terminal continuity verification, connector pin integrity check, and signal path isolation test. A test report is available upon request. All units are covered by a 12-month warranty against functional defects under normal operating conditions.

Q4: Can the DSTA131 be used in a migration to ABB System 800xA?
The DSTA131 is specific to the MOD 300 termination architecture and is not directly compatible with the S800 I/O termination standard used in System 800xA. For 800xA migrations, the field wiring must be re-terminated to TB820 or TB840 termination units paired with AI810 or AI820 analog input modules. SMARTNEXMSK can supply both legacy MOD 300 spares and 800xA migration components to support phased upgrade projects.
