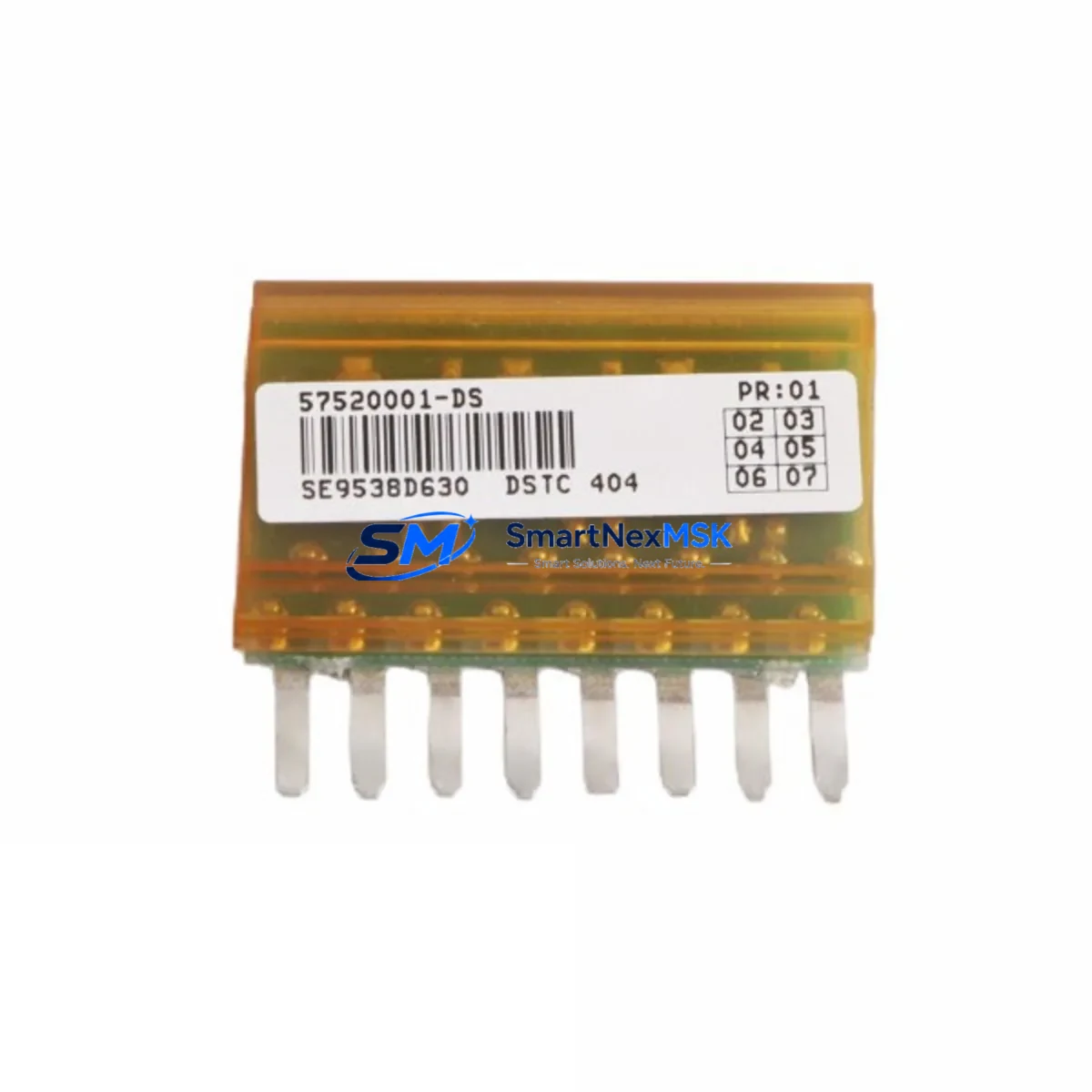

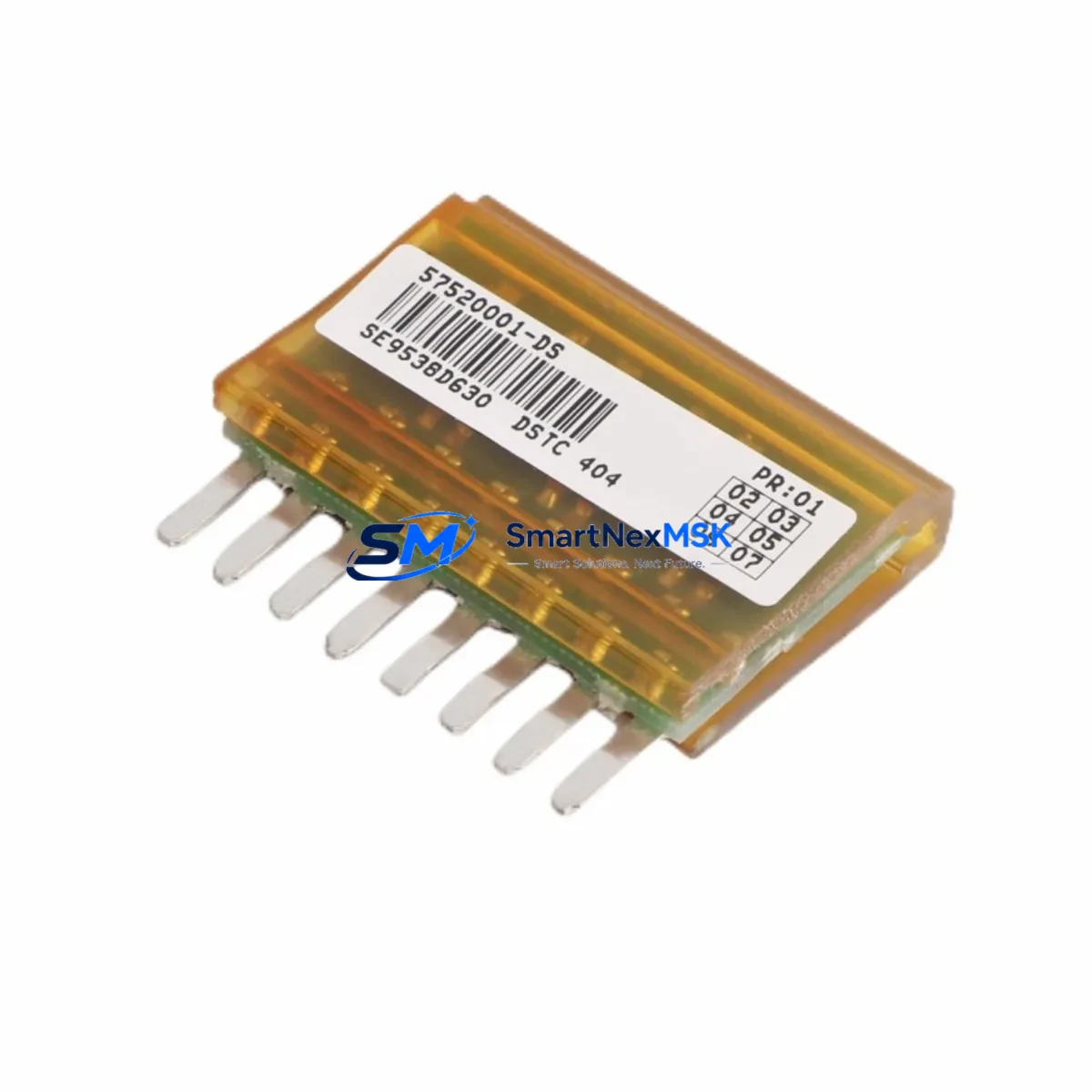

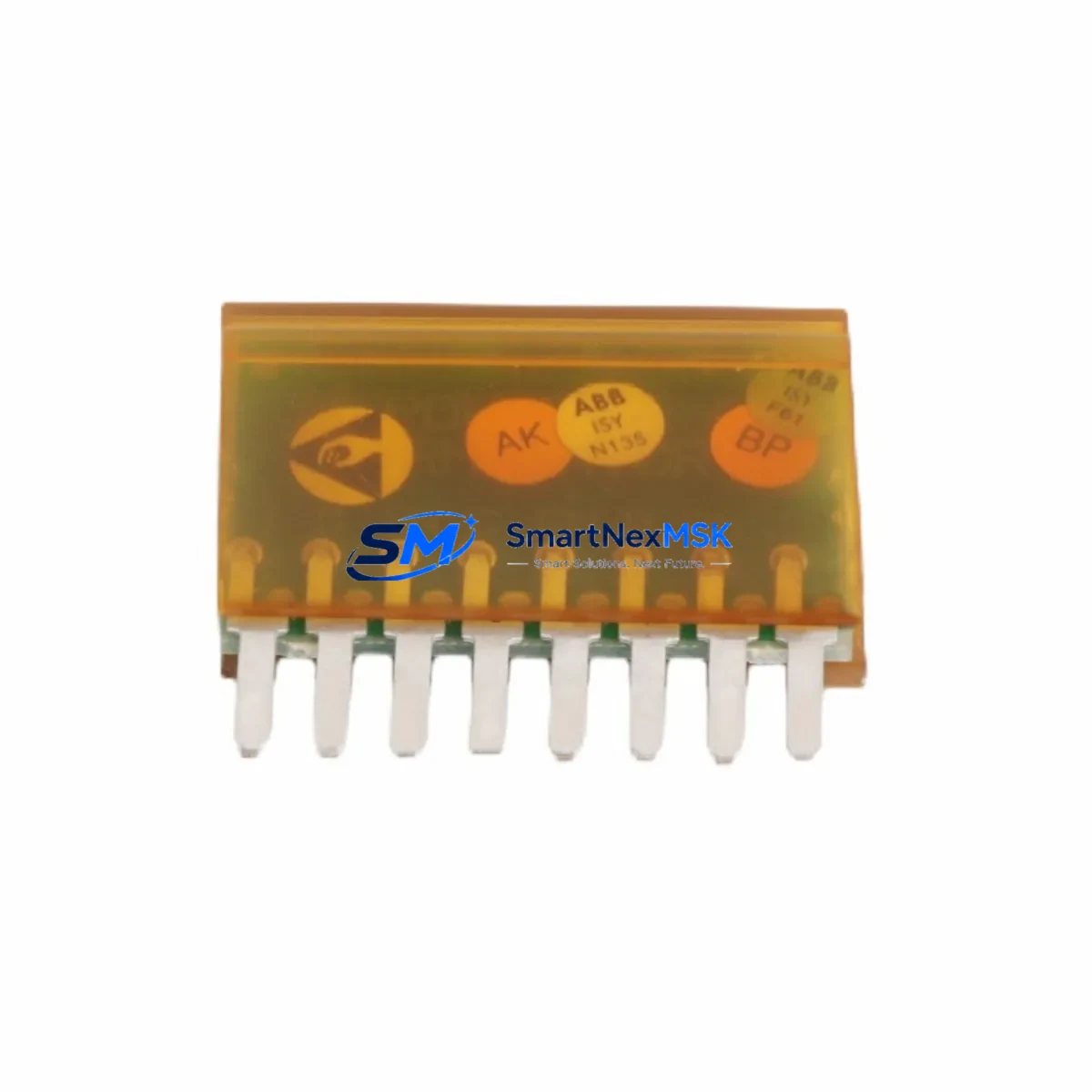

ABB DSTC404 57520001-DS Maintenance-Ready Spare for Advant Automation
The ABB DSTC404 (57520001-DS) is an original bus termination module designed for the ABB Advant Controller series — one of the most widely deployed DCS/PLC platforms in process automation, power generation, and heavy industry. As a critical passive component in the Advant fieldbus architecture, the DSTC404 terminates the DSTB bus segment, ensuring signal integrity across all connected I/O stations and communication nodes. When this module fails or degrades, the entire bus segment can become unstable, triggering cascading faults across multiple I/O racks and causing unplanned production shutdowns.
Sourced as an original ABB spare, this unit is inspected, function-tested, and shipped with a 12-month warranty. It is suitable for direct replacement in live Advant systems without firmware changes or reconfiguration, making it the preferred choice for maintenance engineers managing aging control infrastructure.
Spare Maintenance Table
| Part Number | DSTC404 |
| Reference Number | 57520001-DS |
| Manufacturer | ABB |
| Series | Advant Controller (AC 450 / AC 410 / AC 160) |
| Module Function | Bus Termination Module — DSTB Fieldbus Segment |
| Compatibility | ABB Advant DCS / PLC systems with DSTB bus topology |
| Installation | Direct plug-in replacement; no firmware or parameter changes required |
| Operating Temperature | 0°C to +55°C (standard industrial cabinet environment) |
| Mounting | DIN rail / Advant I/O backplane, end-of-bus position |
| Origin | Sweden (Original ABB manufacture) |
| Condition | Original spare — inspected and function-tested |
| Warranty | 12 Months |
| Shipping | ESD-safe packaging; worldwide express delivery available |
| Maintenance Recommendation | Replace at first sign of bus communication errors; include in annual control cabinet inspection |
Maintenance Planning for Continuous Operation
The DSTC404 sits at the physical end of the DSTB bus segment, and its condition directly affects every module on that segment. When planning a replacement or conducting a scheduled control cabinet inspection, maintenance engineers should treat this as an opportunity to audit the full bus chain. Begin by verifying the DSBC172 or DSBC176 bus cable assemblies for insulation damage, connector oxidation, or mechanical stress — degraded cables are a common root cause of intermittent bus faults that are incorrectly attributed to the termination module itself.
Next, inspect the DSTB110 or DSTB120 I/O station base units connected on the same segment. Loose backplane connectors or corroded bus pins can cause the same symptom profile as a failed terminator. While the cabinet is open, check the DSDO115A and DSDI110A digital I/O modules for status LED anomalies and verify that all field wiring terminal blocks are torqued to specification — loose terminals are a leading cause of intermittent faults in high-vibration environments.
For power supply integrity, confirm that the DSDP140 or DSDP150 power supply modules are delivering stable 24 VDC to the I/O racks. Voltage sag under load is a known trigger for bus communication resets that can mask a healthy termination module. If the system includes a DSCS140 communication supervisor module, review its diagnostic log for bus error counters before and after the terminator replacement to confirm the fault is resolved.
In systems with mixed analog and digital I/O, also inspect the DSAI130A analog input modules and their associated signal isolators. Noise coupling from poorly shielded analog loops can corrupt bus traffic in ways that appear as termination faults. Finally, if the Advant system is connected to an operator station via MasterBus 300 or INSUM communication, verify that the network interface modules show no increased error rates after the bus segment is restored — this confirms the repair is complete and the system is stable.
Site Replacement Workflow
Replacing the DSTC404 in a live Advant system is a low-risk procedure when executed with proper isolation. Follow this sequence to minimize downtime and avoid secondary faults:
1. Pre-replacement verification: Use the Advant Engineer workstation or MasterView 800 HMI to confirm which bus segment is reporting errors. Document the current bus error count from the DSCS140 or equivalent supervisor module. Photograph the existing terminator position and cable routing before removal.
2. Safe isolation: If the process permits, place the affected I/O station in manual mode at the DCS level before disconnecting the bus segment. This prevents spurious output changes during the swap. For systems where hot-swap is not supported, coordinate a brief controlled shutdown of the affected segment only — not the full controller.
3. Physical replacement: Remove the old DSTC404 from the end-of-bus position. Inspect the bus connector pins on the backplane for damage or contamination. Insert the new DSTC404 firmly until the locking tab engages. Verify that no other terminator is present on the same segment — double termination is a common installation error that causes the same fault symptoms.
4. Post-replacement validation: Restore the segment and monitor the bus error counter for a minimum of 15 minutes under normal process load. Confirm that all I/O modules on the segment return to normal status. Update the maintenance log with the replacement date, part number, and reference number 57520001-DS for traceability.
This workflow is applicable to AC 450, AC 410, and AC 160 controller configurations. For older AC 70 or Master systems, consult the specific system documentation before proceeding.
Spare Parts Support FAQ
Q: Is the DSTC404 57520001-DS compatible with all Advant controller variants?
A: The DSTC404 is designed for the DSTB bus architecture used across the Advant AC 450, AC 410, and AC 160 families. Compatibility with AC 70 or earlier Master series controllers should be verified against the specific system’s bus topology documentation before ordering.
Q: How is the unit tested before shipment?
A: Each DSTC404 unit undergoes visual inspection for physical damage, connector integrity check, and functional verification against ABB reference specifications. Units that do not pass all checks are not shipped. A test report is available upon request for critical applications.
Q: What is the recommended spare inventory strategy for the DSTC404?
A: For facilities operating multiple Advant bus segments, we recommend holding a minimum of one DSTC404 per controller cabinet as a cold standby spare. Given that ABB has discontinued active production of many Advant series components, maintaining a buffer stock of 2–3 units is advisable for sites with long procurement lead times or remote locations where express delivery is not reliable.
Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified environmental parameters. Warranty claims are processed with full replacement or refund at our discretion.
