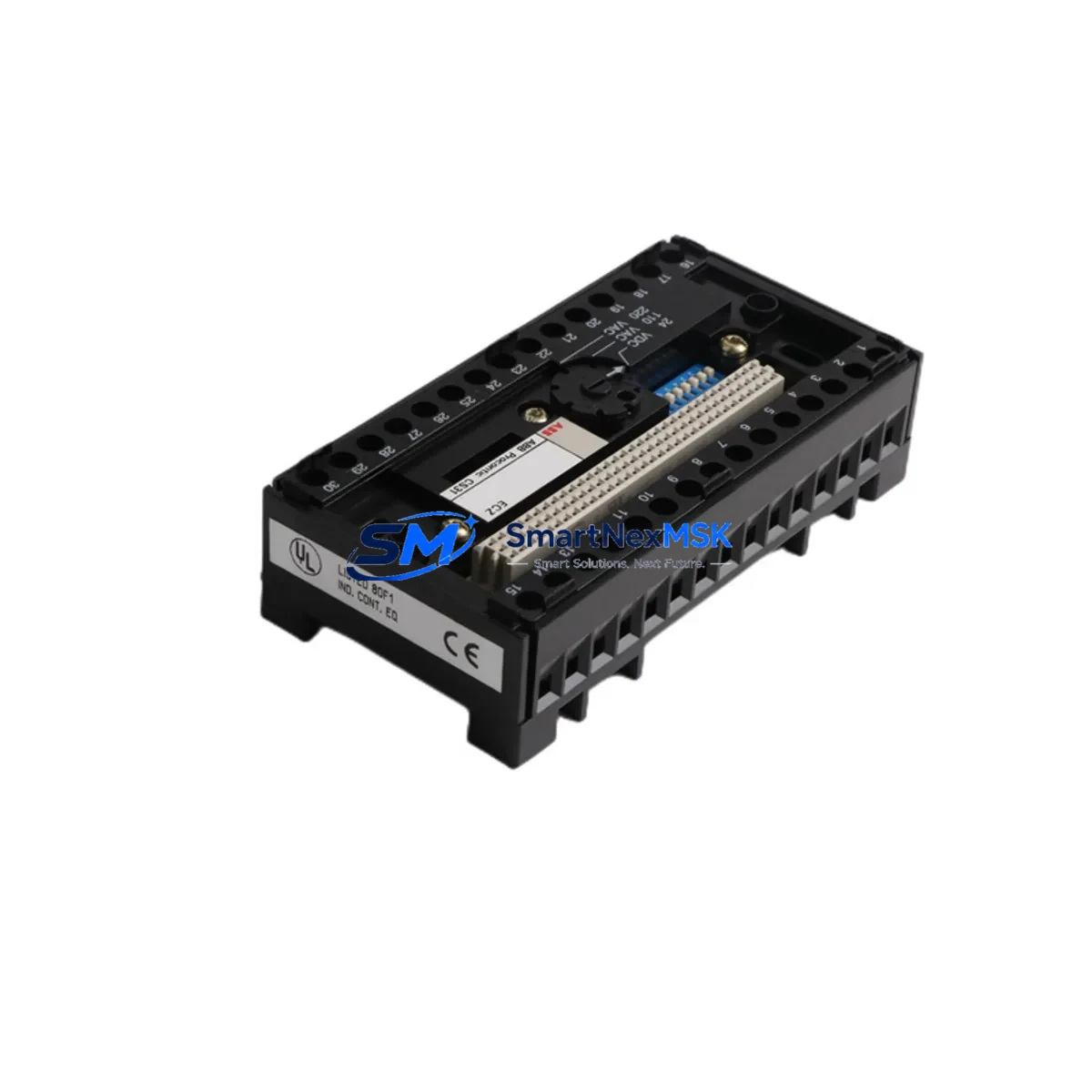

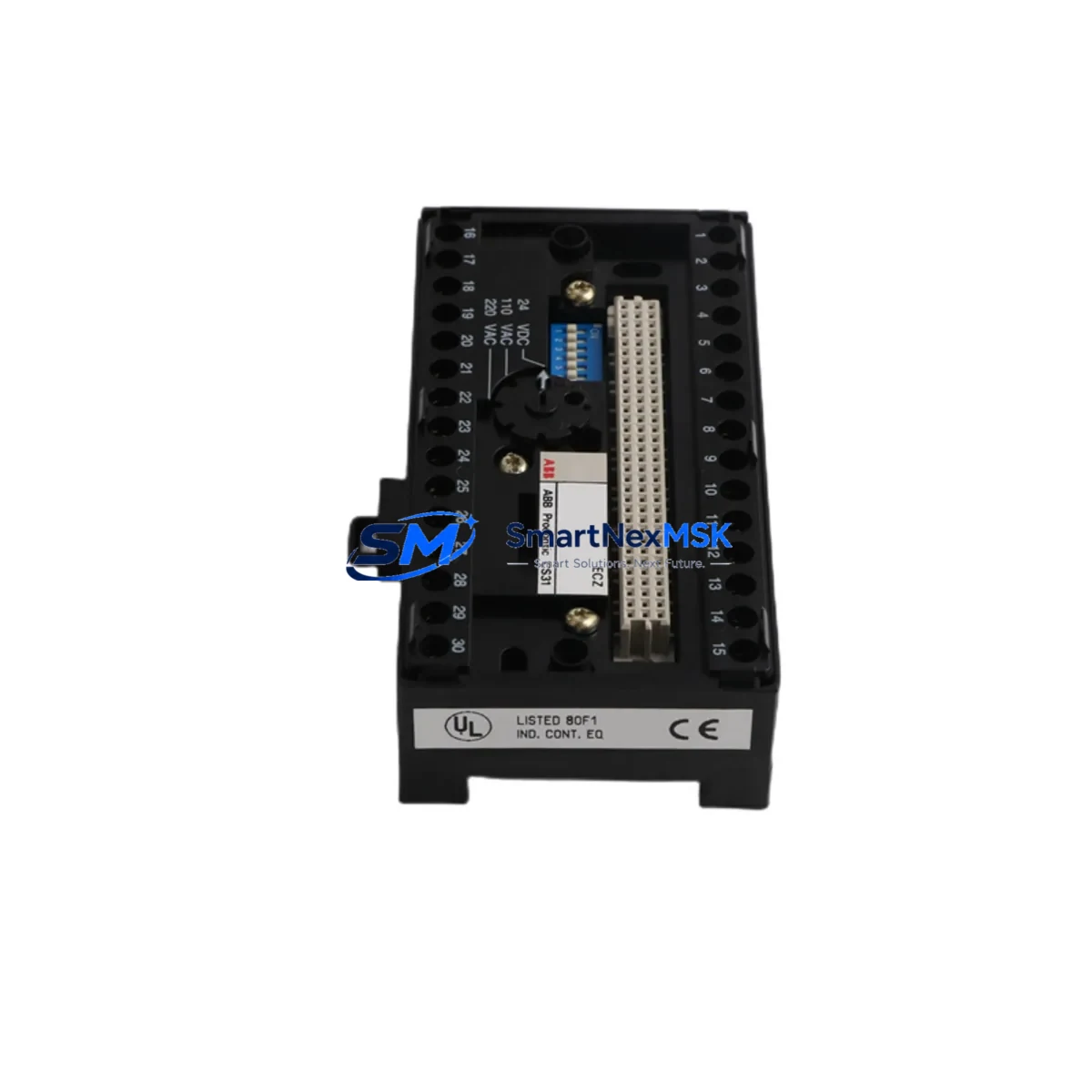

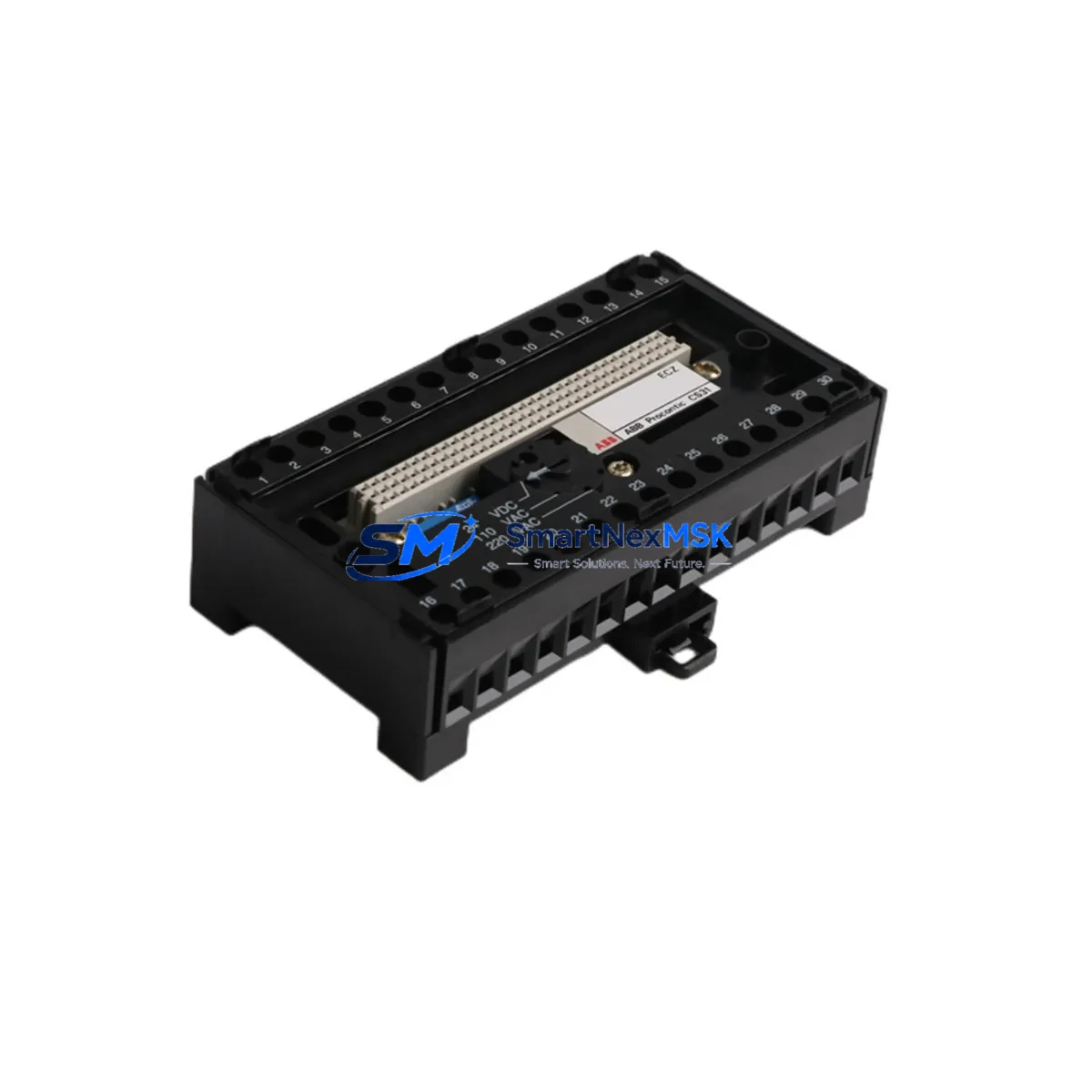

ABB ECZ FPR3700001R0001 Retrofit-Ready DCS Bus Module: Compatible Upgrade for AC800M Control Systems
The ABB ECZ FPR3700001R0001 is a DCS communication bus module designed for the ABB AC800M controller platform — one of the most widely deployed distributed control systems in process industries including oil & gas, power generation, pulp & paper, and chemical manufacturing. As legacy AC800M installations age and original spare parts become increasingly difficult to source, the FPR3700001R0001 has become a critical retrofit component for engineers managing aging control infrastructure.
This module serves as a direct replacement for discontinued or end-of-life bus interface cards within the AC800M backplane architecture. It supports the internal S800 I/O bus communication protocol, enabling seamless integration with existing S800 I/O modules such as the AI810, AO810, DI810, and DO810 series without requiring changes to the controller program or HMI configuration. Engineers undertaking a control cabinet upgrade or partial system modernization can install this module with minimal disruption to the existing field wiring and process logic.
Before proceeding with a retrofit using the FPR3700001R0001, site engineers should verify several key parameters. Power supply capacity at the backplane must be confirmed — the AC800M rack typically draws from a dedicated PM861 or PM864 processor module power rail, and adding or replacing bus modules may affect the total power budget. Terminal wiring on the S800 I/O clusters should be documented and cross-referenced against the new module’s connector pinout to ensure continuity. Backplane slot addressing must be re-confirmed in the Control Builder M engineering tool, as module position changes can affect the I/O channel mapping in the application program.
For installations where the original FPR3700001R0001 has failed or been discontinued, the replacement process typically involves exporting the current application from the PM861A or PM864 controller, verifying the hardware configuration tree in Control Builder M, and updating the module reference before downloading the revised configuration. In most cases, the field I/O wiring — including analog signal cables routed through TB820 or TB840 terminal bases — does not require modification, significantly reducing retrofit labor time and the risk of wiring errors.
Communication link integrity is another critical checkpoint. The FPR3700001R0001 interfaces with the Modulebus optical or electrical link depending on the rack configuration. Engineers should verify that the fiber optic cables or shielded copper links connecting the AC800M controller to the S800 I/O clusters are intact and within specification. If the system also includes a CI854 PROFIBUS interface module or a CI857 Industrial Ethernet module for supervisory communication, these links should be tested independently to confirm that the bus module replacement does not affect higher-level SCADA or DCS network connectivity.
HMI screen validation is recommended after any bus module replacement. Operators using ABB’s 800xA System or a third-party SCADA platform should confirm that all process values, alarm states, and control faceplates are displaying correctly following the module swap. Any discrepancies in tag mapping or communication status should be resolved before returning the system to automatic control mode.
For sites managing a phased modernization — for example, migrating from an older Advant OCS or MOD 300 platform toward the AC800M architecture — the FPR3700001R0001 is frequently specified alongside the TP830 power supply module, the BC810 bus connection unit, and additional S800 I/O expansion modules. This combination supports a staged migration strategy where legacy field devices are retained while the control layer is upgraded, minimizing capital expenditure and preserving existing process knowledge embedded in the control logic.
All units supplied by SMARTNEXMSK are sourced from verified industrial channels, individually tested for communication integrity and backplane compatibility, and shipped with a 12-month warranty covering manufacturing defects and functional failures. Inventory is maintained in Xiamen and available for immediate dispatch with full export documentation.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Controller | ABB AC800M (PM861, PM861A, PM864, PM866) |
| Bus Protocol | S800 Modulebus (optical / electrical) |
| Backplane Interface | AC800M standard rack slot — no mechanical modification required |
| I/O Compatibility | S800 I/O series: AI810, AO810, DI810, DO810, AI820, AO820 |
| Communication Modules | Compatible with CI854 (PROFIBUS), CI857 (Industrial Ethernet) in same rack |
| Engineering Tool | ABB Control Builder M — hardware configuration update required |
| Power Requirement | Supplied via AC800M backplane; verify PM861/PM864 power budget |
| Wiring Adaptation | No field wiring changes required for direct replacement |
| Replacement Scope | Direct drop-in for failed or discontinued FPR3700001R0001 units |
| Warranty | 12 months — covers manufacturing defects and functional failures |
Retrofit Planning for Existing Automation Systems
A successful retrofit begins with a complete audit of the existing rack configuration. In a typical AC800M installation, the controller rack houses the PM864 processor module, one or more FPR3700001R0001 bus interface modules, and optionally a CI854 PROFIBUS DP master module for legacy field device communication. The S800 I/O clusters — connected via Modulebus — may include a mix of AI810 analog input modules, DI810 digital input modules, and DO810 digital output modules mounted on TB820 terminal bases.
When planning the replacement of the FPR3700001R0001, engineers should document the current slot position, module address, and Modulebus node assignment before removal. This information is critical for restoring the correct hardware configuration in Control Builder M. If the system also includes a TP830 power supply module or a BC810 bus connection unit, these components should be inspected for wear and considered for simultaneous replacement to avoid a secondary outage shortly after the primary retrofit.
For sites migrating from older Advant OCS controllers, the FPR3700001R0001 is often part of a broader upgrade that includes replacing the S100 I/O bus with the S800 Modulebus architecture. In this scenario, the existing field wiring — typically routed through marshalling cabinets with individual terminal strips — can often be retained, with only the I/O module and bus interface layer being replaced. This approach significantly reduces the scope of the retrofit and allows the process to remain partially operational during the migration.
Communication protocol migration is another common driver for FPR3700001R0001 retrofits. Sites transitioning from serial PROFIBUS DP to Industrial Ethernet (PROFINET or Modbus TCP) may retain the AC800M controller platform while upgrading the communication layer. In this case, the FPR3700001R0001 bus module is retained or replaced as part of the rack refresh, while a new CI857 Industrial Ethernet module is added to support the updated network topology. The programming cable (TK212A or equivalent) is used to connect the engineering workstation to the controller during the configuration update.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern for any control system retrofit. For the FPR3700001R0001 replacement, the recommended approach is to prepare the replacement module and updated Control Builder M configuration offline before scheduling the maintenance window. The application program should be exported and backed up from the PM864 controller, and the hardware configuration tree should be updated to reference the new module before the physical swap takes place.
During the maintenance window, the sequence is: isolate the affected I/O cluster from the process, remove the failed FPR3700001R0001, install the replacement module in the same backplane slot, download the updated hardware configuration, and perform a warm restart of the controller. In most cases, the application program logic does not require modification — only the hardware configuration layer is updated. This approach typically reduces the physical swap and recommissioning time to under two hours for a single bus module replacement.
To protect original program logic, the application should be locked and version-controlled in the Control Builder M project library before any hardware changes are made. Field operators should be briefed on the expected control interruption and prepared to switch affected loops to manual mode at the DCS operator station or local control panel. Once the module is confirmed online and all S800 I/O channels are communicating correctly, the loops can be returned to automatic control in a controlled sequence, starting with the least critical process variables.
Retrofit Support FAQ
Q: Is the FPR3700001R0001 a direct drop-in replacement for the original ABB module?
A: Yes. The FPR3700001R0001 is a direct replacement for the original ABB ECZ bus interface module used in AC800M racks. No mechanical modification to the backplane or rack is required. The module occupies the same slot position and uses the same Modulebus connector. A hardware configuration update in Control Builder M is required to register the replacement module before downloading to the controller.
Q: What wiring changes are needed during the replacement?
A: In a standard direct replacement scenario, no field wiring changes are required. The FPR3700001R0001 connects to the S800 I/O clusters via the Modulebus optical or electrical link, which is separate from the field terminal wiring on the TB820 or TB840 terminal bases. Engineers should inspect the Modulebus cable connectors for wear and replace if necessary, but the field signal wiring does not need to be disturbed.
Q: How is compatibility with the existing AC800M program verified before installation?
A: Compatibility is verified by comparing the hardware configuration in the Control Builder M project with the replacement module’s firmware version and hardware revision. SMARTNEXMSK provides the module’s hardware revision data with each shipment. Engineers should confirm that the firmware version is supported by the installed version of Control Builder M and that the module’s I/O channel count and addressing match the existing configuration. A factory acceptance test (FAT) can be performed on the replacement module using a bench test rack before site installation.
Q: What does the 12-month warranty cover, and what is the shipping lead time?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the module’s rated specifications. Units are dispatched from Xiamen within 1–3 business days of order confirmation. Express international shipping is available. Each unit is individually tested for communication integrity and backplane compatibility before shipment, and a test report is available upon request.
