ABB ED1202B HEDT300355R1 Spare for MOD 300 Automation

ABB ED1202B HEDT300355R1 Maintenance-Ready Spare for MOD 300 Automation: Spare Replacement & Industrial Downtime Risk Control

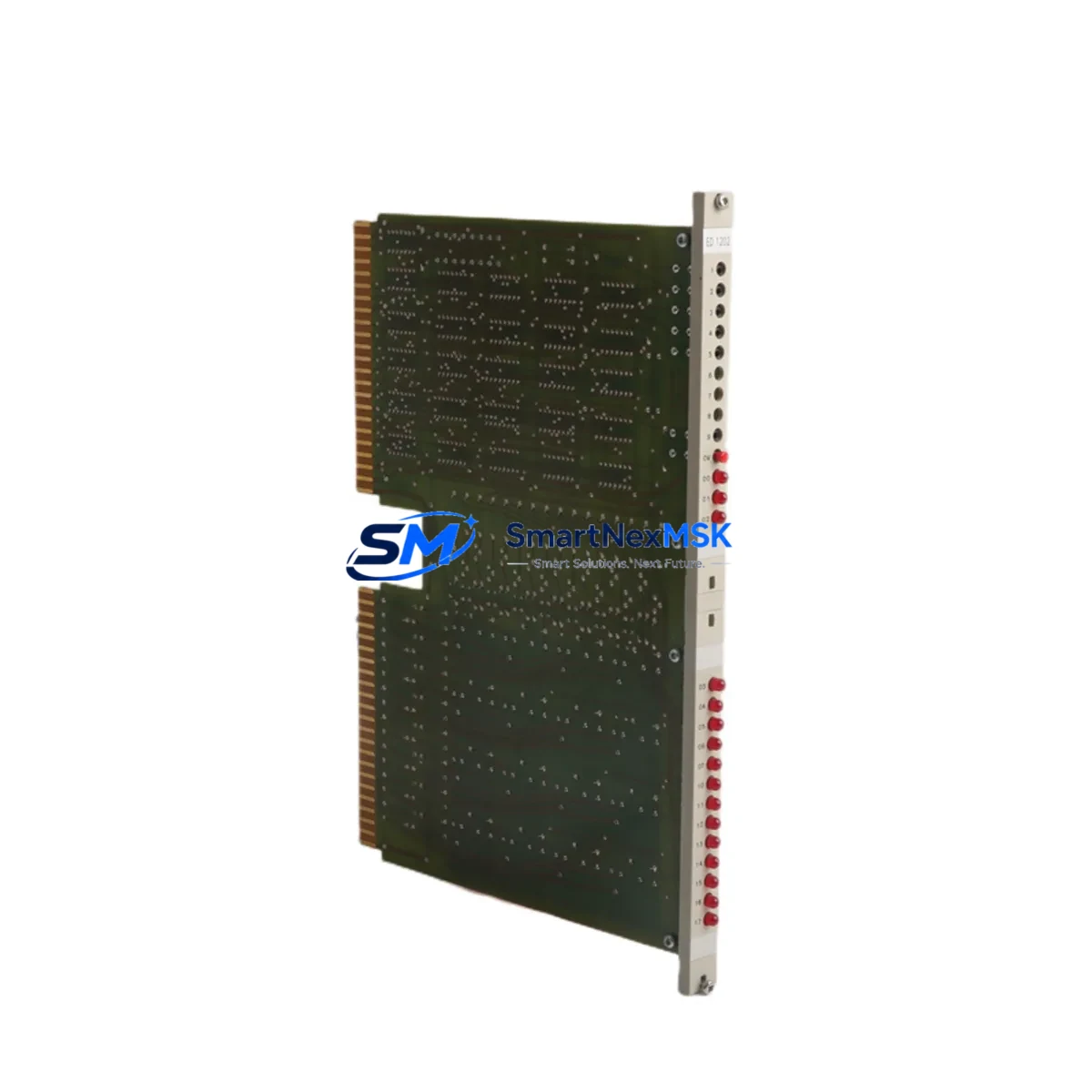

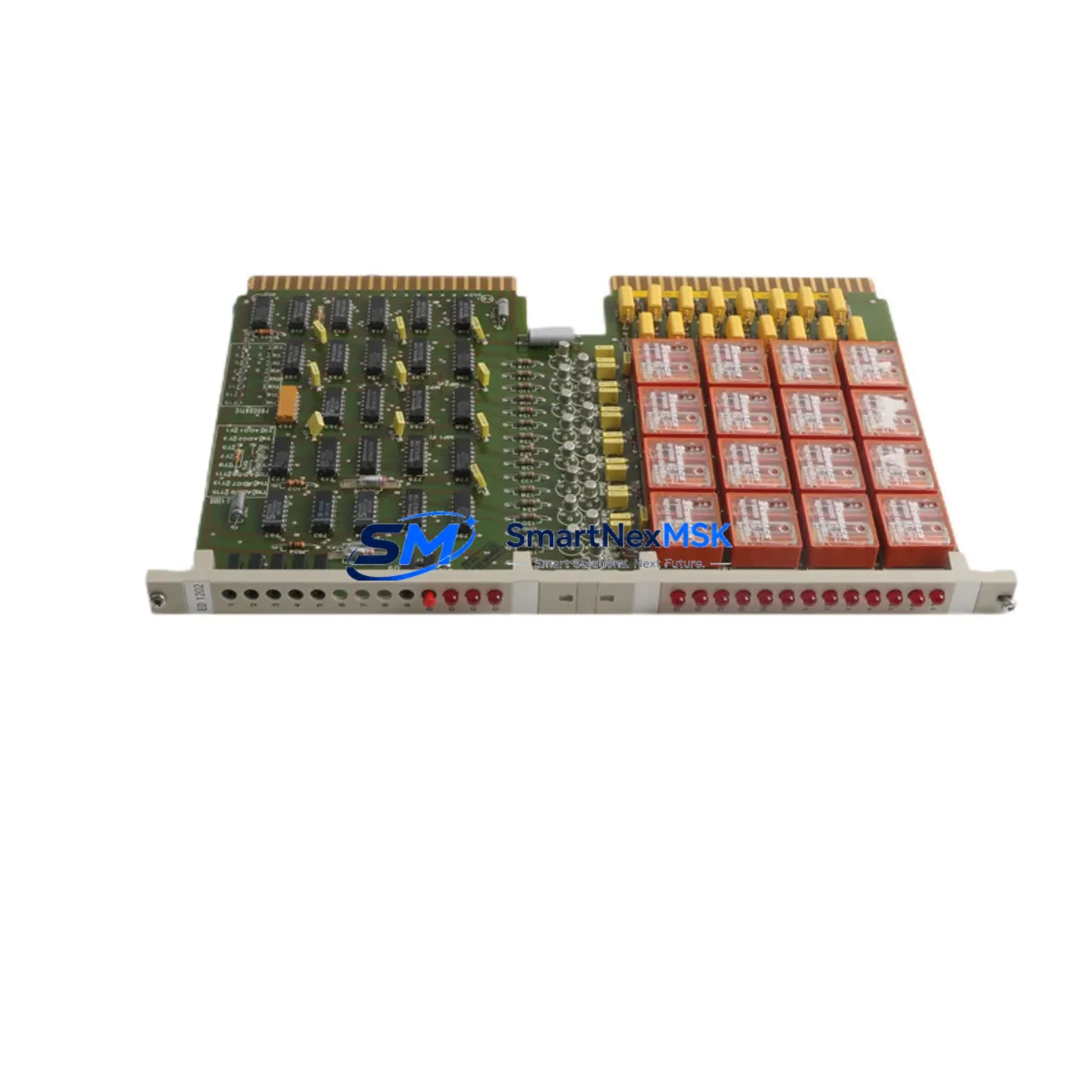

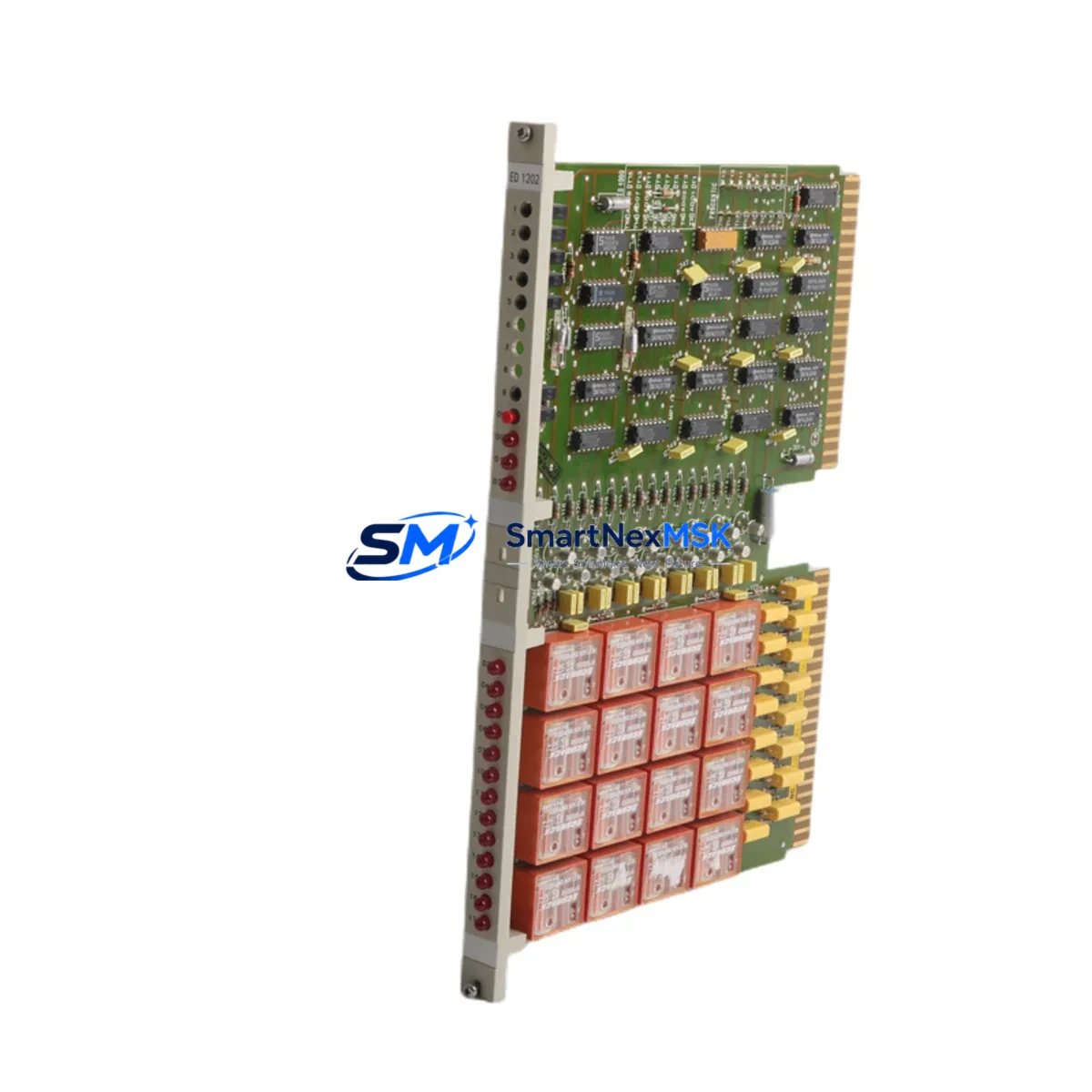

The ABB ED1202B HEDT300355R1 (cross-reference: HE693655-307/16) is an original DCS PC board module engineered for the ABB Advant MOD 300 distributed control system platform. As a critical process I/O and communication board within the MOD 300 control cabinet, this module plays a central role in signal acquisition, data processing, and inter-module communication across continuous process industries — including power generation, oil & gas, pulp and paper, and chemical manufacturing. Maintaining a verified spare of the ED1202B HEDT300355R1 in your site inventory is a proven strategy for minimizing unplanned downtime and protecting production continuity.

For maintenance engineers managing aging ABB Advant MOD 300 installations, the ED1202B HEDT300355R1 represents one of the most frequently requested board-level spares. Its role in the control loop means that a failure without a ready replacement can cascade into extended process shutdowns. Procurement engineers sourcing this module should verify the full part reference — ED1202B, HEDT300355R1, and HE693655-307/16 — to ensure exact hardware revision compatibility before installation.

Every unit shipped from our inventory is an original ABB spare, pre-tested, and backed by a 12-month warranty from the date of shipment. We support long-term supply agreements for maintenance teams managing multi-site MOD 300 installations or planning lifecycle extension programs for systems no longer in active ABB production.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a planned replacement of the ED1202B HEDT300355R1 in an ABB Advant MOD 300 cabinet, experienced maintenance engineers treat this as a system-level inspection opportunity rather than a single-component swap. The MOD 300 architecture distributes control functions across multiple board modules, and a failure in one board often indicates stress on adjacent components sharing the same backplane, power bus, or communication path.

Before or during replacement of the ED1202B HEDT300355R1, the following components should be inspected and, where appropriate, included in the spare parts order:

• MOD 300 Power Supply Modules (e.g., ABB DSQC-series PSU boards) — Verify output voltage stability on the 24 VDC and 5 VDC rails feeding the board slot. Aging power supply modules are a common root cause of premature PC board failures and should be part of every cabinet-level inspection cycle.
• MOD 300 Backplane and Rack Assembly — Inspect the backplane connector pins for oxidation, mechanical wear, or intermittent contact. A degraded backplane can cause repeated board failures even after a successful ED1202B replacement.
• I/O Termination Modules and Field Wiring Terminals — Check all field-side terminal blocks and I/O marshalling panels connected to the ED1202B signal channels. Loose terminations or corroded field wiring are frequent sources of signal errors misdiagnosed as board faults.
• MasterBus 300 Communication Interface Boards — If the ED1202B HEDT300355R1 participates in the MOD 300 MasterBus 300 communication bus, inspect the associated communication interface boards and bus cables for continuity and correct termination resistance. Communication module failures are often masked by board-level fault codes.
• Relay Output Modules — For control loops where the ED1202B drives relay outputs, inspect the relay modules in the same cabinet section. Relay coil degradation can create back-EMF spikes that stress the driving board over time.
• Signal Isolators and Zener Barriers — In hazardous area installations, galvanic isolators or Zener barriers in the field signal path should be tested for correct isolation resistance and signal fidelity. Degraded isolators can introduce noise that accelerates board wear.
• Fuse Holders and Circuit Protection Components — Replace any discolored or thermally stressed fuses in the power distribution section of the MOD 300 cabinet. Fuse holder contact resistance increases with age and thermal cycling, creating voltage drop that can destabilize board operation.
• Advant Station HMI Communication Links — If the MOD 300 system interfaces with an Advant Station or third-party SCADA/HMI via serial or Ethernet, verify communication link integrity after board replacement to confirm correct data mapping and tag addressing.
• Battery-Backed SRAM / NVRAM Memory Modules — Check the condition of any battery-backed memory modules in the MOD 300 rack that retain configuration data. A depleted backup battery can cause configuration loss during the power cycling associated with board replacement.
• ABB DSDI / DSDO Digital I/O Modules — Where the ED1202B interfaces with discrete I/O expansion modules in the same rack, verify that adjacent DSDI and DSDO modules are functioning correctly and that their field wiring is intact before returning the system to service.

Procurement engineers should consider stocking the ED1202B HEDT300355R1 alongside complementary MOD 300 spares to support a complete cabinet-level maintenance kit. A well-structured spare parts inventory reduces mean time to repair (MTTR) and supports multi-year lifecycle extension for installed MOD 300 systems.

Site Replacement Workflow

Replacing the ED1202B HEDT300355R1 in an operational MOD 300 system requires a structured approach to minimize process impact and ensure system integrity after restoration. This workflow is designed to reduce downtime, maintain system compatibility, and support a traceable maintenance record:

1. Pre-replacement documentation: Record the current slot address, board configuration parameters, and any DIP switch or jumper settings on the outgoing board. Photograph the board position and wiring before removal to support accurate reinstallation.
2. System state verification: Confirm whether the replacement can be performed as a hot-swap (with the MOD 300 system running) or requires a controlled shutdown. Consult the MOD 300 hardware manual for the specific slot’s hot-swap capability and any required process interlocks.
3. Compatibility confirmation: Match the hardware revision of the replacement ED1202B HEDT300355R1 against the system’s existing board revisions. Verify that the MOD 300 controller firmware version is compatible with the replacement board’s hardware revision. Cross-reference part numbers ED1202B, HEDT300355R1, and HE693655-307/16 to confirm an exact match.
4. Physical installation: Insert the replacement board into the correct backplane slot, ensuring full connector engagement. Secure the board retaining latch and verify that the board’s status LEDs indicate normal initialization before proceeding.
5. Post-installation functional test: Monitor all I/O channels associated with the replaced board for correct signal values. Confirm MasterBus 300 communication participation and verify that the HMI or SCADA system reflects accurate process data from the restored module.
6. Documentation update: Record the replacement in the site maintenance log, including the new board’s serial number, installation date, and any configuration changes made during the process. This record supports warranty claims and future audit requirements.

This systematic replacement workflow supports rapid downtime recovery, long-term system compatibility, and improved maintenance efficiency for ABB Advant MOD 300 installations at any stage of their operational lifecycle.

Spare Parts Support FAQ

Q1: What is the expected service life of the ED1202B HEDT300355R1, and when should I plan for replacement?
The ABB ED1202B HEDT300355R1 is a mature DCS board module from the Advant MOD 300 platform. In stable industrial environments with controlled temperature and humidity, these boards typically operate reliably for 15–20 years. However, boards in high-vibration, high-temperature, or chemically aggressive environments may show degradation earlier. We recommend maintaining at least one verified spare per installed unit and scheduling proactive replacement during planned shutdowns rather than waiting for in-service failure.

Q2: How do I verify compatibility before installing the replacement board?
Compatibility verification for the ED1202B HEDT300355R1 should include: (1) confirming the full part number including hardware revision suffix matches the outgoing board or is listed as a compatible replacement in the MOD 300 hardware documentation; (2) verifying the backplane slot type and connector configuration; and (3) confirming that the MOD 300 system firmware version supports the replacement board’s hardware revision. If in doubt, contact our technical team with your system’s software version and existing board revision details before ordering.

Q3: What pre-shipment testing is performed on this module, and what does the 12-month warranty cover?
Every ED1202B HEDT300355R1 unit shipped from our inventory undergoes a functional power-on test and a comprehensive visual inspection covering component condition, connector integrity, and board surface condition. Units that do not pass inspection are not offered for sale. All shipped units are covered by a 12-month warranty from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Q4: Can you support long-term or blanket spare parts orders for MOD 300 systems?
Yes. We support long-term supply agreements for maintenance teams managing multiple MOD 300 installations or planning multi-year lifecycle extension programs. We can reserve verified stock of the ED1202B HEDT300355R1 and related MOD 300 components against a blanket purchase order, with staged delivery aligned to your planned maintenance schedule. Contact our sales team to discuss inventory reservation, lead times, and volume pricing.
