ABB EI803F 3BDH000017R1 Retrofit-Ready Ethernet for AC800M

ABB EI803F 3BDH000017R1 Retrofit-Ready Ethernet Interface for AC800M Control Systems

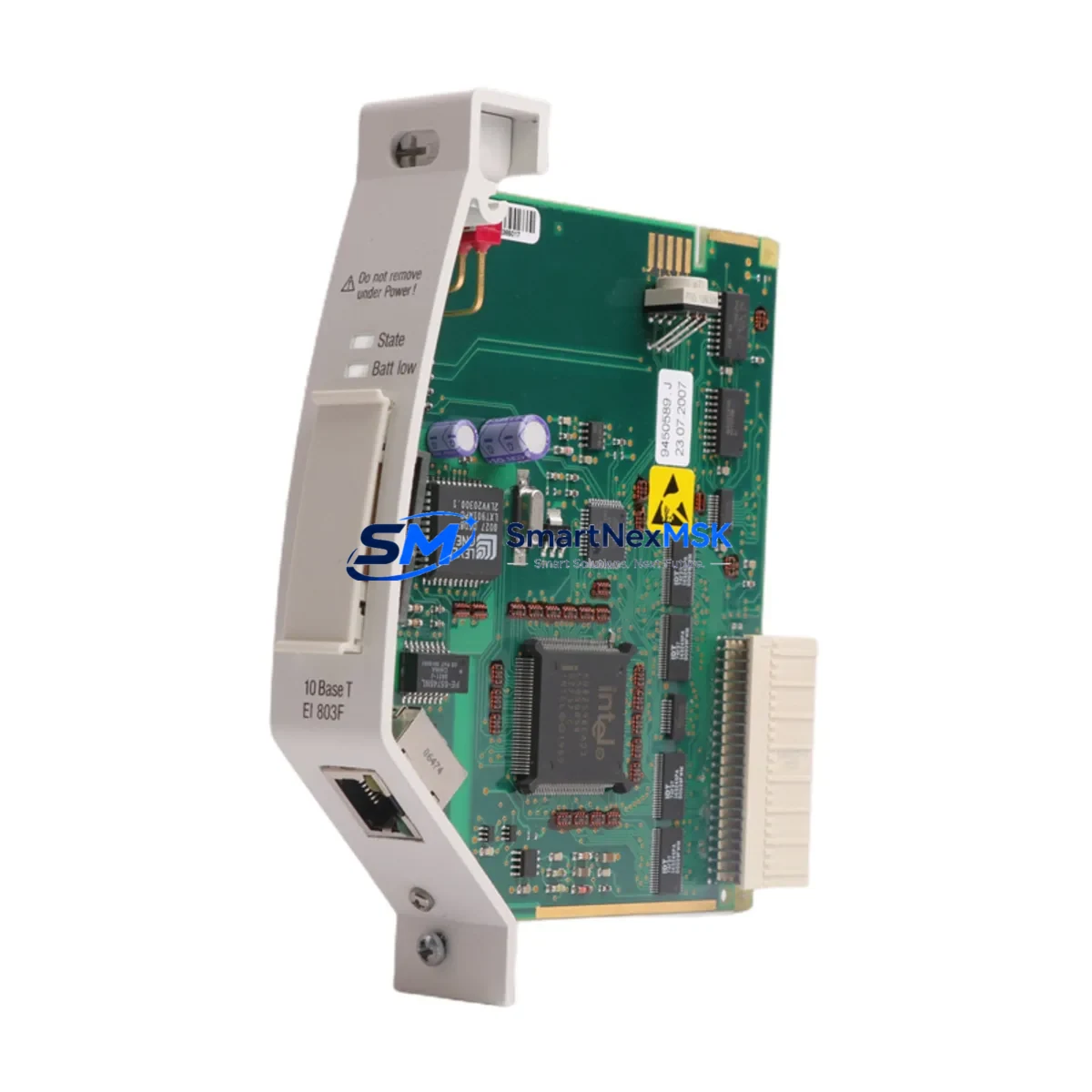

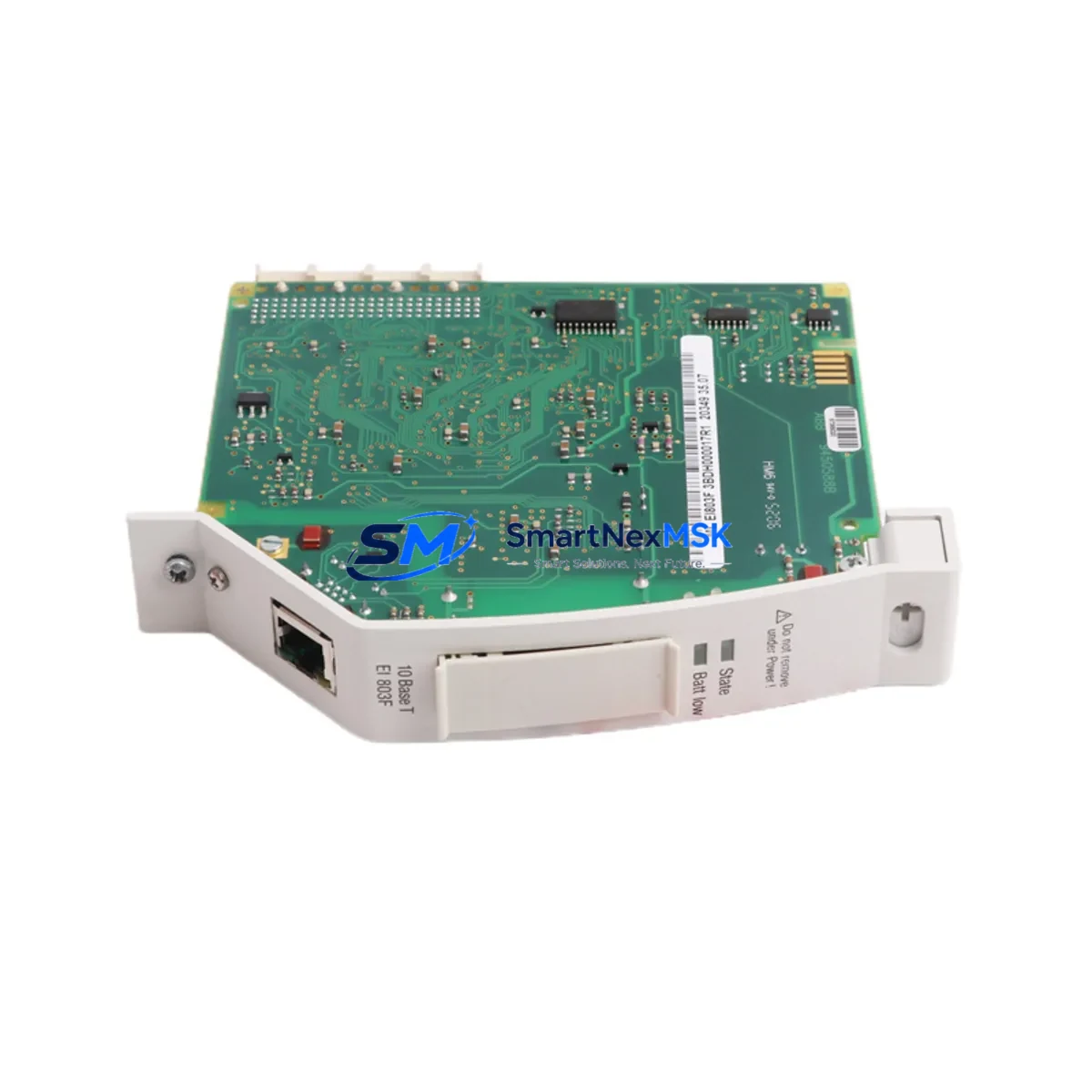

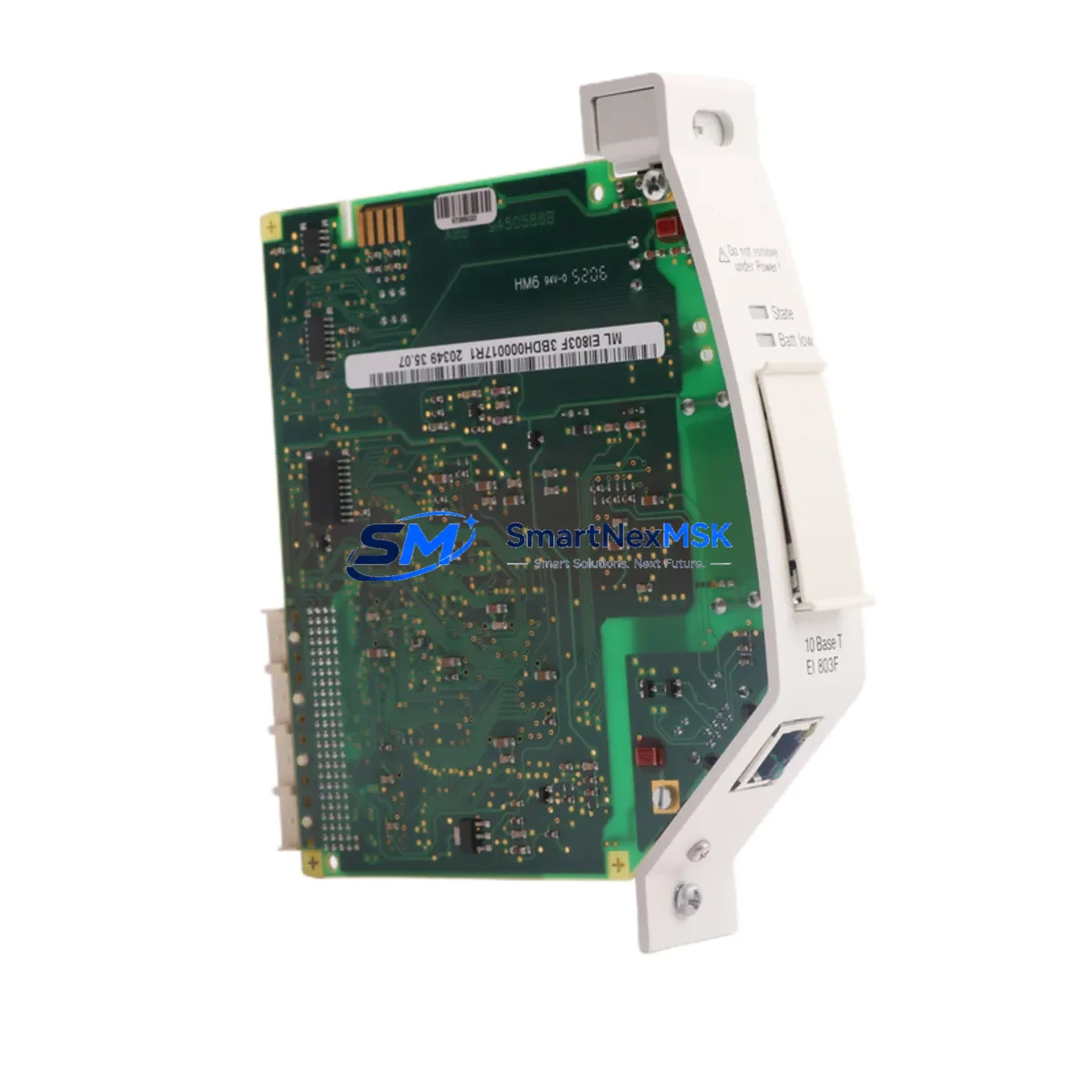

The ABB EI803F (part number 3BDH000017R1) is a high-performance Ethernet Interface Module designed for integration within the ABB AC800M Distributed Control System platform. As legacy DCS installations age and original spare parts become increasingly difficult to source, the EI803F has emerged as a critical retrofit component for engineers tasked with modernizing control infrastructure without full system replacement. SMARTNEXMSK maintains verified stock of the EI803F, fully tested and backed by a 12-month warranty, enabling rapid deployment in both planned upgrade projects and emergency replacement scenarios.

The EI803F module provides the AC800M controller with a dedicated Ethernet communication interface, supporting standard industrial protocols including PROFINET and Modbus TCP. It mounts directly onto the AC800M processor backplane — typically the TB840A or TB842A — and communicates with the PM864A or PM865A processor modules via the internal S100 I/O bus. When replacing a failed or end-of-life EI803F in an existing cabinet, engineers must verify backplane slot assignment, confirm module addressing in the Control Builder M engineering tool, and validate that the Ethernet port configuration matches the existing network topology before powering the system.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the EI803F into an aging AC800M system requires a structured retrofit plan that accounts for both hardware compatibility and software configuration. Before removing the failed module, engineers should export the current project from Control Builder M and document all existing I/O module addresses, network parameters, and communication link configurations. The AC800M platform typically houses multiple modules on a shared backplane — including the CI854A PROFIBUS DP communication interface, the AI810 analog input module, the DO810 digital output module, and the DI810 digital input module — all of which must remain operational during the Ethernet interface swap to avoid cascading process interruptions.

Power budget verification is a mandatory pre-installation step. The TB840A backplane supplies a fixed 5 VDC internal bus, and adding or replacing the EI803F must not exceed the total backplane power capacity. Engineers should consult the rack power summary in the hardware configuration tool and confirm that the combined draw of the PM864A processor, the EI803F, and any co-installed CI801 or CI854A communication modules remains within specification. If the existing cabinet uses a PS60 or PS61 power supply module, verify that the 24 VDC field supply rail is also within tolerance before energizing the replacement module.

Terminal wiring for the Ethernet port is straightforward — the EI803F uses a standard RJ45 connector and integrates directly into the plant Ethernet switch infrastructure. However, if the legacy system previously relied on a serial communication link via the SC510 serial communication module or an older MB510 Modbus interface, the migration to Ethernet-based communication via the EI803F requires reconfiguration of the communication function blocks within the AC800M application program. This includes updating the COM_PROFINET or COM_MODBUS_TCP function block parameters and verifying that the HMI tag database — typically managed through ABB’s 800xA System or a third-party SCADA — reflects the new communication path without requiring a full tag re-import.

Downtime Control During System Migration

Minimizing unplanned downtime during an EI803F replacement is achievable with proper pre-staging and a disciplined hot-swap procedure. Because the AC800M supports redundant controller configurations in many installations, engineers should confirm whether the affected node is operating in a primary or backup role before initiating the swap. If redundancy is active, the system can be switched to the backup PM865A controller while the primary node’s EI803F is replaced, keeping the process running without interruption.

For non-redundant installations, the recommended approach is to pre-configure the replacement EI803F offline using Control Builder M — assigning the correct IP address, module slot number, and communication parameters — before the scheduled maintenance window. This reduces live configuration time to under 15 minutes in most cases. Once the module is seated on the TB840A backplane and powered, the processor will perform an automatic hardware scan. Engineers should monitor the diagnostic LEDs on both the EI803F and the PM864A to confirm successful enumeration before releasing the system back to process control. All original application logic, PID loop parameters, and interlock conditions are preserved in the processor’s non-volatile memory and do not require re-download unless a firmware mismatch is detected.

Post-installation, a structured commissioning checklist should include: ping test to the EI803F IP address from the engineering workstation, verification of live data tags in the 800xA operator station, confirmation of alarm and event logging continuity, and a 30-minute soak test under normal process load before signing off the work order. SMARTNEXMSK ships each EI803F with a factory function test report, reducing on-site verification time and supporting rapid return-to-service.

Retrofit Support FAQ

Q1: Is the EI803F 3BDH000017R1 a direct drop-in replacement for an existing failed unit?
Yes. The EI803F is a direct physical and functional replacement for any existing EI803F unit on an AC800M backplane. No mechanical adapters or wiring changes are required. Confirm the firmware revision of the replacement module matches or exceeds the original to avoid compatibility warnings in Control Builder M.

Q2: What commissioning steps are required after installing the replacement EI803F?
After seating the module, assign the IP address and subnet parameters via Control Builder M, confirm the module address matches the hardware configuration, and perform a communication link test to all connected PROFINET or Modbus TCP devices. Verify that the HMI operator station displays live process values before releasing the system.

Q3: Can the EI803F support migration from a legacy serial communication setup?
Yes, with additional configuration. If the existing system used an SC510 or MB510 serial interface, the application program’s communication function blocks must be updated to reference the Ethernet-based protocol. A protocol gateway may be required if field devices do not natively support PROFINET or Modbus TCP.

Q4: What does the 12-month warranty cover, and how is it handled?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. Each unit shipped by SMARTNEXMSK is function-tested prior to dispatch. In the event of a warranty claim, contact sales@smartnexmsk.com with the order reference and fault description. Replacement or repair is arranged with priority handling to minimize your system downtime.
