ABB GJR2326500R1010 Maintenance-Ready Spare for S800 Automation

ABB GJR2326500R1010 Maintenance-Ready Spare for S800 Automation

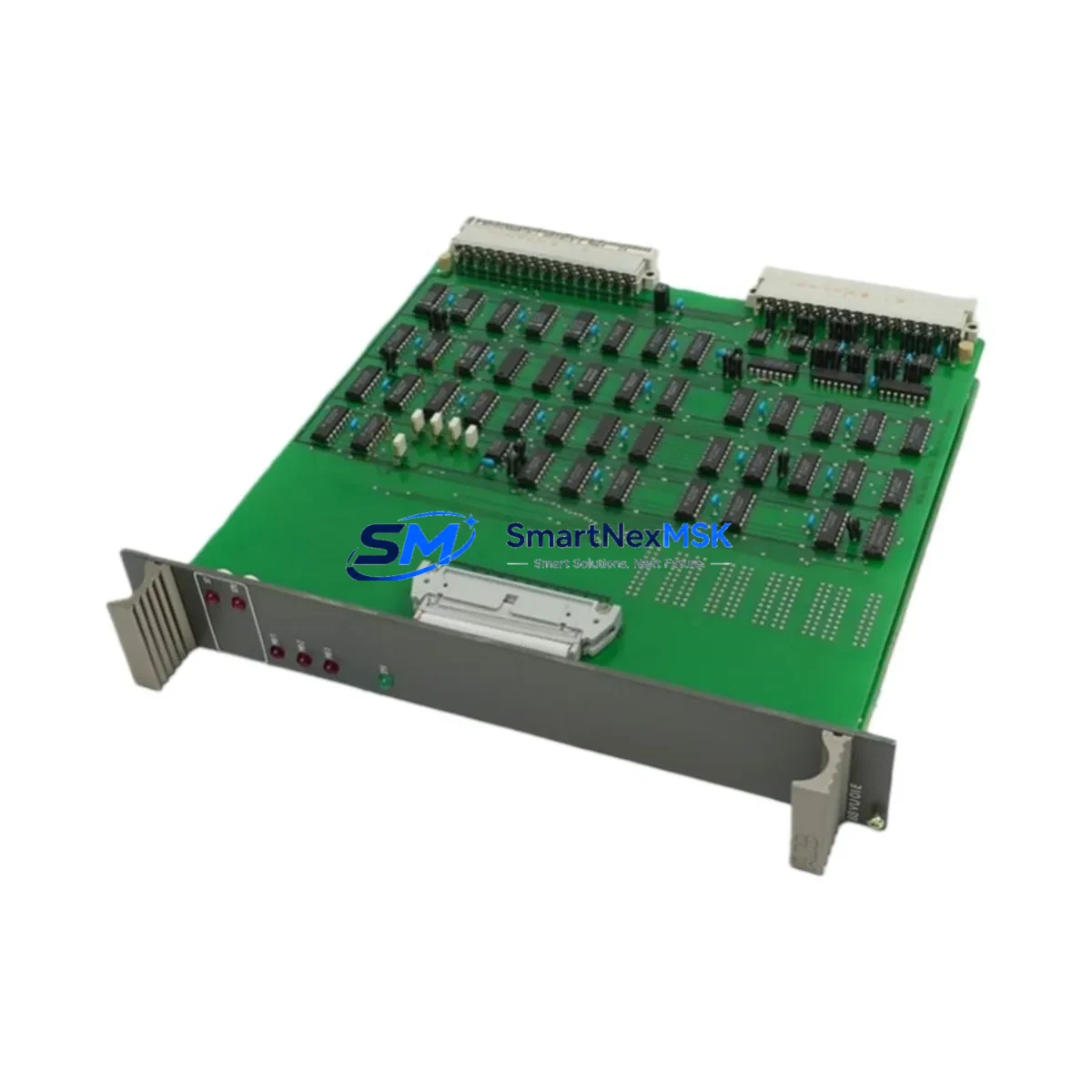

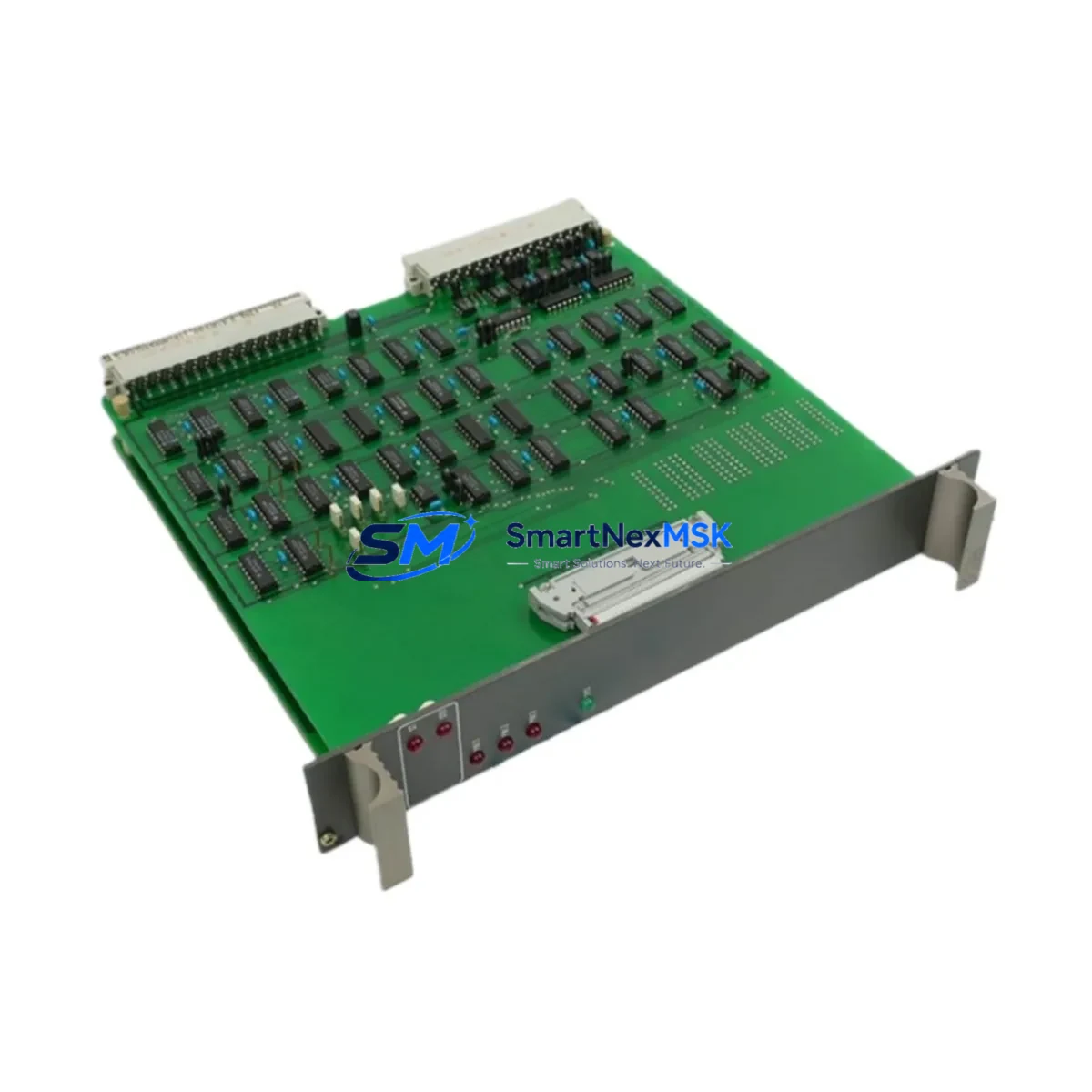

The ABB GJR2326500R1010 (88VU01A) is an original 8-channel analog output module designed for the ABB S800 I/O system, widely deployed in DCS and process automation environments. For maintenance engineers managing continuous production lines, unplanned failure of an analog output module can halt critical control loops — affecting valve positioners, variable-speed drives, and process controllers simultaneously. Stocking a verified replacement of the GJR2326500R1010 is a proven strategy to reduce mean time to repair (MTTR) and protect uptime in aging S800-based control architectures.

This module is sourced as an original ABB spare, fully tested prior to shipment, and backed by a 12-month warranty. It is compatible with S800 I/O stations operating under AC800M and AC800F controllers, and integrates directly with existing ModuleBus backplane configurations without firmware modification. Whether you are executing a planned turnaround, responding to an emergency shutdown, or building out a critical-spare inventory for a legacy DCS system, the GJR2326500R1010 delivers the compatibility and reliability your maintenance program requires.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the GJR2326500R1010 in an S800 I/O station, a disciplined maintenance engineer will not stop at the module itself. The analog output loop depends on a chain of components that should be inspected or tested concurrently to prevent repeat failures and confirm loop integrity before returning the system to service.

Begin with the S800 I/O station power supply — typically an SD821 or SD822 unit — and verify output voltage stability under load. A degraded power supply is a common root cause of intermittent analog output faults that are misdiagnosed as module failures. Next, inspect the TB820 or TB840 ModuleBus communication interface connecting the I/O station to the AC800M controller; a faulty interface can cause the replacement module to appear offline even when correctly seated.

Check the terminal unit associated with the AO module — the TU830 or TU831 — for corrosion, loose screw terminals, and correct field wiring polarity. Analog output channels driving HART-enabled valve positioners or electropneumatic converters should be verified with a loop calibrator after module swap. If the system includes AI810 or AI820 analog input modules on the same I/O station, inspect them for cross-channel interference or shared ground issues that can affect output accuracy.

For control cabinets with mixed I/O, also review the DI810 or DO810 digital I/O modules on adjacent slots — physical shock during module removal can unseat neighboring modules. Confirm that 24 V DC distribution fuses and surge protection devices on the field wiring side are intact. Where the analog outputs feed into a safety instrumented system (SIS) or interface with a Yokogawa or Siemens DCS via signal converters, verify isolator and barrier integrity before loop commissioning. Finally, update your CMMS spare parts record and confirm that at least one additional GJR2326500R1010 remains in your critical-spare inventory to cover the next unplanned event.

Site Replacement Workflow

Step 1 — Isolation: Place the affected control loop in manual mode at the DCS operator station. Notify process operations and confirm safe state for all field devices driven by the faulty AO module.

Step 2 — Identification: Confirm the installed module part number (GJR2326500R1010) and revision (88VU01A) against the plant spare parts list. Verify the replacement unit matches exactly — do not substitute with earlier revisions without checking ABB compatibility notes.

Step 3 — Removal: The S800 I/O module is hot-swap capable under most configurations. Unlatch the module from the I/O station slot and withdraw carefully. Inspect the backplane connector for bent pins or contamination.

Step 4 — Installation: Insert the replacement GJR2326500R1010 into the same slot. The AC800M controller will automatically download the module configuration from the project database — no manual parameter entry is required in standard S800 configurations.

Step 5 — Loop Verification: Use a loop calibrator to inject a 4 mA and 20 mA reference signal and confirm field device response. Check all 8 channels if time permits, or prioritize channels connected to critical control loops.

Step 6 — Return to Service: Transfer the control loop from manual to automatic at the DCS. Monitor for 15–30 minutes and confirm stable process variable response. Document the replacement in your CMMS with the module serial number and test results.

This workflow minimizes downtime to under 30 minutes for a trained technician and eliminates the risk of configuration errors that can occur when replacing modules in older S800 systems without hot-swap support.

Spare Parts Support FAQ

Q1: Is the GJR2326500R1010 still available as a new original part, or only as refurbished stock?
We supply the GJR2326500R1010 as an original ABB spare. Each unit undergoes functional testing prior to shipment. Where new stock is available, it is shipped as new; where sourced from certified surplus, it is fully tested and supplied with a 12-month warranty. Condition is confirmed at the time of order.

Q2: How do I confirm compatibility with my existing AC800M system before ordering?
Provide your AC800M controller firmware version and the current S800 I/O station configuration (number of slots, existing module types, and TB820/TB840 interface revision). We will cross-reference against ABB compatibility matrices and confirm before shipment. The GJR2326500R1010 88VU01A is compatible with all standard S800 I/O stations running AC800M firmware 5.x and above.

Q3: What testing is performed before the module ships?
Each GJR2326500R1010 is powered up and tested for correct channel output across the full 4–20 mA range, ModuleBus communication integrity, and LED status indication. A test report is available upon request. Modules that fail any test parameter are not shipped.

Q4: What is your recommended inventory strategy for critical S800 spare parts?
For plants with more than four S800 I/O stations, we recommend maintaining a minimum of two GJR2326500R1010 units in your critical-spare inventory, alongside one spare TB820 interface module and one SD821 power supply unit. This covers the most common single-point failure scenarios and supports a sub-30-minute MTTR target for analog output faults. We offer long-term supply agreements for customers requiring guaranteed stock availability over a 3–5 year horizon.
