ABB GJR2329800R0100 Maintenance-Ready Spare Advant DCS

ABB GJR2329800R0100 Maintenance-Ready Spare for Advant DCS Automation

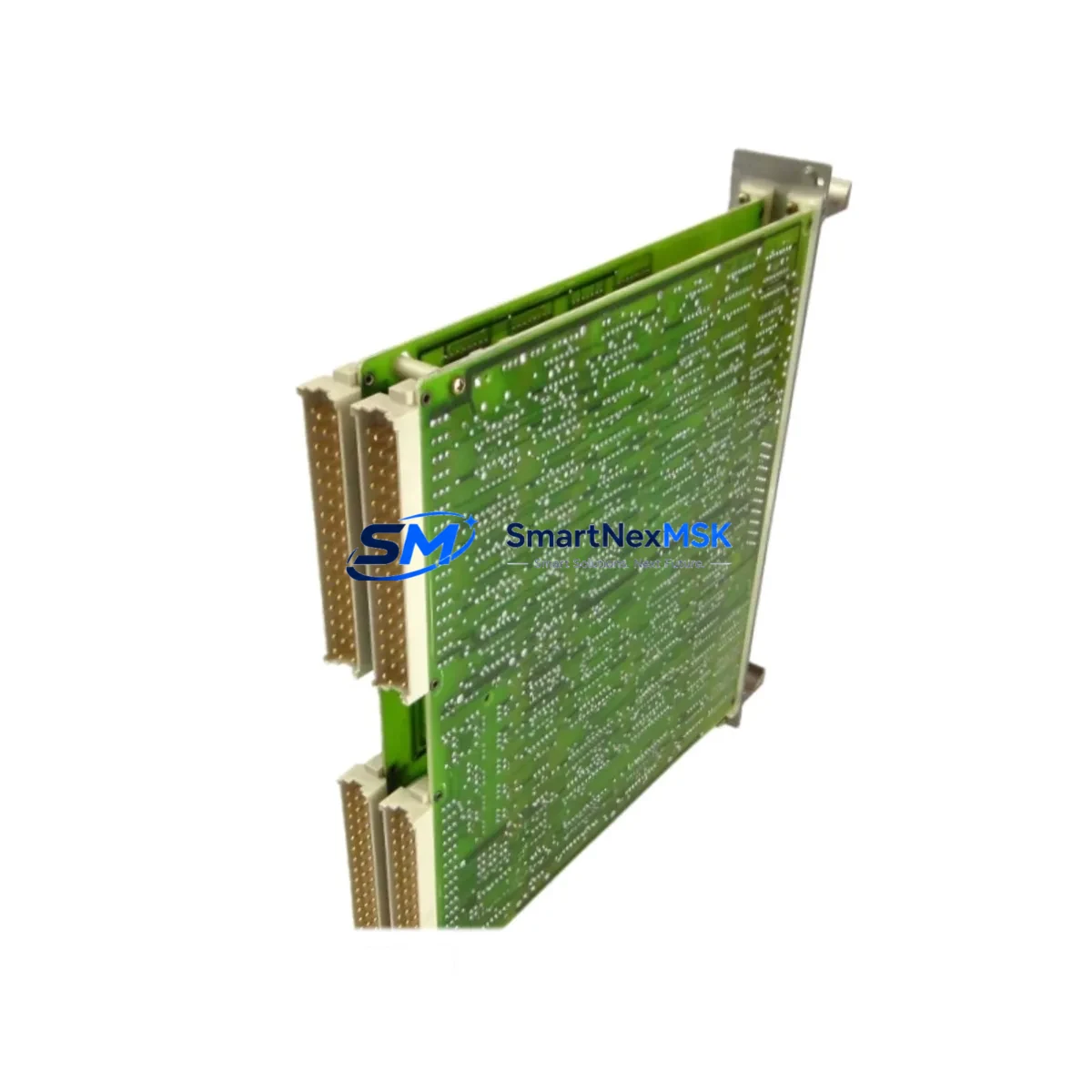

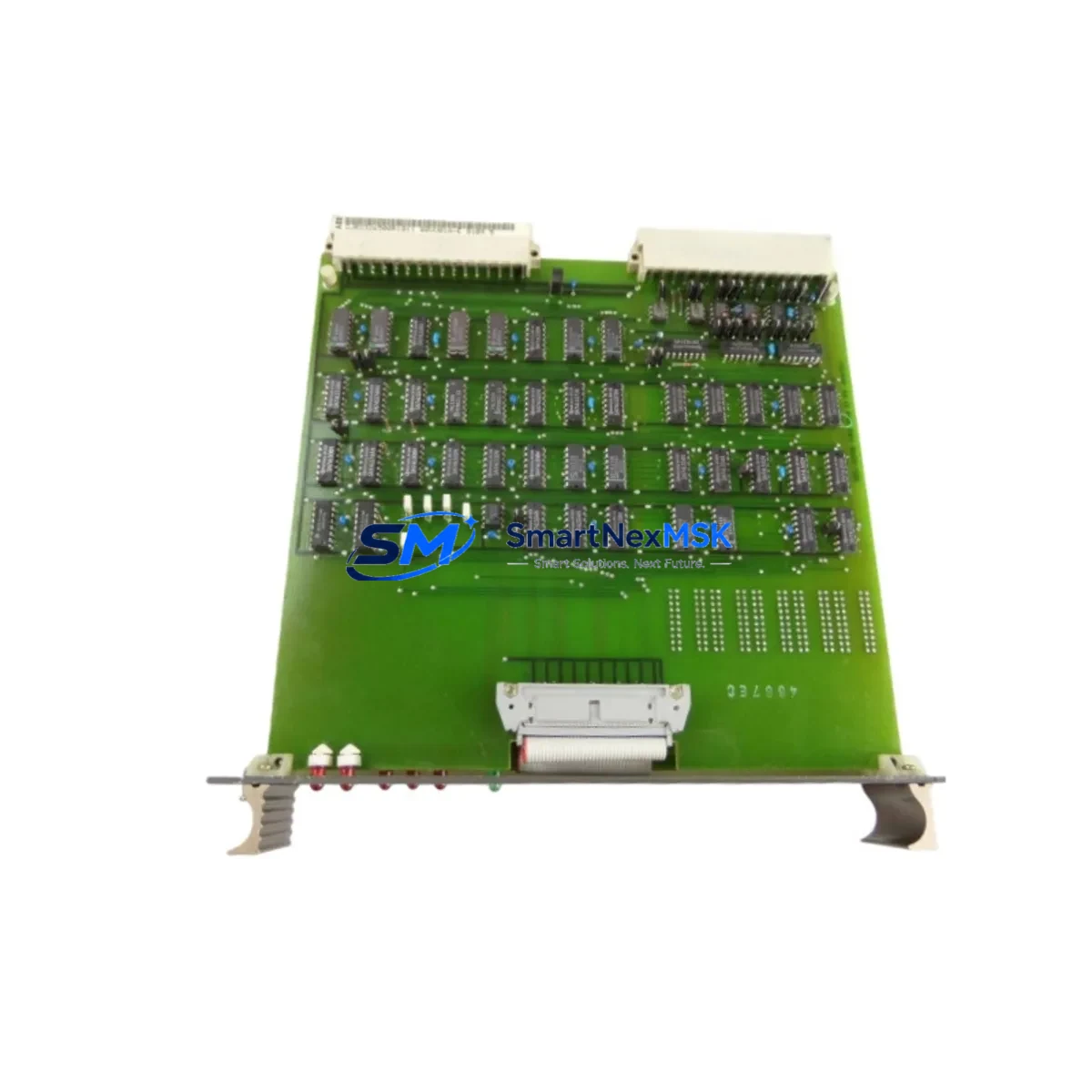

The ABB GJR2329800R0100 (88UM01A) is an original DCS control board engineered for the ABB Advant Controller series — including the AC450 and AC410 platforms widely deployed in process automation, power generation, and heavy industrial environments. When this board fails or degrades, the consequences extend beyond a single I/O channel: the entire controller segment may go offline, triggering unplanned downtime that can cost thousands per hour in lost production. Stocking a verified replacement and following a structured site replacement workflow is the most effective way to protect continuous operation.

At SMARTNEXMSK, every GJR2329800R0100 unit is sourced from original ABB supply chains, inspected against factory specifications, and function-tested prior to shipment. Each unit ships with a 12-month warranty and full traceability documentation, giving maintenance engineers and procurement teams the confidence to commit this part to their critical spare inventory.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A DCS control board like the GJR2329800R0100 does not operate in isolation. It sits within a tightly coupled electrical and communication architecture, and a thorough maintenance plan must account for every component in that chain. When scheduling a planned replacement or responding to an unplanned fault, maintenance engineers should simultaneously inspect the following associated components:

The ABB DSQC 346 or equivalent power supply module feeding the Advant subrack should be checked for output voltage stability and ripple — a marginal power supply is a leading cause of intermittent control board faults. The Advant backplane and subrack bus connectors (DSBC 176 or DSBC 172 series) should be inspected for oxidation, bent pins, and seating integrity, as poor backplane contact can mimic board failure. The DSMB 127 or DSMB 176 MasterBus communication module in the same rack segment should be verified for correct node addressing and error-free bus traffic, since a failing communication module can corrupt controller diagnostics and mask the true fault source.

On the I/O side, DSDI 110 digital input modules and DSDO 110 digital output modules connected to the same controller segment should be checked for blown fuses, wiring continuity, and correct 24 VDC field supply. Any DSAI 130 or DSAO 120 analog I/O modules in the loop should be calibrated and verified against field transmitter signals. If the system includes DSDP 140 pulse counter or DSPC 155 processor modules, their firmware revision and hardware compatibility with the replacement GJR2329800R0100 board should be confirmed before commissioning.

Signal integrity should also be assessed at the terminal unit and marshalling cabinet level — loose field wiring terminations and degraded cable shields are common contributors to noise-induced faults that are incorrectly attributed to the control board itself. Where signal isolation is required, galvanic isolators or signal conditioners in the 4–20 mA loops should be tested for drift. Finally, the Advant Operator Station (OS) or connected HMI should be checked to confirm that alarm history and event logs are consistent with the fault timeline, helping to distinguish a genuine board failure from a transient process upset.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the ABB Advant diagnostics tool or the local operator station to confirm the GJR2329800R0100 board is the fault source. Record all active alarms, CRC error counts, and watchdog trip events before powering down the segment.

Step 2 — Safe Isolation: Follow your site LOTO (Lockout/Tagout) procedure. De-energize the subrack segment. Verify zero voltage at the backplane power rails before handling the board.

Step 3 — Board Removal: Release the board ejector levers, slide the GJR2329800R0100 out of its slot, and place it in an ESD-safe bag. Note the slot position and any DIP switch or jumper settings for reference during installation of the replacement unit.

Step 4 — Replacement Installation: Confirm the replacement board’s revision (88UM01A) matches the system’s firmware and hardware compatibility matrix. Set DIP switches and jumpers to match the removed board. Slide the new board into the slot and seat firmly until the ejector levers lock.

Step 5 — Power-Up and Verification: Re-energize the subrack. Monitor the controller segment status on the operator station. Confirm all I/O channels return to normal scan, communication bus traffic resumes without errors, and no new alarms are generated. Document the replacement in the site maintenance log.

Step 6 — System Handover: Notify the process control team that the segment is back in service. Update the spare parts inventory record and initiate a reorder for the next GJR2329800R0100 unit to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is the GJR2329800R0100 88UM01A compatible with both the AC450 and AC410 Advant Controllers?
Yes. The GJR2329800R0100 88UM01A is designed for the ABB Advant Controller platform and is compatible with AC450 and AC410 subrack configurations. Before installation, verify the hardware revision and firmware version of your existing controller against ABB’s compatibility matrix. SMARTNEXMSK can provide technical documentation to support this verification.

Q2: What testing is performed before shipment?
Every GJR2329800R0100 unit undergoes function testing against OEM electrical specifications prior to dispatch. Test records are available upon request. Units are packed in ESD-safe materials with anti-static shielding to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or environmental conditions outside the specified operating range. Warranty claims are processed with full replacement or repair at no additional cost.

Q4: How should we manage long-term spare inventory for legacy Advant systems?
For sites running ABB Advant AC450 or AC410 systems beyond their original support lifecycle, we recommend maintaining a minimum of one GJR2329800R0100 board per controller segment as a cold standby spare. Given the discontinuation risk for legacy DCS components, procuring a 2–3 year forward stock is a common strategy among maintenance planners managing older automation infrastructure. SMARTNEXMSK offers long-term supply agreements and reserved stock programs for high-criticality parts.
