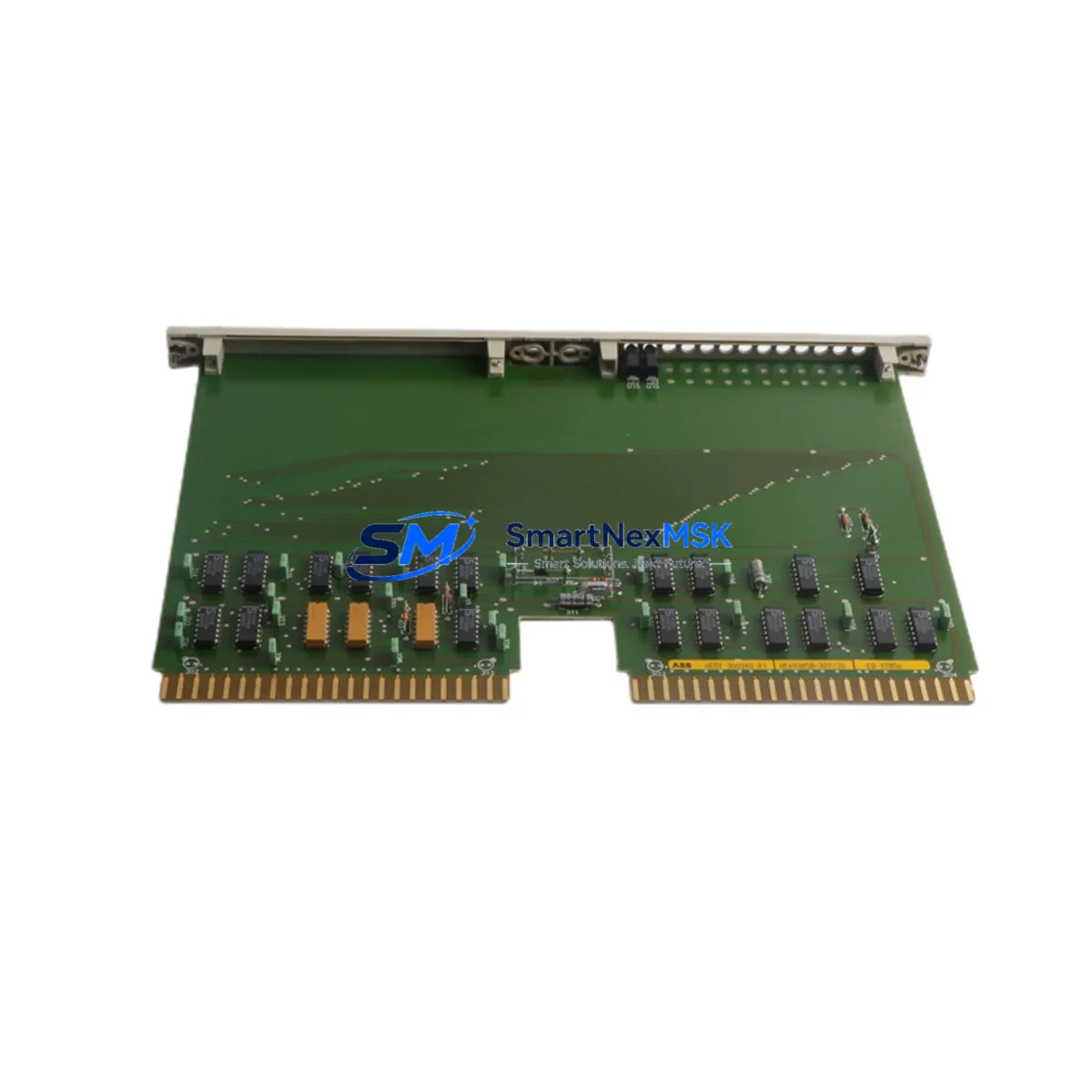

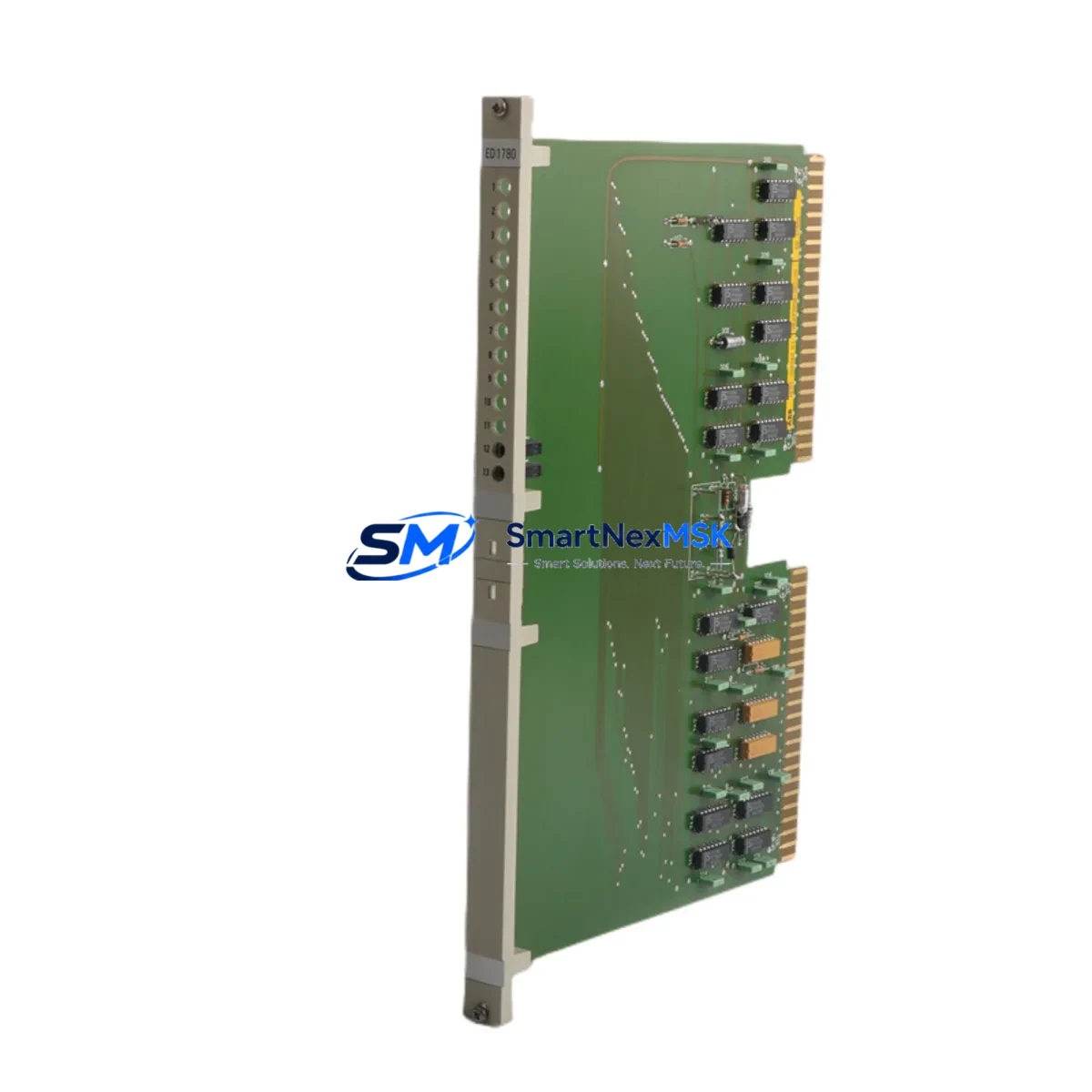

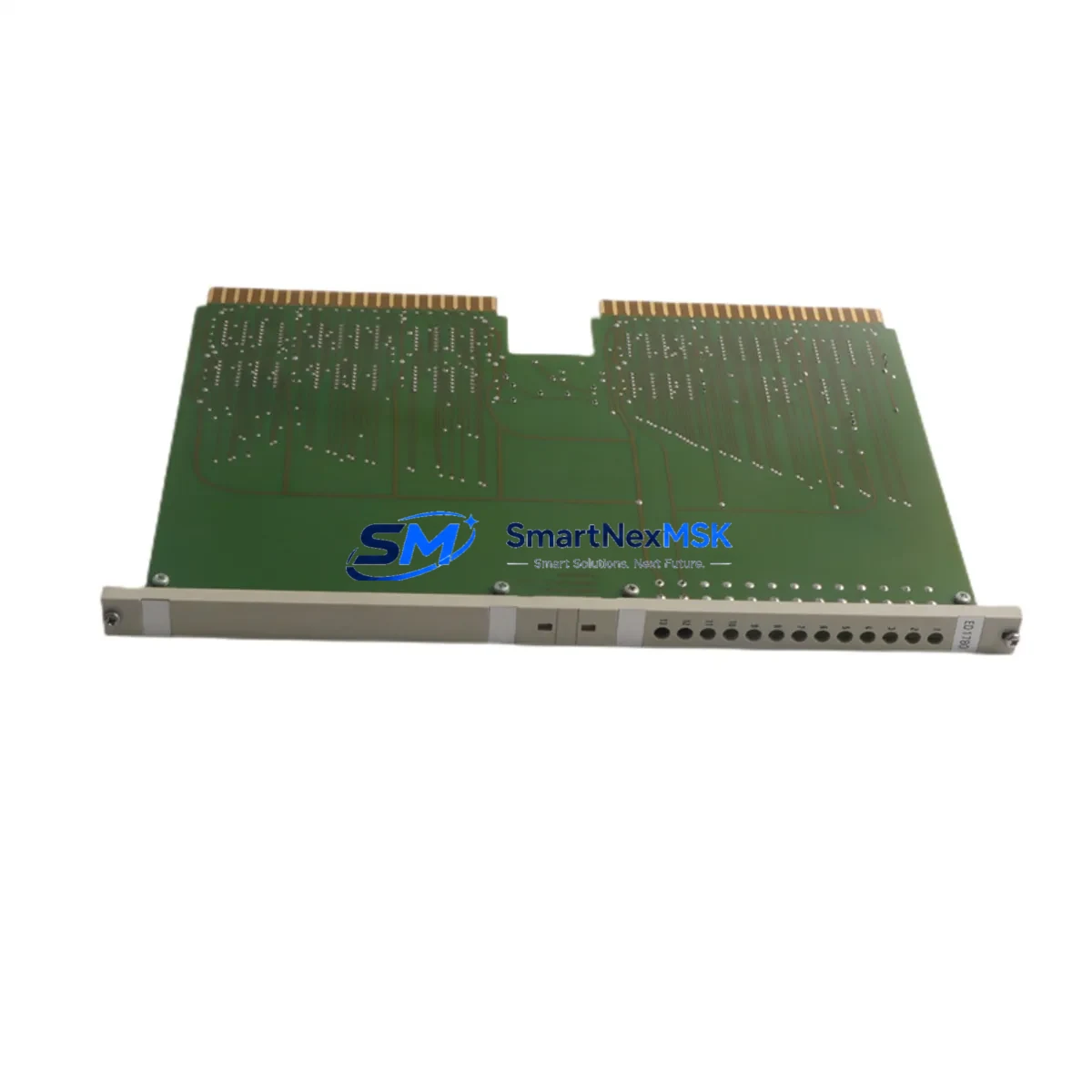

ABB HEDT300340R1 ED1780A Maintenance-Ready Spare MOD 300
The ABB HEDT300340R1 ED1780A is a Bus Amplifier Module designed for the ABB Advant MOD 300 Distributed Control System (DCS). In process industries — including oil & gas, power generation, chemical processing, and pulp & paper — the MOD 300 platform remains a backbone controller in facilities where system longevity and uptime are non-negotiable. When a bus amplifier fails or degrades, the consequences extend beyond a single I/O loop: entire process segments can go offline, triggering unplanned shutdowns that cost thousands of dollars per hour.
Sourced as an original ABB spare part and manufactured in Germany, the HEDT300340R1 ED1780A is held to the same electrical and mechanical tolerances as the factory-installed unit. Every module dispatched by SMARTNEXMSK undergoes pre-shipment functional testing and is covered by a 12-month warranty, giving maintenance engineers and procurement teams the confidence to stock it as a critical spare without reservation.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | HEDT300340R1 ED1780A |
| Brand | ABB |
| Series / Platform | Advant MOD 300 DCS |
| Module Type | Bus Amplifier Module |
| Country of Origin | Germany (DE) |
| Compatible Systems | ABB Advant MOD 300, MOD 300A, compatible Advant Controller backplanes |
| Application Environment | Industrial DCS cabinets, process control panels, continuous-process plants |
| Installation | Direct slot replacement on MOD 300 backplane; no firmware re-flash required for like-for-like swap |
| Condition | Original spare — new or fully refurbished to OEM specification |
| Pre-Shipment Testing | Functional test performed; results documented |
| Warranty | 12 Months from date of shipment |
| Weight | 240 g |
| Typical Lead Time | In-stock: ships within 1–3 business days |
| Long-Term Supply | Available for repeat orders and blanket purchase agreements |
Maintenance Planning for Continuous Operation
A bus amplifier module sits at the heart of the MOD 300 communication architecture, bridging the Advant Fieldbus or internal backplane bus to downstream I/O and controller modules. When planning a replacement or a scheduled overhaul, maintenance engineers should treat the HEDT300340R1 ED1780A as one node in a broader inspection checklist rather than an isolated component swap.
Begin with the power supply modules feeding the MOD 300 rack — units such as the ABB DSQC series or equivalent MOD 300 PSU cards should be checked for output voltage stability and ripple, since a marginal power supply is a common root cause of bus amplifier degradation. Inspect the backplane connector and card-guide rails for oxidation or mechanical wear before seating the replacement module.
On the I/O side, verify that the analog input modules and digital output modules sharing the same bus segment are operating within specification. A failing bus amplifier often manifests first as intermittent communication errors on adjacent I/O cards, so reviewing diagnostic logs for those modules before and after the swap is good practice. If the plant uses HART-enabled field instruments, confirm that HART pass-through is re-established after the replacement.
For facilities running Advant Controller 450 (AC450) or AC410 processors alongside the MOD 300 I/O subsystem, check the processor module’s communication status registers after the bus amplifier is replaced to confirm the segment is fully re-enumerated. Communication interface modules — including any PROFIBUS DP or Modbus gateway cards installed in the same cabinet — should also be power-cycled and verified.
Relay output modules and signal isolators in the same control loop deserve attention during the same maintenance window. Replacing the bus amplifier while leaving a borderline relay module or a degraded galvanic isolator in service risks a repeat callout within weeks. Similarly, inspect terminal blocks and field wiring terminations in the marshalling cabinet for loose connections or insulation breakdown, particularly in high-vibration or high-humidity environments.
If the plant operates an Operator Station (OS) or Engineering Station running ABB’s Advant Station software, confirm that the replaced module is correctly recognized in the system configuration database after restart. For aging MOD 300 installations, this is also an appropriate time to review the battery-backed RAM modules on the controller card and replace them proactively if they are approaching end-of-life.
Procurement engineers building a critical-spare inventory for a MOD 300 installation should consider stocking the HEDT300340R1 ED1780A alongside compatible I/O termination units, a spare power supply module, and at least one spare processor or communication module to cover the most common single-point failure modes in a continuous-process environment.
Site Replacement Workflow
Step 1 — Isolation and Permit: Obtain a Permit to Work (PTW) and isolate the affected MOD 300 rack segment per site LOTO procedures. Note the current bus segment status in the DCS historian before de-energizing.
Step 2 — Module Extraction: Release the card-locking lever and extract the faulty HEDT300340R1 ED1780A. Inspect the backplane connector pins for damage or contamination. Clean with isopropyl alcohol if required.
Step 3 — Replacement Installation: Insert the new HEDT300340R1 ED1780A into the same slot. The module is a direct like-for-like replacement — no DIP switch changes or firmware updates are required for a standard swap on the same hardware revision. Confirm the card-lock engages fully.
Step 4 — Power-Up and Diagnostics: Re-energize the rack and observe the module’s LED status indicators. A steady green RUN LED confirms normal bus operation. Check the DCS operator station for any residual alarms on the affected I/O segment.
Step 5 — Loop Verification: Perform a loop check on the critical process signals routed through the restored bus segment. Document the replacement in the plant’s maintenance management system (CMMS) and update the spare-parts inventory record.
This workflow minimizes mean time to repair (MTTR) and ensures the system is returned to a verified operational state before the maintenance window closes — reducing the risk of a secondary trip during the next production run.
Spare Parts Support FAQ
Q1: Is the HEDT300340R1 ED1780A a direct drop-in replacement for all MOD 300 revisions?
The HEDT300340R1 ED1780A is designed for the ABB Advant MOD 300 platform. For installations running early MOD 300 hardware revisions, we recommend confirming the backplane hardware revision with your ABB documentation or contacting our technical team before ordering. We can cross-reference your existing module’s label data to confirm compatibility.
Q2: What testing is performed before shipment?
Every HEDT300340R1 ED1780A dispatched by SMARTNEXMSK undergoes a functional power-on test and visual inspection. Test results are documented and available on request. Modules that do not pass our acceptance criteria are not shipped.
Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, we offer priority replacement dispatch to minimize your downtime.
Q4: Can I place a blanket order or reserve stock for a long-term maintenance contract?
Yes. SMARTNEXMSK supports blanket purchase agreements and reserved-stock arrangements for critical spare parts. Contact our sales team to discuss volume pricing, consignment stock options, and scheduled delivery programs tailored to your plant’s maintenance calendar.
