ABB HESG324442R13/E Spare for 216VC Series Automation

ABB HESG324442R13/E Spare for 216VC Series Automation: Precision Relay Card for DCS Downtime Recovery

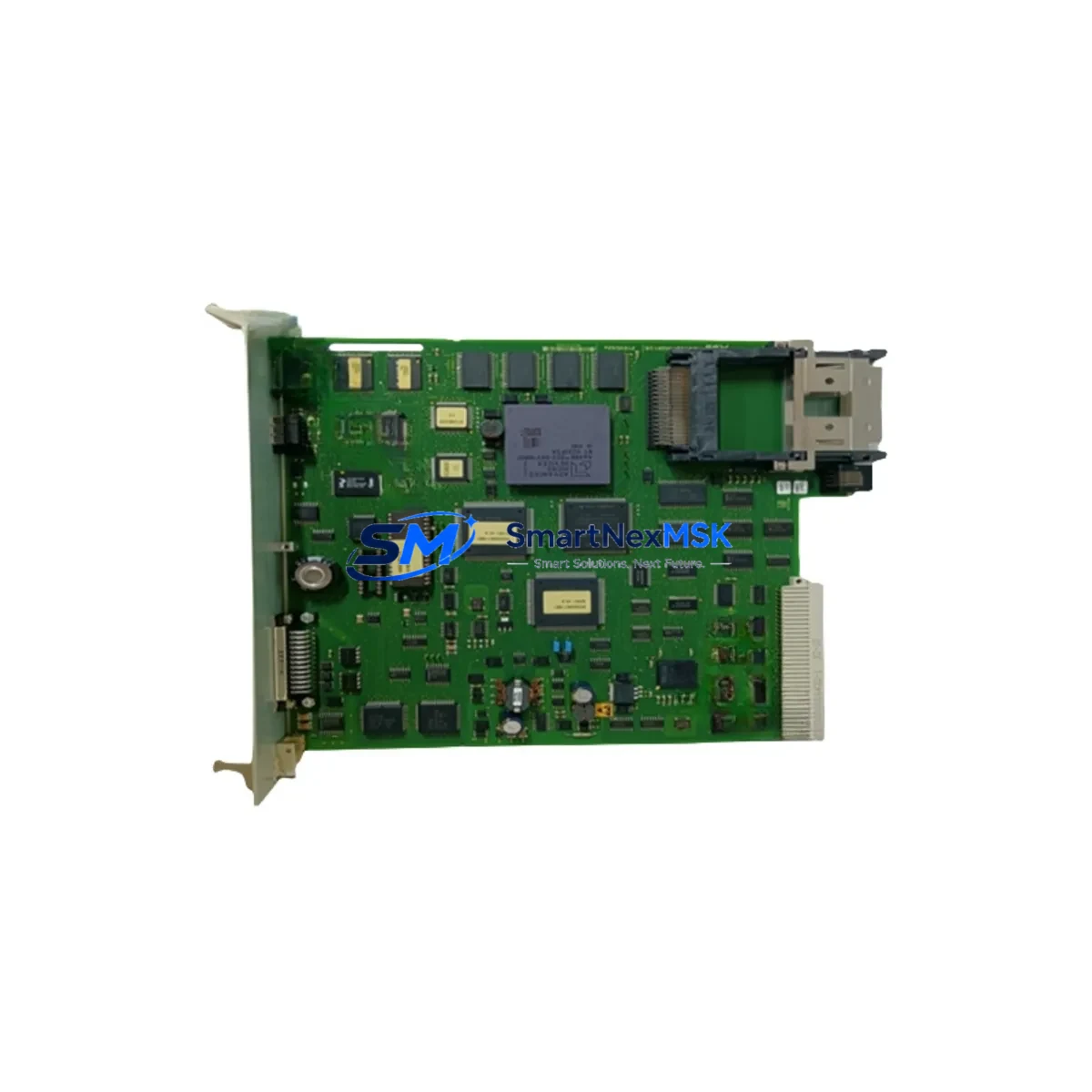

The ABB HESG324442R13/E (also referenced as HESG324442R112, module designation 216VC62a) is an original DCS Processor Relay Card engineered for the ABB Advant 216VC control system platform. Designed to handle critical signal processing and relay switching functions within distributed control architectures, this card is a cornerstone component in process automation environments across power generation, chemical processing, oil & gas, and heavy manufacturing facilities.

For maintenance engineers managing aging Advant DCS installations, sourcing a verified original spare for the HESG324442R13/E is often the fastest path to restoring full system operation after an unplanned shutdown. This module ships tested, with full functional verification, and is backed by a 12-month warranty — giving procurement and reliability teams the confidence to stock it as a critical-path spare.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DCS Processor Relay Card such as the HESG324442R13/E is flagged during routine control cabinet inspection or fault diagnostics, experienced maintenance engineers know that a single card failure rarely exists in isolation. The 216VC backplane distributes power and communication across multiple modules, meaning that a relay card fault can cascade into I/O errors, communication dropouts, or erratic process control behavior if adjacent components are not simultaneously evaluated.

During planned replacement of the HESG324442R13/E, maintenance teams should conduct a concurrent inspection of the following associated components within the same control cabinet or DCS loop:

• ABB 216VC Power Supply Module (e.g., HESG216045R1) — Verify output voltage stability; a degraded PSU is a common root cause of relay card failure.
• ABB Advant Backplane / Rack Assembly — Inspect backplane connector pins for oxidation, mechanical damage, or intermittent contact that can cause false relay trips.
• ABB HESG216048R1 or equivalent I/O Module — Confirm I/O channel integrity; relay card faults often manifest as I/O read errors at the controller level.
• ABB DSDI110A / DSDO110A Digital I/O Cards — Cross-check digital input/output status against relay card outputs to isolate whether the fault is in the relay stage or upstream logic.
• ABB DSDP170 Communication Module — Verify fieldbus or PROFIBUS communication continuity; a relay card replacement may require re-initialization of the communication stack.
• Terminal Blocks and Field Wiring (e.g., ABB ENTRELEC or Phoenix Contact series) — Inspect screw terminals for loose connections, corrosion, or thermal damage at relay output circuits.
• Signal Isolators / Barriers — For hazardous area installations, confirm that galvanic isolators or Zener barriers in the relay output loop remain within specification.
• Fuse Holders and Miniature Circuit Breakers — Check fuses on relay output circuits; a blown fuse is frequently the first visible symptom of a relay card overcurrent event.
• ABB Advant HMI / Operator Station — After card replacement, validate alarm and status displays at the HMI to confirm the new module is correctly recognized by the DCS supervisor.
• 24 VDC Field Power Distribution Rail — Measure field power supply voltage at the relay card input; voltage sag under load can cause intermittent relay operation that mimics card failure.

Stocking the HESG324442R13/E alongside these associated components as part of a structured critical-spare inventory strategy significantly reduces mean time to repair (MTTR) and eliminates the risk of a secondary shutdown caused by a failed adjacent component discovered only after the primary card has been replaced.

Site Replacement Workflow

Replacing the HESG324442R13/E in an active 216VC DCS installation requires a structured approach to minimize process disruption and ensure system compatibility is maintained throughout the transition.

Step 1 — Pre-Replacement Verification: Confirm the replacement card’s part number (HESG324442R13/E or HESG324442R112) matches the installed revision. Cross-reference the 216VC62a module designation against the system’s hardware configuration database. Mismatched firmware revisions between the relay card and the DCS controller can cause initialization failures.

Step 2 — Safe Isolation: Follow the site’s lockout/tagout (LOTO) procedure for the affected DCS cabinet. De-energize the relay output circuits before extraction. For hot-standby or redundant configurations, confirm the standby path is active before removing the primary card.

Step 3 — Physical Replacement: Extract the faulty HESG324442R13/E using the module ejector levers. Inspect the backplane connector for damage before inserting the replacement. Seat the new card firmly and verify the locking mechanism engages. Observe ESD precautions throughout.

Step 4 — Power-Up and Diagnostics: Re-energize the cabinet and monitor the DCS diagnostic display for module recognition. Confirm the HESG324442R13/E appears online in the hardware tree. Run a relay output test sequence to verify all channels operate correctly before returning the loop to automatic control.

Step 5 — Documentation: Record the replacement in the site’s maintenance management system (CMMS), including the old card’s serial number, failure mode, and the new card’s test certificate. Update the spare parts inventory to trigger reorder of a replacement stock unit.

This workflow applies equally when upgrading from an older HESG324442R112 revision to the current HESG324442R13/E, ensuring backward compatibility is confirmed before the system is returned to service.

Spare Parts Support FAQ

Q1: Is the HESG324442R13/E a direct replacement for the HESG324442R112?
Yes. The HESG324442R13/E and HESG324442R112 are revision variants of the same 216VC62a DCS Processor Relay Card. They are functionally interchangeable in standard 216VC series installations. However, always verify the DCS hardware configuration file recognizes the installed revision to avoid initialization errors. If in doubt, contact our technical team with your system’s hardware list for confirmation before ordering.

Q2: What pre-shipment testing is performed on this card?
Every HESG324442R13/E unit undergoes full functional testing prior to dispatch. This includes relay contact continuity verification, backplane interface checks, and power consumption measurement. A test record is available upon request. The card ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should I manage long-term spare inventory for aging 216VC DCS systems?
For facilities operating ABB Advant 216VC systems beyond their original design life, we recommend maintaining a minimum of one HESG324442R13/E per critical control loop as a cold standby spare. Given the increasing scarcity of original ABB Advant components, procurement engineers should consider securing a multi-unit stock position to cover a 3–5 year maintenance horizon. We offer long-term supply agreements and can reserve stock against a facility’s projected consumption schedule.

Q4: Can this card be used in non-ABB control cabinets or third-party DCS systems?
The HESG324442R13/E is designed specifically for the ABB Advant 216VC backplane architecture and is not compatible with third-party DCS platforms or non-ABB rack systems. Compatibility is limited to genuine ABB 216VC series hardware. If you are migrating from a 216VC system to a newer ABB AC500 or System 800xA platform, contact us for migration spare and transition support options.
