ABB HESG447398R20 Retrofit-Ready Analog Input for MOD 300 Control Systems

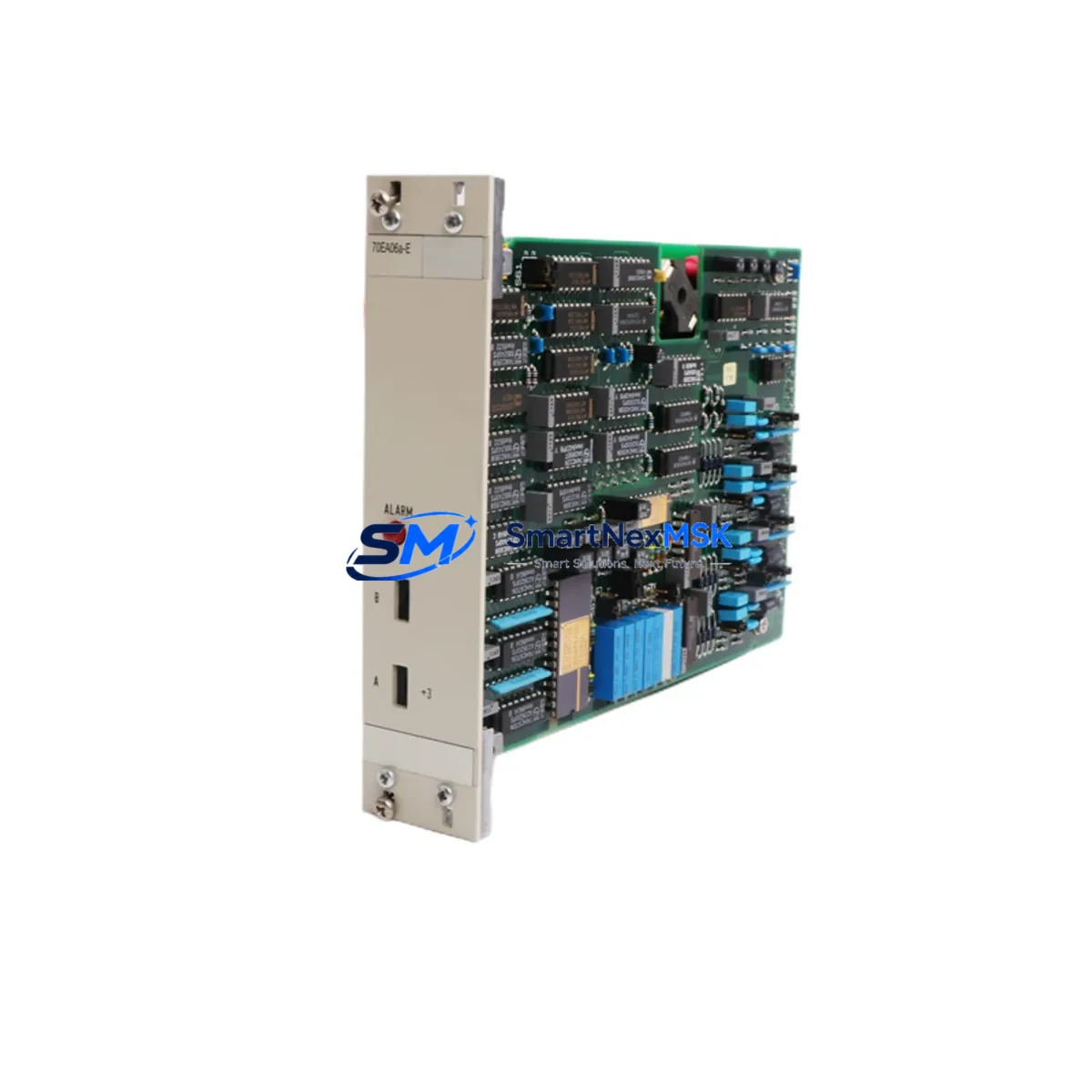

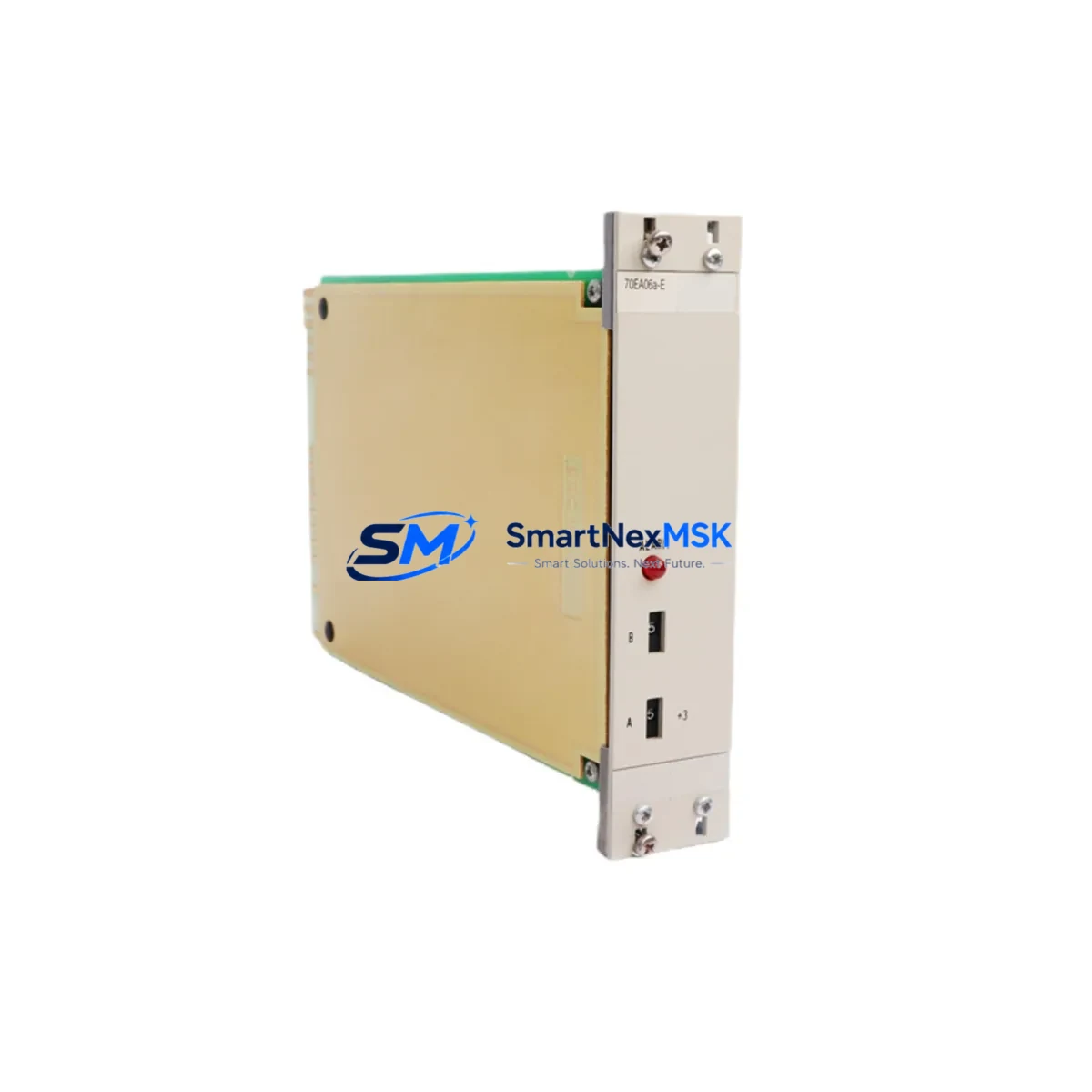

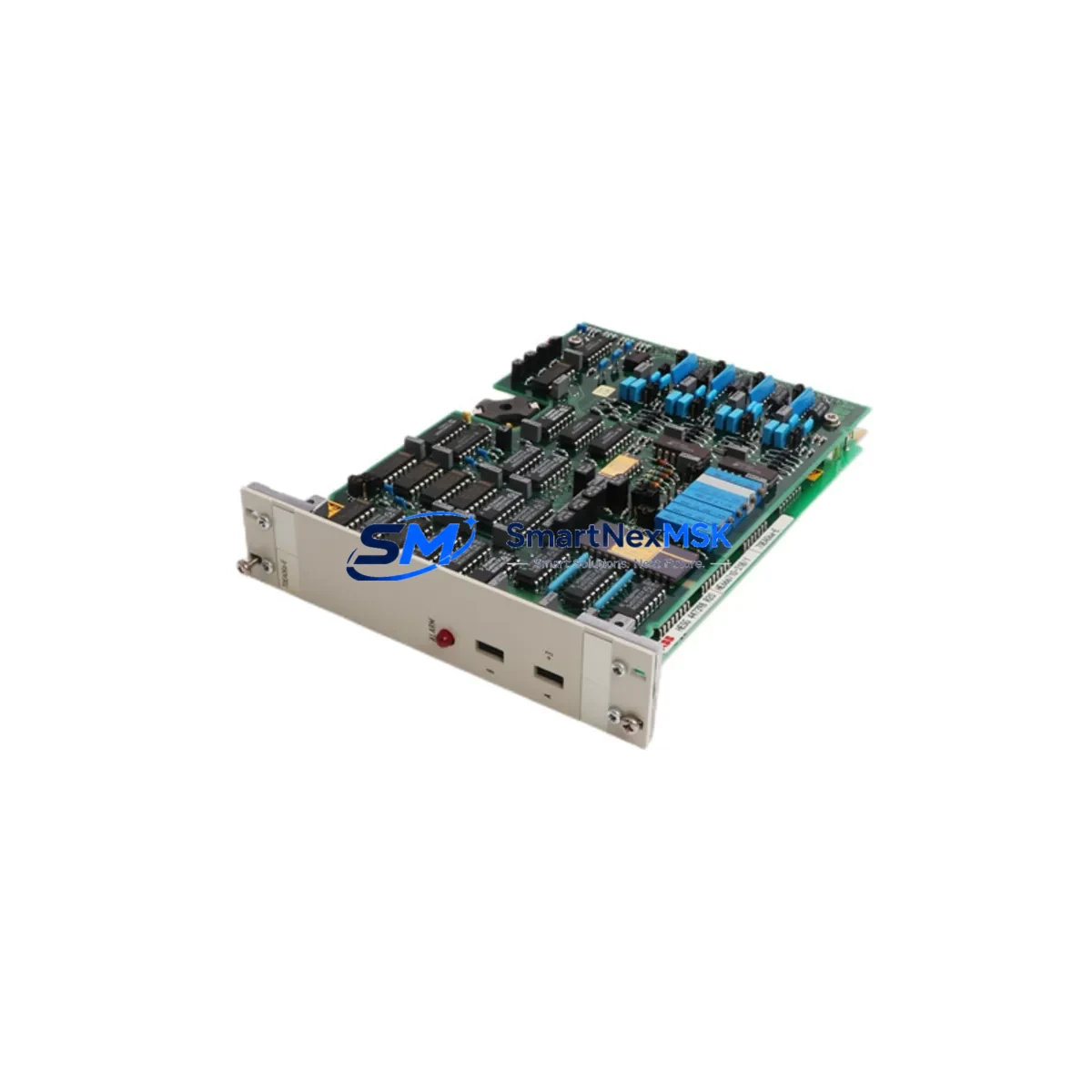

The ABB HESG447398R20 (HE666710-318/1, 70EA06A-E) is a proven analog input module engineered for seamless compatibility with the Advant MOD 300 and AC 450 Distributed Control Systems. As legacy DCS installations approach end-of-support milestones, this module serves as a direct retrofit solution — enabling plant engineers to restore full I/O functionality without redesigning the control architecture or rewriting application logic.

Whether you are replacing a failed card in a running production line, upgrading a control cabinet during a planned shutdown, or building a spare-parts inventory for a long-term maintenance contract, the HESG447398R20 is supplied fully tested, functionally verified, and backed by a 12-month warranty. Each unit undergoes pre-shipment functional testing to confirm channel accuracy, signal conditioning performance, and backplane communication integrity before dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the HESG447398R20 into an existing MOD 300 or AC 450 system requires a structured pre-installation review. Before removing the legacy module, engineers should document the current terminal wiring layout and confirm field signal types against the original I/O assignment list. The backplane slot address must be verified in the MOD 300 engineering station — typically accessed via the Advant Builder or equivalent configuration tool — to ensure the replacement module inherits the correct logical address without triggering a controller fault.

Power supply capacity is a critical checkpoint. The ABB DSQC 661 or equivalent MOD 300 power supply unit should be confirmed to have sufficient headroom to support the replacement module alongside co-installed cards such as the HESG447397R1 analog output module and any HESG223550R1 digital I/O modules sharing the same rack. Overloading the rack power budget is a common cause of intermittent faults after module replacement.

For systems that include a MASTER BUS 300 communication module or an INSUM network interface, confirm that the bus configuration file does not require manual node re-registration after the swap. In most standard MOD 300 configurations, a like-for-like module replacement at the same slot address is transparent to the communication layer — but this should be validated in the engineering station before returning the loop to automatic control.

If the retrofit is part of a broader migration from MOD 300 to a newer ABB System 800xA platform, the HESG447398R20 can serve as an interim I/O solution while the migration is staged across multiple shutdowns. In this scenario, the module can coexist with S800 I/O remote I/O stations connected via AF100 fieldbus, allowing a phased cutover without a full-plant shutdown. HMI graphics linked to the analog input channels should be reviewed to confirm that tag names and engineering unit scaling remain consistent after the module swap — particularly if the Advant OCS or a third-party SCADA system is reading process values from these channels.

Terminal block wiring should be inspected for corrosion, loose ferrules, and correct shielding termination. For high-accuracy analog loops, shield grounding at a single point — typically at the marshalling cabinet rather than at the field instrument — is recommended to minimize common-mode noise on the input channels. If the original module was fitted with a HESG447398R20-compatible signal conditioner or isolator barrier, confirm that the replacement module’s input impedance is compatible with the barrier’s output drive capability.

Downtime Control During System Migration

Minimizing unplanned downtime during a DCS module replacement requires preparation that begins well before the maintenance window opens. The recommended approach is to perform a full backup of the MOD 300 application database — including all function block configurations, loop tuning parameters, and alarm setpoints — using the Advant engineering station. This backup protects against configuration loss in the event of an unexpected controller restart during the swap.

Where process conditions allow, placing affected control loops in manual mode before removing the HESG447398R20 prevents bump-less transfer issues and protects downstream equipment from uncontrolled process excursions. For critical loops where manual operation is not feasible, coordinate with the operations team to identify a safe hold condition and confirm that the DSPC 110 or equivalent MOD 300 processor module will maintain the last valid output during the I/O interruption.

After installing the replacement module, a channel-by-channel signal verification should be performed before returning loops to automatic. This involves injecting a known reference signal at the field terminal and confirming that the engineering station displays the correct process value within the expected accuracy band. Any discrepancy in channel scaling or offset should be corrected in the I/O configuration before the loop is closed. With proper preparation, a single-module replacement can typically be completed within a two-hour maintenance window, keeping production impact to a minimum.

Retrofit Support FAQ

Q1: Is the HESG447398R20 a direct drop-in replacement for the original ABB module?
Yes. The HESG447398R20 (HE666710-318/1 / 70EA06A-E) is a direct slot-compatible replacement for the original ABB Advant MOD 300 analog input module of the same part number. No hardware modification to the backplane or rack is required. Verify the module slot address in the engineering station before installation.

Q2: What commissioning steps are required after installation?
After seating the module in the backplane, confirm the module address assignment in the Advant engineering station, perform a channel signal verification using a calibrated loop calibrator, and check that all affected HMI tags are displaying correct process values. Place control loops in manual mode during the swap and return to automatic only after signal verification is complete.

Q3: How is terminal wiring compatibility confirmed before replacement?
Refer to the original I/O assignment list and wiring diagram for the specific rack slot. The HESG447398R20 uses the standard MOD 300 terminal block interface — confirm that field cable ferrules are in good condition and that signal shielding is correctly terminated. If a signal isolator or barrier is installed in the loop, verify input impedance compatibility with the replacement module’s specification.

Q4: What does the 12-month warranty cover?
Each HESG447398R20 unit is supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. All units are pre-shipment tested for channel accuracy and backplane communication. For warranty claims or technical support, contact our team directly.
