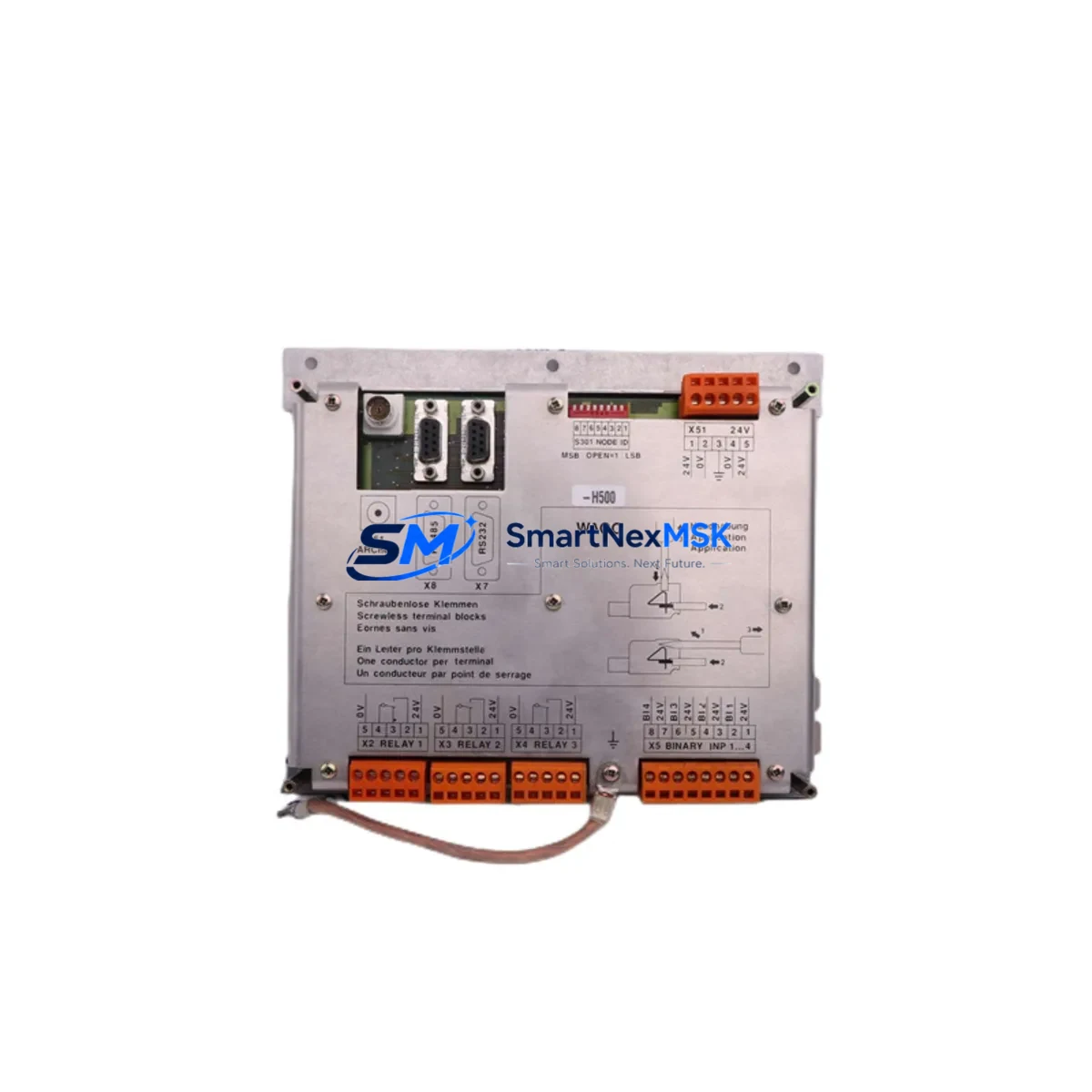

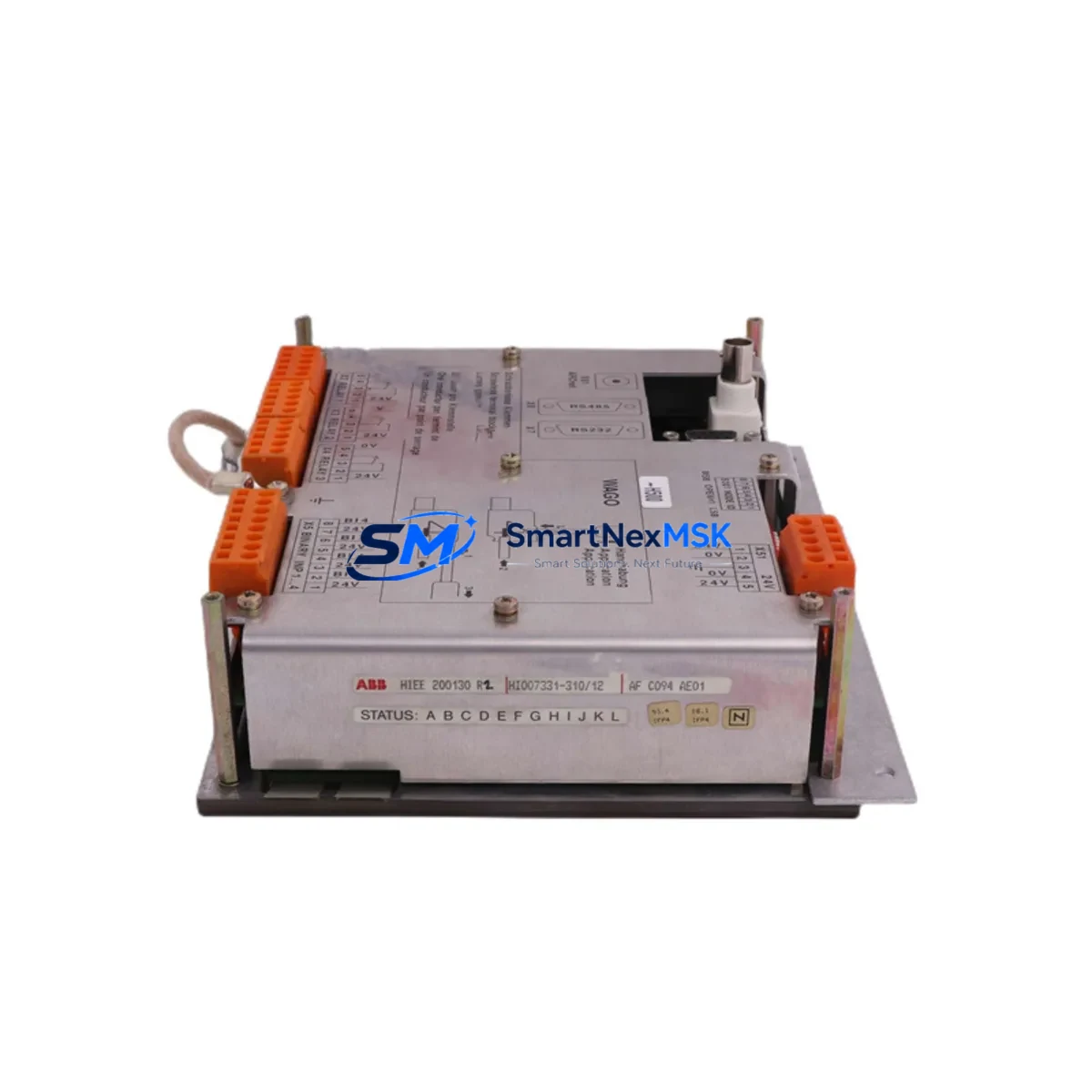

ABB HIEE200130R2 Maintenance-Ready Spare for AC800M Automation
The ABB HIEE200130R2 — also referenced under the alternate part number AFC094AE01 — is an original power supply module designed for the ABB AC800M Distributed Control System platform. As a maintenance-ready spare, this unit is sourced, inspected, and dispatched to support rapid field replacement in process industries including oil and gas, chemical processing, power generation, and pulp and paper manufacturing. Whether you are executing a planned shutdown, responding to an unplanned power fault, or building a strategic spare parts inventory for a long-running DCS installation, the HIEE200130R2 delivers the electrical reliability and platform compatibility that maintenance engineers and procurement teams depend on.
The AC800M controller platform is widely deployed in safety-critical and continuous-process environments where unplanned downtime carries significant operational and financial consequences. The power supply module is one of the highest-risk single points of failure in any controller cabinet — a degraded or failed unit can take down an entire controller node, including all associated I/O modules, communication links, and process loops. Maintaining a verified original spare on-site is the most effective mitigation strategy for this failure mode.
Every HIEE200130R2 unit is functionally tested prior to shipment to verify power output stability, inrush current behavior, and thermal performance. Orders are processed with priority dispatch to minimize production downtime. A 12-month warranty is included on all units, covering manufacturing defects and operational failures under normal industrial use conditions.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | HIEE200130R2 (AFC094AE01) |
| Product Series | ABB AC800M DCS |
| Module Type | Power Supply Module |
| Compatible Controllers | AC800M PM851, PM856, PM860, PM861, PM864, PM866 |
| Input Voltage | 24 V DC (nominal), wide-range input |
| Output | Regulated DC supply for controller backplane and I/O bus |
| Mounting | AC800M controller rack / backplane slot |
| Communication | Backplane power bus; compatible with TB820V2 and TB840A I/O bus terminators |
| Operating Temperature | 0 °C to +55 °C |
| Protection Class | IP20 |
| Country of Origin | Germany |
| Compatibility | AC800M controller racks, S800 I/O modules, CI854 / CI857 communication interfaces |
| Warranty | 12 Months — covers manufacturing defects and operational failure |
| Condition | Original, functionally tested before shipment |
Maintenance Planning for Continuous Operation
When replacing the HIEE200130R2 in the field, a systematic inspection of the surrounding control cabinet components is essential to prevent repeat failures and confirm that the root cause of the power supply fault has been identified and resolved. Maintenance engineers should begin by verifying the upstream 24 V DC distribution rail — check the input fuse holders and circuit breakers feeding the controller cabinet, as a blown fuse or tripped breaker upstream is a common cause of apparent power supply failure that can damage a replacement unit if not corrected before energization.
The AC800M controller modules installed in the same rack — including the PM856 or PM864 processor modules — should be inspected for fault LEDs and diagnostic status before and after the power supply swap. If the system uses redundant power supply configurations, verify that the redundancy switchover logic is functioning correctly and that the standby unit (if present) is in healthy condition. Redundant power supply pairs in AC800M cabinets are a common maintenance oversight: both units should be replaced on the same maintenance cycle to avoid asymmetric aging.
The S800 I/O modules connected via the TB820V2 or TB840A I/O bus terminators should be checked for correct power-up sequencing after the replacement. Analog input modules (AI810, AI820) and digital output modules (DO810, DO820) are sensitive to power transients during controller restart and should be verified for correct signal levels on all active channels. Relay output modules in the same cabinet, particularly those driving field devices such as solenoid valves or motor starters, should be tested for contact continuity before returning the system to automatic control.
Communication interfaces installed in the AC800M rack — such as the CI854A PROFIBUS DP interface or the CI857 HART multiplexer — should be confirmed as online and communicating with their respective field device networks after the power supply replacement. If the system includes an OPC server or historian connection via the ABB Industrial IT or System 800xA platform, verify that the controller node re-establishes its data subscription without requiring a manual reconnect. For cabinets with an operator interface panel or local HMI, confirm that the display re-connects to the controller and reflects current process values correctly.
Signal isolators installed on analog input channels — particularly on thermocouple or RTD inputs — should be tested for correct pass-through signal levels after power restoration. Surge protection devices on field cable entries are frequently overlooked during power supply replacements and should be inspected for signs of thermal stress or degraded clamping performance. Terminal blocks on the 24 V DC distribution rail should be checked for loose connections, which can cause intermittent voltage drops that mimic power supply degradation.
Site Replacement Workflow
The HIEE200130R2 is a direct replacement for earlier AC800M power supply variants. Before beginning the swap, document the current controller status using ABB Control Builder or System 800xA — record the active program version, I/O configuration, and any active alarms or diagnostic messages. This baseline ensures that any post-replacement discrepancies can be identified quickly.
Power down the controller rack using the main cabinet isolator, not just the controller mode switch, to avoid residual voltage on the backplane bus. Remove the failed power supply module by releasing the front-panel locking mechanism and sliding the unit out of the rack slot. Install the replacement HIEE200130R2, ensuring the backplane connector is fully seated. Restore power and monitor the controller startup sequence — the PM processor module should complete its self-test and enter RUN mode within the normal boot time. Check the diagnostic buffer in Control Builder for any hardware fault entries that may indicate secondary issues.
Commissioning time is typically under 20 minutes for experienced maintenance teams when the controller program is resident on the processor module’s flash memory and no re-download is required. This workflow minimizes production downtime and ensures system compatibility is maintained without requiring a full re-engineering cycle. For systems where the HIEE200130R2 has been in service for more than five years, proactive replacement during a planned shutdown — rather than waiting for failure — is the recommended lifecycle strategy.
Spare Parts Support FAQ
Q: Is the HIEE200130R2 compatible with all AC800M controller variants?
A: The HIEE200130R2 (AFC094AE01) is compatible with the AC800M controller rack and supports PM851, PM856, PM860, PM861, PM864, and PM866 processor modules. Compatibility with specific rack configurations should be verified against the installed hardware revision. Contact our technical team with your rack part number for confirmation if required.
Q: What testing is performed before shipment?
A: Every unit undergoes functional power-on testing to verify output voltage stability, inrush current behavior, and thermal performance under load. Units that fail any test stage are quarantined and not dispatched. A test report is available upon request for quality-critical procurement processes.
Q: How should I manage long-term spare parts inventory for AC800M systems?
A: For AC800M installations with extended service life requirements, we recommend maintaining at least one power supply spare per controller node, one processor module spare per critical controller, and key S800 I/O module spares for high-density analog and digital racks. Given ABB’s product lifecycle announcements for legacy AC800M hardware, securing original spare stock now reduces future procurement risk and supports system longevity beyond standard product availability windows.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and operational failures under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority — contact our support team with the order reference and fault description to initiate a replacement or repair.
