ABB HIEE300910R0001 Maintenance-Ready Spare for AC800M Automation

ABB HIEE300910R0001 Maintenance-Ready Spare for AC800M Automation

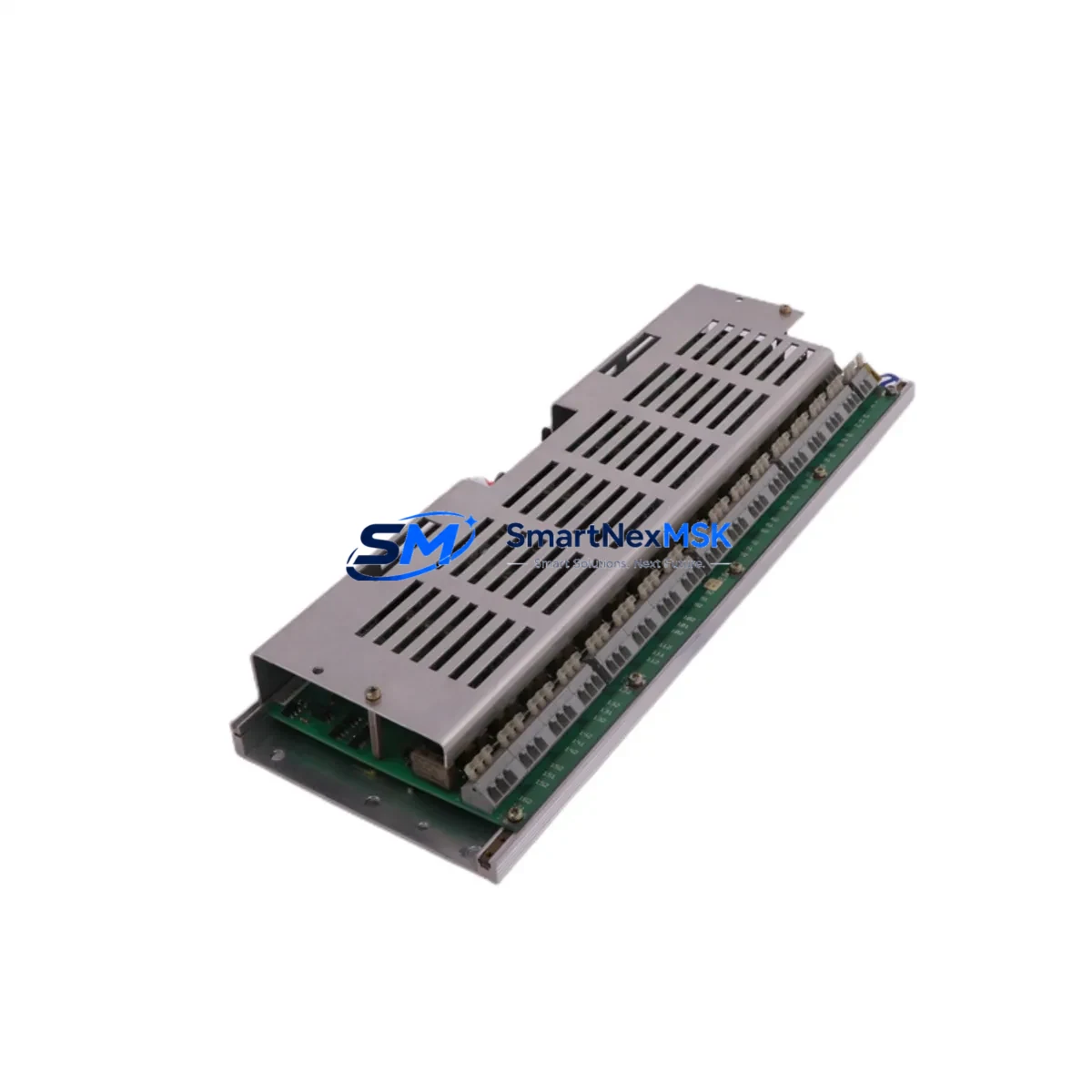

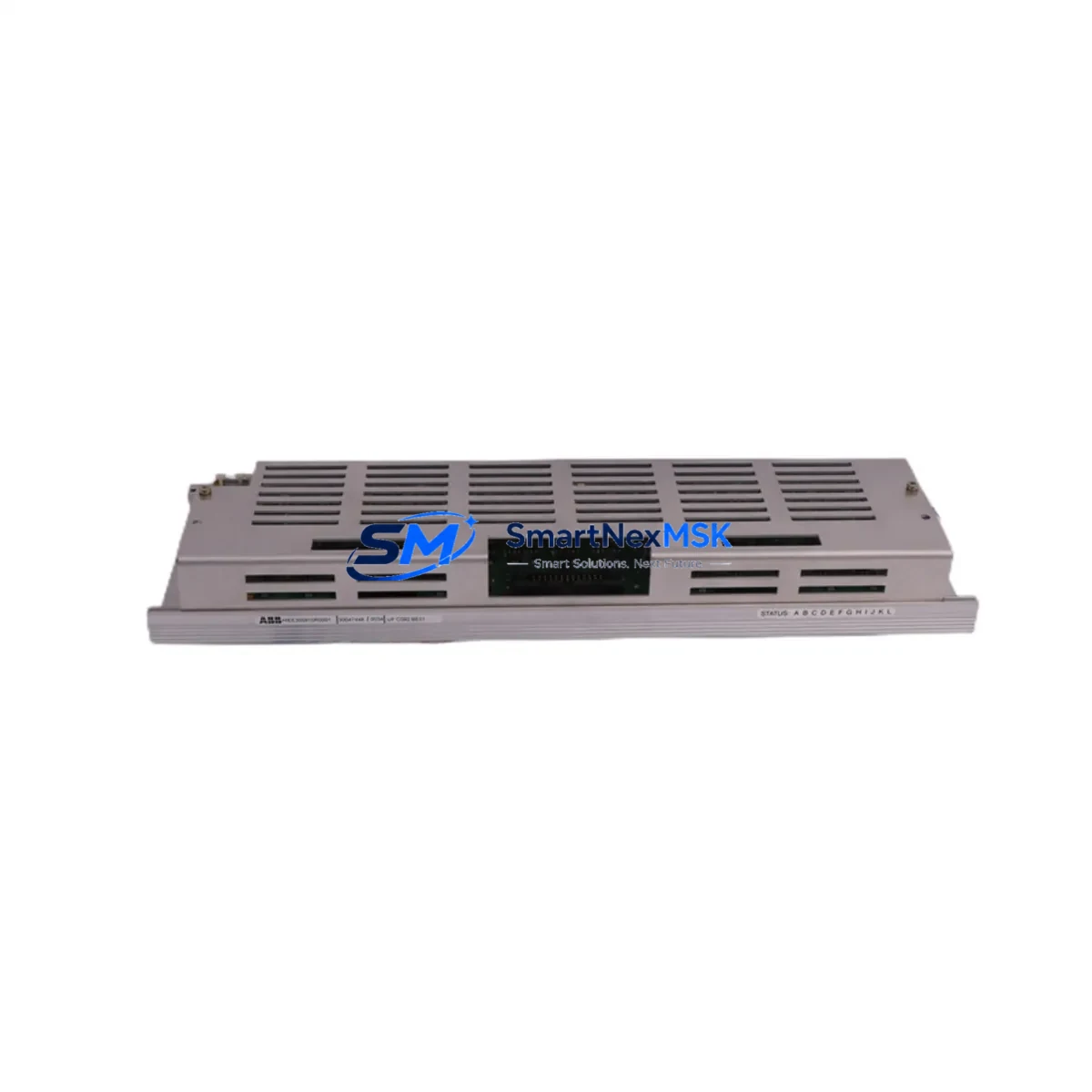

The ABB HIEE300910R0001 (UFC092BE01) is an original DCS binary input module engineered for the ABB AC800M distributed control system platform. Designed for high-reliability industrial environments — including power generation, oil & gas, chemical processing, and pulp & paper — this module serves as a critical interface between field-level discrete signals and the AC800M controller backbone. Sourcing a verified, tested replacement unit is the single most effective action a maintenance team can take to minimize unplanned downtime when a binary input channel fails or a module reaches end-of-service life.

Each unit supplied by SMARTNEXMSK is sourced from authorized channels or decommissioned OEM-grade installations, fully inspected, function-tested against ABB factory specifications, and shipped with a 12-month warranty. Whether you are executing a planned turnaround, responding to a fault alarm, or building a critical-spares inventory for a legacy AC800M system, this module ships ready for immediate rack installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a binary input module such as the HIEE300910R0001 UFC092BE01 is flagged for replacement — whether through a predictive fault alarm, a channel-level diagnostic in ABB 800xA, or a physical inspection during a control cabinet walkdown — experienced maintenance engineers know that the module itself is rarely the only component that warrants attention. A disciplined replacement workflow should extend to the surrounding electrical environment to prevent repeat failures and ensure the restored system operates reliably through the next maintenance window.

Power supply integrity is the first checkpoint. The AC800M I/O station draws regulated 24 VDC from a dedicated power supply unit — typically an ABB SD831 or SD832 power supply module. Before commissioning the replacement HIEE300910R0001, verify that the supply voltage is within tolerance and that the SD831/SD832 output ripple is within specification. A degraded power supply is a common root cause of intermittent binary input faults and will shorten the service life of a new module.

Backplane and communication interface health should be confirmed next. The TB820V2 PROFIBUS DP communication interface or TB840A PROFINET interface that connects the S800 I/O station to the AC800M processor must be inspected for secure seating, clean connector contacts, and correct termination resistor settings. A loose or corroded backplane connection can produce sporadic input read errors that are misdiagnosed as module failure.

Field wiring and terminal blocks deserve equal scrutiny. The binary input signals arriving at the HIEE300910R0001 pass through field terminal assemblies — often ABB TU810V1 or TU830V1 termination units. Inspect these for loose screw terminals, oxidized contacts, and correct cable shielding. Signal cables running through noisy industrial environments should be checked for adequate separation from power conductors.

Signal isolation and protection components in the same cabinet loop — including signal isolators, surge protection barriers, and fuse terminal blocks — should be tested during the same maintenance event. A failed surge arrester on a binary input line can allow transient voltages to reach the module input circuitry, causing latent damage that manifests weeks after the initial replacement.

Adjacent I/O modules in the same S800 rack — such as the AI810 analog input module, AO810V2 analog output module, DI810 digital input module, or DO810 digital output module — should be visually inspected for fault LEDs and their diagnostic data reviewed in the 800xA system. A rack-level power or communication fault can affect multiple modules simultaneously, and replacing only the flagged unit without auditing its neighbors risks a second unplanned outage.

HMI and operator station connectivity should be verified after module replacement. Confirm that the 800xA operator workplace correctly reflects the restored binary input status and that no residual alarm suppression masks a genuine field signal fault. If the plant uses an ABB Panel 800 or PP886 operator panel for local indication, verify that the panel communication link to the AC800M is healthy.

Maintaining a minimum one-unit on-shelf spare of the HIEE300910R0001 UFC092BE01 — alongside spares for the SD831 power supply, TB820V2 communication interface, and TU810V1 termination unit — is the recommended inventory posture for any facility running AC800M-based control systems beyond their original design life.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the fault is isolated to the HIEE300910R0001 module using 800xA diagnostic tools. Check the module’s LED indicators: a steady red FAULT LED with no field power LED confirms module-level failure rather than a field wiring issue. Document the current channel configuration and I/O mapping before removal.

Step 2 — Safe removal: If the AC800M system configuration supports hot-swap for this I/O station, follow the ABB hot-swap procedure to remove the module without interrupting the controller scan cycle. If hot-swap is not enabled, coordinate a controlled process hold with the operations team before de-energizing the I/O station.

Step 3 — Replacement installation: Insert the HIEE300910R0001 UFC092BE01 replacement unit into the correct slot position. Verify that the module locks securely onto the backplane connector and that the termination unit (TU810V1 or equivalent) is fully seated. Apply power and observe the module LED sequence — a steady green RUN LED confirms successful initialization.

Step 4 — Functional verification: From the 800xA operator workplace or engineering station, force-test each binary input channel against known field signal states. Confirm that all channels report correctly and that no diagnostic alarms remain active. Update the maintenance log with the replacement date, new module serial number, and post-replacement test results.

Step 5 — Spare inventory replenishment: Initiate a purchase order for a replacement spare unit immediately after installation. Lead times for original ABB AC800M components can extend to several weeks through standard distribution channels. SMARTNEXMSK maintains ready stock of HIEE300910R0001 UFC092BE01 and related AC800M spare modules to support emergency and planned procurement requirements.

Spare Parts Support FAQ

Q1: Is the HIEE300910R0001 UFC092BE01 a direct drop-in replacement for older UFC092 variants?
The UFC092BE01 designation identifies a specific hardware revision of the UFC092 binary input module family. In most AC800M installations, this revision is backward-compatible with earlier UFC092 variants at the same slot position, provided the 800xA software configuration references the correct module type. We recommend verifying the hardware revision compatibility against your 800xA project configuration before installation. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: How is each unit tested before shipment?
Every HIEE300910R0001 UFC092BE01 unit is bench-tested for power-on initialization, backplane communication response, and binary input channel continuity before dispatch. Units that do not pass functional verification are not offered for sale. A test report summary is available upon request for critical-infrastructure procurement requirements.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers functional failure of the module under normal operating conditions consistent with ABB’s published environmental and electrical specifications for the AC800M platform. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside rated parameters. Warranty claims are processed with priority turnaround to minimize plant downtime.

Q4: Can you supply other AC800M spare modules for the same maintenance event?
Yes. SMARTNEXMSK maintains stock of a broad range of ABB AC800M and S800 I/O spare modules, including power supply units, communication interfaces, analog and digital I/O modules, and termination units. Consolidated shipment of multiple spare items for a single maintenance event is available to reduce freight cost and simplify receiving logistics. Contact our team with your full spare parts list for a consolidated quotation.
