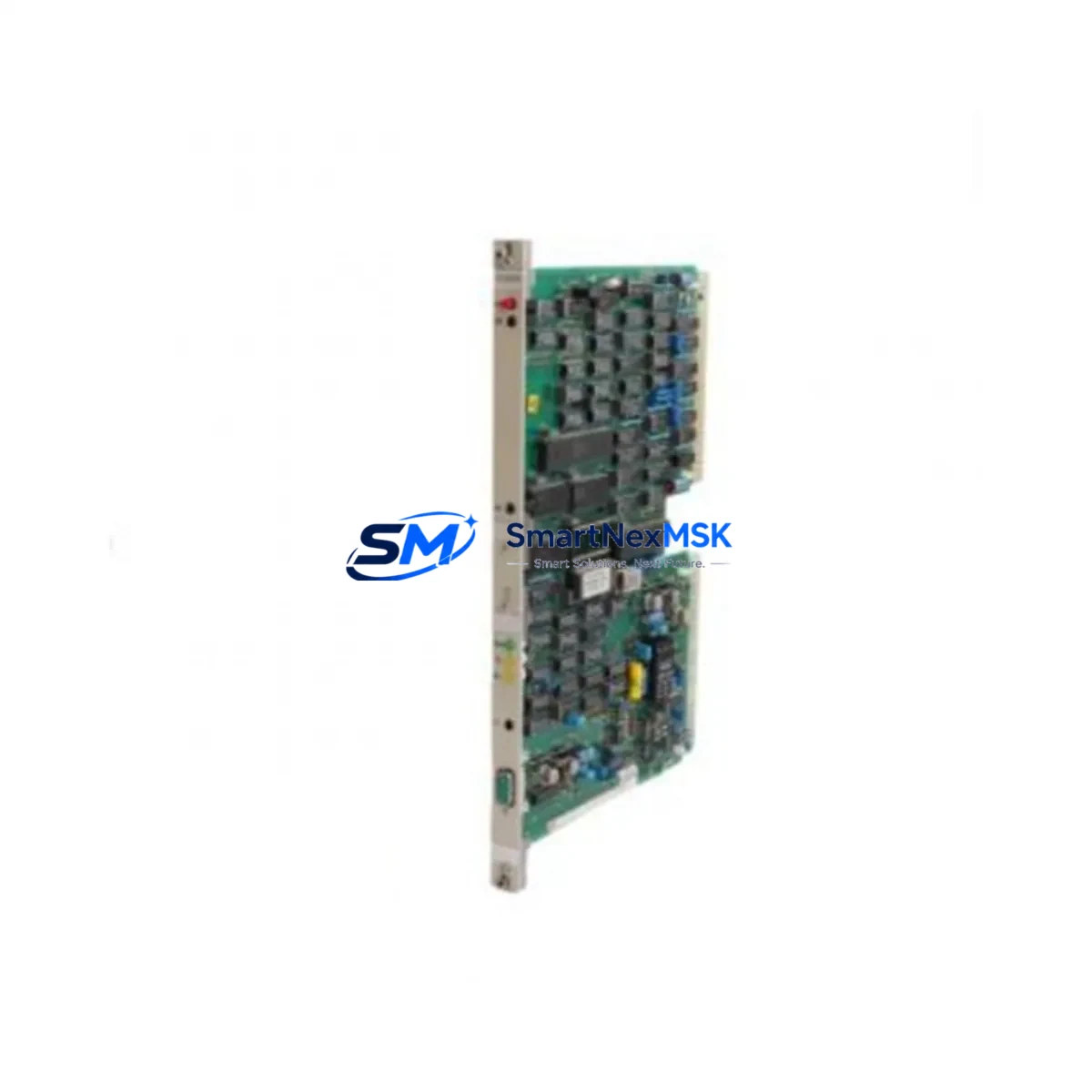

ABB HITE303278R1 Retrofit-Ready PC Board for Procontic Control Systems
The ABB HITE303278R1 is a processor and communication PC board designed for the ABB Procontic series of programmable logic controllers. As legacy Procontic installations approach end-of-support milestones, plant engineers and automation integrators increasingly rely on verified replacement boards like the HITE303278R1 to extend system life, avoid costly full-panel replacements, and maintain production continuity. This board serves as a direct retrofit solution for aging Procontic T200 and CS31 control architectures, providing a reliable path for facilities that cannot yet migrate to a fully modern platform such as the ABB AC500 series.
Whether you are replacing a failed board in an emergency shutdown scenario, pre-staging a spare for a critical production line, or executing a planned control cabinet upgrade, the HITE303278R1 delivers the compatibility and reliability your retrofit project demands. Each unit is sourced from verified supply channels, subjected to functional power-on testing, and shipped with a 12-month warranty covering defects in materials and workmanship.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Part Number | HITE303278R1 |
| Manufacturer | ABB |
| Compatible Series | ABB Procontic T200, Procontic CS31 |
| Board Type | PC Board (Processor / Communication) |
| Backplane Interface | Procontic standard backplane bus; verify slot position and rack type before installation |
| Power Supply Requirement | Confirm rack PSU capacity (typically 24 VDC or 115/230 VAC depending on rack model); verify total module load before insertion |
| Communication Compatibility | CS31 serial bus; verify baud rate and node address settings match existing network configuration |
| Replacement Recommendation | Direct board-level replacement for failed or end-of-life HITE303278R1 units in Procontic racks |
| Commissioning Notes | Restore module address DIP switches to match original configuration; reload PLC program from backup before live restart |
| Warranty | 12 months from date of shipment |
| Origin | Germany |
| Condition | Tested, functional |
Retrofit Planning for Existing Automation Systems
A successful HITE303278R1 retrofit begins well before the replacement board arrives on site. Start by auditing the existing Procontic rack configuration: document every module installed in the rack, including the power supply module (such as the ABB HESG324001R1 or equivalent 24 VDC PSU), all I/O modules occupying adjacent slots, and any communication interface cards connected to the CS31 bus. Confirm that the rack’s total power budget can support the replacement board without exceeding the PSU’s rated output current.
Next, back up the PLC program using the ABB Procontic programming software or a compatible programming cable. If the original program resides only in the board’s battery-backed RAM and the backup battery has degraded, program recovery must be treated as a priority task before the old board is removed. For sites running CS31 distributed I/O, map all node addresses assigned to remote I/O stations — including ABB HESG216045R1 digital input modules and HESG216046R1 digital output modules — so that address conflicts can be avoided when the new board initializes the bus.
If the retrofit is part of a broader control cabinet upgrade that includes migrating HMI screens, verify that the HMI communication driver (typically connected via RS-232 or RS-485 to the Procontic CPU) is compatible with the replacement board’s communication port pinout. Some older HMI panels using proprietary Procontic driver protocols may require driver updates or a protocol converter when the board revision changes. Document the terminal wiring on the existing board’s I/O connectors and photograph the DIP switch positions before removal — these settings govern module addressing, baud rate, and watchdog behavior and must be replicated exactly on the HITE303278R1 replacement.
For sites planning a phased migration toward the ABB AC500 platform, the HITE303278R1 can serve as a bridge solution: keep the Procontic rack operational while new AC500 CPUs and SM500 I/O modules are staged and programmed in parallel. This parallel-staging approach allows engineering teams to validate the new control logic against the live process without committing to a hard cutover until testing is complete. Communication gateways supporting both CS31 and Modbus TCP can facilitate data exchange between the legacy Procontic system and the new AC500 network during the transition period.
Downtime Control During System Migration
Minimizing unplanned downtime during a Procontic board replacement requires a structured pre-outage checklist. Before the maintenance window opens, confirm that the replacement HITE303278R1 has been bench-tested, that the PLC program backup is verified and accessible, and that all required tools — including the Procontic programming cable, a laptop with the correct software version, and a multimeter for terminal verification — are staged at the control cabinet.
During the swap, power down the rack in the correct sequence: disable field outputs first, then remove power from the rack PSU. Seat the HITE303278R1 firmly into the backplane slot, restore DIP switch settings, and reconnect any communication cables. On power-up, allow the board to complete its self-diagnostic cycle before attempting to download the program. If the CS31 bus fails to initialize, check node address assignments and cable termination resistors on the remote I/O drops before escalating to a deeper diagnostic.
For critical processes where even a brief interruption is unacceptable, consider pre-loading the PLC program into the replacement board offline using a bench power supply and the programming cable, so that the board arrives at the cabinet already programmed and ready for a hot-swap sequence. This approach can reduce live commissioning time to under 15 minutes in straightforward single-rack configurations. Retain the original board as a reference unit until the replacement has completed at least one full production cycle without fault.
Retrofit Support FAQ
Q1: Is the HITE303278R1 a direct drop-in replacement for all Procontic T200 rack configurations?
In most cases, yes — the HITE303278R1 is designed for the Procontic T200 and CS31 rack architecture and occupies the same slot position as the original board. However, you should verify the rack model, backplane revision, and power supply capacity before installation, as some early rack variants may have minor connector or firmware differences. Contact our technical team with your rack serial number if you need confirmation before ordering.
Q2: What commissioning steps are required after installing the replacement board?
After seating the board and restoring DIP switch settings, download the backed-up PLC program via the Procontic programming cable. Verify CS31 bus communication by checking that all remote I/O nodes report online in the diagnostic view. Confirm that HMI communication is re-established and that all analog and digital I/O channels respond correctly before releasing the system to production.
Q3: Does the 12-month warranty cover boards that fail during commissioning?
Yes. The 12-month warranty covers functional defects in the board itself from the date of shipment. Damage caused by incorrect installation, overvoltage, or reversed polarity is not covered. We recommend performing a bench power-on test before installing the board in the live rack to confirm basic functionality prior to commissioning.
Q4: Can you supply other Procontic or CS31 components to complete my retrofit project?
Yes. We maintain stock of a range of ABB Procontic and CS31 compatible components, including power supply modules, digital and analog I/O boards, communication interface modules, and programming cables. Describe your full bill of materials and we will confirm availability and lead times for each item.
