ABB ICSF08D1 FPR3323101R0016 Retrofit-Ready Counter for AC800M

ABB ICSF08D1 FPR3323101R0016 Retrofit-Ready High-Speed Counter Module for AC800M S800 Control Systems

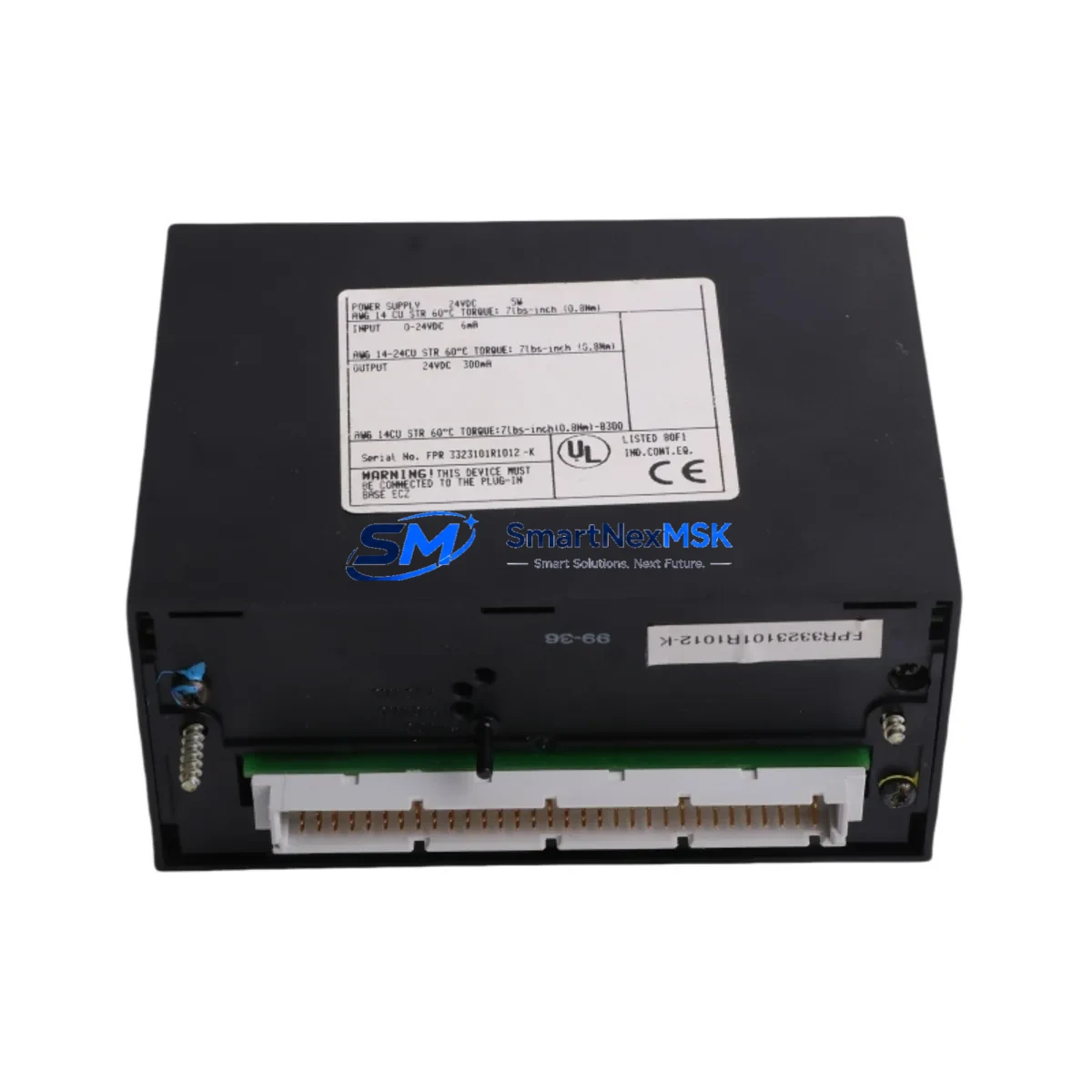

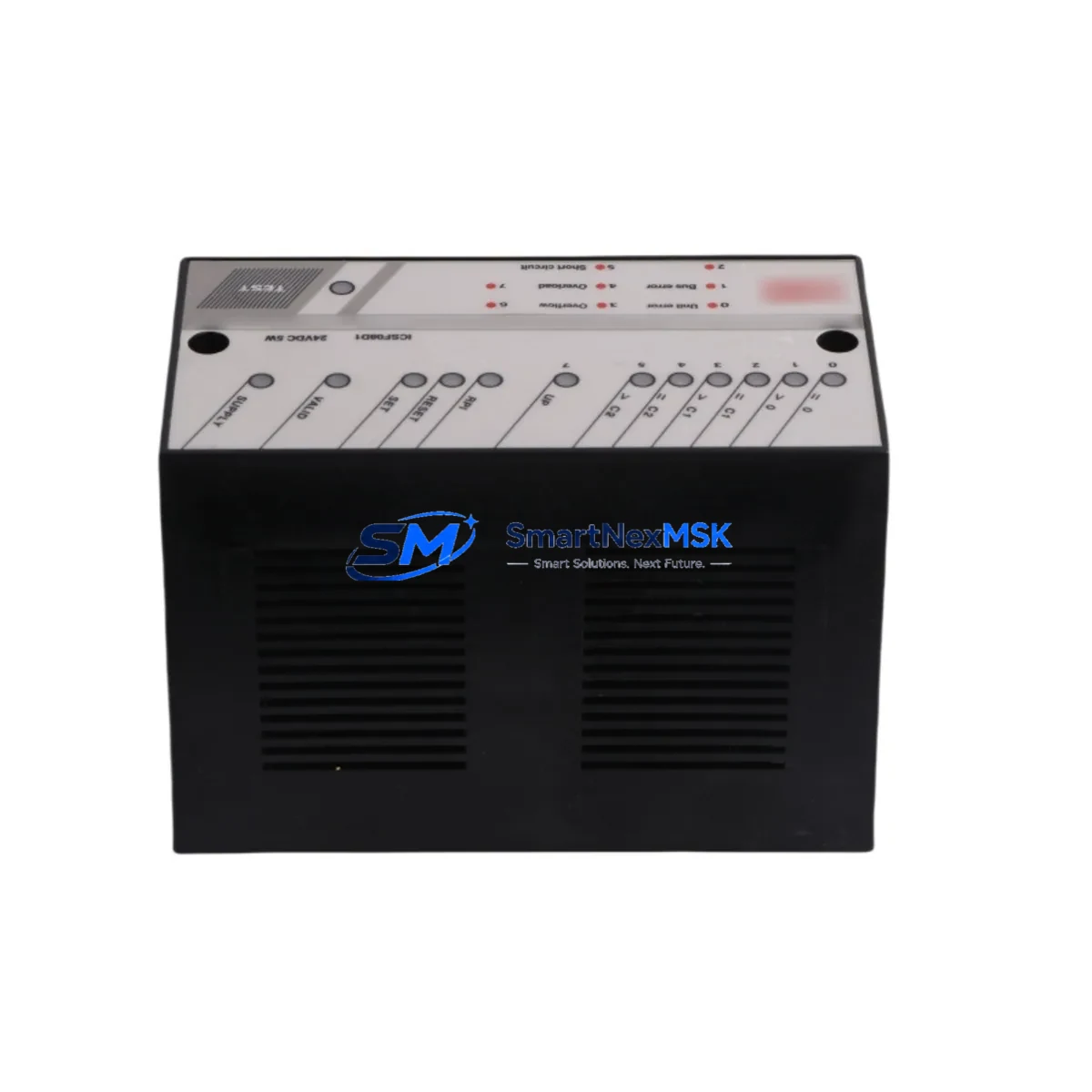

The ABB ICSF08D1 (part number FPR3323101R0016) is a high-speed counter input module engineered for the ABB AC800M distributed control system platform and its S800 I/O subsystem. As legacy DCS installations age and original spare parts become increasingly difficult to source, the ICSF08D1 has become a critical retrofit component for facilities seeking to extend the operational life of their existing control infrastructure without committing to a full platform migration. SMARTNEXMSK maintains verified stock of this module, fully tested and backed by a 12-month warranty, ready for immediate dispatch to support planned maintenance windows and emergency breakdowns alike.

Designed to slot directly into the S800 I/O station backplane, the ICSF08D1 provides eight channels of high-speed counter input, capable of processing pulse trains from encoders, flow meters, and proximity sensors at frequencies that standard digital input modules cannot reliably capture. Its compatibility with the AC800M controller — including the PM861, PM864, and PM866 processor modules — means that existing control programs, function block libraries, and HMI tag databases built in ABB’s Control Builder M engineering environment require no structural modification when this module is used as a direct replacement for a failed or end-of-life unit.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the ICSF08D1 into an operating S800 I/O station begins well before the module arrives on site. Engineers should first audit the existing I/O station configuration to confirm the slot assignment and module address currently occupied by the failed unit. In AC800M systems, module addresses are defined in the hardware configuration within Control Builder M, and any mismatch between the physical slot and the software configuration will prevent the controller from recognising the replacement module at startup.

Power budget verification is the next critical step. The S800 I/O station draws its 24 VDC supply through the power supply module — typically an SD821 or SD822 — and the total current draw of all installed modules must remain within the rated output of the power supply. Adding or replacing modules, particularly high-speed counter types with active signal conditioning circuitry, can shift the power balance. Confirm the station’s total load against the power supply datasheet before energising the replacement module.

Terminal wiring for the ICSF08D1 is handled through the TB820 or TB840 bus base unit to which the module is mounted. Field wiring — typically from rotary encoders, turbine flow meters, or inductive proximity sensors — connects to the base unit terminals and is passed through to the module via the backplane connector. Technicians should verify terminal assignments against the original loop drawings, as wiring errors on high-speed counter inputs can result in incorrect pulse counts or channel faults that are difficult to diagnose under time pressure.

For facilities running PROFIBUS DP fieldbus architectures, the S800 I/O station communicates with the AC800M controller through a CI854 PROFIBUS DP communication interface module. Where sites have already migrated to Ethernet-based architectures, the CI873 Ethernet fieldbus communication interface provides the equivalent connectivity path. In either case, the ICSF08D1 itself is transparent to the fieldbus layer — its data is presented to the controller through the I/O station bus, and no fieldbus reconfiguration is required when replacing this specific module.

HMI systems connected to the AC800M — whether running ABB’s own 800xA operations environment or third-party SCADA platforms via OPC DA or OPC UA — reference counter values through tag names bound to the module’s channel addresses. After physical replacement, operators should verify that all counter-related displays, totaliser faceplates, and alarm limits are reading correctly before returning the loop to automatic control. Where the original module had accumulated counter values stored in non-volatile memory, these will reset to zero on replacement and process engineers should account for this in their totaliser reconciliation procedures.

Sites undertaking broader control system upgrades — for example, migrating from an older AC450 or MOD 300 platform to the AC800M — will find the ICSF08D1 a natural fit within the new I/O architecture. Such migrations typically also involve replacing legacy communication modules, updating the engineering workstation to a current version of Control Builder M, and re-engineering HMI graphics. SMARTNEXMSK can supply associated components including the CI854 PROFIBUS interface, TB820 bus base units, and SD822 power supply modules to support complete station builds.

Downtime Control During System Migration

Minimising production downtime during a module replacement or broader system migration is the primary operational concern for most industrial facilities. For the ICSF08D1, the replacement procedure itself is straightforward — the module is hot-swappable within a powered S800 I/O station, provided the station’s power supply remains energised and the controller is placed in the appropriate maintenance mode within Control Builder M. This allows the failed module to be removed and the replacement inserted without shutting down the entire I/O station or interrupting other channels in the same station.

Before initiating the swap, engineers should export the current hardware configuration from Control Builder M and retain a backup of the application program. This ensures that if the replacement module triggers an unexpected configuration mismatch — for example, due to a firmware version difference — the original configuration can be restored rapidly. In practice, the ICSF08D1 FPR3323101R0016 is a direct hardware replacement and firmware compatibility issues are rare, but maintaining a configuration backup is standard practice for any DCS module change.

For planned maintenance windows, SMARTNEXMSK recommends pre-testing the replacement module on a bench setup or spare I/O station before the scheduled outage. Each module shipped by SMARTNEXMSK undergoes functional testing prior to dispatch, and the 12-month warranty covers any defects that emerge in service. Pre-testing on site allows the maintenance team to confirm module recognition, channel functionality, and communication link status before the production system is touched, reducing the risk of extended downtime caused by a second fault.

Where the ICSF08D1 is being replaced as part of a larger control cabinet upgrade — for example, alongside new PM864 controller modules, updated CI873 Ethernet communication interfaces, or additional AI810 analogue input modules — a phased replacement strategy is recommended. Replacing modules one station at a time, with full functional verification at each stage, allows the control system to remain partially operational throughout the upgrade and limits the blast radius of any individual commissioning issue.

Retrofit Support FAQ

Q: Is the ICSF08D1 FPR3323101R0016 a direct replacement for the original ABB module without any program changes?
A: Yes. The ICSF08D1 FPR3323101R0016 is a direct hardware replacement for the same SKU. No changes to the Control Builder M application program are required, provided the replacement module is installed in the same physical slot and the hardware configuration in the project matches the slot assignment. Counter scaling parameters and filter settings are retained in the controller program, not in the module itself.

Q: What wiring checks should be performed before powering up the replacement module?
A: Verify that all field wiring to the TB820 or TB840 bus base unit terminals matches the original loop drawings. Confirm signal polarity for each counter input channel, check that sensor supply voltages are within specification, and ensure that cable shielding is correctly terminated at the base unit. Incorrect wiring on high-speed counter inputs can cause channel faults or erroneous counts that are difficult to distinguish from module faults.

Q: How is compatibility with PROFIBUS DP and Ethernet fieldbus architectures handled?
A: The ICSF08D1 communicates with the AC800M controller through the S800 I/O station bus, not directly through the fieldbus. The fieldbus interface — CI854 for PROFIBUS DP or CI873 for Ethernet — remains unchanged during a module replacement. No fieldbus reconfiguration, GSD file update, or network address change is required when replacing the ICSF08D1.

Q: What does the 12-month warranty cover, and what is the process for a warranty claim?
A: SMARTNEXMSK’s 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each module is functionally tested before dispatch. In the event of a warranty claim, contact sales@smartnexmsk.com with the order reference and a description of the fault. SMARTNEXMSK will arrange for a replacement or repair at no additional cost within the warranty period.
