ABB ICSI08E1-230 Maintenance-Ready Spare for S800 Automation

ABB ICSI08E1-230 Maintenance-Ready Spare for S800 Automation

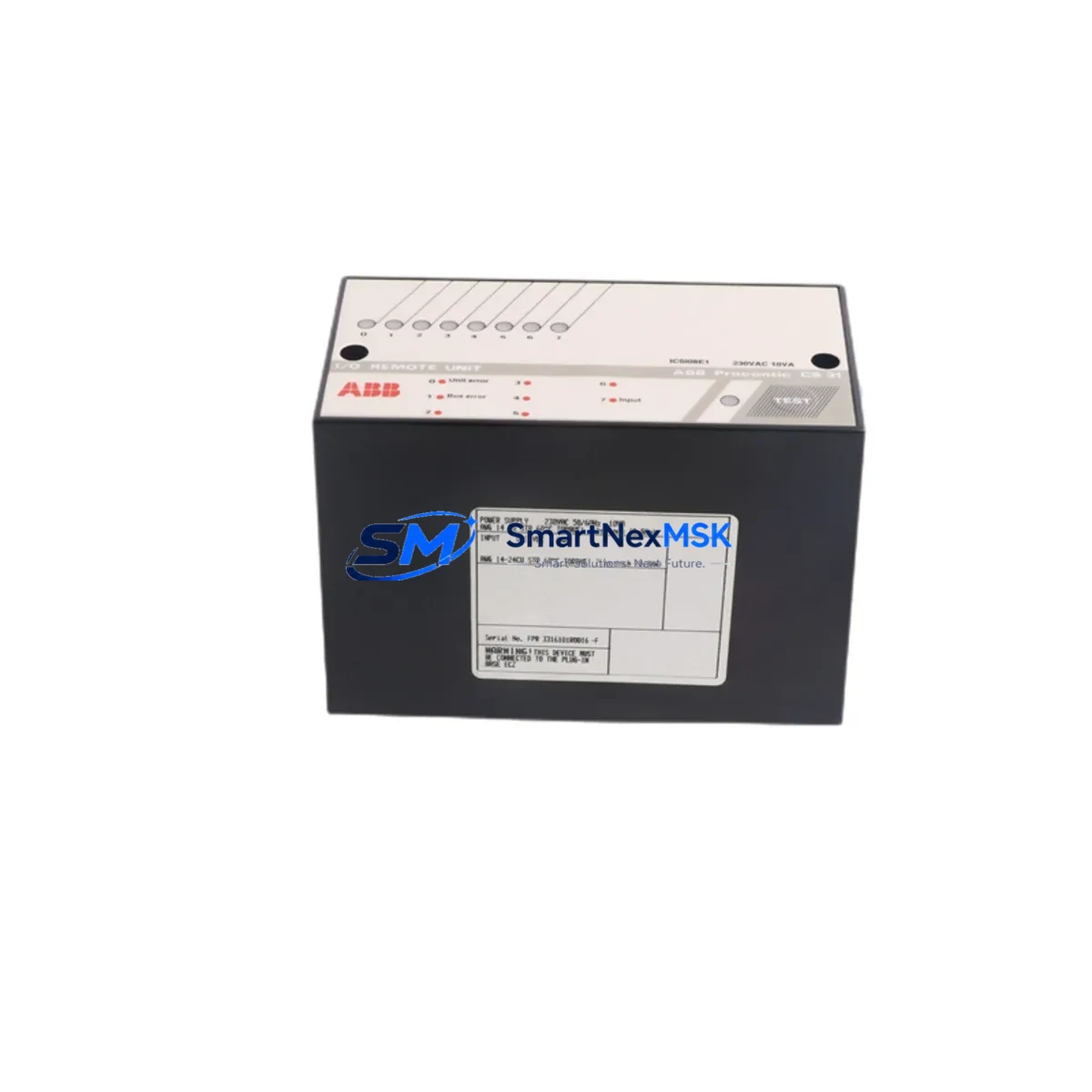

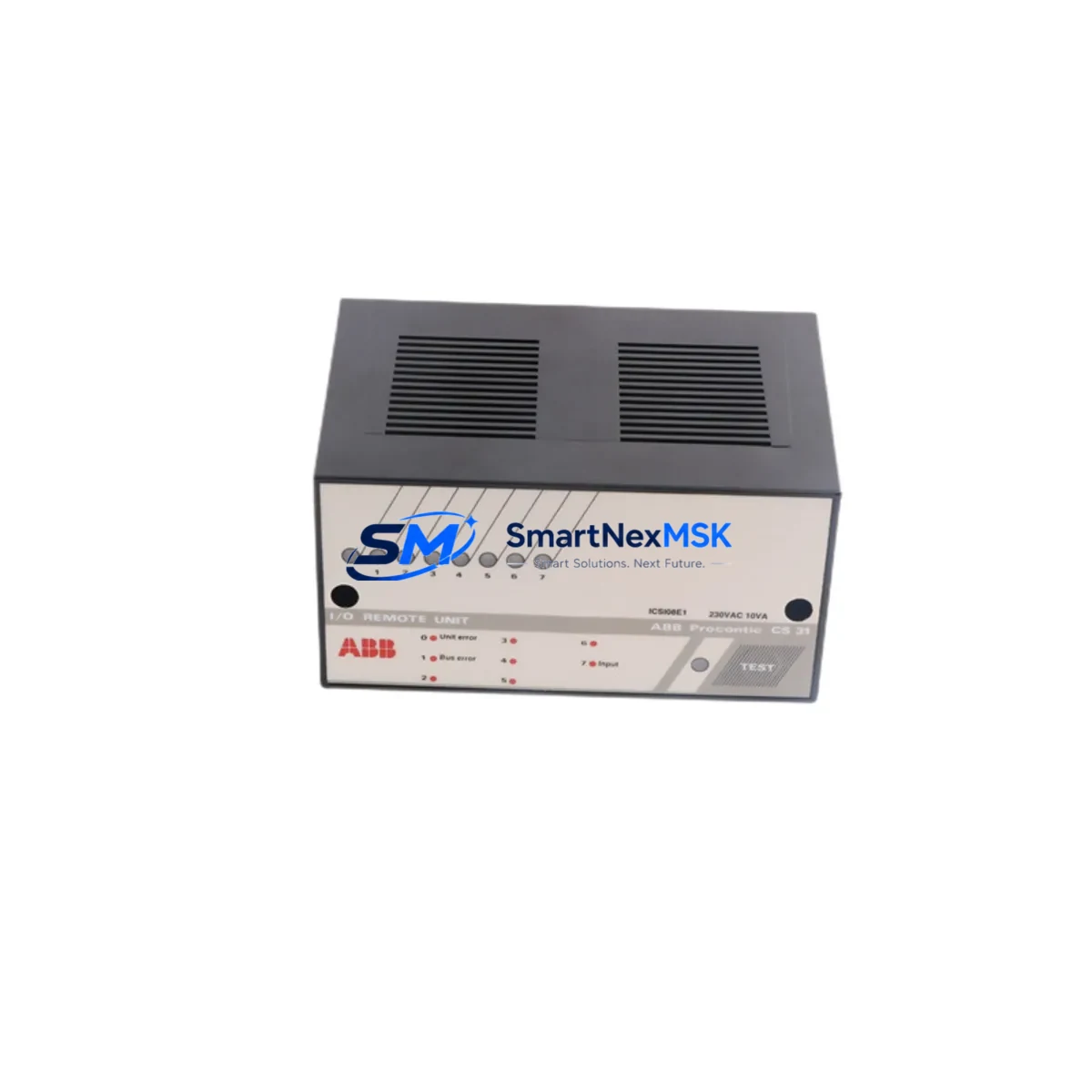

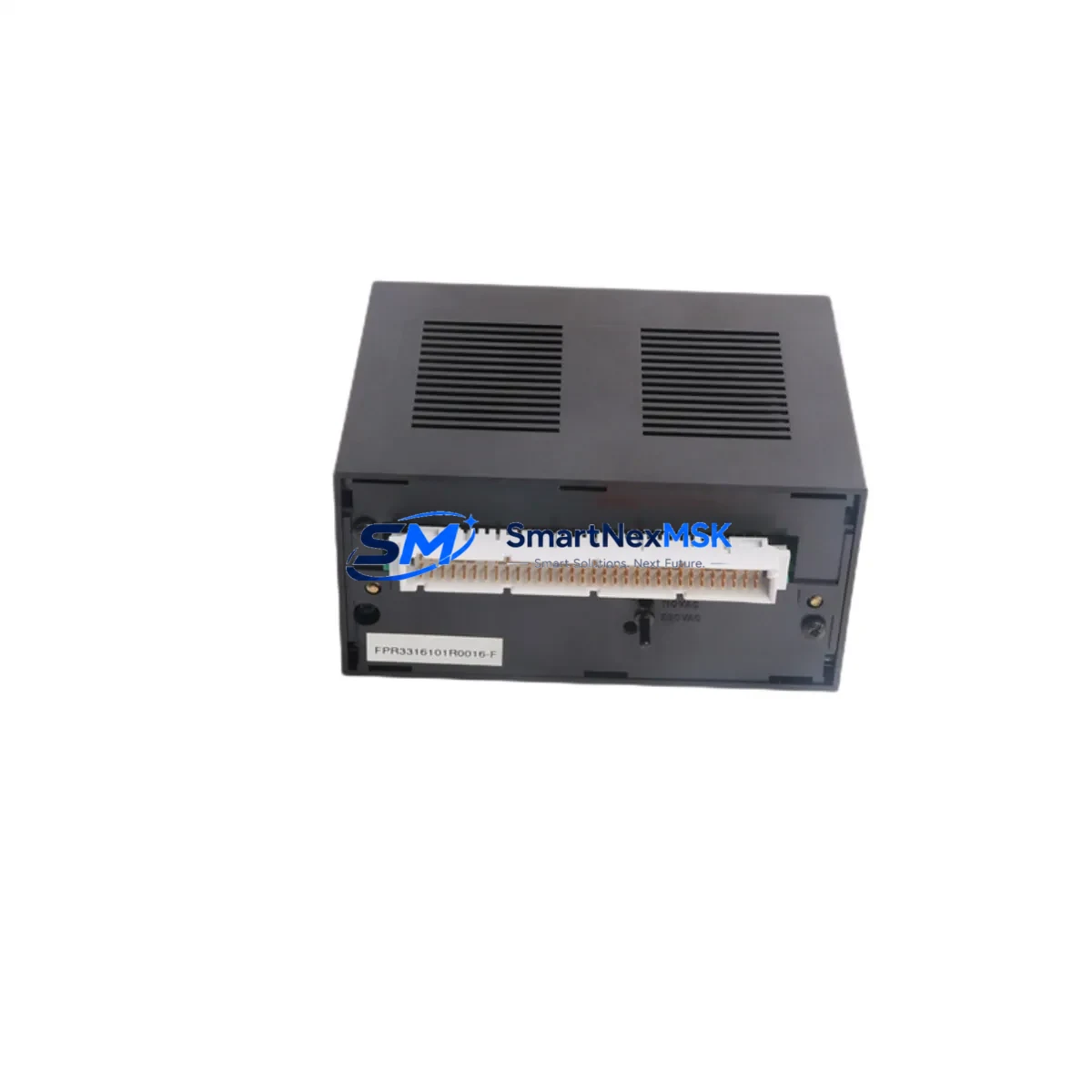

The ABB ICSI08E1-230 (also referenced as ICSI08E1 and FPR3316101R001) is an original 8-channel binary input module designed for the ABB S800 I/O system, fully compatible with AC800M process controllers. In industrial facilities running continuous processes — chemical plants, pulp and paper mills, power generation units, and oil & gas installations — an unplanned failure of a binary input module can cascade into a full control loop outage. Keeping a verified, tested spare of the ICSI08E1-230 on the shelf is one of the most cost-effective decisions a maintenance or reliability engineer can make.

This module accepts 230 V AC binary signals and converts them into digital process data readable by the AC800M controller via the S800 I/O bus. Its role in the control architecture is deceptively critical: motor run-feedback signals, valve position confirmations, interlock status, and emergency shutdown inputs all pass through binary input channels. When a channel fails or the module itself becomes unresponsive, operators lose visibility into field device states, forcing manual verification and extending mean time to repair (MTTR) significantly.

Every unit supplied by SMARTNEXMSK is sourced as an original ABB component, inspected against factory specifications, and function-tested prior to shipment. A 12-month warranty covers each module, giving procurement and maintenance teams confidence in both quality and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer schedules replacement of the ICSI08E1-230, the work scope should extend beyond the module itself. The S800 I/O architecture distributes I/O across baseplates connected to the AC800M via the ModuleBus, meaning a single cabinet may house multiple interdependent modules. A thorough inspection during the same maintenance window reduces the risk of a follow-on failure shortly after the primary repair.

Start with the TB820 or TB840 baseplate that hosts the ICSI08E1-230. Baseplates accumulate mechanical stress from repeated module insertions and can develop intermittent bus contact faults that mimic module failures. Inspect the baseplate connector pins and locking tabs before re-seating the new module.

Check the SD821 or SD822 power supply module feeding the S800 I/O station. A degraded power supply delivering marginal voltage can cause binary input modules to report spurious faults or fail to initialize correctly. Measure output voltage under load and compare against the rated specification.

Review adjacent ICSO08E1 or ICSO16E1 binary output modules in the same baseplate cluster. Output modules driving solenoid valves or motor starters share the same 230 V AC field wiring infrastructure; insulation degradation on shared cable trays can affect both input and output channels simultaneously.

Inspect the CI854 or CI858 PROFIBUS communication interface module if the AC800M communicates with field devices over PROFIBUS DP. A communication module fault can mask genuine I/O module status, making remote diagnostics unreliable during fault isolation.

Verify the condition of terminal blocks and field wiring terminations on the I/O baseplate. Loose or corroded terminals on 230 V AC binary input circuits are a leading cause of intermittent channel faults that are often misdiagnosed as module failures. Re-torque all terminals to specification during the replacement window.

If the control cabinet includes signal isolators or signal conditioners between field devices and the S800 I/O inputs, inspect these components as well. Isolators protecting binary input channels from high-voltage transients can degrade silently, allowing noise to corrupt input states without triggering a hard fault alarm.

Finally, confirm the firmware version of the AC800M processor module (PM8xx series) is compatible with the replacement ICSI08E1-230. While ABB maintains strong backward compatibility within the S800 I/O family, a firmware mismatch can occasionally prevent a module from being recognized after hot-swap replacement.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the module address (ModuleBus node) assigned to the ICSI08E1-230 in the AC800M configuration tool (Control Builder M). Document the baseplate slot number and channel-to-signal mapping from the as-built I/O list before removing the faulty module.

Step 2 — Safe isolation: Place the affected control loop in manual mode at the DCS operator station. Notify the field operator to monitor the process locally. De-energize the 230 V AC field supply to the affected baseplate section using the appropriate MCB or isolator in the MCC panel.

Step 3 — Module removal: Release the module locking lever on the baseplate, slide the ICSI08E1-230 out of the slot, and place it in an ESD-safe bag for return or failure analysis. Do not leave the baseplate slot open for extended periods in dusty environments.

Step 4 — Replacement installation: Insert the new ICSI08E1-230 into the same baseplate slot. The module is keyed to prevent incorrect insertion. Engage the locking lever until it clicks. Re-energize the 230 V AC field supply.

Step 5 — System verification: Observe the module status LED — a steady green indicates successful initialization and ModuleBus communication. In Control Builder M or the AC800M diagnostic view, confirm all 8 channels are reporting correctly. Perform a functional test by actuating each connected field device and verifying the corresponding input state change at the DCS.

Step 6 — Return to automatic: Once all channels are verified, return the control loop to automatic mode. Update the maintenance log with the replacement date, new module serial number, and any observations noted during the work.

This workflow is applicable whether replacing a failed module on an emergency basis or executing a planned preventive replacement as part of a scheduled shutdown. The ICSI08E1-230’s hot-swap capability (with appropriate process precautions) allows replacement without a full controller restart in most AC800M configurations, significantly reducing downtime.

Spare Parts Support FAQ

Q1: Is the ICSI08E1-230 still available as a new original part, or only as refurbished stock?
SMARTNEXMSK supplies original ABB ICSI08E1-230 modules. Each unit is function-tested before shipment and covered by a 12-month warranty. We maintain long-term supply capability for legacy S800 I/O components to support customers extending the service life of existing AC800M systems.

Q2: How do I confirm compatibility between the ICSI08E1-230 and my existing S800 I/O baseplate?
The ICSI08E1-230 is compatible with standard S800 I/O baseplates including the TB820 and TB840 series. Verify the baseplate revision and confirm the ModuleBus address assignment in your AC800M configuration. If you share your system’s hardware configuration or Control Builder M project details, our technical team can confirm compatibility before shipment.

Q3: What is your recommended spare parts inventory strategy for S800 I/O binary input modules?
For facilities running continuous processes, we recommend holding a minimum of one ICSI08E1-230 spare per 4–6 installed modules. For critical interlock or ESD applications, a 1:1 cold-standby ratio is advisable. Modules stored in original packaging in a climate-controlled environment maintain full functionality for 5+ years without special maintenance.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover?
Each ICSI08E1-230 is powered up and tested for correct ModuleBus communication, channel input response, and LED status indication before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or refunded. Contact sales@smartnexmsk.com with your order reference to initiate a warranty claim.
