ABB ICSM06A6 FPR3350601R1062 Retrofit-Ready Analog I/O for Advant DCS

ABB ICSM06A6 FPR3350601R1062 Retrofit-Ready Analog I/O for Advant DCS: Compatible Modernization & Smooth Legacy System Upgrade

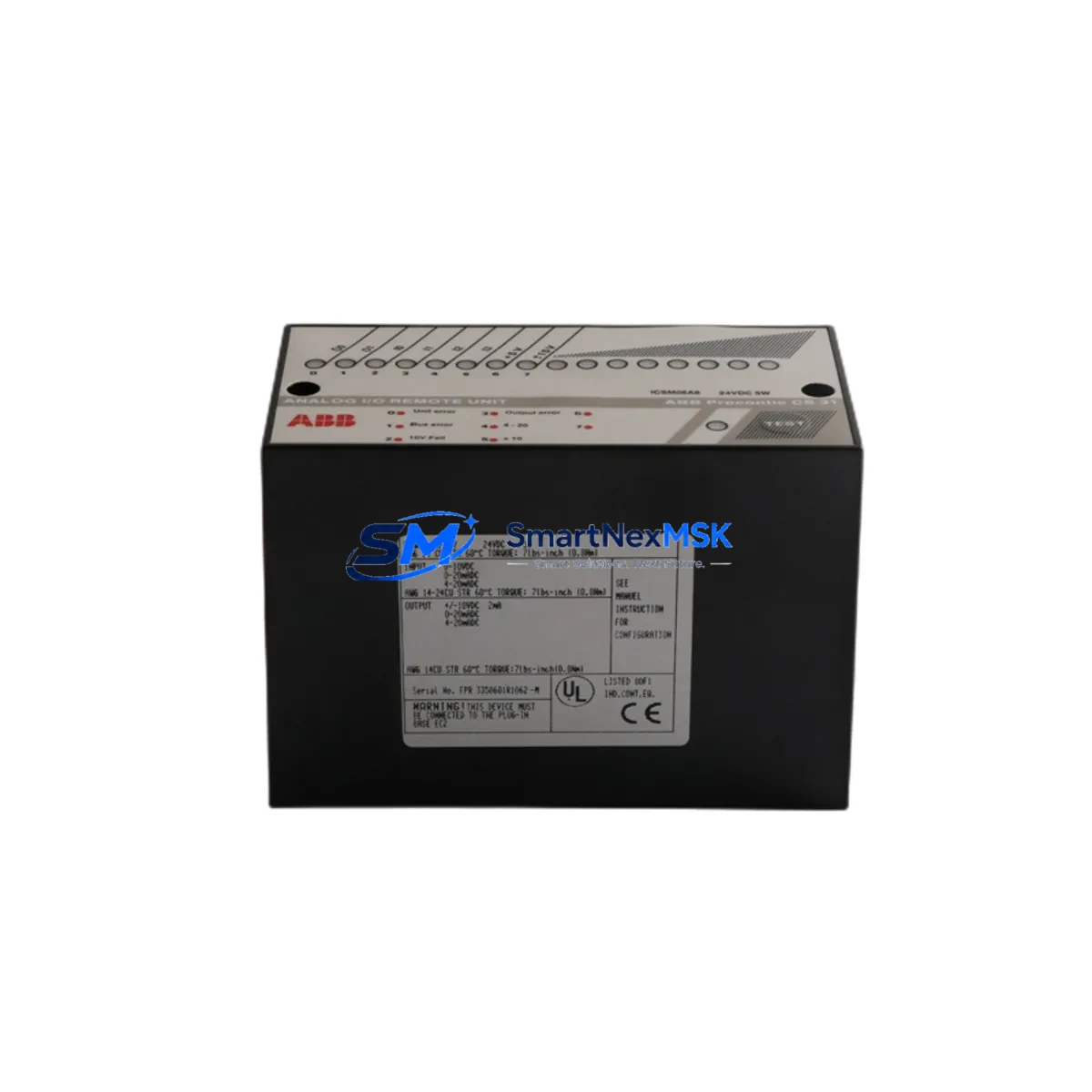

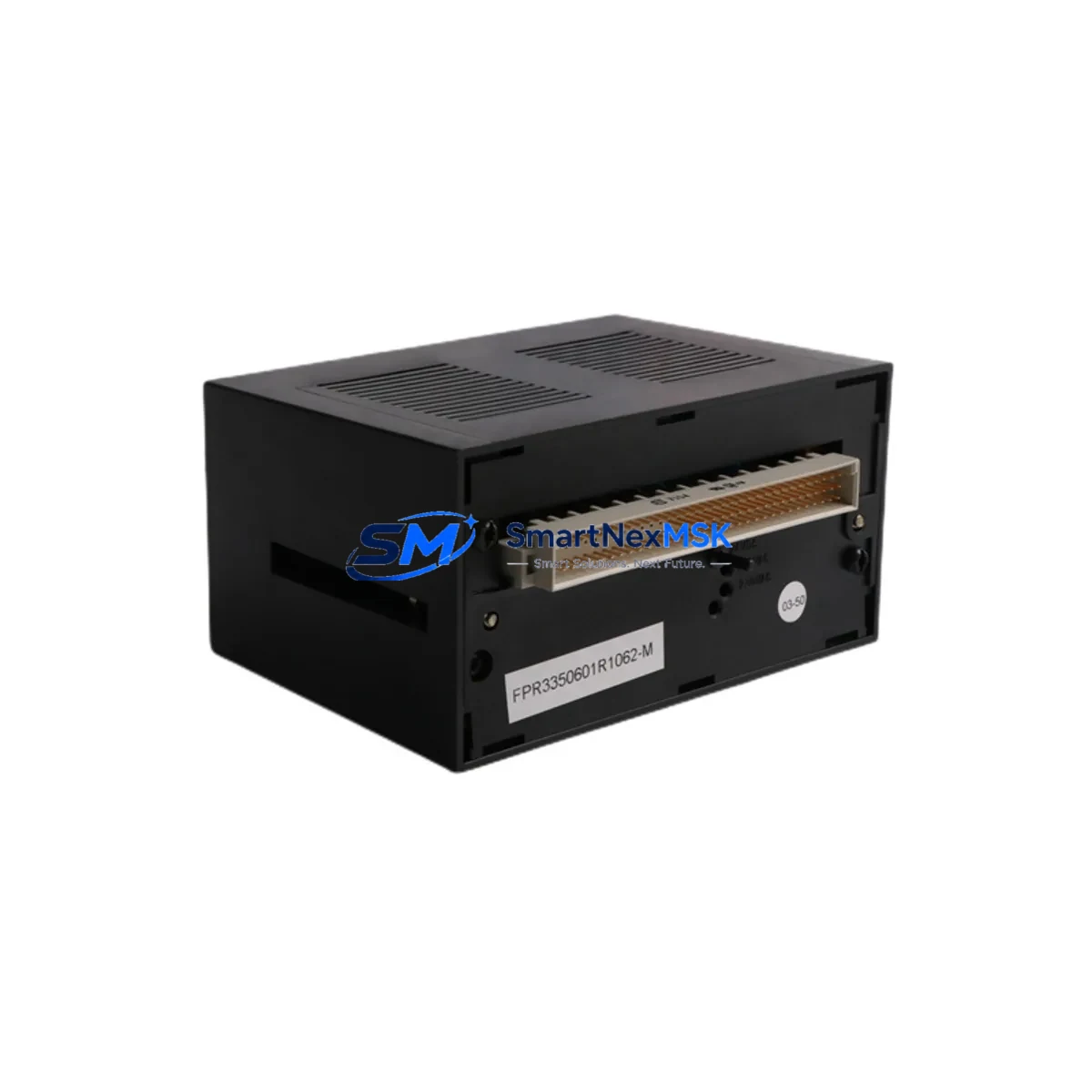

The ABB ICSM06A6 (part number FPR3350601R1062) is a proven analog I/O module engineered for the ABB Advant and Freelance distributed control system (DCS) platforms. As legacy Advant OCS and Freelance 2000 installations approach end-of-life, plant engineers and system integrators increasingly rely on verified replacement units like the ICSM06A6 to extend operational continuity, avoid costly full-system overhauls, and maintain process stability during phased modernization programs. This module supports mixed analog signal handling — both input and output channels — making it a critical component in process control cabinets across chemical, oil & gas, power generation, and water treatment facilities worldwide.

Whether you are replacing a failed unit on an active production line, building a retrofit spare inventory, or executing a controlled migration from an obsolete Advant controller rack to a current-generation ABB System 800xA or AC500 platform, the ICSM06A6 FPR3350601R1062 provides the hardware continuity your project demands. Each unit shipped by SMARTNEXMSK undergoes functional verification and is backed by a 12-month warranty, ensuring confidence from installation through commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the ICSM06A6 into an existing Advant or Freelance DCS installation begins well before the module arrives on site. Engineers should start by auditing the current rack configuration: confirm the subrack slot assignment, verify that the Advant I/O subrack power supply — typically a DSPU 110 or equivalent 24 VDC rail-mount unit — can support the additional load of a replacement module, and document all existing terminal wiring against the original loop drawings.

In many Advant AC450 and AC410 installations, the ICSM06A6 shares a rack with communication modules such as the DSMB 127 PROFIBUS interface card or the DSCS 140 serial communication module. Before pulling the failed card, note the module address set on the existing unit — this is typically configured via a rotary switch or DIP block on the module face. Replicating this address on the replacement ICSM06A6 is essential to avoid address conflicts that would prevent the controller from recognizing the new module at startup.

Termination wiring on Advant systems is handled through dedicated termination units. The DSAI 130 analog input termination board and DSAO 120 analog output termination board are the most common counterparts to the ICSM06A6 in process plant installations. These termination boards remain in place during a module swap, meaning field wiring does not need to be disturbed — a significant advantage for minimizing downtime and reducing the risk of wiring errors during the replacement procedure.

For sites planning a longer-term migration from Advant to ABB System 800xA, the ICSM06A6 can serve as a bridge component during a phased cutover. In this scenario, the existing Advant controller — such as an AC450 with its PM150 processor module — continues to manage the I/O while the 800xA engineering environment is configured in parallel. The S800 I/O family, including AI810 and AO810 analog modules, represents the target hardware for the eventual migration, but the ICSM06A6 allows the legacy system to remain operational and fully functional throughout the transition period.

Where PROFIBUS DP integration is required — for example, when connecting legacy Advant I/O to a newer AC500 PLC or a third-party SCADA system — a PROFIBUS gateway such as the CI854 communication interface can be introduced into the rack without disrupting existing analog I/O wiring. This approach is particularly common in hybrid installations where part of the plant has already been upgraded while older sections continue to run on Advant hardware.

Programming compatibility is another key consideration. Control logic developed in the Advant Engineering Tool (AET) or the Freelance Control Builder must be reviewed to confirm that function block assignments, analog scaling parameters, and alarm limits reference the correct module and channel addresses. If the replacement ICSM06A6 is installed in the same slot with the same address, no program changes are required — the controller will resume normal operation after a cold restart. However, if the module is being relocated to a different slot as part of a rack reorganization, the corresponding function block connections in the control program must be updated before the system is restarted.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any plant engineer managing a DCS module replacement on a live production system. For the ICSM06A6, the most effective strategy is a pre-tested hot-swap procedure combined with a documented rollback plan.

Before the replacement window, the incoming module should be bench-tested against a known-good Advant rack — or verified using the ABB module test adapter — to confirm that all analog channels respond correctly to a 4–20 mA loop calibrator signal. This pre-shipment functional test, which SMARTNEXMSK performs on every unit, eliminates the risk of installing a defective replacement and discovering the fault only after the system has been taken offline.

During the replacement itself, the recommended sequence is: place the controller in manual mode to freeze all analog output values at their last known setpoints, remove the failed ICSM06A6, insert the replacement unit (confirming the module address matches), and perform a controlled warm restart of the affected I/O group. In most Advant AC450 installations, this procedure can be completed in under 15 minutes without affecting the broader control system, provided the rack power supply remains energized and the remaining modules in the subrack continue to communicate normally.

For sites where even a brief interruption to analog output signals is unacceptable — such as in continuous chemical processes or power plant auxiliary systems — a parallel wiring strategy can be employed. A spare ICSM06A6 is pre-wired to a temporary termination panel, configured with the correct module address, and brought online in a shadow rack before the failed unit is removed. This approach requires additional engineering time but reduces the actual process interruption to the duration of a single switchover command.

After the replacement is complete, loop calibration should be verified for all active analog channels, HMI faceplate readings should be cross-checked against field instruments, and the event log in the Advant engineering tool should be reviewed to confirm that no persistent fault codes remain. All findings should be documented in the site maintenance record to support future audits and warranty claims.

Retrofit Support FAQ

Q1: Is the ICSM06A6 FPR3350601R1062 a direct drop-in replacement for earlier ICSM06 variants?
In the majority of Advant and Freelance DCS installations, yes. The FPR3350601R1062 revision maintains the same backplane connector pinout, module address scheme, and termination board compatibility as earlier ICSM06 production runs. However, engineers should verify the firmware revision level of the host controller — AC110, AC160, AC410, or AC450 — against ABB’s compatibility matrix to confirm that no firmware update is required before installing the replacement module.

Q2: What wiring changes are needed when replacing a failed ICSM06A6?
For a like-for-like slot replacement, no field wiring changes are required. The DSAI 130 and DSAO 120 termination boards remain connected to the field cables throughout the procedure. The only physical action required at the termination level is to confirm that all terminal screws are tight and that no wires have been disturbed during the module removal. If the replacement is part of a rack reorganization or a migration to a different I/O bus, new termination wiring will be required and should be completed according to the updated loop drawings before the system is restarted.

Q3: How is the module address configured on the replacement ICSM06A6, and does it affect the control program?
The module address is set via a DIP switch block on the module face, using the same addressing scheme as all Advant S100 I/O modules. The address must match the slot assignment defined in the Advant engineering database. If the replacement module is installed in the same slot as the failed unit with the same address, the control program requires no modification and the controller will recognize the new module automatically after a restart. Address mismatches will generate a hardware fault alarm in the Advant event log and prevent the module from being scanned by the controller.

Q4: What does the 12-month warranty cover, and what documentation is provided with each unit?
Every ICSM06A6 FPR3350601R1062 shipped by SMARTNEXMSK is covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Each unit is accompanied by a functional test record confirming that all analog input and output channels were verified against calibrated reference signals prior to shipment. In the event of a warranty claim, SMARTNEXMSK provides advance replacement shipping to minimize site downtime, subject to the terms of the warranty agreement. Contact sales@smartnexmsk.com with your order reference and fault description to initiate a warranty claim.
