ABB IMDSM05 Maintenance-Ready Spare for S800 Automation

ABB IMDSM05 Maintenance-Ready Spare for S800 Automation

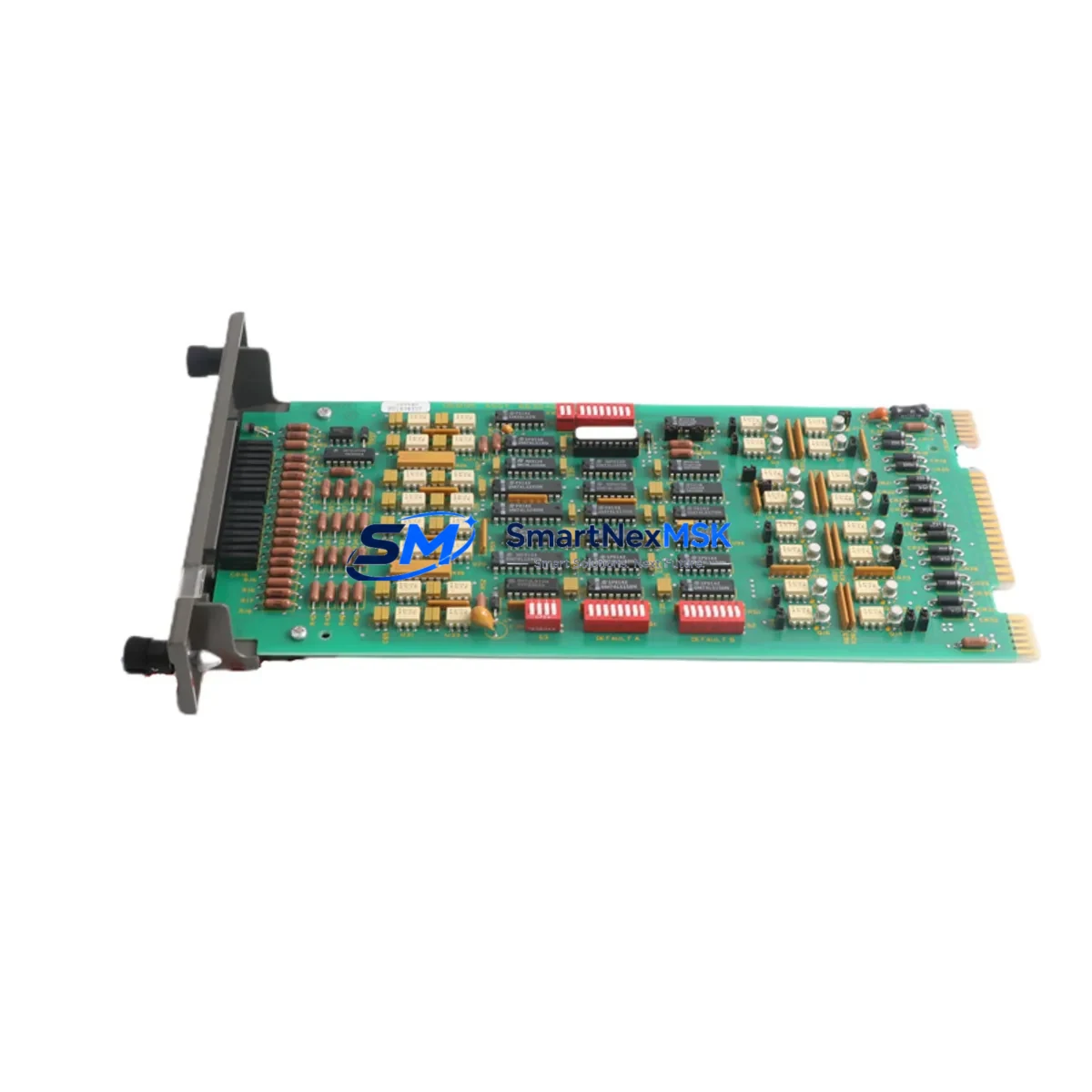

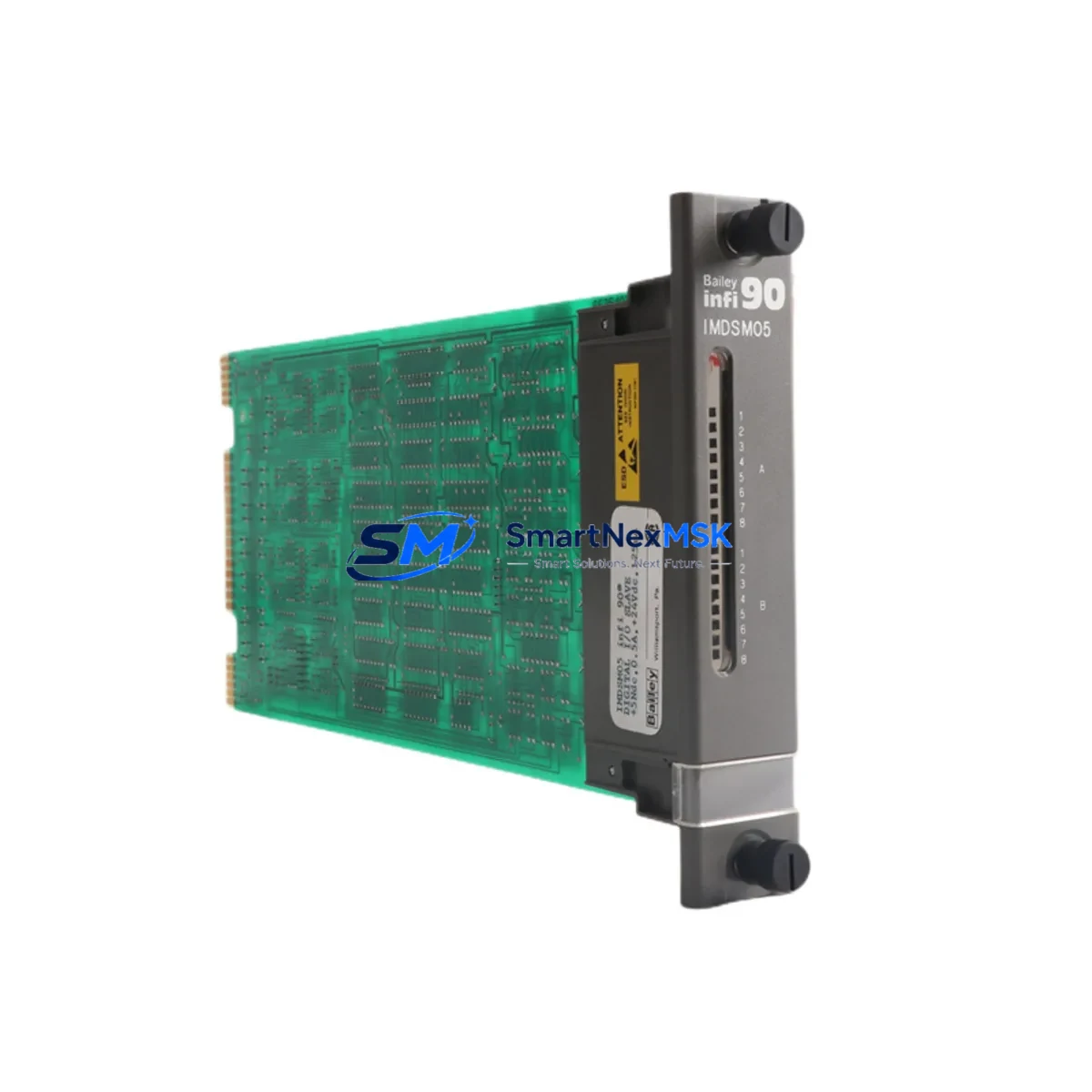

The ABB IMDSM05 is a digital I/O module engineered for the S800 I/O series and AC 800M process automation controllers. As a maintenance-ready original spare, it is the direct replacement for aging or failed IMDSM05 units in continuous process plants, power generation facilities, and heavy industrial environments. Sourced from verified supply channels, each unit undergoes pre-shipment functional testing and ships with a 12-month warranty — giving maintenance engineers and procurement teams the confidence to stock it as a critical spare without compromise.

Unplanned downtime caused by a failed digital I/O module can cascade rapidly across a control loop. The IMDSM05 supports fast field replacement: it is hot-swap compatible within the S800 I/O station architecture, allowing technicians to substitute the module without full system shutdown when the controller is in the appropriate maintenance mode. This characteristic makes it a cornerstone component in any spare parts inventory strategy for AC 800M-based systems.

From a procurement engineering perspective, the IMDSM05 is a long-lifecycle ABB module that remains in active demand across installed bases worldwide. Its continued availability through specialist distributors ensures that plants running legacy AC 800M configurations can extend system life without committing to full DCS migration projects. Stocking one or two units per control cabinet cluster is a widely adopted practice in facilities with high uptime requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules a planned inspection or responds to an unplanned fault involving the IMDSM05, the replacement workflow should extend beyond the module itself. The S800 I/O station is a tightly integrated assembly, and adjacent components are subject to the same thermal and electrical stress cycles.

During a control cabinet inspection, engineers should simultaneously verify the condition of the TB820V2 or TB840A I/O station baseplate, which provides the backplane connectivity for the IMDSM05. A degraded baseplate connector can cause intermittent I/O faults that are misdiagnosed as module failures. The SA811F or SA801F power supply module feeding the I/O station should be checked for output voltage stability — an under-voltage condition will cause the IMDSM05 to report faults even when the module itself is healthy.

For systems using the CI854A or CI858 PROFIBUS communication interface alongside the IMDSM05, the communication module’s firmware version and cable termination should be validated during the same maintenance window. Signal integrity issues on the PROFIBUS segment can mask or amplify I/O errors. Similarly, the TK850V007 or TK851V007 field termination unit (FTU) connecting field wiring to the I/O module should be inspected for loose terminals, corrosion, or insulation breakdown — particularly in humid or chemically aggressive environments.

If the IMDSM05 is part of a safety-instrumented loop, the associated AI810 or DI810 input modules in the same I/O station should be cross-checked for consistent signal readings. Replacing one module without auditing its neighbors leaves latent faults undetected. Fuse carriers and miniature circuit breakers (MCBs) on the 24 VDC distribution rail supplying the I/O station are frequently overlooked — a partially blown fuse can cause erratic module behavior that mimics hardware failure.

For plants using AC 800M with redundant controller pairs (e.g., PM864 + PM864 in hot-standby), the switchover behavior should be tested after any I/O module replacement to confirm that the redundant path correctly inherits the updated I/O configuration. Finally, the TP830 or PP836 operator panel / HMI connected to the AC 800M should be checked to ensure that alarm histories and I/O status displays reflect the restored module state after replacement.

Site Replacement Workflow

Step 1 — Identify and isolate: Confirm the IMDSM05 slot address within the S800 I/O station using the AC 800M engineering tool (Control Builder M). Note the module’s I/O channel assignments and current diagnostic status before removal.

Step 2 — Prepare the replacement unit: Verify that the replacement IMDSM05 carries the same hardware revision as the installed unit, or confirm backward compatibility in the ABB S800 I/O release notes. Inspect the module connector pins for damage before insertion.

Step 3 — Hot-swap or cold-swap: If the controller is in maintenance mode and the I/O station supports hot-swap, insert the replacement module into the vacated slot. The AC 800M will automatically download the I/O configuration to the new module. For cold-swap scenarios, follow the standard S800 I/O station power-down sequence.

Step 4 — Verify and commission: After insertion, confirm that the module LED status indicators show normal operation (green RUN, no FAULT). Use Control Builder M to verify that all I/O channels are reporting correctly. Perform a loop test on critical channels before returning the loop to automatic control.

Step 5 — Document and restock: Log the replacement in the plant CMMS (Computerized Maintenance Management System) and initiate a reorder for the consumed spare to maintain minimum stock levels. A single IMDSM05 spare per I/O station cluster is the recommended minimum buffer for high-availability plants.

Spare Parts Support FAQ

Q1: Is this IMDSM05 an original ABB module or a third-party compatible?
This is an original ABB IMDSM05 module sourced from verified supply channels. It is not a clone, aftermarket, or third-party compatible unit. Each module is functionally tested before shipment and covered by a 12-month warranty.

Q2: How do I confirm compatibility with my specific AC 800M controller version?
The IMDSM05 is compatible with all standard AC 800M controller variants (PM851 through PM866 series) when used with S800 I/O stations. If your plant uses a specific firmware version of Control Builder M, please share your system version details with our technical team at sales@smartnexmsk.com and we will confirm compatibility before shipment.

Q3: What is your lead time and how is the module tested before shipping?
In-stock units ship within 1–3 business days. Each IMDSM05 undergoes a pre-shipment functional verification covering power-on self-test, I/O channel continuity, and connector integrity. A test report is available upon request for critical applications.

Q4: What does the 12-month warranty cover, and what is the process for a warranty claim?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or physical mishandling. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number and a description of the fault. We will arrange return shipping and either repair or replace the unit at no additional cost.
