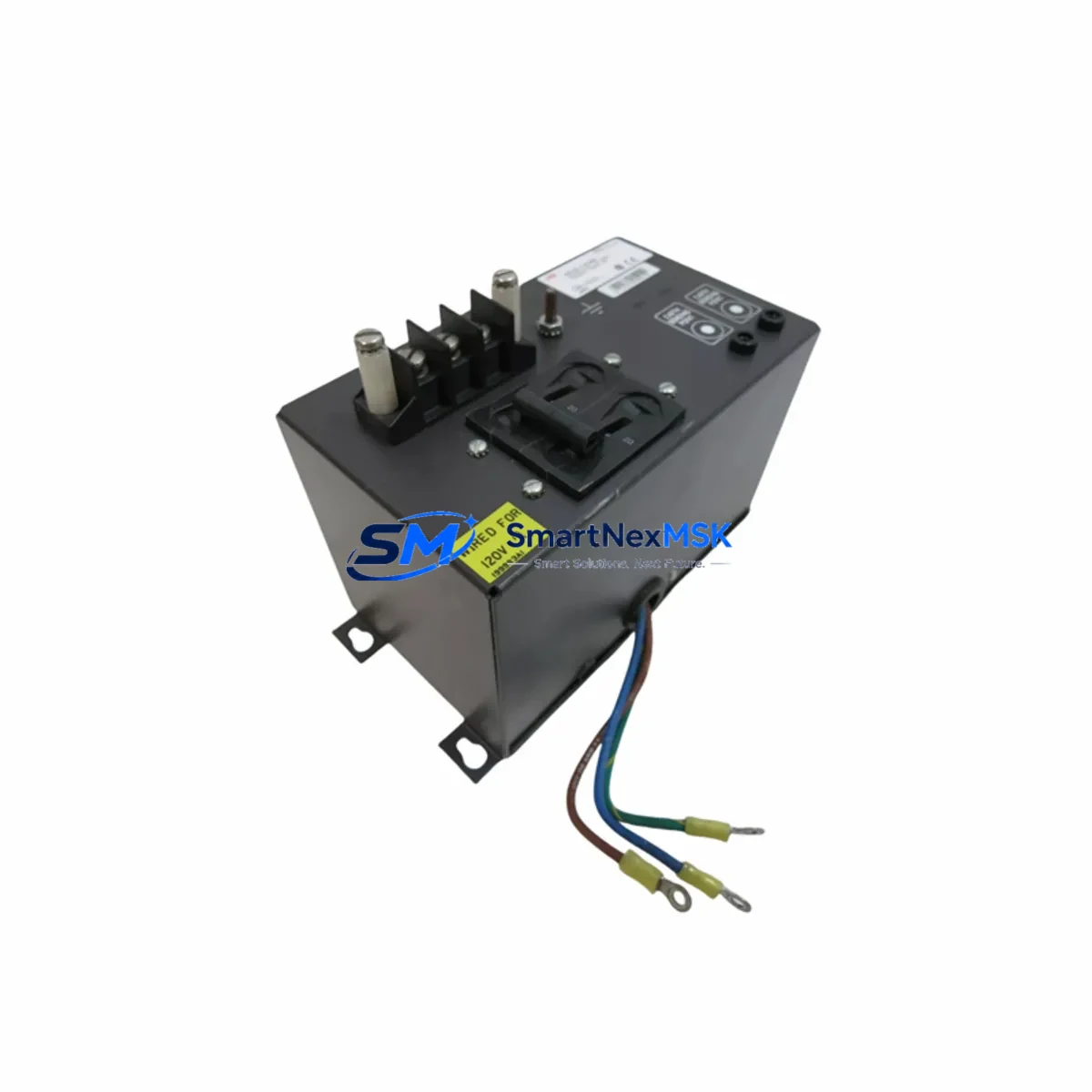

ABB IPECB11 Retrofit-Ready Circuit Breaker for IP Series Control Systems
The ABB IPECB11 is a power entry circuit breaker engineered for seamless integration into ABB IP Series control enclosures and automation panels. As legacy IP Series installations reach end-of-life or require capacity upgrades, the IPECB11 serves as the verified retrofit solution — maintaining electrical protection continuity while supporting modernization of aging control infrastructure. Whether you are replacing a failed unit on an active production line, upgrading a control cabinet to meet revised safety standards, or migrating from an earlier ABB IP Series configuration, the IPECB11 delivers the dimensional compatibility, rated performance, and terminal interface required for a controlled, low-risk changeover.
Industrial facilities operating ABB IP Series panels frequently encounter the IPECB11 in applications where the original power entry protection device has degraded, tripped irreversibly, or is no longer available through standard distribution channels. In these scenarios, sourcing a verified replacement with documented compatibility is critical to avoiding extended downtime. SMARTNEXMSK maintains ready stock of the IPECB11 with full pre-shipment functional testing, ensuring that each unit dispatched meets ABB’s original performance specifications before it reaches your site.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| Compatible Series | ABB IP Series control enclosures and power entry assemblies |
| Mounting Interface | Panel-mount, snap-fit or screw-fixed per IP Series enclosure standard |
| Terminal Compatibility | Direct terminal block interface; verify conductor cross-section against existing wiring schedule |
| Communication Compatibility | Passive protection device — no protocol dependency; compatible with all upstream PLC and SCADA architectures |
| Replacement Recommendation | Direct drop-in for failed or end-of-life IPECB11 units; confirm rated current matches existing circuit design |
| Commissioning Notes | Verify upstream supply voltage, downstream load current, and enclosure IP rating continuity after installation |
| Warranty | 12-Month Warranty — covers manufacturing defects and functional failure under rated operating conditions |
Retrofit Planning for Existing Automation Systems
A successful IPECB11 retrofit begins well before the physical swap. Engineers planning a power entry replacement within an ABB IP Series cabinet should first audit the full power distribution architecture of the enclosure. This typically involves reviewing the incoming supply rating, the downstream load profile served by the circuit breaker, and the physical arrangement of adjacent components such as the ABB IPDS power supply module, terminal distribution blocks, and any ABB IP Series I/O expansion racks mounted within the same enclosure.
In many retrofit scenarios, the IPECB11 replacement is part of a broader control cabinet upgrade that also involves swapping aging ABB AC500 PLC CPU modules, refreshing ABB CI504 PROFIBUS communication interfaces, or replacing deteriorated ABB TB523 terminal base units. When the scope extends to the control layer, engineers must also account for the ABB PM573 processor module’s power budget and confirm that the new circuit breaker’s rated current aligns with the total draw of all installed modules — including any ABB AI523 analog input modules or ABB DI524 digital input modules added during the upgrade.
For systems where the IP Series enclosure feeds an HMI station — such as an ABB CP600 operator panel — the retrofit plan should include a controlled power-down sequence that preserves the HMI’s display configuration and alarm history. Similarly, if the enclosure houses an ABB CI541 DeviceNet communication module or an ABB CI561 CANopen interface, the communication link topology must be documented before power is interrupted, and the network must be re-validated after the IPECB11 is installed and the enclosure is re-energized.
Terminal wiring adaptation is another key consideration. Older IP Series installations may use conductor sizes or ferrule types that differ from current wiring standards. Before installing the IPECB11, technicians should inspect the incoming line terminals, confirm that the conductor insulation is intact, and re-torque all connections to the manufacturer’s specified values. Where the existing wiring schedule calls for conductor cross-sections outside the IPECB11’s terminal range, appropriate wire reducers or terminal adapters should be sourced as part of the retrofit kit.
Downtime Control During System Migration
Minimizing production interruption during an IPECB11 replacement requires a structured pre-outage preparation protocol. Before scheduling the maintenance window, the site engineering team should complete a full backup of all PLC program logic stored in the upstream controller — whether an ABB AC500 series CPU or a legacy ABB S800 I/O-connected processor. Program backups should be verified against the last known commissioned version to ensure that no undocumented field changes are lost during the power interruption.
The physical replacement of the IPECB11 is typically a short-duration task when the enclosure is properly prepared. The critical time investment lies in the pre-work: isolating the incoming supply, locking out the upstream disconnect, verifying absence of voltage at the circuit breaker terminals, and confirming that all downstream loads are in a safe state. Once the replacement unit is installed and terminal connections are torqued, the re-energization sequence should follow the original commissioning procedure — restoring power to the enclosure, confirming that the ABB IP Series power supply outputs are within specification, and verifying that all connected I/O modules report correctly to the PLC before releasing the system to production.
For facilities where continuous control is required, a parallel energization strategy using a temporary bypass circuit may be appropriate. This approach allows the IPECB11 to be replaced without interrupting the downstream control voltage, provided that the bypass is rated for the full load current and is removed immediately after the new breaker is confirmed operational. SMARTNEXMSK’s technical team can advise on bypass configurations based on your specific enclosure layout and load profile.
Retrofit Support FAQ
Q: Is the IPECB11 a direct replacement for the original ABB IP Series power entry circuit breaker?
A: Yes. The IPECB11 is the designated power entry circuit breaker for ABB IP Series enclosures. It is dimensionally and electrically compatible with the original installation position. Confirm the rated current of your existing unit before ordering to ensure the replacement matches your circuit design.
Q: What pre-installation checks are required before fitting the IPECB11?
A: Verify incoming supply voltage, confirm downstream load current does not exceed the breaker’s rated capacity, inspect terminal wiring condition, and ensure the enclosure’s IP rating gasket is intact. Re-torque all terminal connections after installation and perform a functional trip test before returning the system to service.
Q: Does SMARTNEXMSK test the IPECB11 before shipment?
A: Yes. Every IPECB11 unit undergoes pre-shipment functional testing to verify switching performance, trip response, and terminal integrity. Units are shipped with a test record and are covered by a 12-month warranty against manufacturing defects and functional failure under rated operating conditions.
Q: What is the lead time and warranty coverage for the IPECB11?
A: In-stock units are dispatched within 1–3 business days. All units carry a 12-month warranty from the date of shipment. Warranty claims are processed directly through SMARTNEXMSK with replacement or refund options available depending on fault diagnosis.
