ABB JCU-11 3AUA0000047068 Spare for ACS800 Automation

ABB JCU-11 3AUA0000047068 Spare for ACS800 Automation: Spare Replacement & Industrial Downtime Risk Control

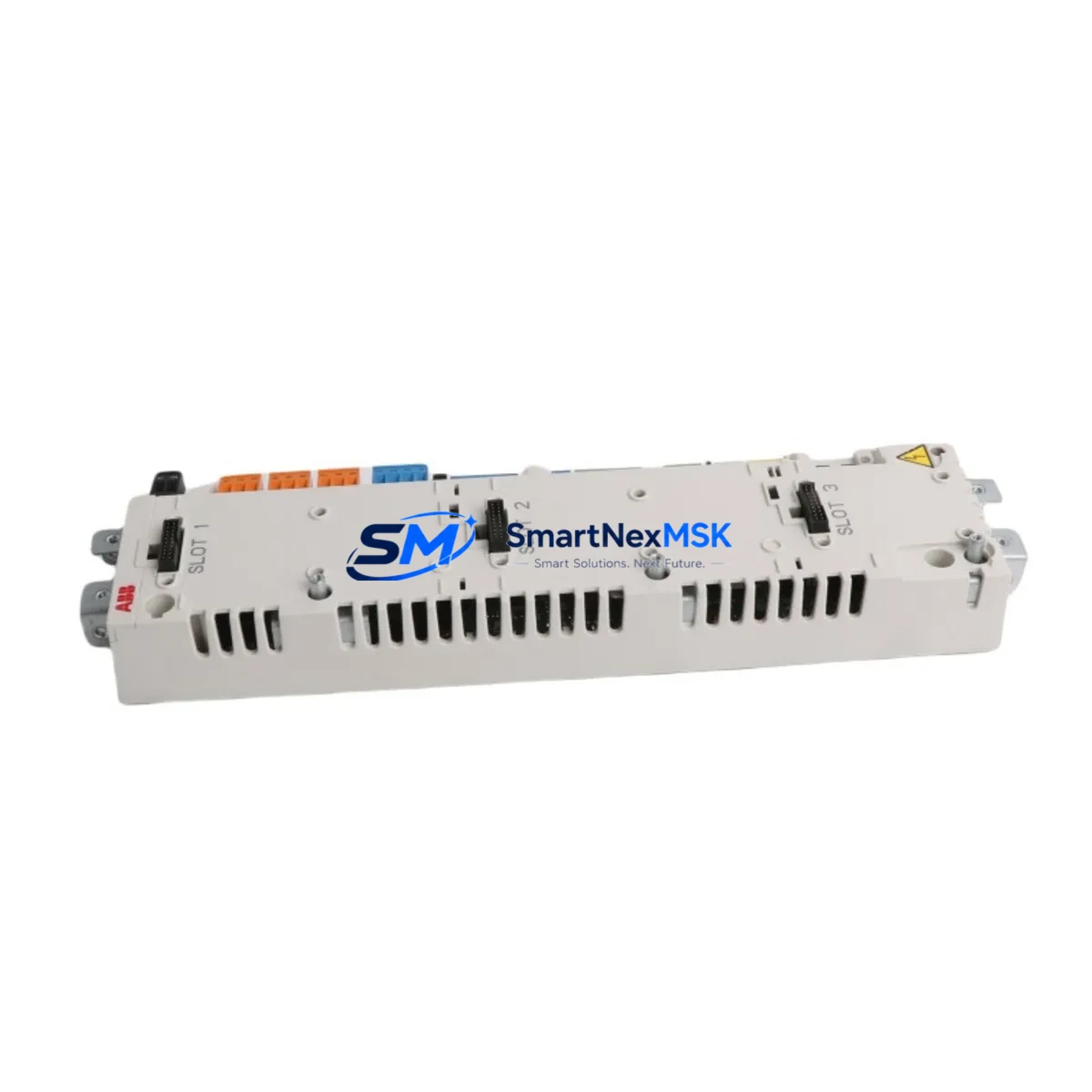

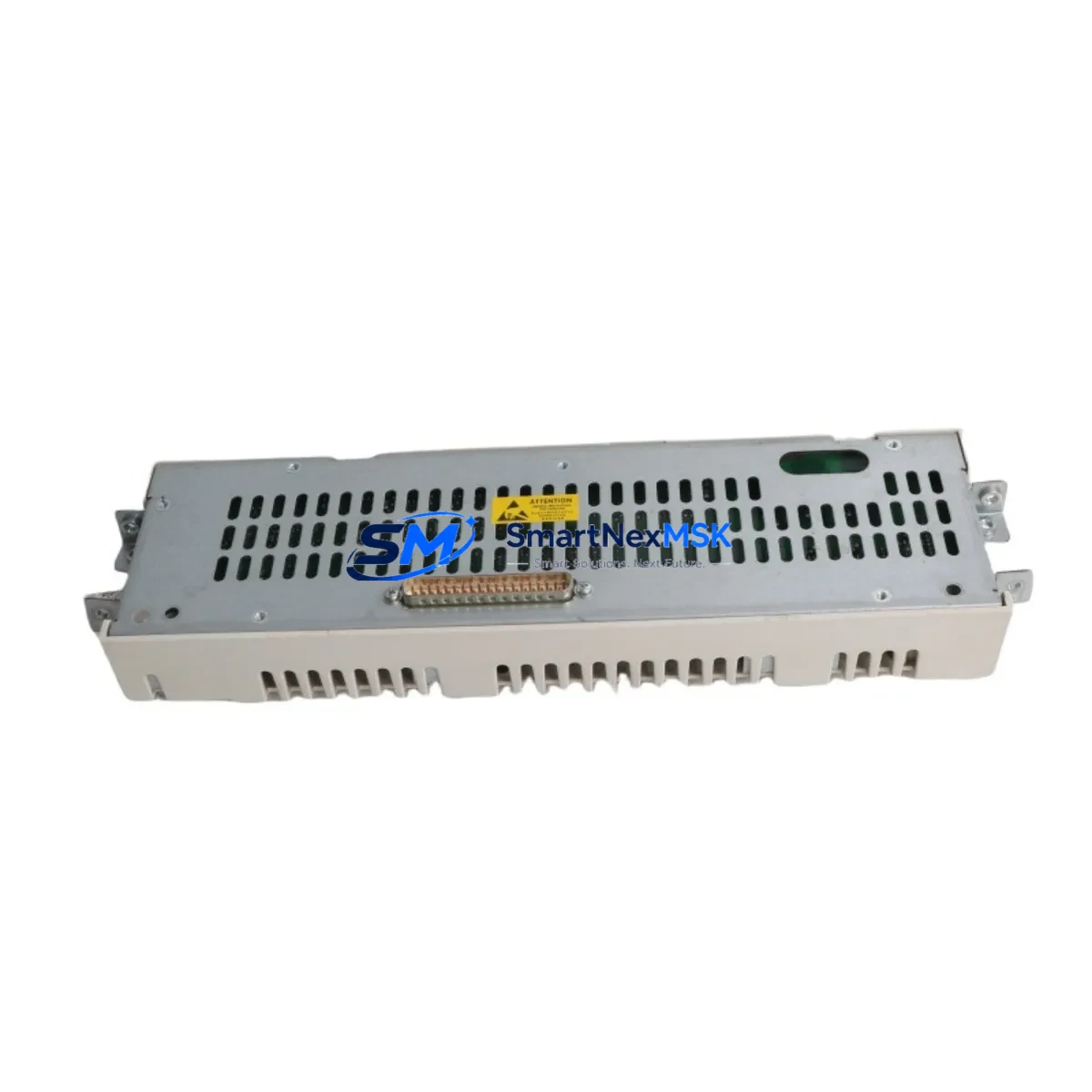

The ABB JCU-11 (part number 3AUA0000047068) is the dedicated control unit board for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families across process automation, material handling, pump and fan control, and heavy-duty motor management applications. When this control unit fails or degrades, the entire drive becomes inoperable, resulting in unplanned downtime that can cascade across production lines, conveyor systems, or critical process loops.

Sourced as an original ABB spare, this JCU-11 unit is pre-tested prior to dispatch, packaged with ESD protection, and backed by a 12-month warranty. Whether you are executing a planned maintenance swap, responding to a fault code, or building a strategic spare parts inventory for aging ACS800 installations, this unit ships ready for direct installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a JCU-11 control unit is flagged for replacement — whether due to a fault code such as FF61 (control board fault), FF6A (parameter backup failure), or physical damage from moisture or vibration — maintenance engineers should treat the event as a trigger for a broader control cabinet inspection. The JCU-11 does not operate in isolation; it interfaces directly with the ACS800’s power section, I/O terminal blocks, and any installed fieldbus adapter such as the RPBA-01 PROFIBUS adapter or RCAN-01 CANopen module.

Before or during a JCU-11 swap, it is best practice to inspect and verify the following associated components:

• APOW-01 Auxiliary Power Supply Board — provides the 24 VDC rail that powers the JCU-11; a degraded APOW-01 can cause repeated control unit faults even after board replacement.
• AINT-xx Inverter Control Interface Board — bridges the JCU-11 to the IGBT gate driver section; check for corrosion on the DDCS fiber connectors.
• RDCO-01 / RDCO-03 DDCS Communication Module — if the drive is part of a master-follower or multi-drive system, verify fiber optic links and module firmware compatibility with the replacement JCU-11.
• I/O Terminal Blocks (X1, X2, X3) — inspect for loose wiring, oxidized contacts, or incorrect signal wiring that may have contributed to the original fault.
• Analog Input Signal Isolators — in environments with high electrical noise, signal isolators on the AI channels protect the JCU-11 from transient damage; replace if found degraded.
• ACS800 Control Panel (CDP312R or ACS-CP-C) — verify that the operator panel communicates correctly with the new JCU-11 after parameter restore; panel faults can mimic control board issues.
• Backup Memory Unit (MFDT-01 or SD card) — always back up drive parameters before removal and restore after JCU-11 replacement to avoid re-commissioning delays.
• Cabinet Cooling Fan and Air Filter — overheating is a leading cause of control board degradation; inspect and replace if the drive has been running in a high-ambient environment.
• Input Fuses and Main Contactor — confirm upstream protection is intact; a blown fuse or welded contactor can indicate a fault condition that damaged the original JCU-11.
• Earth / Ground Bonding — poor cabinet grounding is a common root cause of EMC-induced control board failures in ACS800 installations; verify PE continuity before energizing the replacement unit.

Procurement engineers building a spare parts kit for ACS800 installations should consider stocking at least one JCU-11 per site alongside an APOW-01 and the relevant fieldbus adapter module. For multi-drive systems, a single spare JCU-11 can serve as a rotating spare across multiple cabinets of the same frame size, significantly reducing the capital cost of spare parts inventory.

Site Replacement Workflow

Step 1 — Isolate and De-energize: Follow LOTO (Lockout/Tagout) procedures. Confirm the DC bus has fully discharged (minimum 5 minutes after power-off) before opening the drive cabinet.

Step 2 — Parameter Backup: If the existing JCU-11 is still partially functional, use the CDP312R panel or DriveStudio PC tool to export the full parameter set to the MFDT-01 memory unit or a connected PC. This eliminates re-commissioning time after the swap.

Step 3 — Remove the Faulty JCU-11: Disconnect all I/O wiring from terminal blocks X1–X3, unplug the DDCS fiber optic cables, and release the board retention clips. Slide the JCU-11 out of the control section slot.

Step 4 — Inspect and Clean: Before installing the replacement, inspect the control section slot for debris, moisture, or damaged connector pins. Clean with dry compressed air if necessary.

Step 5 — Install Replacement JCU-11 (3AUA0000047068): Slide the new board into the slot until the retention clips engage. Reconnect all I/O terminals and fiber optic cables in the correct sequence per the ACS800 Hardware Manual (3AFE64527592).

Step 6 — Parameter Restore and Commissioning Check: Power up the drive and restore parameters from backup. Verify motor control mode, speed reference source, and I/O assignments. Run a no-load test before reconnecting the motor load.

Step 7 — Functional Verification: Confirm all digital inputs and outputs respond correctly, analog signals are within calibrated range, and fieldbus communication is re-established. Log the replacement in the site maintenance record.

This workflow is compatible with all ACS800 frame sizes (R2–R8 and cabinet-mounted units) and supports direct replacement of older JCU-11 revisions without hardware modification, ensuring backward compatibility and minimizing system downtime.

Spare Parts Support FAQ

Q1: Is this JCU-11 (3AUA0000047068) compatible with all ACS800 frame sizes?
Yes. The JCU-11 is the standard control unit for the entire ACS800 product family, including R2 through R8 frame sizes and ACS800 cabinet-mounted drives. It is a direct plug-in replacement regardless of drive power rating, provided the firmware version is compatible. We recommend verifying the firmware revision of your existing unit and requesting a matched or upgradeable version if required.

Q2: What is included in the 12-month warranty and pre-shipment testing?
Every JCU-11 unit is functionally tested on an ACS800 test bench prior to dispatch to verify control board initialization, I/O channel operation, DDCS communication, and parameter read/write capability. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or environmental exposure beyond the rated operating range.

Q3: How quickly can this spare be dispatched, and what documentation is provided?
In-stock units are dispatched within 1–3 business days. Each shipment includes a test report, packing list, and CE/origin documentation. Express courier options are available for emergency breakdown situations. Contact our team at sales@smartnexmsk.com or +86 18259474341 to confirm lead time and shipping options for your location.

Q4: Can I use this JCU-11 to extend the service life of an older ACS800 installation?
Absolutely. The ACS800 platform has a large installed base globally, and many sites continue to operate these drives well beyond the standard product lifecycle. Stocking a JCU-11 spare is one of the most cost-effective strategies for extending system life, as control board failure is one of the most common causes of ACS800 downtime. We support long-term supply agreements for sites managing multiple ACS800 units and can advise on compatible spare parts kits tailored to your installation.
