ABB JCU-11 Retrofit-Ready Drive Control Unit for ACS880 Control Systems

ABB JCU-11 Retrofit-Ready Drive Control Unit for ACS880 Control Systems: Compatible Modernization & Smooth Legacy Upgrade

The ABB JCU-11 is a dedicated drive control unit engineered for the ACS880 and ACS580 series of industrial AC drives. As legacy drive platforms approach end-of-life and original spare parts become increasingly scarce, the JCU-11 has emerged as a critical retrofit component for engineers tasked with modernizing aging automation infrastructure without full system replacement. Whether you are restoring a failed drive in a continuous-process plant, upgrading a multi-drive cabinet in a material handling line, or migrating from an older ACS600 or ACS800 platform, the JCU-11 provides the control intelligence needed to maintain operational continuity while meeting current performance and communication standards.

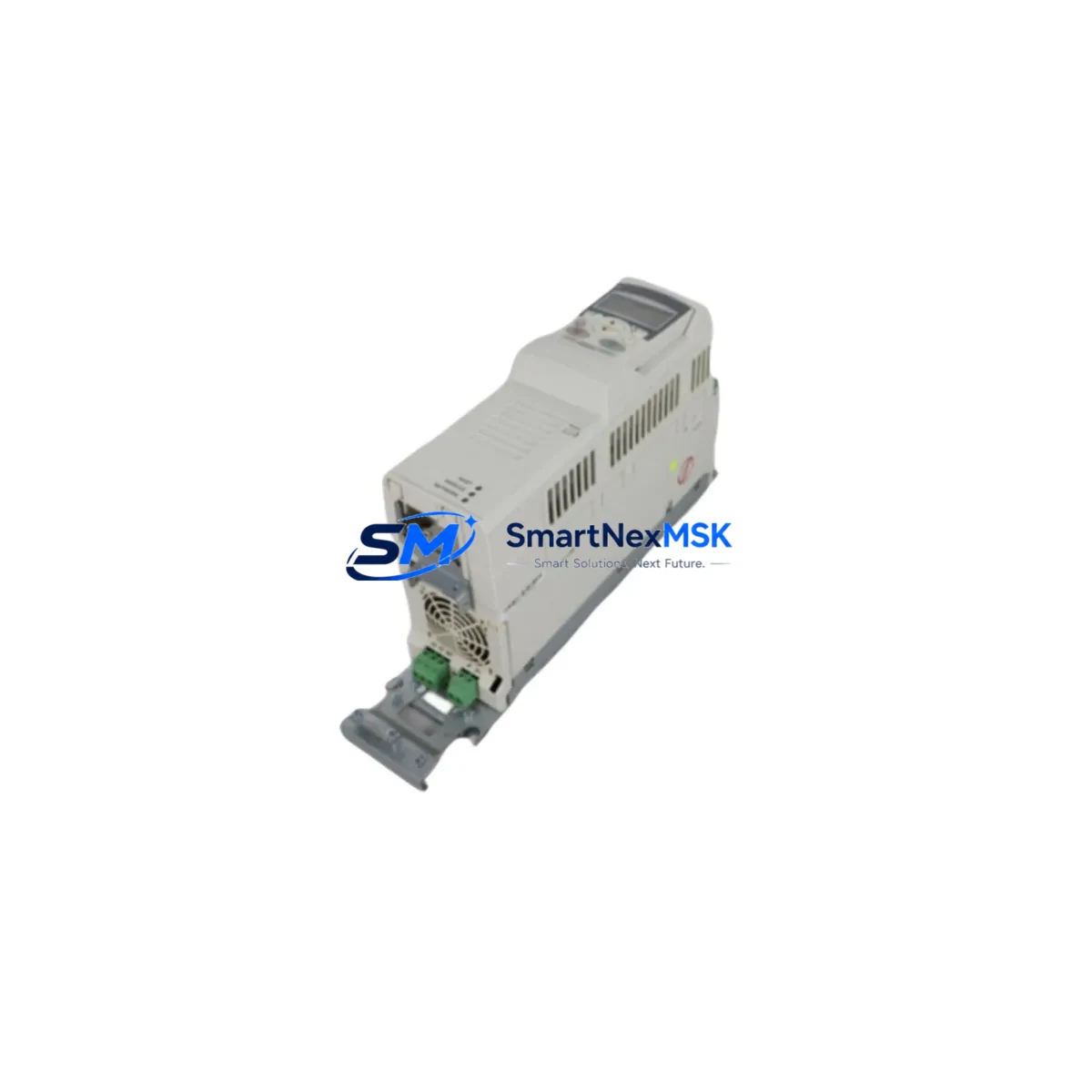

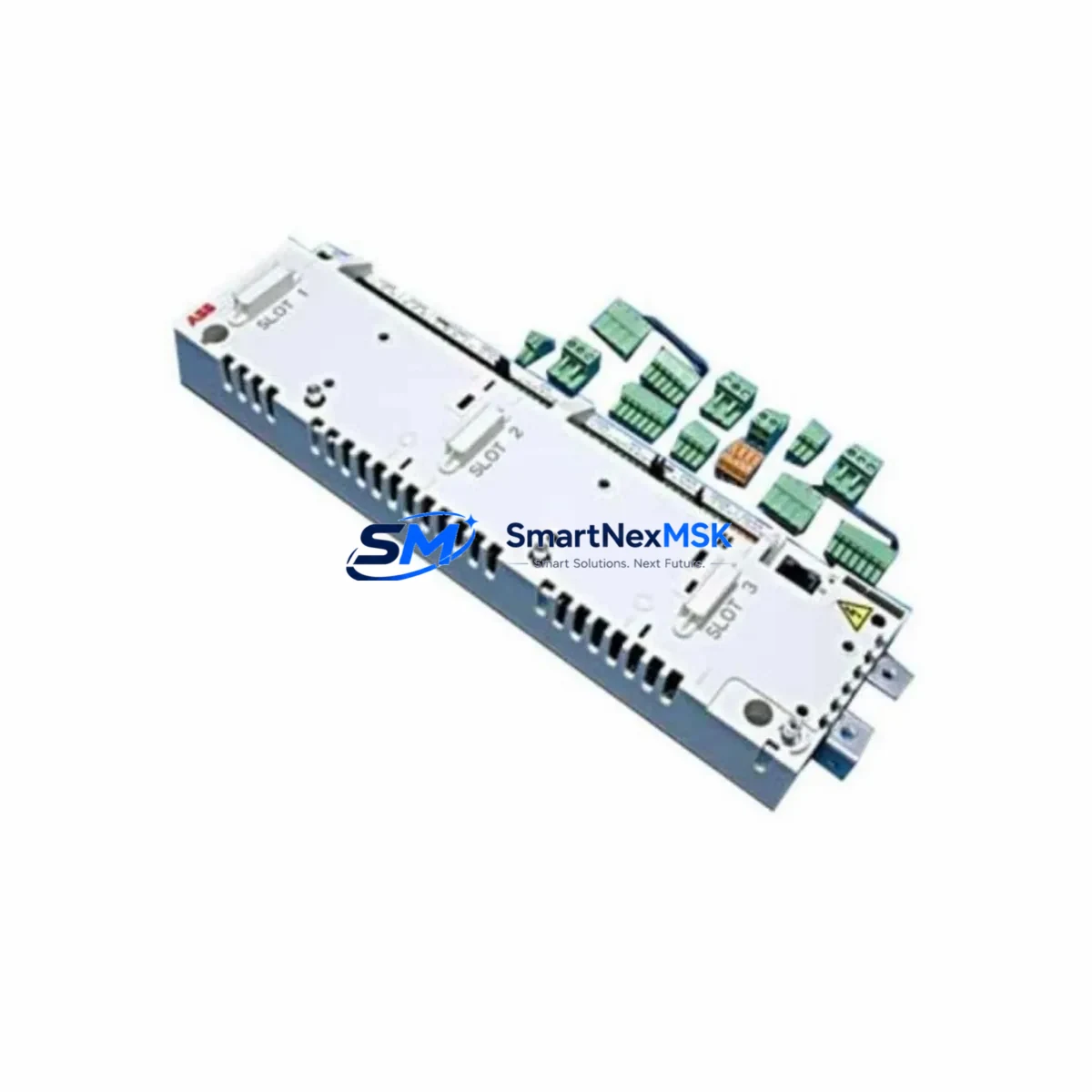

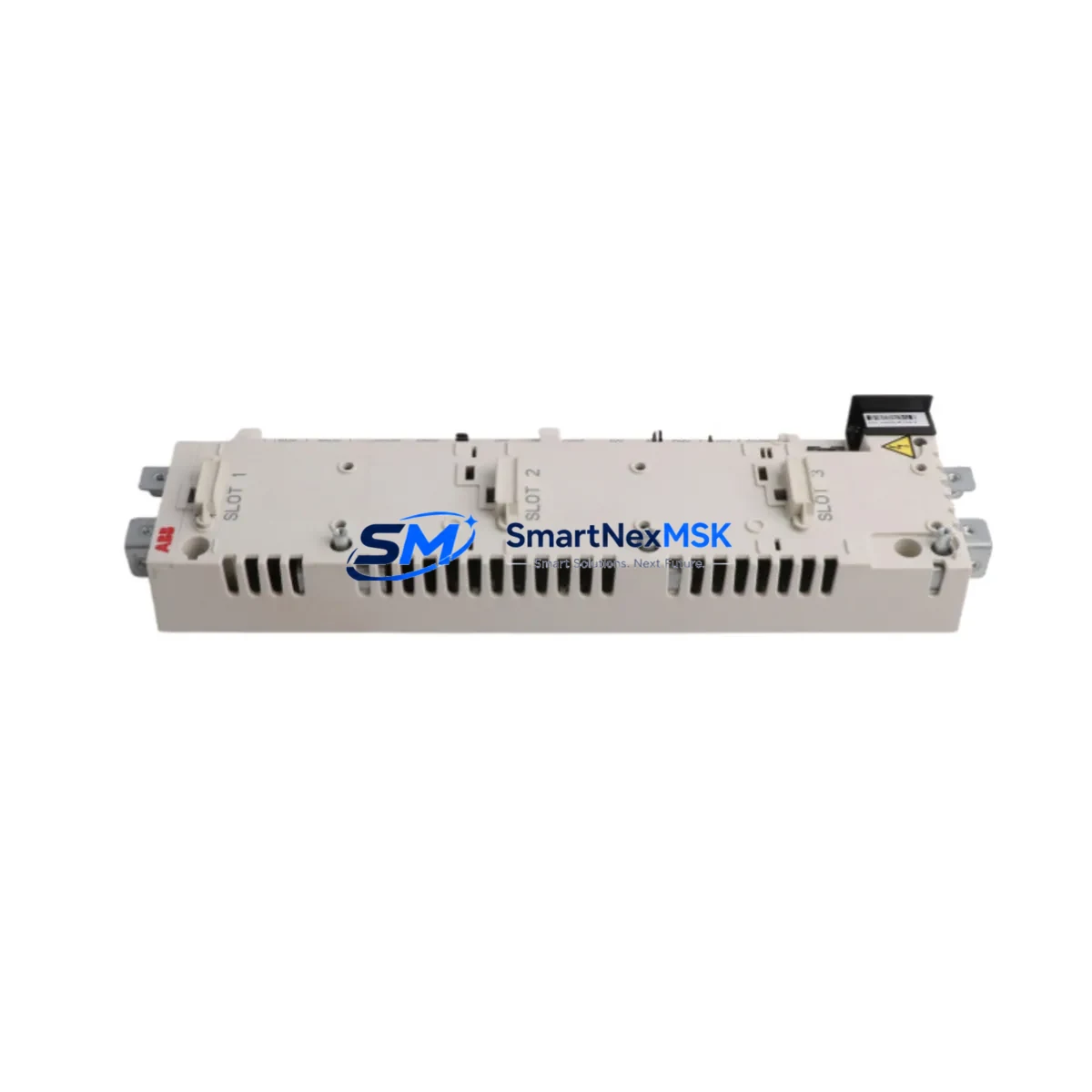

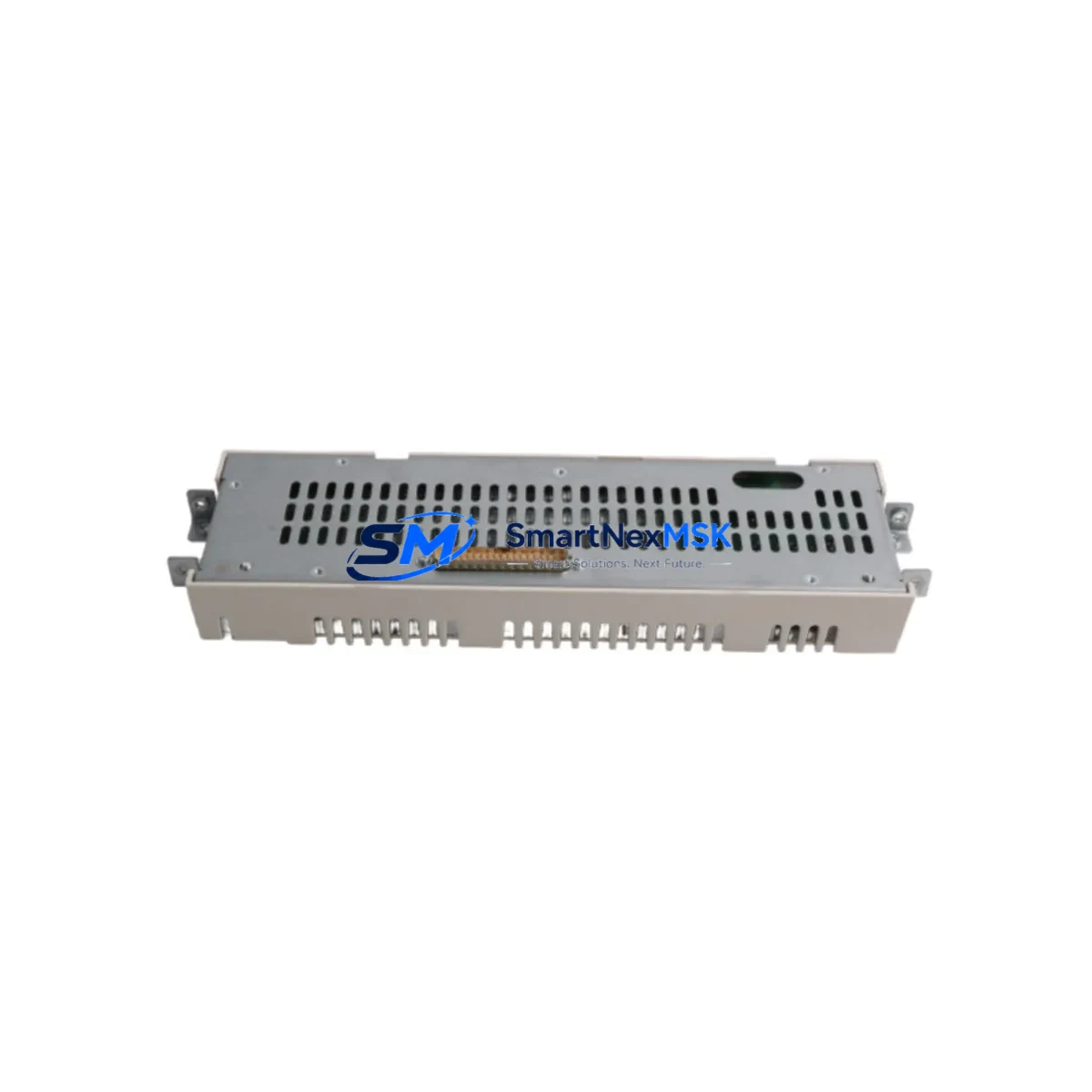

The JCU-11 serves as the primary control board within the ACS880 drive architecture, managing motor control algorithms, I/O signal processing, fieldbus communication, and parameter storage. Its compatibility with the ACS880-01, ACS880-07, and ACS880-17 drive frames makes it a versatile replacement across a wide range of power ratings and enclosure types. Engineers working on ACS580 installations will also find the JCU-11 applicable in specific frame configurations where the control hardware is shared across the product family.

When planning a retrofit or spare-parts replenishment strategy around the JCU-11, procurement and maintenance teams must account for several critical compatibility factors. Power supply capacity within the existing drive cabinet must be verified against the JCU-11’s internal logic supply requirements. Terminal block wiring assignments for digital inputs, analog inputs, relay outputs, and the safe torque off (STO) circuit must be mapped against the original drive’s wiring diagram before any board swap is attempted. The backplane connector interface between the JCU-11 and the drive’s power unit must be inspected for pin alignment and mechanical seating integrity. Module slot addressing, particularly in multi-drive configurations using the ACS880 multidrives cabinet with a shared DC bus, must be re-confirmed after replacement to avoid address conflicts with other drive nodes on the same fieldbus segment.

Program compatibility is a central concern in any JCU-11 replacement project. The drive application program, including all PID tuning parameters, speed reference scaling, torque limits, and fault response configurations, is stored on the JCU-11’s internal memory and on any attached MFDT-01 memory unit. Before removing the original JCU-11, engineers should perform a full parameter backup using the Drive Composer PC tool or the ACS-AP-I or ACS-AP-W control panels. After installing the replacement JCU-11, the parameter set must be restored and verified against the process baseline. In applications where the drive is integrated with an ABB AC500 PLC or a third-party controller via PROFIBUS-DP, PROFINET, EtherNet/IP, or Modbus RTU using an FPBA-01, FENA-21, or FDNA-01 fieldbus adapter module, the communication node address and baud rate settings must be re-entered and the fieldbus master must be forced to re-scan the network to recognize the replacement node.

HMI screen configurations linked to the drive’s parameter database may require re-mapping if the replacement JCU-11 carries a different firmware version. Engineers should confirm firmware compatibility between the JCU-11 and any attached ACS-AP panel or remote HMI before commissioning. In SCADA-integrated environments, the drive’s device descriptor file may need to be re-imported into the supervisory system to restore full parameter visibility and alarm forwarding.

On-site commissioning after a JCU-11 swap typically follows a structured sequence: power-off isolation and lockout/tagout, board removal and replacement, parameter restore, I/O loop check against the original wiring schedule, STO circuit continuity test, no-load motor run at reduced speed reference, and finally full-load trial under process conditions. Downtime can be minimized by pre-staging the replacement JCU-11 with the backed-up parameter file before the maintenance window begins, reducing the live commissioning phase to under two hours in most single-drive applications.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful JCU-11 retrofit begins well before the maintenance window. The engineering team should audit the existing drive cabinet to identify all components that interact with the control unit. In a typical ACS880 multidrive cabinet, the JCU-11 interfaces with the BCU-12 or BCU-22 backup control unit, the ZCU-12 or ZCU-14 inverter control unit, and the D2D fiber optic link connecting multiple drive modules on a shared DC bus. Each of these components must be confirmed as functional before the JCU-11 is identified as the sole fault source.

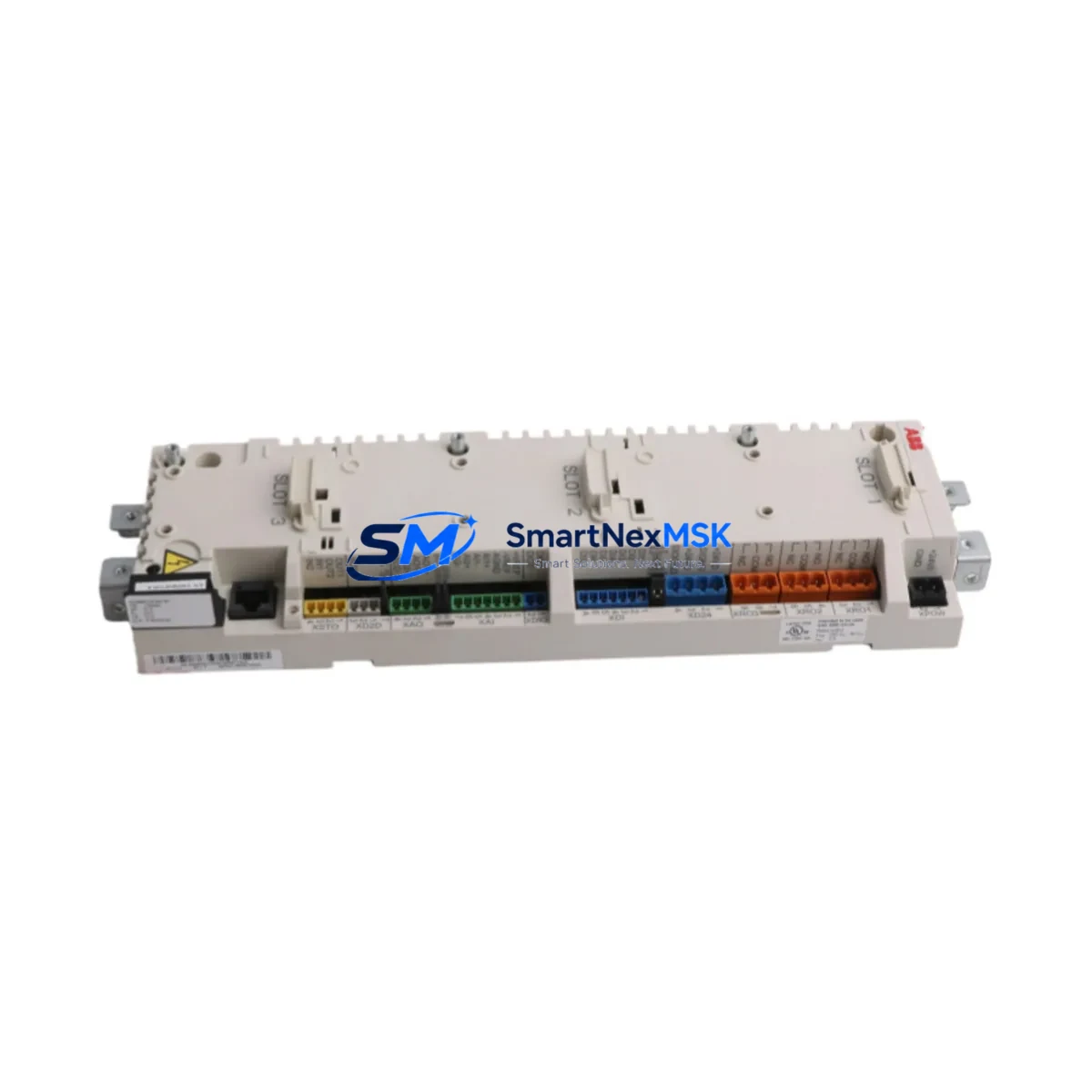

I/O wiring should be documented against the original terminal block schedule. The JCU-11’s X1 and X2 terminal blocks carry the standard digital and analog I/O signals, while the X6 connector handles the STO safety circuit. If the existing installation uses an FAIO-01 analog I/O extension or an FIO-01 digital I/O extension module, these modules remain in place and do not need to be replaced alongside the JCU-11. Similarly, any FPBA-01 PROFIBUS adapter or FENA-21 EtherNet/IP adapter installed in the option slots can be transferred directly to the replacement JCU-11 without reconfiguration, provided the node address and communication parameters are preserved in the parameter backup.

Power supply integrity is a prerequisite for reliable JCU-11 operation. The APBU-44C or APBU-74C power buffer unit, where installed, should be tested for capacitor health before the new control board is energized. In installations where the drive is fed from an ACH580 HVAC drive or an ACS580 pump drive sharing the same MCC section, the incoming supply voltage and harmonic distortion levels should be measured to confirm they remain within the JCU-11’s specified operating range.

For sites migrating from older ACS800 drives equipped with RDCU-02C control units, the JCU-11 retrofit represents a platform migration rather than a like-for-like replacement. In this scenario, the motor control application must be re-engineered using Drive Composer Pro, and the fieldbus configuration must be rebuilt to match the new parameter map of the ACS880 firmware. The MFDT-01 memory unit can be used to clone the parameter set across multiple identical drives on the same production line, significantly reducing per-drive commissioning time.

Downtime Control During System Migration

Minimizing unplanned downtime during a JCU-11 replacement requires a structured pre-commissioning approach. The most effective strategy is to prepare the replacement JCU-11 as a hot-spare: connect it to a bench-top power supply, load the backed-up parameter file via Drive Composer, and verify that all parameters are correctly restored before the unit is brought to the plant floor. This pre-loading step eliminates the parameter restore phase from the live maintenance window, reducing the critical-path duration to the physical swap, I/O loop check, and STO test sequence.

In continuous-process applications where even brief drive outages affect production yield, a parallel commissioning approach may be warranted. Where the process design permits, a temporary bypass contactor can be used to maintain motor operation on direct-on-line starting while the drive is taken offline for the JCU-11 replacement. Once the replacement drive is commissioned and verified, the bypass is removed and the drive is returned to closed-loop vector control without a full process shutdown.

Program logic integrity must be protected throughout the migration. The original JCU-11’s parameter set, including all application macros, PID controller tuning, speed reference chains, and fault response configurations, should be archived in both the MFDT-01 memory unit and a PC-based backup file before any hardware is disturbed. After the replacement JCU-11 is installed and the parameter file is restored, a side-by-side parameter comparison using Drive Composer’s compare function should be performed to confirm that no values were lost or corrupted during the transfer. Only after this verification is complete should the drive be re-enabled and the process control system reconnected.

Retrofit Support FAQ

Q: Is the replacement JCU-11 a direct drop-in for the original unit in an ACS880-01 drive?
A: Yes, the JCU-11 is a direct mechanical and electrical replacement for the original control unit in ACS880-01, ACS880-07, and ACS880-17 drives. The backplane connector, terminal block layout, and option module slots are identical. A parameter restore from backup is required after installation to return the drive to its original operating configuration.

Q: Can I transfer my existing FPBA-01 PROFIBUS adapter to the replacement JCU-11?
A: Yes. The FPBA-01 and other option modules installed in the JCU-11’s option slots can be physically transferred to the replacement unit. The fieldbus node address and communication parameters stored in the drive’s parameter set will be restored along with the full parameter backup, so no additional fieldbus reconfiguration is typically required.

Q: What pre-shipment testing is performed on the JCU-11 before dispatch?
A: Each JCU-11 unit undergoes functional verification prior to shipment, including power-on self-test, I/O signal integrity check, and communication port validation. Units are supplied with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Test records are available upon request for quality-critical applications.

Q: What is the lead time and are units available from stock?
A: JCU-11 units are maintained in inventory for immediate dispatch. Standard orders are processed within 1 business day. For urgent breakdown situations, expedited shipping options are available. Contact our technical sales team to confirm current stock levels and delivery timelines for your specific requirement.
