ABB JINT-C1C Maintenance-Ready Spare for ACS800 Automation

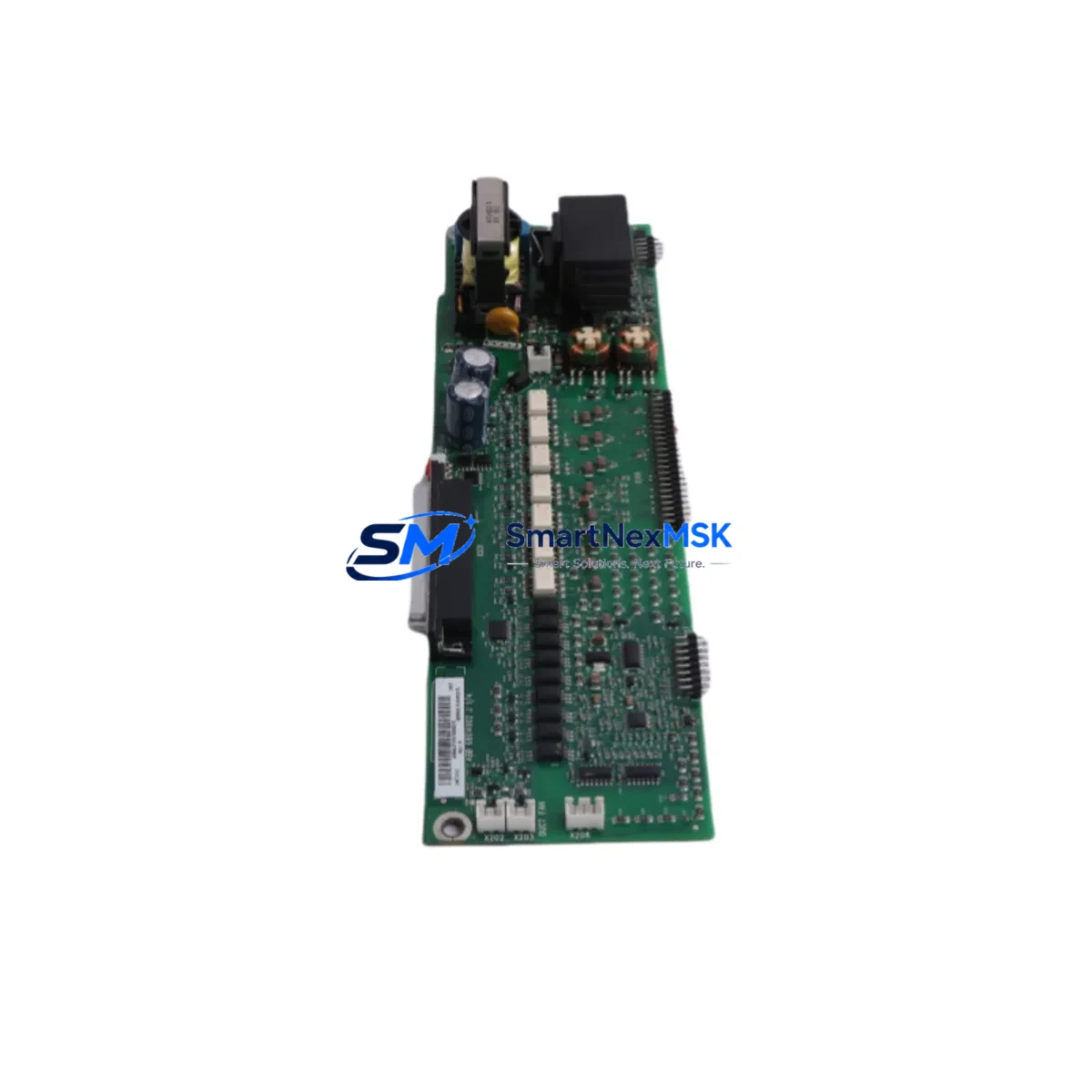

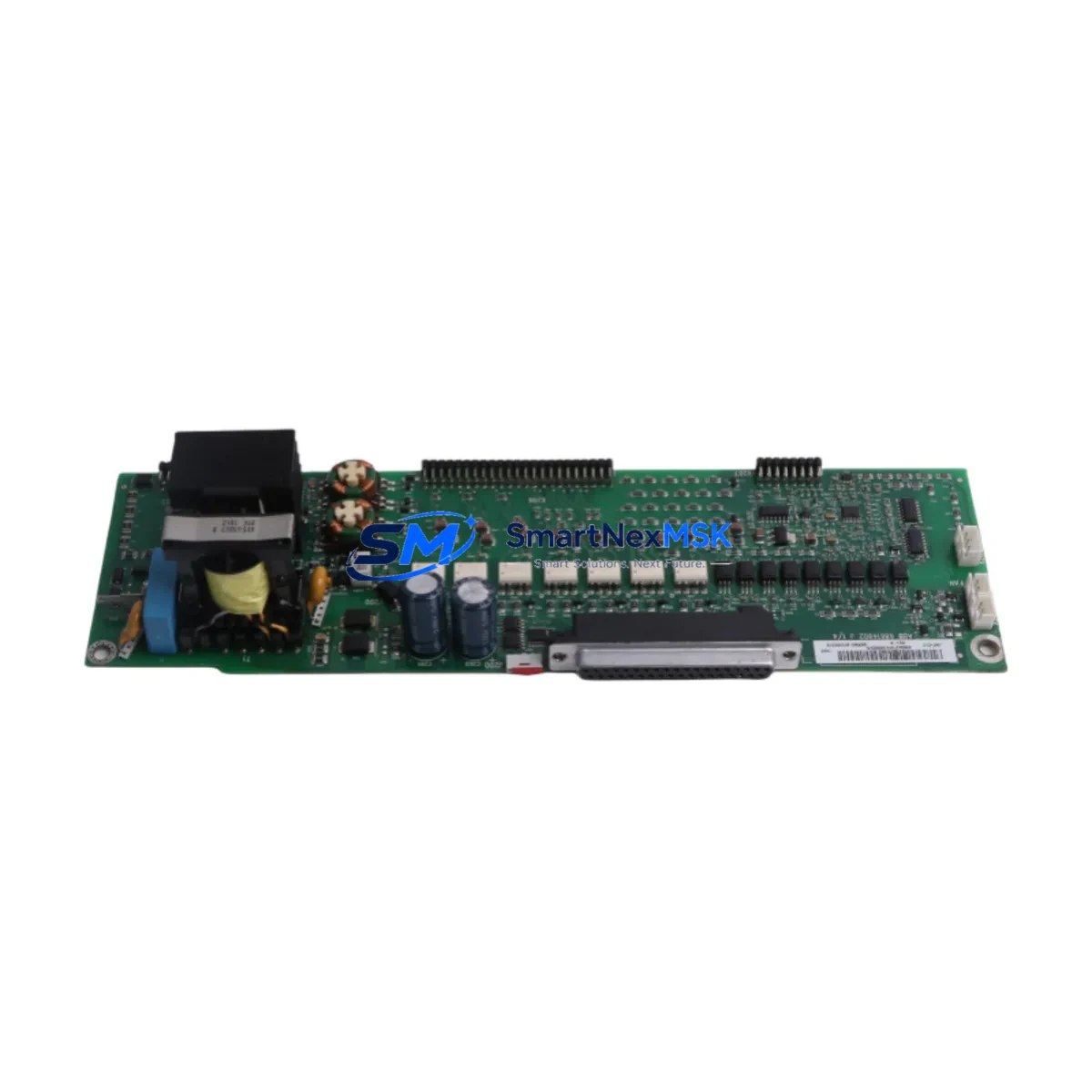

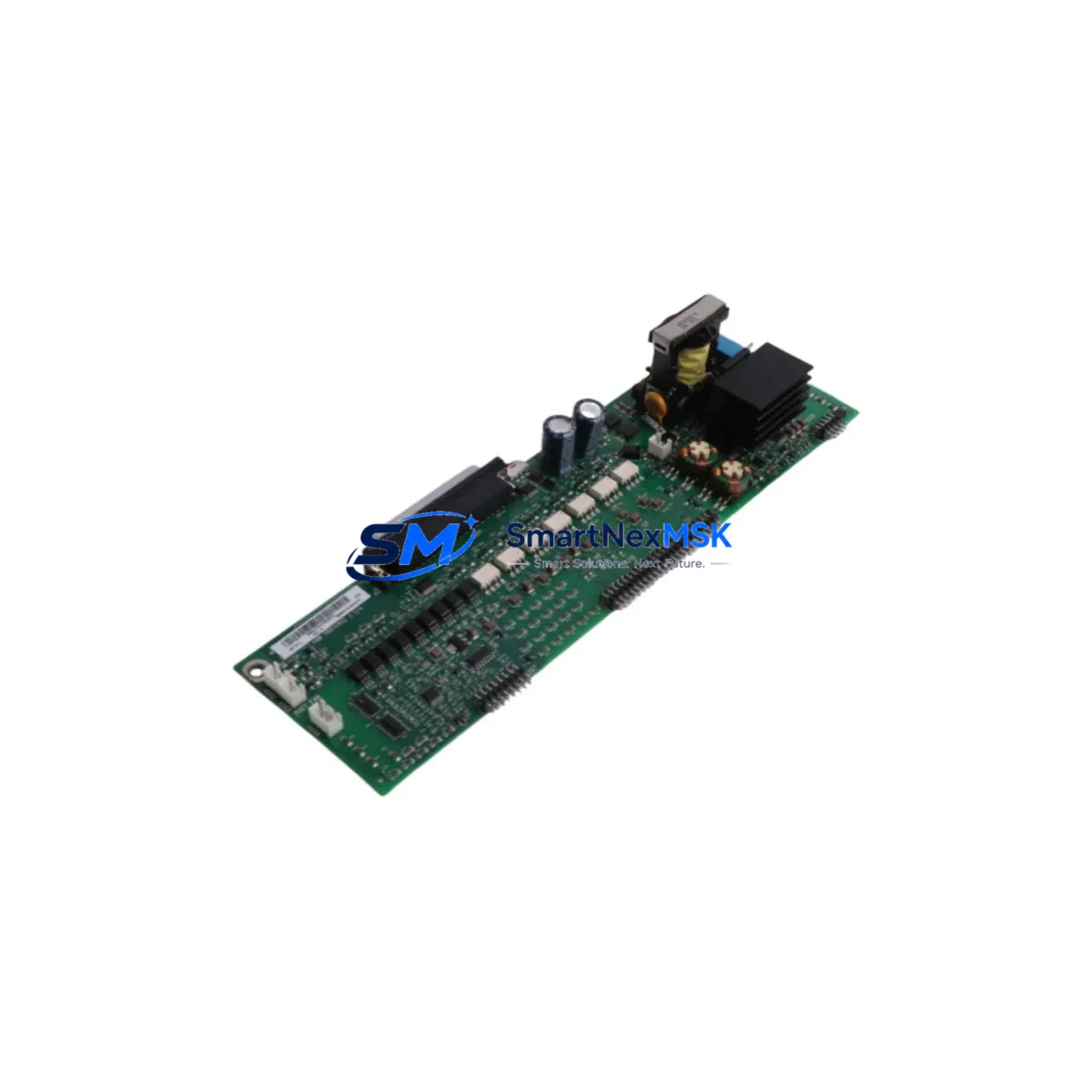

The ABB JINT-C1C is an original gate drive power card designed for the ACS800 series variable frequency drives (VFDs). In industrial automation environments where unplanned downtime translates directly into production loss, having a verified, tested replacement for the JINT-C1C on the shelf is a fundamental element of any serious maintenance strategy. This card governs the gate firing signals to the IGBT power modules within the ACS800 drive, making it a safety-critical component in motor control circuits across manufacturing, process, and utilities sectors.
Whether you are managing a fleet of ACS800 drives in a continuous process plant, a water treatment facility, or a heavy-duty conveyor system, the JINT-C1C is the component most likely to require replacement following IGBT overcurrent faults, DC bus overvoltage events, or thermal stress cycles. Sourcing an original ABB spare — not a counterfeit or refurbished substitute — ensures that gate timing parameters, isolation ratings, and firmware compatibility remain within ABB factory specifications.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | JINT-C1C |
| Brand | ABB |
| Compatible Series | ACS800 Variable Frequency Drives |
| Function | Gate Drive Power Card — IGBT firing signal control |
| Mounting | Direct board-level replacement, OEM slot-compatible |
| Isolation Class | Reinforced isolation per IEC 61800-5-1 |
| Operating Temperature | 0°C to +55°C (ambient, with adequate drive ventilation) |
| Application Environment | Industrial — manufacturing, process, utilities, HVAC |
| Origin | China (ABB-authorized supply chain) |
| Condition | Original spare — new or surplus stock |
| Pre-shipment Testing | Functional verification performed before dispatch |
| Warranty | 12 Months from date of shipment |
| Compatibility Verification | Confirmed against ACS800 hardware revision documentation |
| Maintenance Recommendation | Replace at first sign of gate drive fault codes (e.g., F-0022, F-0023) |
Maintenance Planning for Continuous Operation
When a JINT-C1C gate drive power card fails or shows early fault indicators, a disciplined maintenance engineer does not replace the card in isolation. The ACS800 drive is a system, and the gate drive card interfaces with multiple upstream and downstream components that should be inspected simultaneously to prevent repeat failures and ensure a clean return to service.
Begin with the AINT-C1C or AINT-C2C auxiliary power interface board, which supplies the low-voltage rails to the JINT-C1C. A degraded auxiliary board can cause intermittent gate drive faults that mimic a failed JINT-C1C. Next, inspect the BINT-C1C or BINT-C2C brake chopper interface card if the drive operates with a braking resistor — brake chopper faults can back-feed voltage spikes into the gate drive circuit.
The RMIO-11C or RMIO-12C main control board should be checked for firmware version compatibility and for any stored fault history that predates the gate drive failure. A corrupted parameter set or a hardware mismatch between the RMIO and JINT boards is a common root cause of recurring gate drive faults. While the cabinet is open, verify the condition of the NDIO-01C digital I/O extension module and any NINT-C1C or NINT-C2C fieldbus adapter modules — loose connectors on these boards can generate spurious fault signals that stress the gate drive card.
On the power side, inspect the DC bus capacitor bank for bulging or elevated ESR, and check the 24 VDC control power supply feeding the drive’s logic circuits. A sagging control supply is a frequent but overlooked contributor to gate drive instability. If the ACS800 is equipped with an IOEC-04 or IOEC-07 I/O extension unit, verify that all analog and digital signal cables are properly shielded and terminated — ground loops introduced through unshielded I/O wiring can induce noise on the gate drive power rails.
Finally, inspect the cooling fan assembly and heat sink thermal interface. The JINT-C1C is thermally sensitive; a partially blocked air path or a failing fan can cause the card to operate at the upper edge of its thermal envelope, dramatically shortening service life. Replacing the JINT-C1C without addressing a cooling deficiency will result in premature failure of the new card.
Site Replacement Workflow
Replacing the JINT-C1C on-site is a straightforward procedure when the correct spare is available and the drive has been properly de-energized. Follow the ACS800 Hardware Manual (3AFE64527592) for the specific discharge and isolation procedure — the DC bus must be confirmed at safe voltage levels with a calibrated meter before any board-level work begins.
Step 1 — Isolation and discharge: Isolate the drive from the supply, engage the main isolator, and wait for the DC bus voltage to fall below 50 V (typically 5–10 minutes for larger frame sizes). Confirm with a meter.
Step 2 — Document the existing configuration: Before removing the JINT-C1C, photograph the connector layout and note any jumper or DIP switch settings. On some ACS800 hardware revisions, the JINT card carries configuration jumpers that must be replicated on the replacement board.
Step 3 — Board swap: Remove the faulty JINT-C1C by releasing the board retaining clips and disconnecting the ribbon and power connectors. Install the replacement JINT-C1C, ensuring all connectors are fully seated. Misaligned connectors are the leading cause of post-replacement gate drive faults.
Step 4 — Power-up and verification: Re-energize the drive in local control mode and monitor for fault codes during the first start cycle. Confirm that the drive completes a full acceleration ramp without triggering F-0022 (gate drive undervoltage) or F-0023 (gate drive overvoltage) faults. Log the replacement in the maintenance record with the new board’s serial number and the date of installation.
Using an original ABB JINT-C1C spare — rather than a third-party substitute — eliminates compatibility risk and ensures that the drive’s protection logic operates within the parameters validated by ABB’s factory testing. This is particularly important in legacy ACS800 installations where the drive firmware version may not be upgradeable, and where hardware-level compatibility between the RMIO control board and the JINT gate drive card must be maintained exactly.
Spare Parts Support FAQ
Q1: How long is the warranty on the JINT-C1C spare?
All JINT-C1C units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional verification testing before dispatch to confirm gate drive signal integrity and power rail stability.
Q2: Is the JINT-C1C compatible with all ACS800 frame sizes?
The JINT-C1C is used across multiple ACS800 frame sizes, but compatibility depends on the specific hardware revision of your drive. Before ordering, confirm your drive’s type code and hardware revision from the nameplate or the ACS800 Hardware Manual. Our technical team can assist with compatibility verification based on your drive’s serial number and type designation.
Q3: What is the recommended spare parts inventory strategy for ACS800 drives?
For critical ACS800 installations, we recommend holding at minimum one JINT-C1C gate drive card, one RMIO control board, and one set of DC bus capacitors as on-site cold spares. For high-availability applications with multiple ACS800 drives, a pooled spare strategy — where one spare covers two to four drives of the same frame size — balances inventory cost against downtime risk. Long lead times on legacy ABB components make proactive stocking essential.
Q4: Can the JINT-C1C be repaired rather than replaced?
Board-level repair of the JINT-C1C is technically possible but is not recommended for production-critical applications. Repaired boards may not meet the original isolation and gate timing specifications, and repair quality is difficult to verify without ABB factory test equipment. For applications where downtime cost is significant, replacement with a verified original spare is the lower-risk and more cost-effective long-term strategy.
