ABB MPRC086444-001 Spare for AC800M Automation: Spare Replacement & Industrial Downtime Risk Control

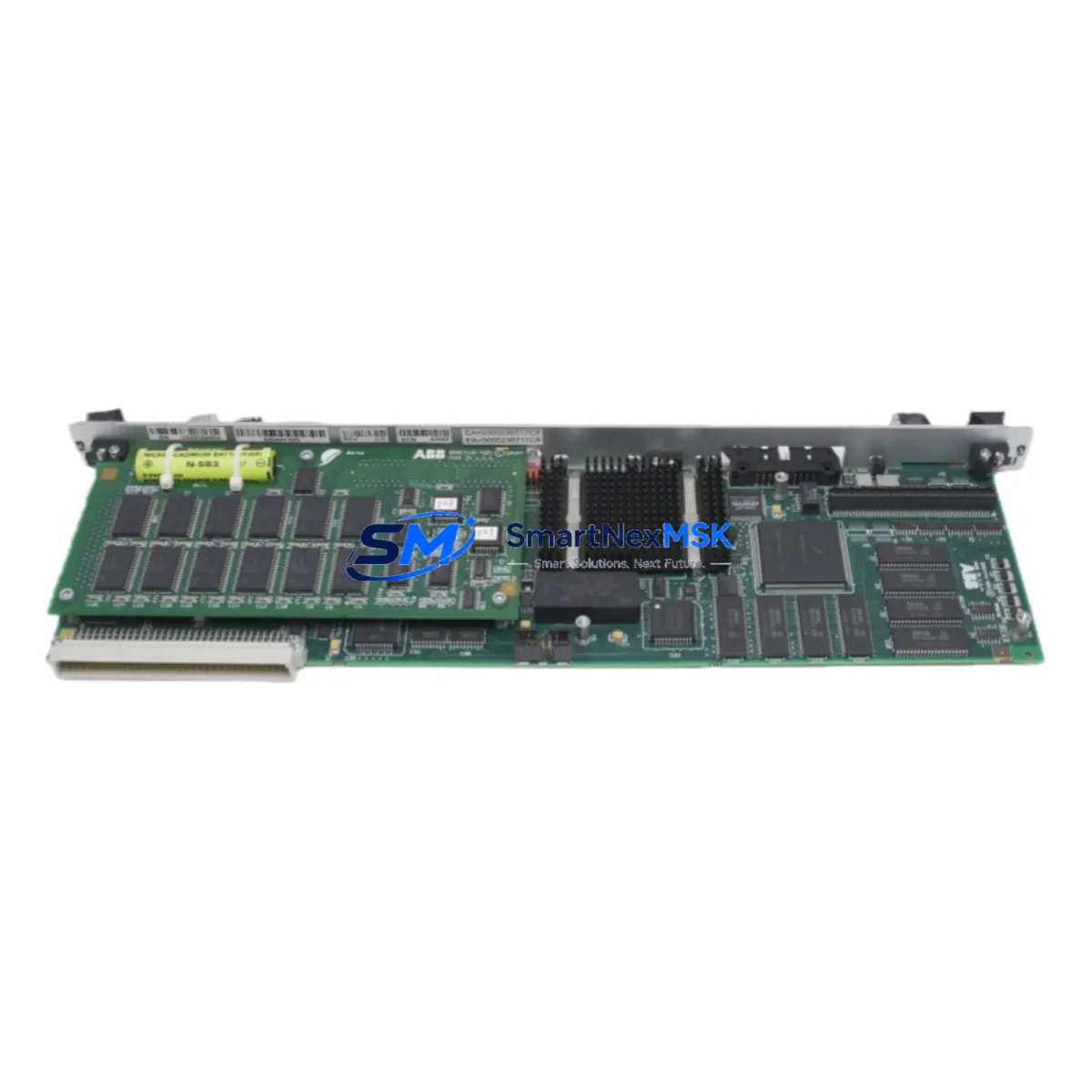

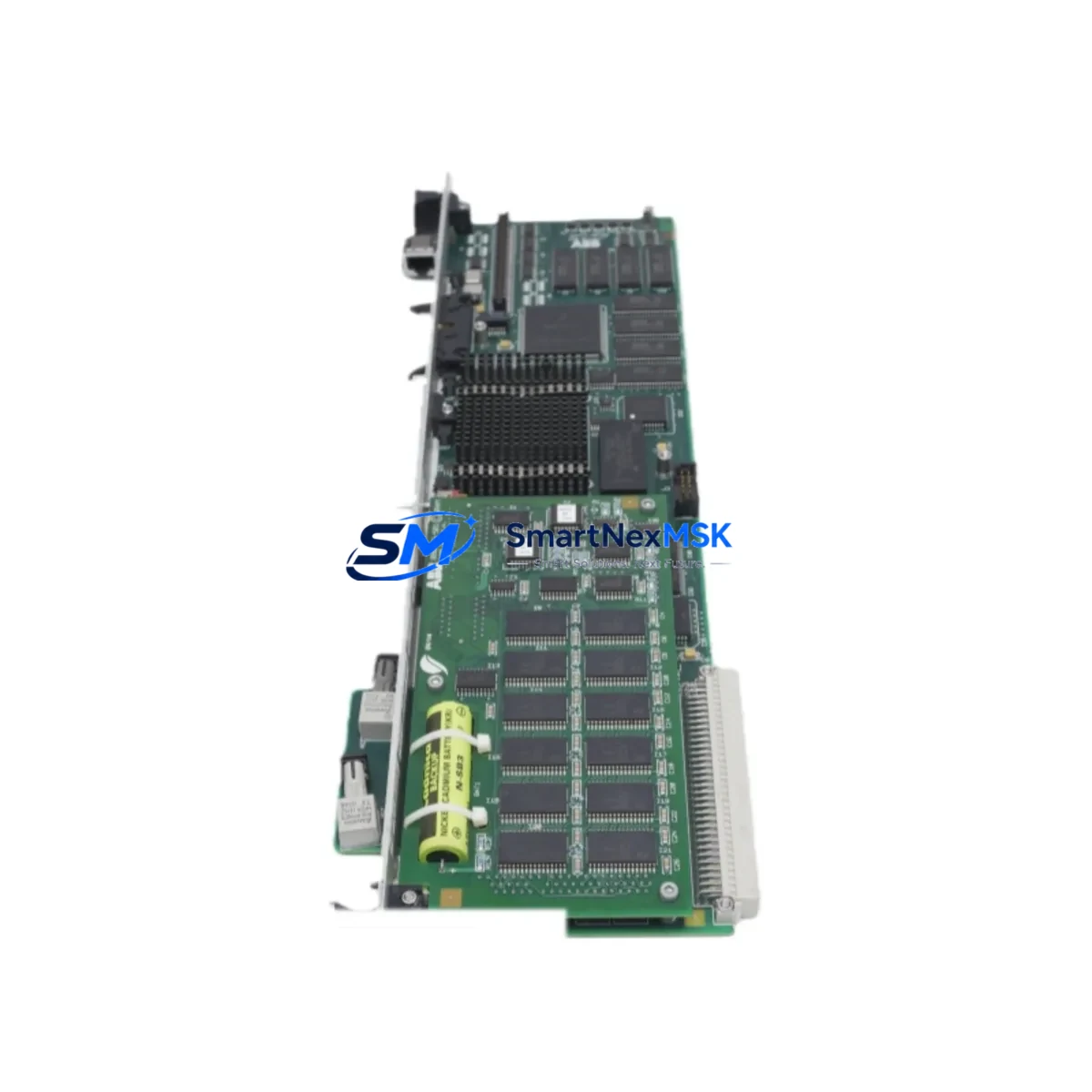

The ABB MPRC086444-001 is an original measurement process board designed for the AC800M Distributed Control System (DCS) platform — one of ABB’s most widely deployed process automation architectures in power generation, oil & gas, chemical, and water treatment facilities. When this board fails or degrades, the consequences extend beyond a single I/O channel: the entire controller node may lose measurement integrity, triggering process shutdowns, safety interlocks, or unplanned outages. Stocking a verified MPRC086444-001 spare is a fundamental element of any serious maintenance strategy for AC800M-based control systems.

This unit is sourced as an original ABB component, fully tested prior to shipment, and backed by a 12-month warranty. It is suitable for direct replacement in AC800M controller cabinets without firmware re-flashing in most standard configurations. Each unit undergoes functional verification covering signal integrity, board-level diagnostics, and communication handshake with the PM8xx controller family before dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the MPRC086444-001 in isolation rarely resolves the root cause of a DCS fault. Experienced maintenance engineers treat this board replacement as a trigger for a broader cabinet inspection. When pulling this module, the following components in the same AC800M controller node should be evaluated concurrently to prevent repeat failures and maximize the value of the planned outage window.

The PM864 or PM866 processor module sharing the same backplane should be checked for firmware version compatibility and memory integrity — a degraded processor can corrupt measurement data even after a board swap. The TB820 or TB840 I/O termination unit connected downstream should be inspected for loose field wiring, corroded terminals, and signal ground continuity. If the system uses S800 I/O modules (such as AI810, AO810, or DI810) in the same loop, verify that their channel diagnostics are clean before returning the process to automatic control.

The 24 VDC power supply module feeding the controller rack — typically an ABB SD831 or SD832 — should be load-tested; an aging power supply with marginal output voltage is a common hidden cause of intermittent measurement board faults. Inspect the CI854 or CI857 communication interface module if the AC800M node communicates via PROFIBUS or FOUNDATION Fieldbus, as communication errors can be misdiagnosed as measurement board failures. The backplane bus connector and rack seating contacts should be cleaned and re-seated during the same maintenance window.

For systems with redundant controller configurations, verify that the redundancy link cable between primary and secondary PM8xx modules is intact and that automatic switchover has been tested post-replacement. If the cabinet includes signal isolators or barriers (such as ABB HART multiplexers or galvanic isolators on analog inputs), check their output accuracy against a calibrated reference — degraded isolators can introduce measurement offset that mimics a faulty process board. Finally, review the UPS or battery backup unit supplying the control cabinet to ensure ride-through capacity meets the site’s power quality requirements.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the fault is isolated to the MPRC086444-001 by reviewing the AC800M diagnostic log in ABB Control Builder. Note the exact fault code and affected measurement channels. Cross-reference the board revision level printed on the PCB label against the installed PM8xx firmware to confirm compatibility before ordering.

Step 2 — Safe isolation: Place the affected controller node in manual mode at the DCS operator station. Notify the process team and obtain a permit-to-work if required by site safety procedures. De-energize the controller rack following the AC800M hardware installation manual sequence — do not hot-swap this board without confirming the controller supports hot insertion for this specific module revision.

Step 3 — Physical replacement: Remove the faulty MPRC086444-001 by releasing the front-panel locking lever. Insert the replacement unit firmly until the backplane connector seats fully. Secure the locking lever. Restore rack power and observe the controller self-test LED sequence — a solid green RUN indicator confirms successful initialization.

Step 4 — Functional verification: In ABB Control Builder, confirm that all previously faulted measurement channels return to valid status. Compare live process values against field transmitter readings to verify signal accuracy. Run a loop check on critical analog inputs before returning the node to automatic control.

Step 5 — Documentation: Record the replacement in the site CMMS with the new board serial number, installation date, and post-replacement test results. Update the spare parts inventory to trigger reorder of a replacement MPRC086444-001 — maintaining at least one on-shelf spare per AC800M controller node is the recommended minimum stock level for facilities with continuous process requirements.

Spare Parts Support FAQ

Q1: Is the MPRC086444-001 compatible with all AC800M controller variants?
The MPRC086444-001 is designed for the AC800M platform and is compatible with the PM851, PM856, PM860, PM861, PM864, and PM866 processor modules. Compatibility with specific firmware versions should be verified against the ABB AC800M hardware catalog (document 3BSE036351) before installation. If your site runs an older firmware baseline, contact us with your PM8xx firmware version for pre-shipment compatibility confirmation.

Q2: What testing is performed before shipment?
Every MPRC086444-001 unit undergoes a multi-stage pre-shipment inspection: visual inspection for physical damage, board-level power-on functional test, signal integrity verification across measurement channels, and communication handshake test with an AC800M controller. A test report is available upon request. Units that do not pass all stages are not dispatched.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal industrial operating conditions from the date of delivery. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the specified environmental range. Warranty claims are processed with return of the defective unit; a replacement is dispatched within 3 business days of receipt and inspection.

Q4: How should I manage long-term spare parts inventory for AC800M systems?
For facilities operating AC800M-based DCS with continuous process requirements, the recommended strategy is to maintain a minimum of one MPRC086444-001 per controller node on-site, with a secondary buffer at the regional warehouse or MRO supplier. Given that ABB has transitioned the AC800M platform toward end-of-life support phases, sourcing original spare boards is becoming progressively more difficult. Establishing a long-term supply agreement with a verified distributor ensures access to tested original components and protects against extended lead times that could compromise plant availability.
