ABB NBRC-61C 61357246E Maintenance-Ready Spare for ACS/DCS Automation

ABB NBRC-61C 61357246E Maintenance-Ready Spare for ACS/DCS Automation

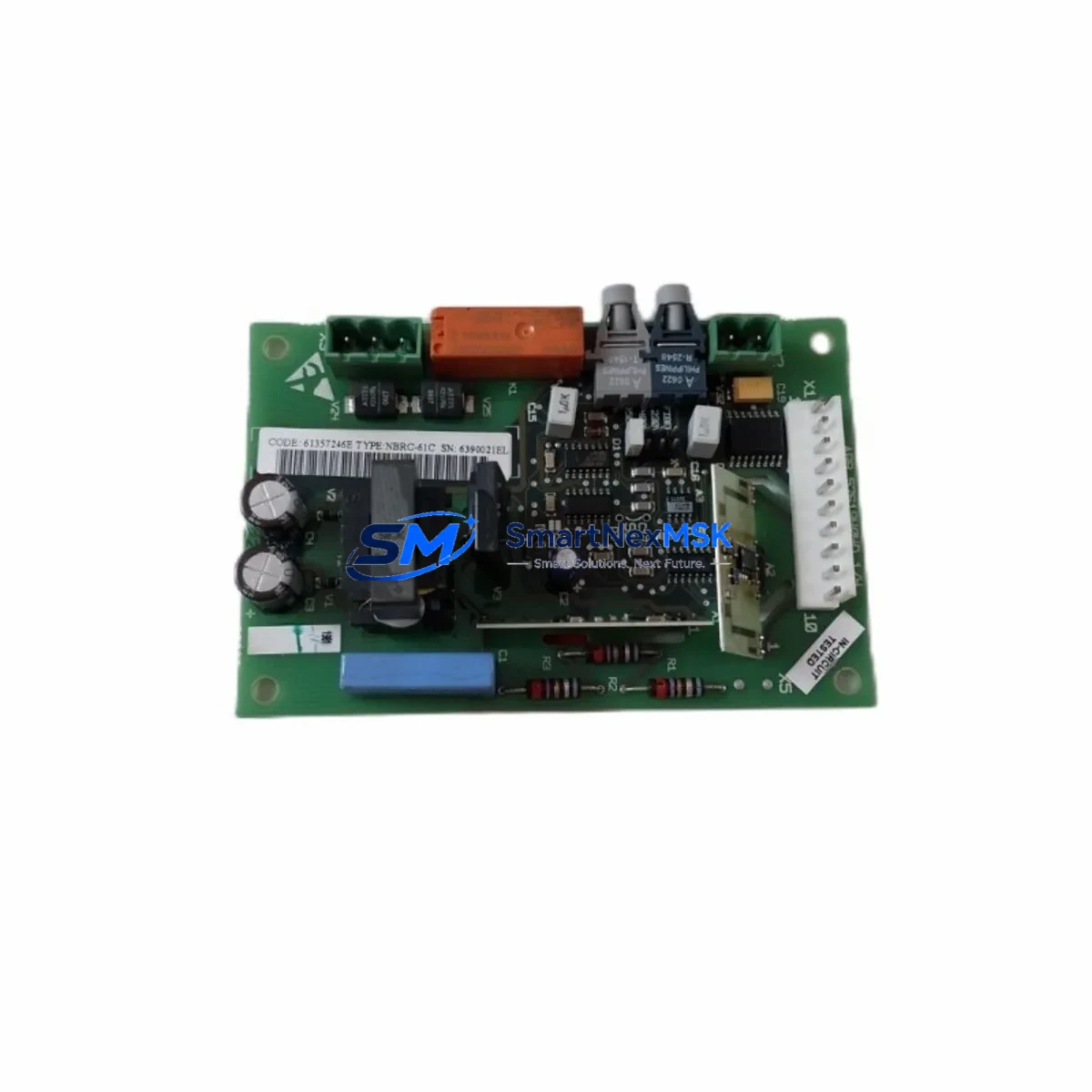

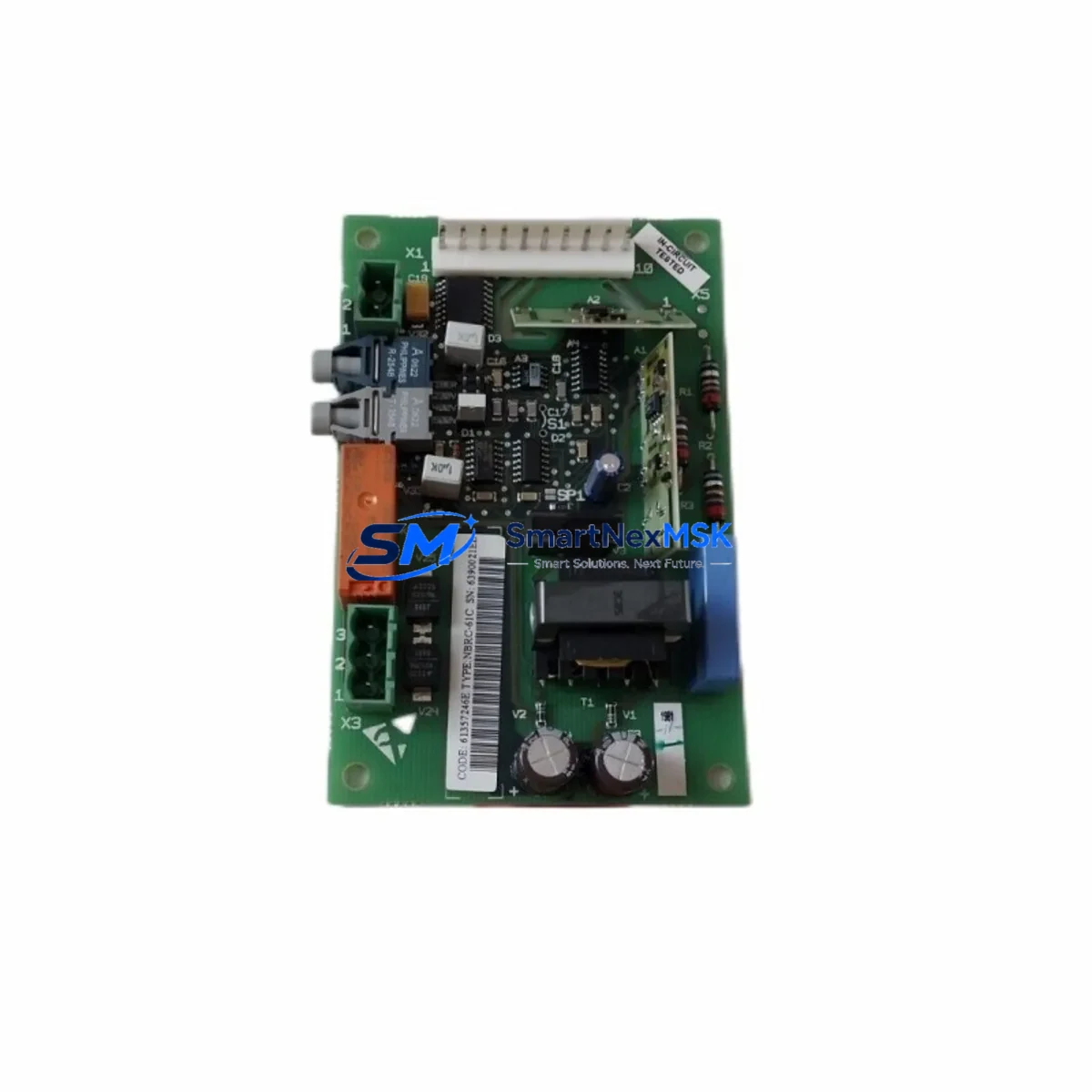

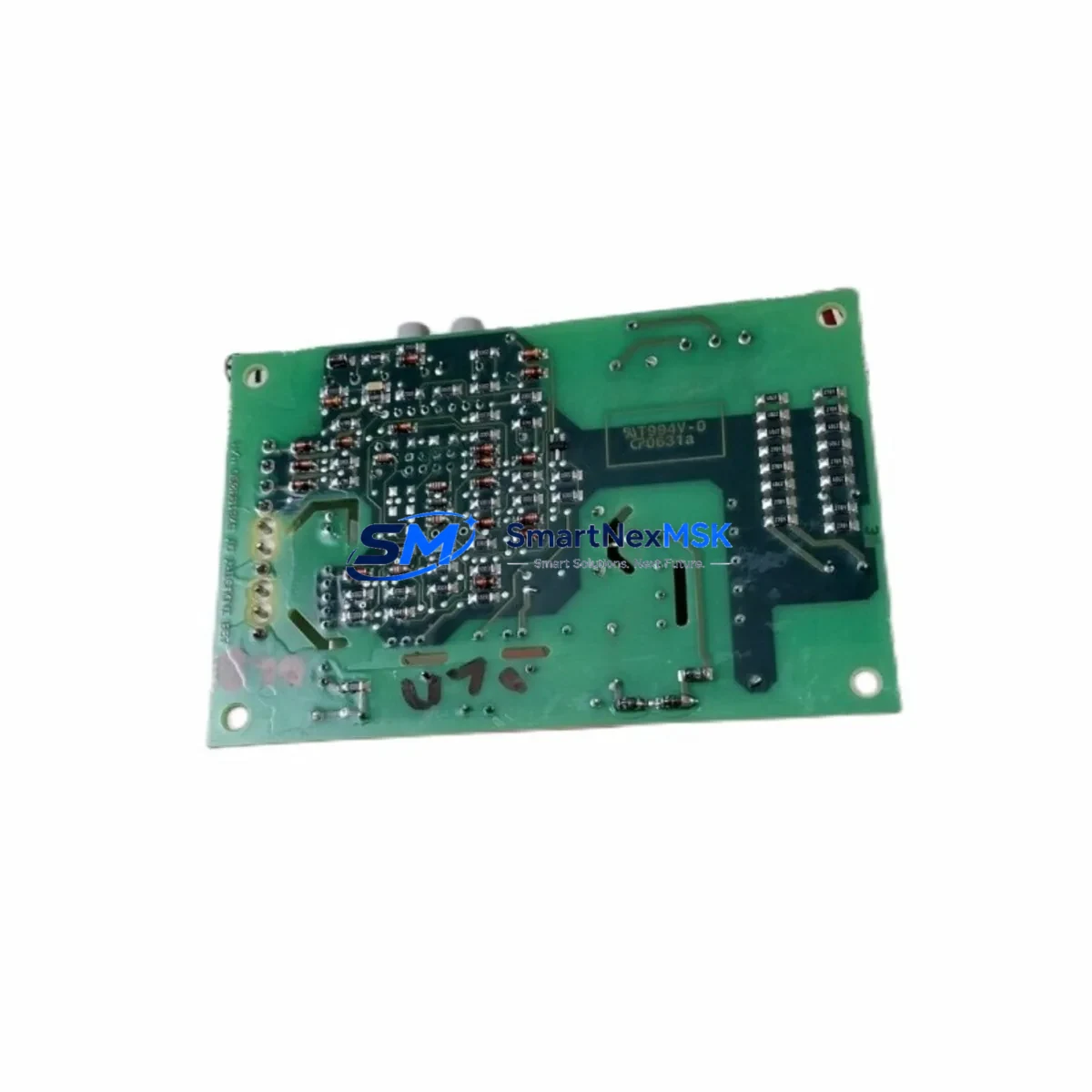

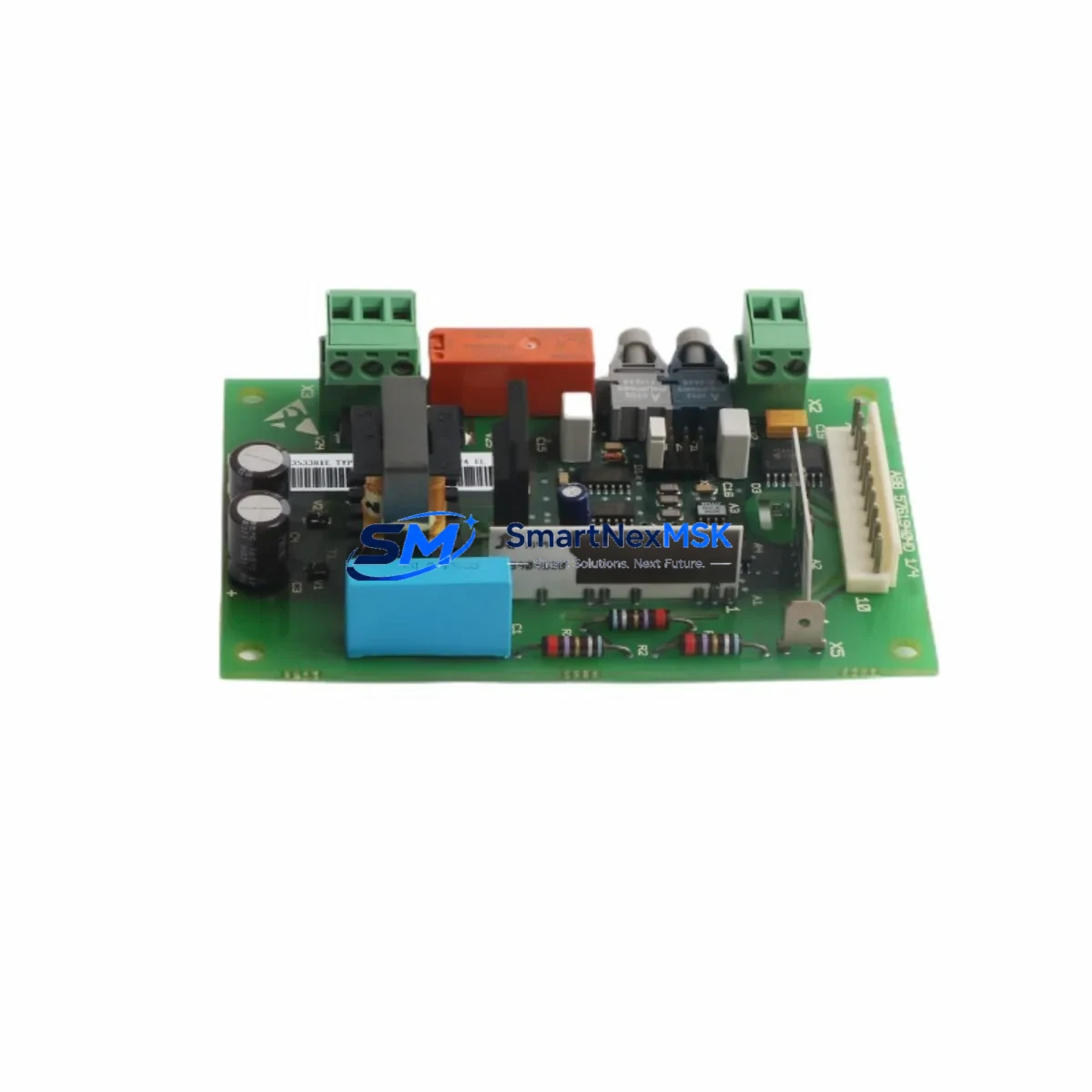

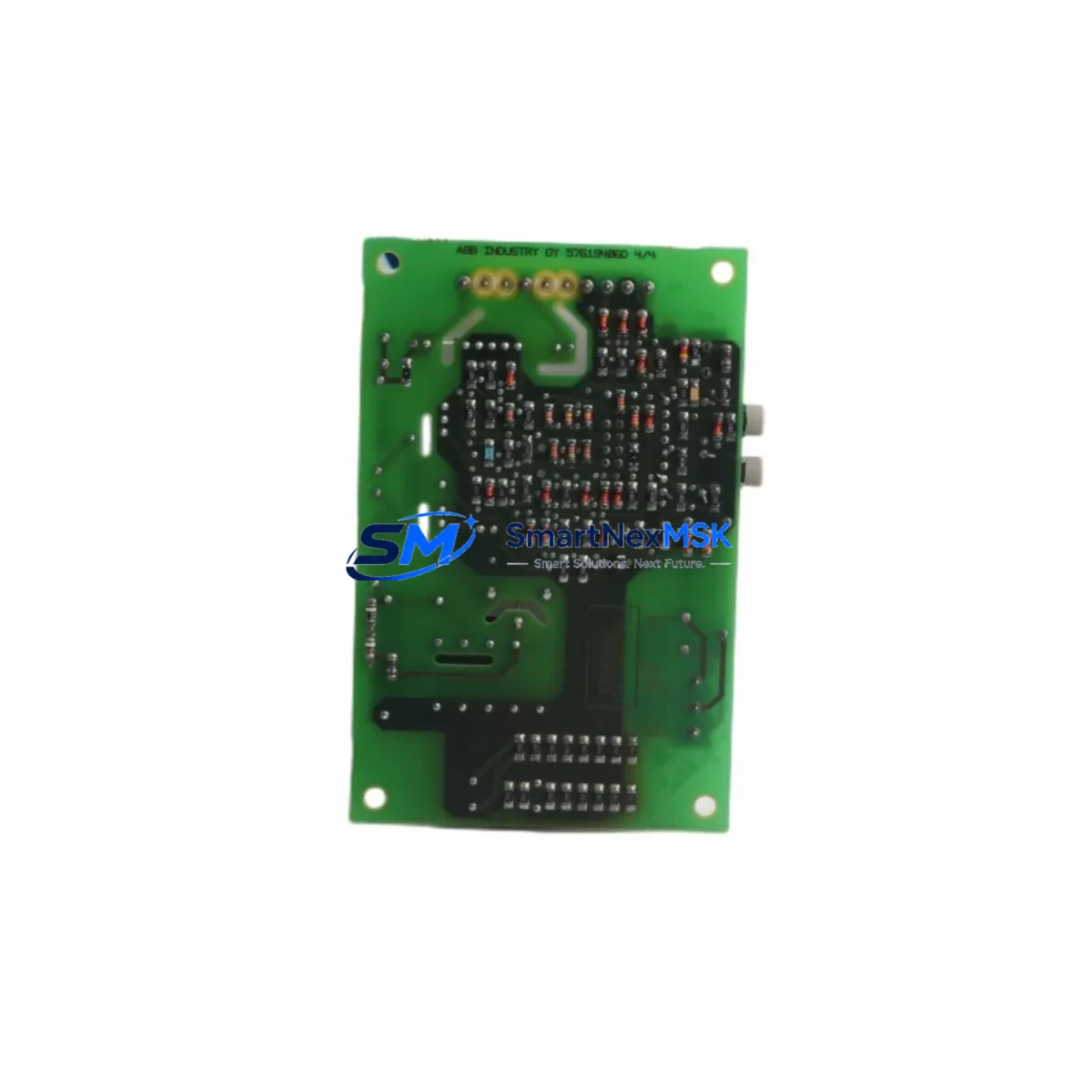

The ABB NBRC-61C (61357246E) is an original gate driver board engineered for ABB ACS and DCS series industrial variable-speed drives. In high-availability production environments, an unplanned drive failure caused by a degraded or failed gate driver board can halt entire process lines within seconds. Stocking a verified, tested NBRC-61C spare is a proven strategy for maintenance engineers and procurement teams to minimize mean time to repair (MTTR) and protect operational continuity.

This board governs the IGBT firing sequence within the power stage of the drive, translating control-level PWM signals into precise gate pulses. When the NBRC-61C fails — typically presenting as overcurrent trips, asymmetric phase output, or erratic torque response — the drive must be taken offline immediately. A pre-qualified replacement on the shelf converts what could be a multi-day procurement delay into a same-shift restoration.

Every unit supplied by SMARTNEXMSK undergoes functional verification prior to dispatch and is covered by a 12-month warranty. Units are shipped with ESD-protective packaging and include a test report on request. Long-term supply continuity is maintained for legacy ACS and DCS platforms, including models where OEM availability has been discontinued.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules a planned inspection or responds to an unplanned ACS/DCS drive fault, replacing the NBRC-61C gate driver board is rarely an isolated task. A disciplined site replacement protocol requires a concurrent review of all components that interact with the gate driver circuit and the broader drive assembly.

Begin with the DC bus capacitor bank and pre-charge resistor assembly — capacitor degradation accelerates gate driver stress and is a common root cause of recurring NBRC-61C failures. Inspect the IGBT power module (e.g., ABB RINT-5514C or equivalent frame-matched module) for signs of thermal fatigue or gate-emitter leakage before installing the new board. A compromised power module will destroy a replacement gate driver within hours of restart.

Check the RMIO-11C or RMIO-02C control board for firmware integrity and communication status — the gate driver and control board operate as a tightly coupled pair, and a corrupted control board can generate erroneous firing commands that stress the new NBRC-61C immediately. Verify the RDCO-03C or RDCO-04C DDCS communication module if the drive is integrated into a distributed control or fieldbus network; communication faults can mask underlying gate driver issues during diagnostics.

Inspect the APOW-01C or APOW-02C auxiliary power supply board — the gate driver depends on stable auxiliary DC rails, and a drifting auxiliary supply is a frequent but overlooked contributor to intermittent gate driver faults. Review the AINT-14C or AINT-02C analog I/O interface board for signal integrity, particularly if the drive controls a precision process where speed or torque reference drift has been observed alongside the gate driver fault.

For drives installed in harsh environments, inspect the cooling fan assembly and heatsink thermal interface — thermal cycling is the primary aging mechanism for gate driver boards. Confirm that terminal block wiring on the power and control cable entries meets torque specifications; loose connections generate transient voltages that can damage gate driver circuitry. Where surge protection is not already fitted, consider adding DIN-rail surge protective devices (SPDs) on the incoming supply to the drive cabinet.

For older ACS 600 or DCS 400 installations approaching end-of-support lifecycle, a structured spare parts list should include the NBRC-61C alongside the RMIO control board, RDCO communication module, auxiliary power board, and at least one matched IGBT module — this combination covers the majority of field-replaceable components responsible for unplanned drive downtime.

Site Replacement Workflow

Step 1 — Isolation and lockout: De-energize the drive, apply LOTO, and allow the DC bus to fully discharge (verify with a calibrated meter — minimum 5 minutes after power-off for most ACS/DCS frames).

Step 2 — Documentation: Photograph the existing board orientation, connector positions, and any visible fault indicators (LED status, burn marks, component damage) before removal. Record the drive firmware version from the RMIO control board.

Step 3 — Board removal: Disconnect all ribbon cables and gate signal connectors in sequence. Handle the NBRC-61C by its edges only — ESD damage is the leading cause of premature failure in replacement gate driver boards.

Step 4 — Compatibility verification: Confirm the replacement NBRC-61C reference number (61357246E) matches the drive frame and power module rating. Cross-reference the drive nameplate and the existing board label before installation.

Step 5 — Installation and torque: Seat the board firmly, reconnect all connectors in reverse removal order, and verify no cables are pinched or strained. Torque all terminal connections to specification.

Step 6 — Pre-energization check: Inspect for any foreign objects in the drive cabinet. Verify auxiliary supply voltage at the APOW board output before applying main power.

Step 7 — Commissioning: Apply power, monitor drive startup sequence, confirm no fault codes on the panel or RMIO display, and run a no-load test before reconnecting the motor load. Log the replacement in the site maintenance record.

This workflow is applicable to ACS 600, ACS 800, DCS 400, DCS 600, and DCS 800 frame variants where the NBRC-61C is the designated gate driver board. For legacy systems where the original drive model has been discontinued, the NBRC-61C remains available through SMARTNEXMSK with long-term supply commitment.

Spare Parts Support FAQ

Q1: Is the NBRC-61C 61357246E compatible with both ACS and DCS series drives?
Yes. The NBRC-61C is used across multiple ABB ACS and DCS drive families. Compatibility depends on the specific drive frame and power module rating. Contact our technical team with your drive nameplate data for confirmation before ordering if you are unsure of the exact frame variant.

Q2: How is each unit tested before shipment?
Every NBRC-61C supplied by SMARTNEXMSK undergoes functional verification on a compatible test rig prior to dispatch. A test report is available on request. Units are shipped in ESD-protective packaging to prevent transit damage. The 12-month warranty covers functional defects from the date of receipt.

Q3: What is the recommended spare parts inventory strategy for ACS/DCS drives?
For critical production lines, we recommend holding at minimum one NBRC-61C gate driver board per drive type in your installed base, alongside a matched RMIO control board and APOW auxiliary power board. For high-criticality applications (continuous process, 24/7 operation), a complete drive spare or a pre-configured spare parts kit covering the top five field-replaceable components is the industry standard approach.

Q4: Can the NBRC-61C be used to replace older or discontinued gate driver board variants?
In many cases, yes — subject to frame and firmware compatibility verification. SMARTNEXMSK maintains stock of both current and legacy ABB gate driver boards to support older ACS and DCS installations. Provide your existing board part number and drive model, and our team will confirm cross-compatibility before shipment.
