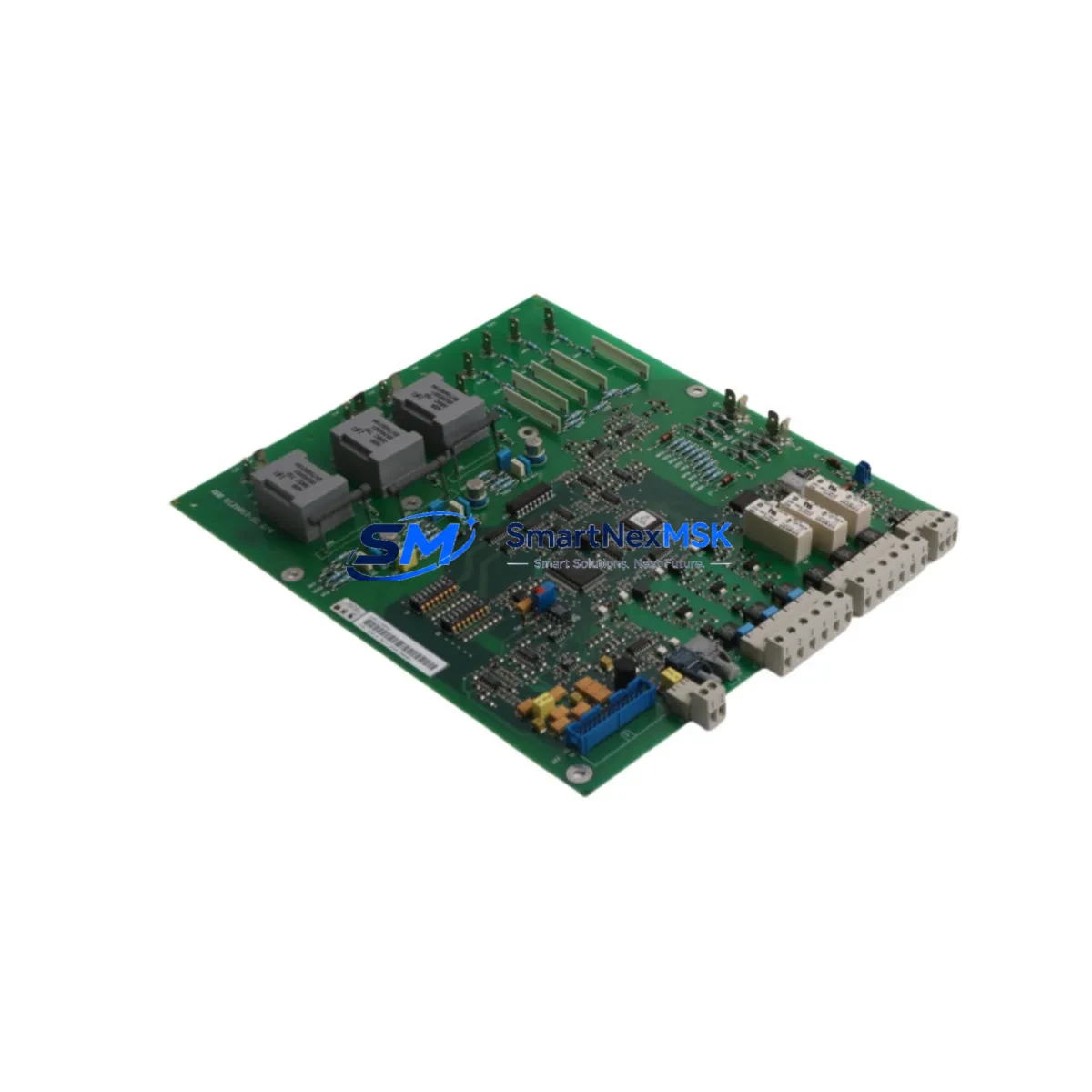

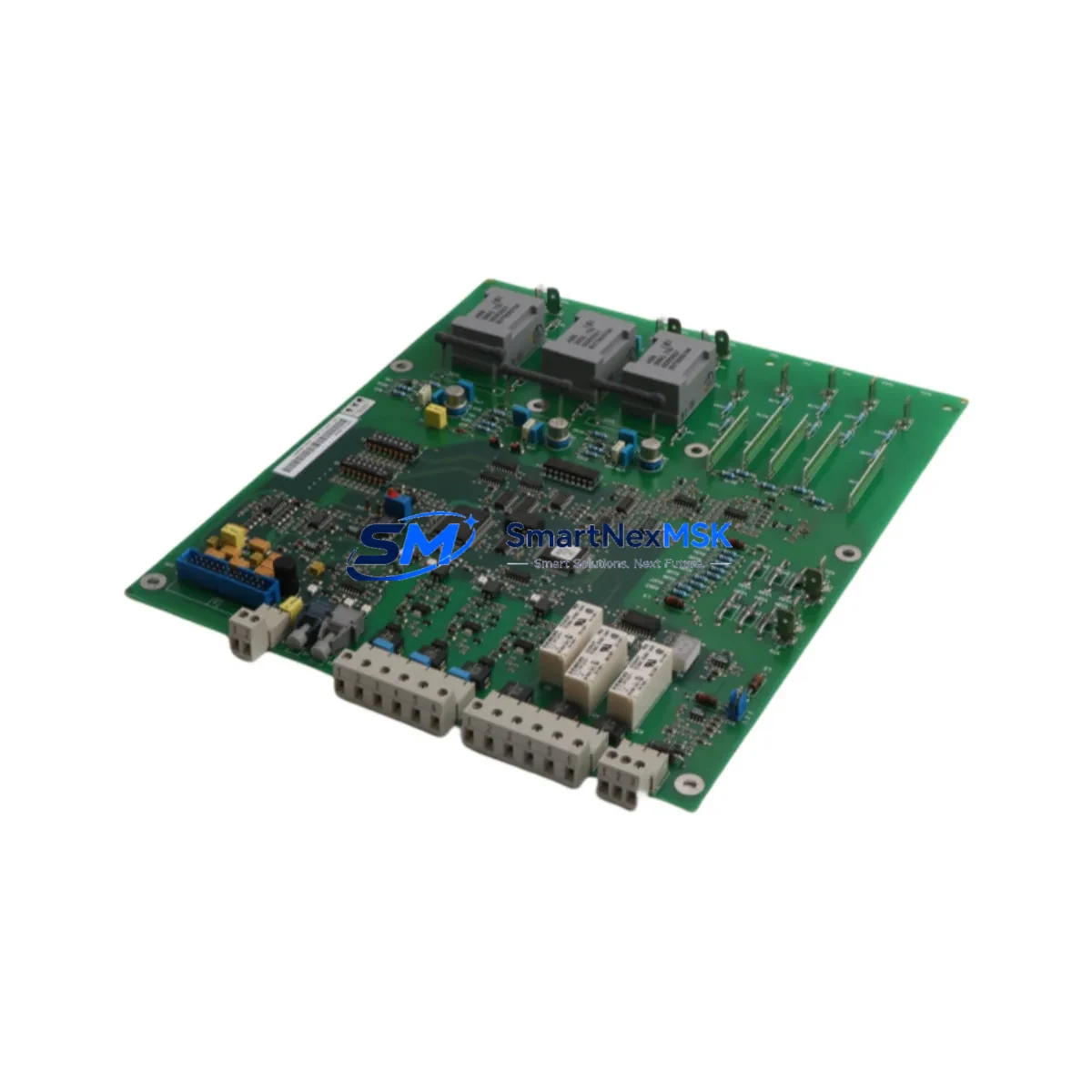

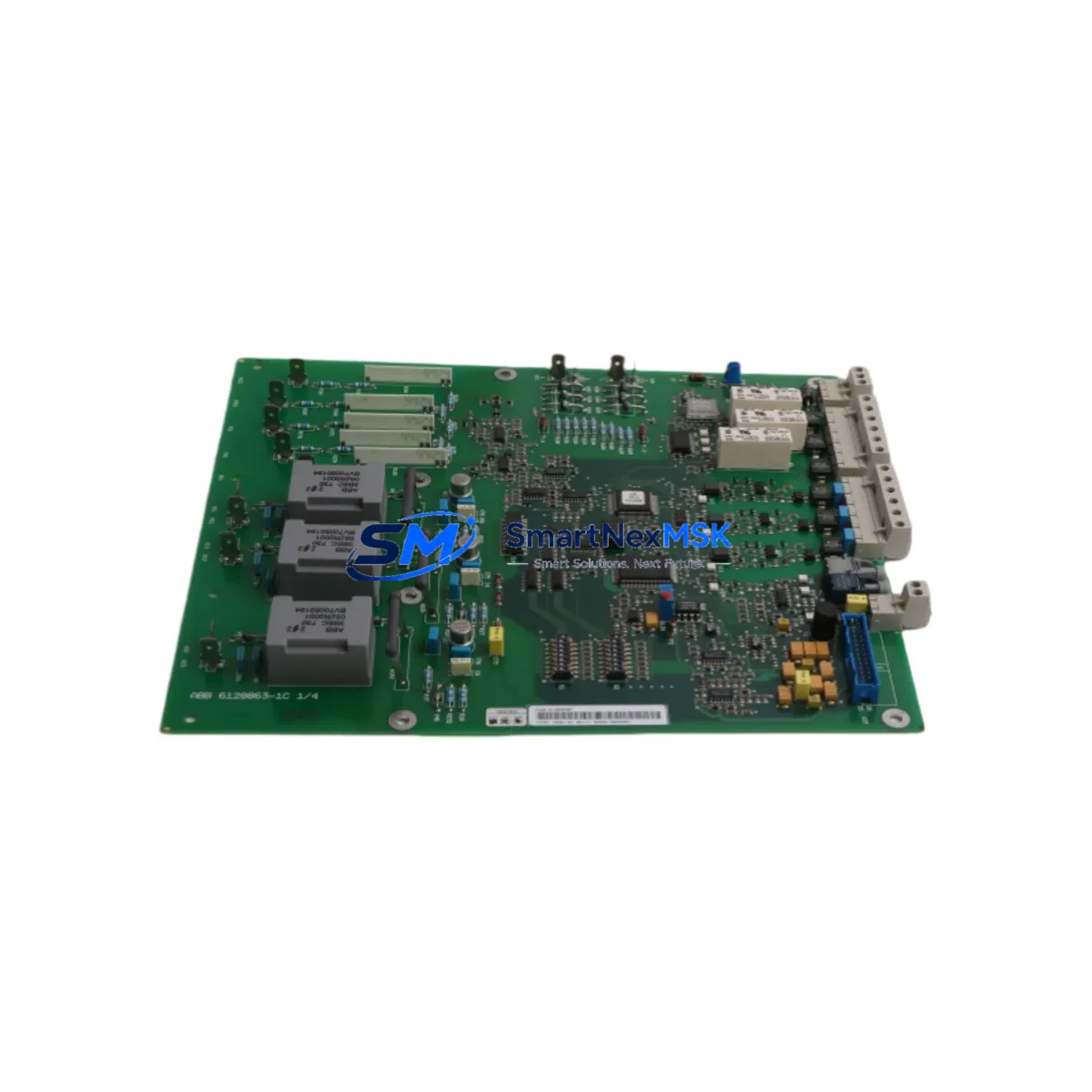

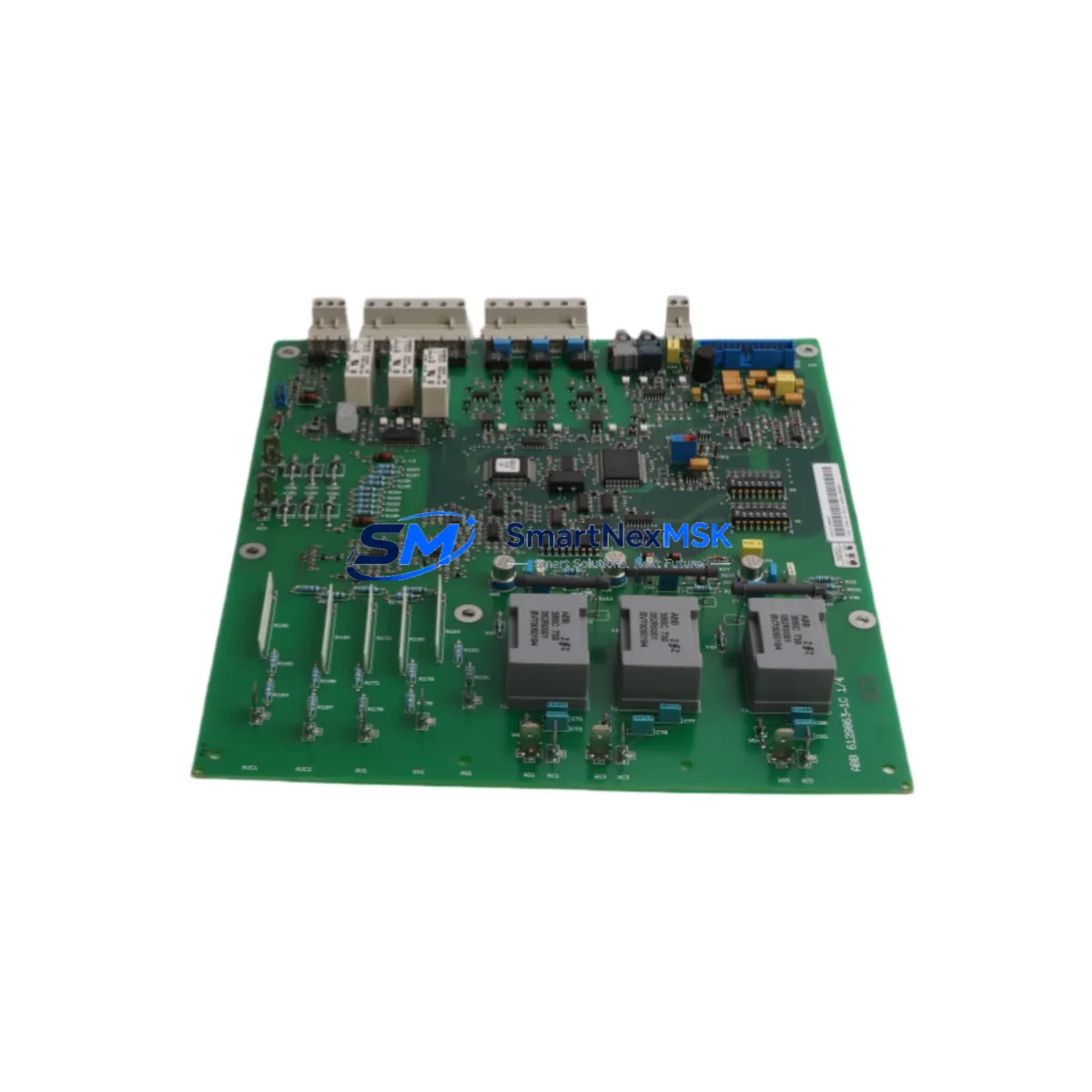

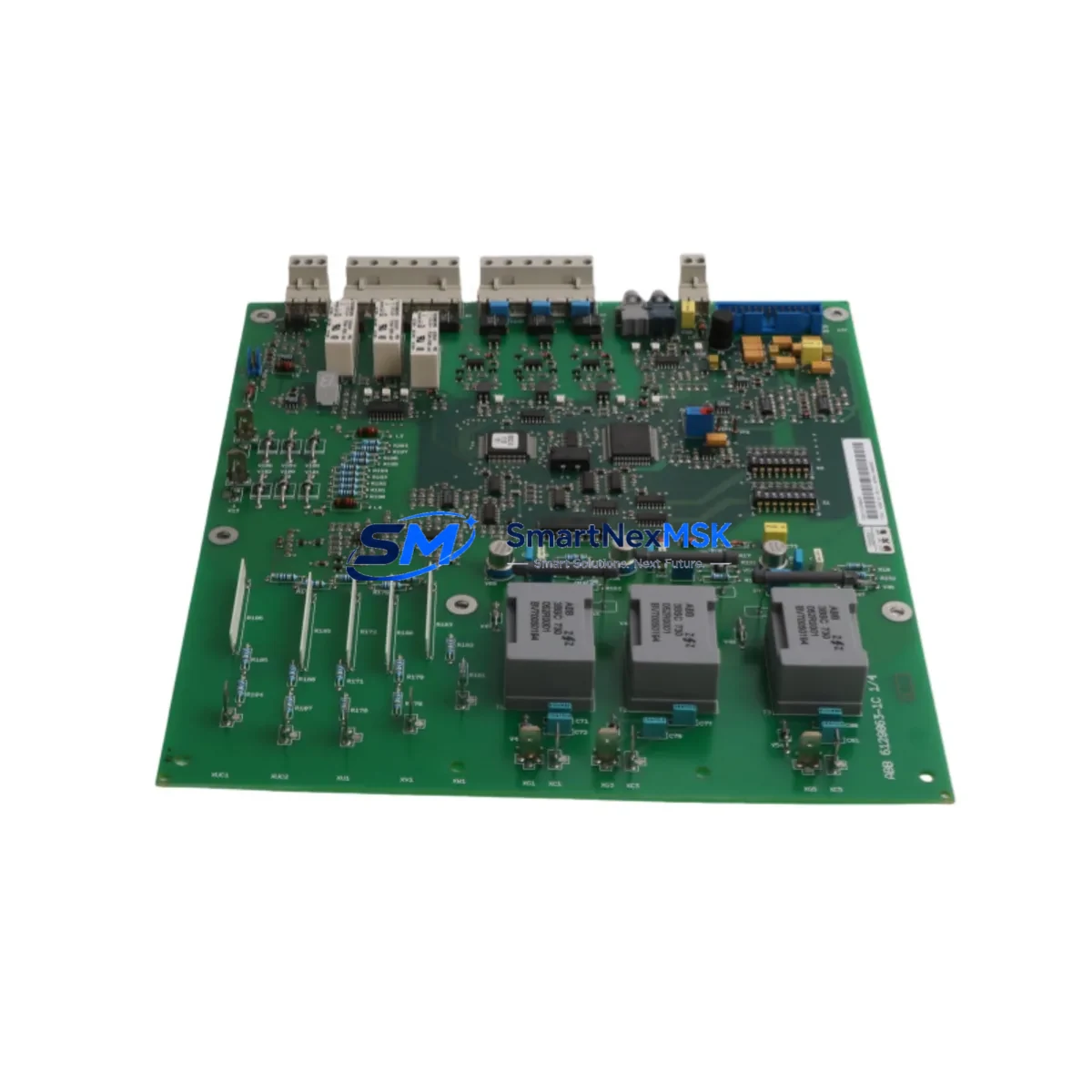

When an ABB ACS series AC drive trips offline on the production floor, every minute of unplanned downtime translates directly into lost output and escalating recovery costs. The ABB NDSC-01 (part number 61298487) is the original control module designed for ACS400, ACS550, and compatible ACS-family variable frequency drives. Holding a verified spare in your maintenance inventory is the single most effective way to compress mean-time-to-repair (MTTR) and restore motor control without waiting on lead times from the OEM distribution chain.

This unit ships fully tested, serialized, and covered by a 12-month warranty against manufacturing defects. Each module undergoes functional verification — power-up sequencing, communication handshake, and I/O signal integrity — before dispatch. Whether you are managing a single drive cabinet or a multi-drive process line, the NDSC-01 61298487 provides a drop-in replacement path that preserves your existing parameter sets and wiring topology.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A control module failure in an ACS-series drive rarely occurs in isolation. Maintenance engineers performing a planned replacement of the NDSC-01 61298487 should treat the event as a structured inspection opportunity across the entire drive cabinet and associated electrical circuit. Begin by verifying the integrity of the 24 VDC auxiliary power supply feeding the control section — a degraded SMPS output is a common root cause of premature control board failure and will damage a replacement module if left uncorrected.

Inspect the NINT-02 or NINT-41 inverter control interface board for signs of thermal stress or capacitor bulge, as these boards share the same internal bus as the NDSC-01 and are subject to the same voltage transients. Check the NXPP-02 panel bus power supply module if the drive is installed in an ACS multi-drive cabinet configuration. Review the RDCO-02 or RDCO-04 DDCS communication module if the drive participates in a DriveWindow or fieldbus network — a faulty communication adapter can generate fault codes that are misdiagnosed as control board failures.

On the I/O side, inspect the RAIO-01 analog I/O extension module and any RDIO-01 digital I/O extension modules for loose terminal connections or moisture ingress. Terminal blocks and Phoenix Contact or Weidmüller push-in terminal strips in the same cabinet row should be torque-checked and visually inspected for oxidation. If the drive interfaces with a PLC — commonly a Siemens S7-300/400 or ABB AC500 — verify that the PROFIBUS DP or PROFINET adapter card (RPBA-01 or RETA-01) is seated correctly and that the network cable shielding is intact at both ends.

For sites running older ACS400 installations approaching end-of-service-life, consider stocking the NINT-41 interface board and a set of DC bus capacitors alongside the NDSC-01 to support a comprehensive refurbishment rather than a single-component swap. This approach extends system life by 3–5 years and defers capital expenditure on full drive replacement.

Site Replacement Workflow

Step 1 — Isolation and lockout: Isolate the drive from mains supply and apply LOTO (Lockout/Tagout) per site safety procedure. Allow a minimum of 5 minutes for DC bus capacitors to discharge before opening the drive enclosure. Verify bus voltage with a calibrated multimeter before touching internal components.

Step 2 — Parameter backup: If the drive keypad or DriveWindow software is accessible, export the full parameter set before removing the control board. The NDSC-01 stores drive-specific calibration data; a parameter backup ensures rapid recommissioning after the swap.

Step 3 — Board removal: Disconnect all ribbon cables and I/O connectors from the existing NDSC-01 in sequence, photographing the wiring layout before disconnection. Remove the board mounting screws (typically M3 × 6 mm) and extract the module vertically to avoid bending the connector pins.

Step 4 — Inspection and cleaning: Inspect the drive chassis for dust accumulation on the heatsink fins and cooling fan blades. A blocked cooling path is a leading cause of thermal-related control board failure. Clean with dry compressed air (max 2 bar) before installing the replacement.

Step 5 — Installation and recommissioning: Seat the replacement NDSC-01 61298487, reconnect all cables in reverse order, and restore power. Reload the saved parameter set via keypad or DriveWindow. Run a no-load motor test to confirm correct speed reference tracking and fault-free operation before returning the drive to production service.

This workflow typically achieves full drive restoration within 45–90 minutes for a prepared maintenance team, minimizing production impact and avoiding the multi-day lead times associated with OEM repair-and-return programs.

Spare Parts Support FAQ

Q1: Is the NDSC-01 61298487 compatible with all ACS400 and ACS550 variants?
The NDSC-01 is the standard control module for the ACS400 and ACS550 product families. Compatibility depends on the drive’s hardware revision. Please provide your drive’s type designation label (located on the inside of the drive door) when ordering to allow cross-reference verification before shipment.

Q2: What pre-shipment testing is performed on each unit?
Every NDSC-01 61298487 is powered up and subjected to communication bus handshake testing and I/O signal verification before dispatch. A test report is available upon request. Units that do not pass functional verification are not shipped.

Q3: How should I manage NDSC-01 inventory for a multi-drive facility?
For facilities operating 5 or more ACS-series drives, we recommend maintaining a minimum of one NDSC-01 spare per 10 installed drives, with a reorder trigger at 50% stock depletion. Pairing the NDSC-01 with a spare NINT-41 interface board and a set of DC bus capacitors provides a complete fast-response kit for the most common ACS drive failure modes.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers functional failure and manufacturing defects under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number, a description of the fault symptom, and photographic evidence of the installation. Replacement or refund is processed within 5 business days of fault confirmation.
