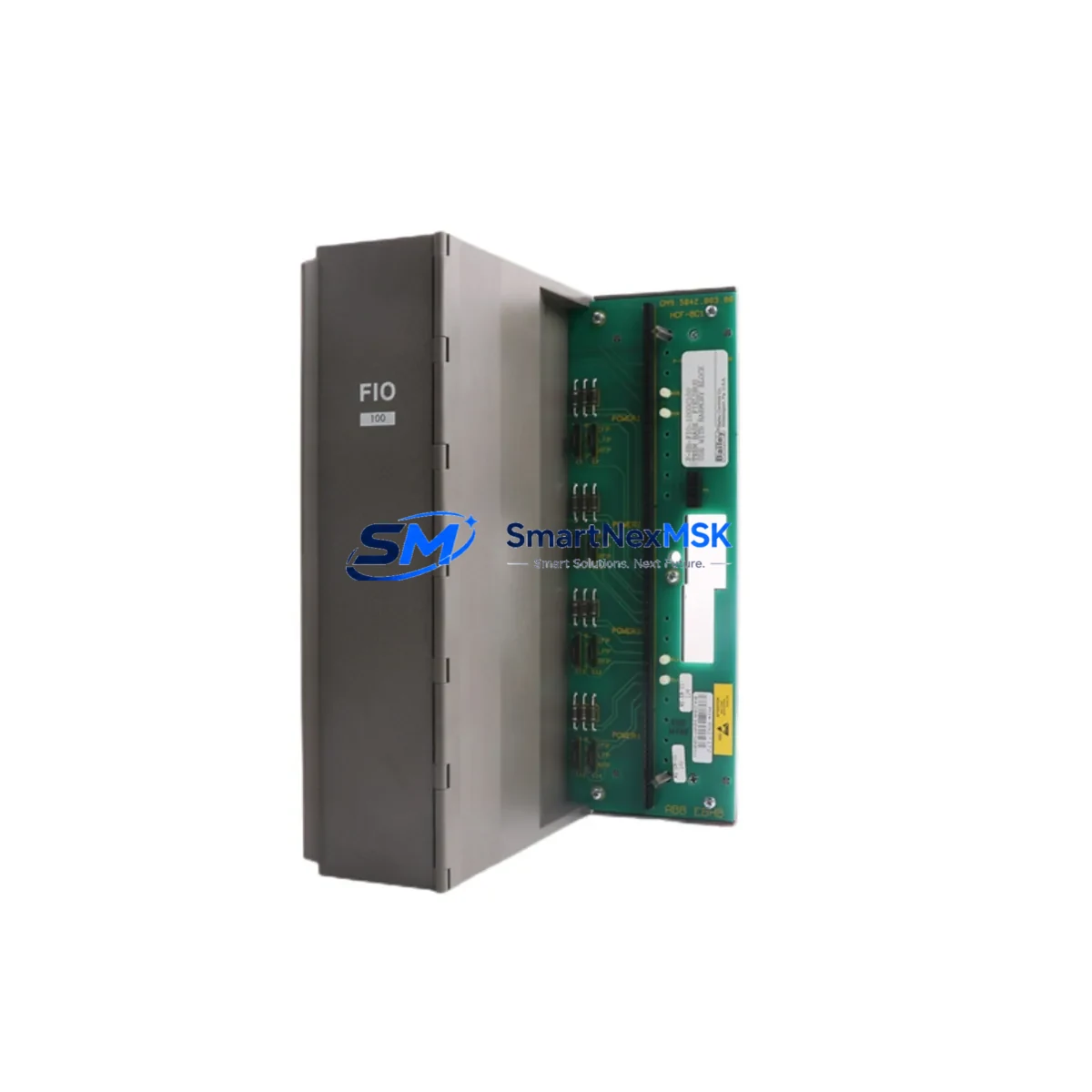

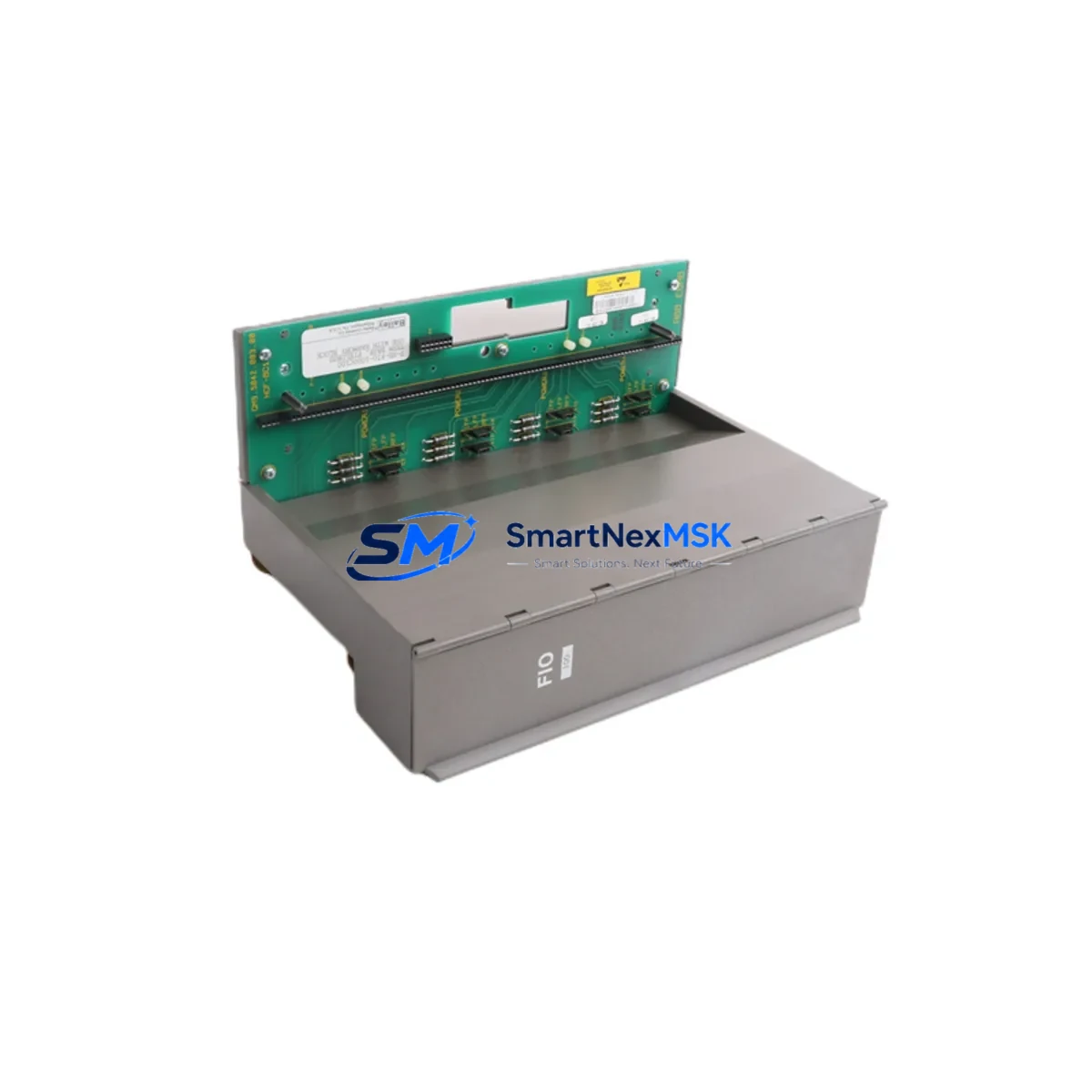

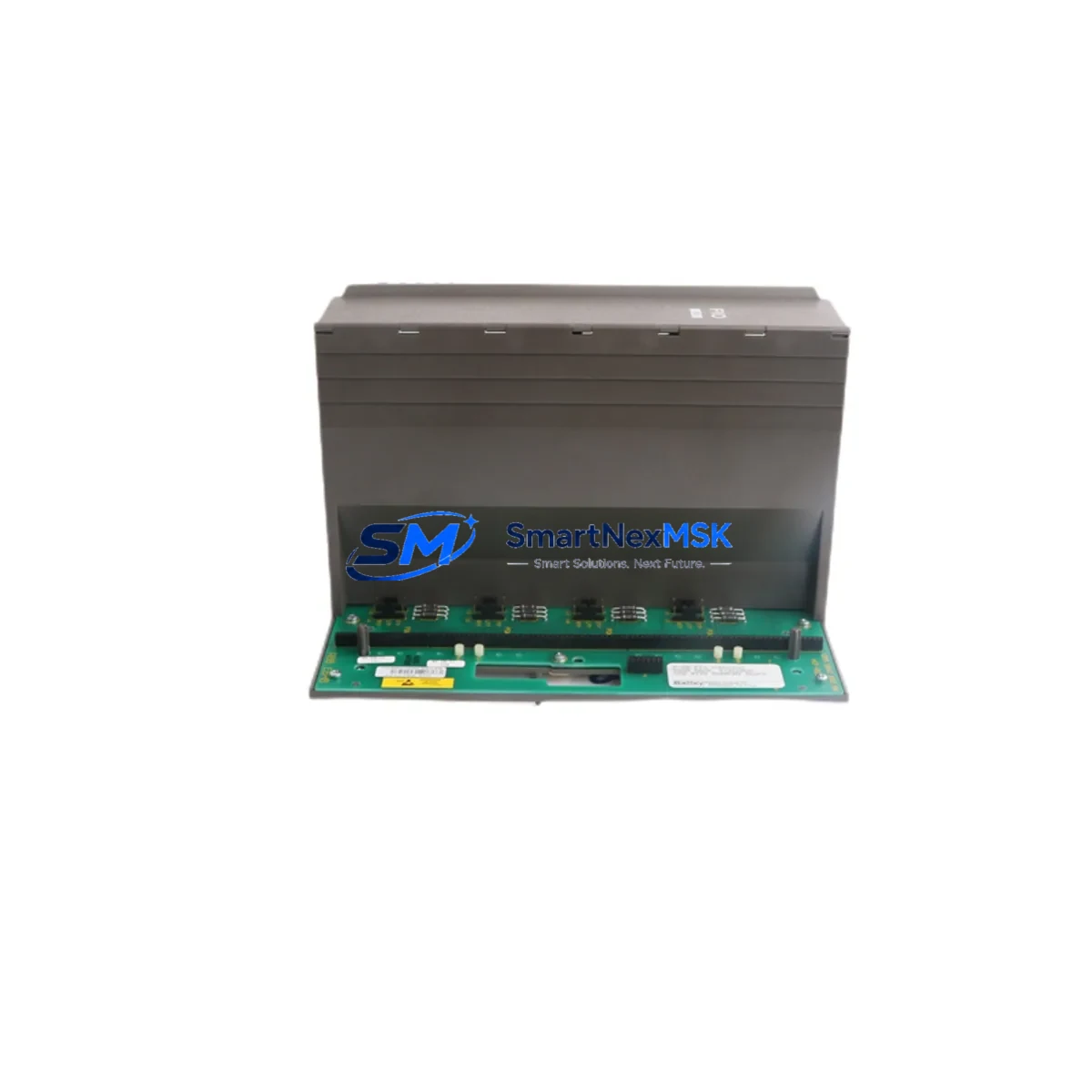

ABB P-HB-FIO-1000C100 Retrofit-Ready Fieldbus Termination Base

ABB P-HB-FIO-1000C100 Retrofit-Ready Fieldbus Termination Base for S800 FIO Control Systems

The ABB P-HB-FIO-1000C100 is a Fieldbus Termination Base designed for the S800 FIO (Fieldbus I/O) series, a widely deployed I/O platform in ABB’s AC 800M and AC 800F distributed control system architectures. As legacy S800 FIO installations approach end-of-life or require capacity expansion, the P-HB-FIO-1000C100 serves as a critical retrofit component — enabling engineers to extend existing fieldbus segments, replace degraded termination bases, and restore full I/O communication integrity without redesigning the control cabinet layout.

This termination base provides the physical and electrical interface between the fieldbus communication trunk and the S800 FIO module stack. It supports PROFIBUS DP and other compatible fieldbus protocols used across ABB’s automation platform, making it directly relevant to plants running ABB Freelance, ABB 800xA, or Symphony Plus control environments. When a termination base fails or a fieldbus segment requires extension, the P-HB-FIO-1000C100 allows maintenance teams to restore I/O communication with minimal rewiring, preserving existing terminal block assignments and cable routing.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing or upgrading a Fieldbus Termination Base in an active S800 FIO installation requires careful pre-work to avoid unplanned shutdowns. Before removing the existing P-HB-FIO-1000C100, engineers should document the current fieldbus segment topology, including the positions of all connected S800 FIO I/O modules such as the AI810 analog input module, AO810 analog output module, DI810 digital input module, and DO810 digital output module. Each of these modules plugs into the termination base and relies on it for both power distribution and fieldbus communication — any interruption to the base affects the entire module stack on that segment.

Power supply verification is a mandatory pre-retrofit step. The S800 FIO system typically draws 24 VDC from a dedicated field power supply unit, often an ABB SD831 or SD832 power supply module. Before swapping the termination base, confirm that the incoming 24 VDC rail is within tolerance and that the power supply can support the full I/O load of the restored segment. Undersized power supplies are a common cause of intermittent fieldbus faults after retrofit work.

Terminal wiring on the P-HB-FIO-1000C100 follows the S800 FIO standard terminal block layout. When replacing the base, photograph or record all field wiring connections before disconnection. The termination base integrates field signal terminals directly, so incorrect rewiring after replacement can cause I/O channel faults or, in worst cases, damage to connected field instruments. Use the original as-built drawings and cross-reference with the ABB S800 FIO hardware manual to confirm terminal assignments.

The backplane interface between the termination base and the FCI (Fieldbus Communication Interface) module — such as the ABB FCI810 or FCI840 — must be inspected for pin damage or corrosion before installing the replacement unit. A damaged backplane connector is frequently the root cause of recurring fieldbus communication errors and should be addressed during the same maintenance window. If the FCI module itself shows signs of firmware incompatibility with newer hardware revisions, a coordinated upgrade of both the FCI module and the termination base is recommended.

For plants migrating from older PROFIBUS DP segment architectures to newer PROFINET-based I/O, the P-HB-FIO-1000C100 retrofit can serve as an interim measure while the full protocol migration is planned. During this transition period, the existing S800 FIO fieldbus segment remains operational, allowing engineers to migrate I/O points to the new network incrementally rather than executing a full cutover. This approach is particularly effective in continuous process industries where extended shutdowns are not feasible.

Additional components commonly required during S800 FIO retrofit projects include the TB820 Modulebus Modem for extended rack communication, the CI854 PROFIBUS DP communication interface for AC 800M controllers, and the S800 FIO cluster cable assembly for multi-rack configurations. Ensuring these components are available and tested before the maintenance window begins is essential for keeping the retrofit on schedule.

Downtime Control During System Migration

Minimizing control system downtime during a P-HB-FIO-1000C100 replacement requires a structured hot-swap or controlled-shutdown procedure. Where the process permits, isolate the affected fieldbus segment by placing the AC 800M or AC 800F controller into manual mode for the I/O points served by that segment. This preserves the last known output states and prevents uncontrolled process upsets during the physical swap.

Before powering down the segment, export the current controller configuration from ABB Control Builder or the 800xA engineering station. This backup ensures that if the replacement base introduces any unexpected addressing conflict, the original program logic can be restored without re-engineering. Pay particular attention to the fieldbus node address assigned to the FCI module on the segment — this address must match the configuration in the controller project file exactly.

After installing the new P-HB-FIO-1000C100, power up the segment and monitor the fieldbus diagnostic LEDs on the FCI module. A solid green status LED confirms successful communication establishment. Perform a full I/O channel loop check before returning the segment to automatic control, verifying that each AI810, DI810, AO810, and DO810 channel reports the correct field signal value. Document the commissioning results and update the plant maintenance record before closing the work order.

For HMI systems connected to the 800xA or Freelance SCADA layer, verify that all process graphics associated with the retrofitted I/O segment display correctly after the swap. Fieldbus address changes or module re-sequencing can occasionally cause HMI tag mapping errors that are not immediately visible at the controller level but manifest as incorrect or frozen displays at the operator workstation.

Retrofit Support FAQ

Q: Is the P-HB-FIO-1000C100 a direct replacement for my existing S800 FIO termination base?
A: Yes. The P-HB-FIO-1000C100 is designed as a direct mechanical and electrical replacement for the same part number in S800 FIO installations. No modifications to the DIN rail mounting, field wiring terminals, or backplane connector positions are required. Verify the hardware revision of your existing base against the replacement unit to confirm firmware compatibility with your FCI module version.

Q: What commissioning steps are required after installation?
A: After physical installation and wiring reconnection, power up the fieldbus segment and confirm the FCI module establishes communication (green status LED). Run a full I/O loop check on all connected modules. Verify fieldbus node address settings match the controller configuration. Check HMI displays for correct tag mapping. Record all commissioning results in the plant maintenance log.

Q: Can this unit be used in a PROFINET migration project alongside existing PROFIBUS DP segments?
A: Yes. The P-HB-FIO-1000C100 supports continued operation of existing PROFIBUS DP fieldbus segments during a phased PROFINET migration. It allows the legacy S800 FIO I/O to remain online while new PROFINET I/O nodes are commissioned in parallel, enabling a controlled, incremental migration without a full system cutover.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing to verify communication interface integrity and terminal block continuity. Warranty claims are supported by our technical team — contact sales@smartnexmsk.com with your order reference and fault description.
