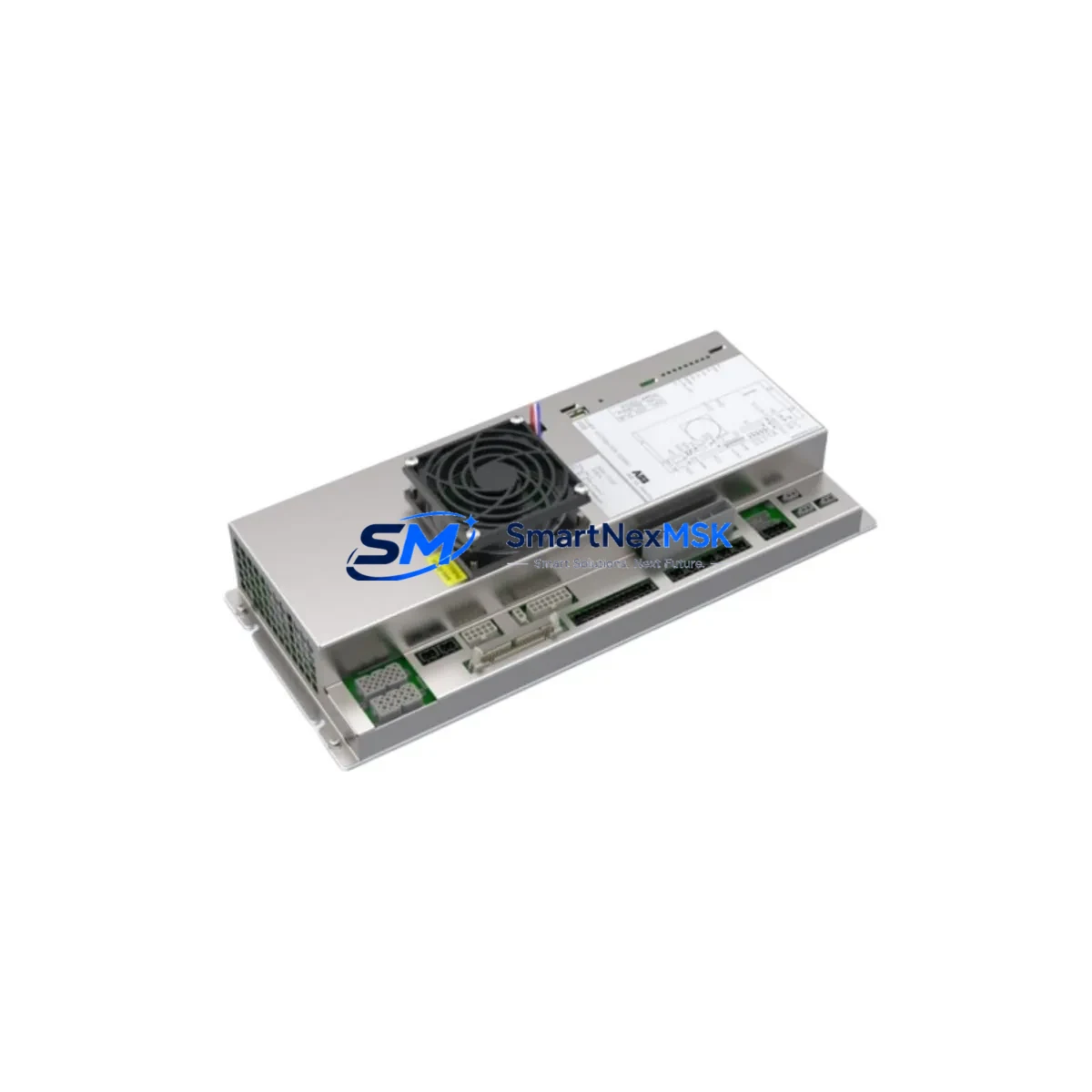

ABB PDB-02 3HNA023093-001 Retrofit-Ready Thermocouple Input

ABB PDB-02 3HNA023093-001 Retrofit-Ready Thermocouple Input Module for IRC5 Control Systems

The ABB PDB-02 (3HNA023093-001) is a precision thermocouple and millivolt (mV) analog input module engineered for ABB’s IRC5 and S4C+ robot controller platforms. As legacy S4C and S4C+ installations approach end-of-support milestones, plant engineers and system integrators increasingly rely on verified replacement modules like the PDB-02 to extend operational life, restore measurement accuracy, and avoid costly full-system replacements. This module is a direct retrofit candidate for aging IRC5 controller cabinets, offering a proven upgrade path without requiring changes to the existing backplane, wiring harness, or robot program logic.

Whether you are recovering from an unplanned module failure, executing a scheduled preventive maintenance swap, or modernizing a multi-robot welding cell, the PDB-02 3HNA023093-001 delivers the signal conditioning and channel isolation required for reliable thermocouple-based temperature monitoring in demanding industrial environments. It is compatible with standard K-type, J-type, and mV signal sources commonly used in arc welding, heat treatment, and process control applications integrated with ABB robot systems.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PDB-02 retrofit begins well before the module arrives on-site. Engineers should start by auditing the existing IRC5 controller cabinet layout, confirming available module slots on the DSQC 400-series backplane or equivalent IRC5 I/O rack. The PDB-02 occupies a standard single-width slot and draws power from the IRC5 internal 24 VDC supply rail — verify that the DSQC 661 power supply unit or the installed IRC5 power distribution board has sufficient headroom to support the additional load, particularly in dense multi-module configurations.

Terminal wiring should be mapped against the original installation drawings before disconnection. The PDB-02 uses a removable screw-terminal connector block, which simplifies field replacement without re-terminating individual conductors. Label all thermocouple pairs (positive/negative) and confirm shielding continuity before reinsertion. In systems where the PDB-02 interfaces with a DSQC 652 digital I/O board or a DSQC 378B fieldbus communication module, verify that the I/O unit instance address assigned in RobotWare does not conflict with other modules on the same DeviceNet or Profibus segment.

For installations running ABB RobotWare 5.14 or later, the I/O configuration is managed through the IRC5 FlexPendant or RobotStudio. After physical installation, navigate to the I/O configuration panel and confirm that the PDB-02 unit appears with the correct device type and address. Signal scaling parameters — particularly the mV-to-engineering-unit conversion for thermocouple channels — should be validated against the original RAPID program variables to ensure that temperature setpoints and alarm thresholds remain accurate.

In multi-robot cells where the IRC5 controller communicates with a DSQC 688 Ethernet/IP adapter or a DSQC 679 teach pendant interface, the PDB-02 replacement does not affect the upper-level communication stack. However, if the cell PLC — such as a Siemens S7-300 or Allen-Bradley ControlLogix — polls thermocouple data via the fieldbus, confirm that the data register mapping in the PLC program still aligns with the I/O signal addresses configured in RobotWare after the swap. A brief functional test with the PLC in manual mode is recommended before returning the cell to automatic production.

Where the existing installation includes an ABB CP600 HMI panel or a third-party SCADA screen displaying live temperature values from the IRC5 system, verify that the HMI tag addresses and engineering unit ranges are unchanged after the module swap. In most cases, because the PDB-02 is a direct functional replacement, HMI screens require no modification — but a visual confirmation of live values during commissioning is best practice.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a thermocouple input module in a live production environment. The recommended approach is to pre-configure and bench-test the replacement PDB-02 before the scheduled maintenance window. Using a spare IRC5 controller or a RobotStudio offline simulation, load the existing system backup and verify that the I/O configuration recognizes the module correctly. This eliminates configuration surprises during the live swap.

During the physical replacement, follow a structured sequence: save a full system backup from the IRC5 FlexPendant, power down the controller via the main switch, discharge any residual capacitance on the power supply rail, remove the defective PDB-02 by releasing the module latch, insert the replacement unit, and restore power. The IRC5 controller will perform an automatic I/O scan on startup — confirm that the PDB-02 appears in the I/O device list with a green status indicator before releasing the system to production.

For critical processes where even a brief interruption is unacceptable, consider maintaining a pre-configured hot-spare PDB-02 in the control cabinet spares kit alongside other high-risk modules such as the DSQC 652 digital I/O board and the DSQC 661 power supply. This approach, combined with a documented swap procedure and a trained maintenance technician, can reduce module replacement time to under 30 minutes — preserving production continuity and protecting the original RAPID program logic without requiring re-teaching or program modification.

Retrofit Support FAQ

Q1: Is the PDB-02 3HNA023093-001 a direct drop-in replacement for the original module in my IRC5 cabinet?
Yes. The PDB-02 3HNA023093-001 is designed as a direct functional replacement for the original ABB IRC5 thermocouple input module. It uses the same backplane connector, occupies the same slot width, and is recognized by RobotWare 5.x and 6.x without firmware changes in the majority of installations. Confirm the I/O unit address assignment in your RobotWare configuration after installation.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, power on the IRC5 controller and verify that the PDB-02 appears in the I/O device list on the FlexPendant. Check signal scaling for each thermocouple channel, confirm cold-junction compensation is active, and run a functional test by applying a known mV reference signal. If the system communicates with an external PLC via DeviceNet or Profibus, verify that the fieldbus data mapping is intact before switching to automatic mode.

Q3: How do I verify wiring compatibility before installing the new module?
The PDB-02 uses a removable screw-terminal connector block. Before removal of the old module, photograph or document the existing terminal assignments and thermocouple polarity. The replacement module uses the same terminal layout, so the connector block can be transferred directly if it is undamaged — eliminating the need to re-terminate individual conductors and reducing the risk of wiring errors during the swap.

Q4: What does the 12-month warranty cover, and what is the shipping lead time?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. Each unit undergoes functional testing prior to dispatch. Standard shipping lead time is 3–7 business days for stocked units, with expedited options available for urgent requirements. Contact our team at sales@smartnexmsk.com or +86 18259474341 to confirm current stock availability and delivery schedule.
