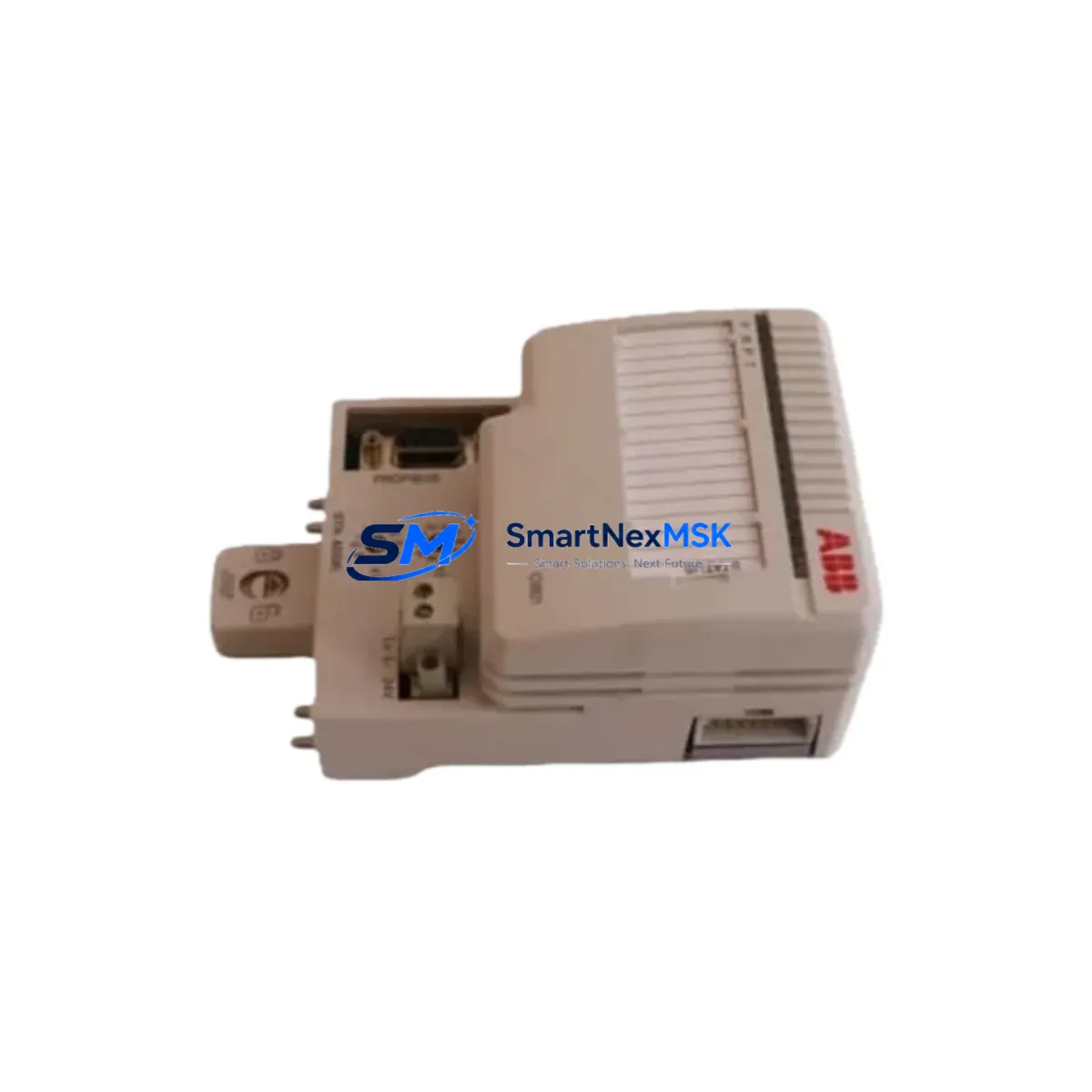

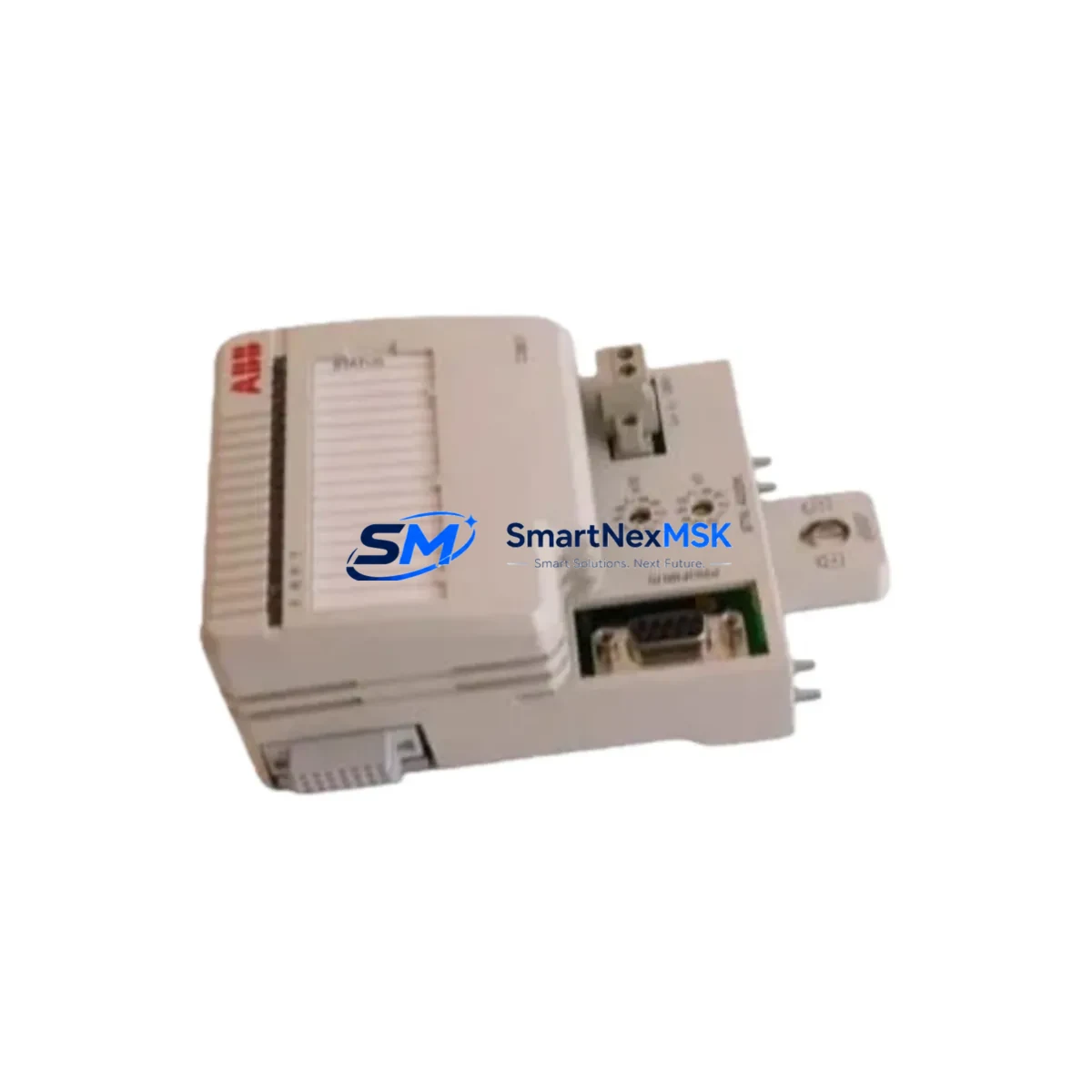

ABB PFPA201 3BSE022827R1 Retrofit-Ready DCS Processing Unit

ABB PFPA201 3BSE022827R1 Retrofit-Ready DCS Processing Unit for AC800M Control Systems

The ABB PFPA201 (part number 3BSE022827R1) is a high-performance DCS processing unit designed for the AC800M controller platform — one of ABB’s most widely deployed distributed control system architectures in process industries including oil & gas, power generation, pulp & paper, and chemical manufacturing. As legacy AC800M installations approach end-of-life or require capacity expansion, the PFPA201 3BSE022827R1 serves as a proven retrofit-ready replacement that preserves existing program logic, I/O mapping, and communication topology without requiring a full system redesign.

When planning a retrofit or spare-part replacement using the PFPA201, engineers must verify several critical compatibility parameters before installation. Power supply capacity is the first checkpoint: the AC800M backplane must deliver sufficient rail voltage and current headroom to support the PFPA201 alongside co-installed modules such as the PM865 or PM891 processor modules. Terminal wiring on the S800 I/O modules — including AI810, AO810, DI810, and DO810 — should be documented and cross-referenced against the new module’s channel assignments to avoid I/O address conflicts after the swap.

Backplane interface compatibility is equally important. The PFPA201 is designed for the AC800M rack system, and installers should confirm that the existing TB807 or TB840 termination boards are correctly seated and that the backplane bus connectors show no signs of oxidation or mechanical damage. Module addressing must be reconfigured in ABB’s Control Builder M software to reflect the new hardware position, particularly if the PFPA201 is replacing a unit at a non-default slot address.

Program compatibility is a key concern during any DCS processing unit swap. Application programs developed in Control Builder M are generally portable across PFPA201 revisions, but firmware version alignment between the replacement unit and the existing PM8xx controller must be confirmed. Mismatched firmware can cause communication faults on the MMS or PROFIBUS DP links that connect the AC800M to field devices, remote I/O clusters, or SCADA systems. Before going live, engineers should perform a full cold-start simulation in offline mode and validate all function block outputs against the original baseline.

HMI screen validation is another step that is frequently overlooked during retrofit projects. Operator stations running ABB’s 800xA Information Management or third-party SCADA platforms may reference specific controller tags tied to the PFPA201’s data model. After replacement, all dynamic tag bindings should be tested to confirm that process values, alarm states, and trend data are correctly propagated to the HMI layer. Communication links — whether via Ethernet TCP/IP, PROFIBUS DP, or FOUNDATION Fieldbus — should be verified using the diagnostic tools built into Control Builder M before returning the system to automatic control.

Field commissioning of the PFPA201 3BSE022827R1 typically follows a structured sequence: power-off isolation, module extraction, physical installation, firmware verification, address configuration, I/O loop checks, communication link tests, and finally a supervised warm-start with operator confirmation. Each step should be logged to support the 12-month warranty claim process and to maintain the site’s maintenance record.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PFPA201 retrofit begins well before the maintenance window opens. Site engineers should audit the existing AC800M cabinet layout, documenting the positions of all installed modules including the CI854 PROFIBUS DP communication interface, the CI857 FOUNDATION Fieldbus interface, and any SD821 or SD822 power supply units feeding the rack. The TB807 termination board wiring should be photographed and logged, and all S800 I/O channel assignments should be exported from Control Builder M as a baseline reference.

If the retrofit involves migrating from an older AC800 (non-M) platform, additional steps are required to adapt the program structure to the AC800M’s IEC 61131-3 execution environment. In such cases, the PM865 or PM891 processor module may also need to be upgraded alongside the PFPA201 to ensure full compatibility with the new firmware baseline. The CI853 Ethernet communication module and any associated network switches should also be reviewed to confirm that IP addressing and subnet configurations are consistent with the plant’s control network architecture.

For sites running redundant controller configurations, the PFPA201 replacement should be performed on the standby unit first, with a controlled switchover test before the primary unit is touched. This approach minimizes process disruption and allows the engineering team to validate the replacement unit’s behavior under live load conditions before committing to a full cutover.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern during any DCS processing unit replacement. For the PFPA201 3BSE022827R1, the recommended approach is to pre-configure the replacement module offline using Control Builder M before the maintenance window begins. This includes loading the correct firmware version, setting the module address, and performing a dry-run of the I/O loop test sequence using a portable loop calibrator.

During the physical swap, the existing program image should be backed up to a secure engineering workstation and verified against the site’s change management records. If the AC800M system supports hot-standby redundancy via a paired PM865 or PM891, the switchover can be executed with zero process interruption. For non-redundant configurations, the maintenance window should be scheduled during a planned production break, with all field devices placed in manual or safe-state mode before the controller is powered down.

After installation, the PFPA201 should be brought online in a supervised restart sequence, with the control engineer monitoring all I/O status indicators and communication link diagnostics in real time. Any alarm floods or unexpected output states should be investigated before releasing the system to automatic control. Full commissioning documentation — including loop test records, firmware version logs, and communication link test results — should be retained to support the 12-month warranty and future audit requirements.

Retrofit Support FAQ

Q: Is the PFPA201 3BSE022827R1 a direct drop-in replacement for older AC800M processing units?
A: In most cases, yes. The PFPA201 is designed for the AC800M rack and is compatible with the standard backplane bus. However, firmware version alignment with the co-installed PM8xx processor module must be verified in Control Builder M before installation to avoid communication faults.

Q: What wiring changes are required when replacing the PFPA201?
A: The PFPA201 itself does not have direct field wiring — it interfaces with the AC800M backplane. Field wiring is managed through the S800 I/O modules and their associated TB807 or TB840 termination boards, which typically do not require modification during a like-for-like processing unit replacement.

Q: How is the replacement unit tested before shipment?
A: Each PFPA201 3BSE022827R1 unit undergoes functional power-on testing and communication interface verification prior to dispatch. Units are shipped with a test report confirming basic operational status. The 12-month warranty covers hardware defects identified after installation, with DOA replacement support available.

Q: What is covered under the 12-month warranty?
A: The warranty covers manufacturing defects and hardware failures under normal operating conditions. It includes DOA (dead-on-arrival) replacement, technical support for installation issues, and access to firmware compatibility guidance. Damage caused by incorrect installation, overvoltage, or environmental factors outside ABB’s published specifications is excluded.
