ABB PFPK122 3BSE013036R1 Spare for MOD 300 Automation: Spare Replacement & Industrial Downtime Risk Control

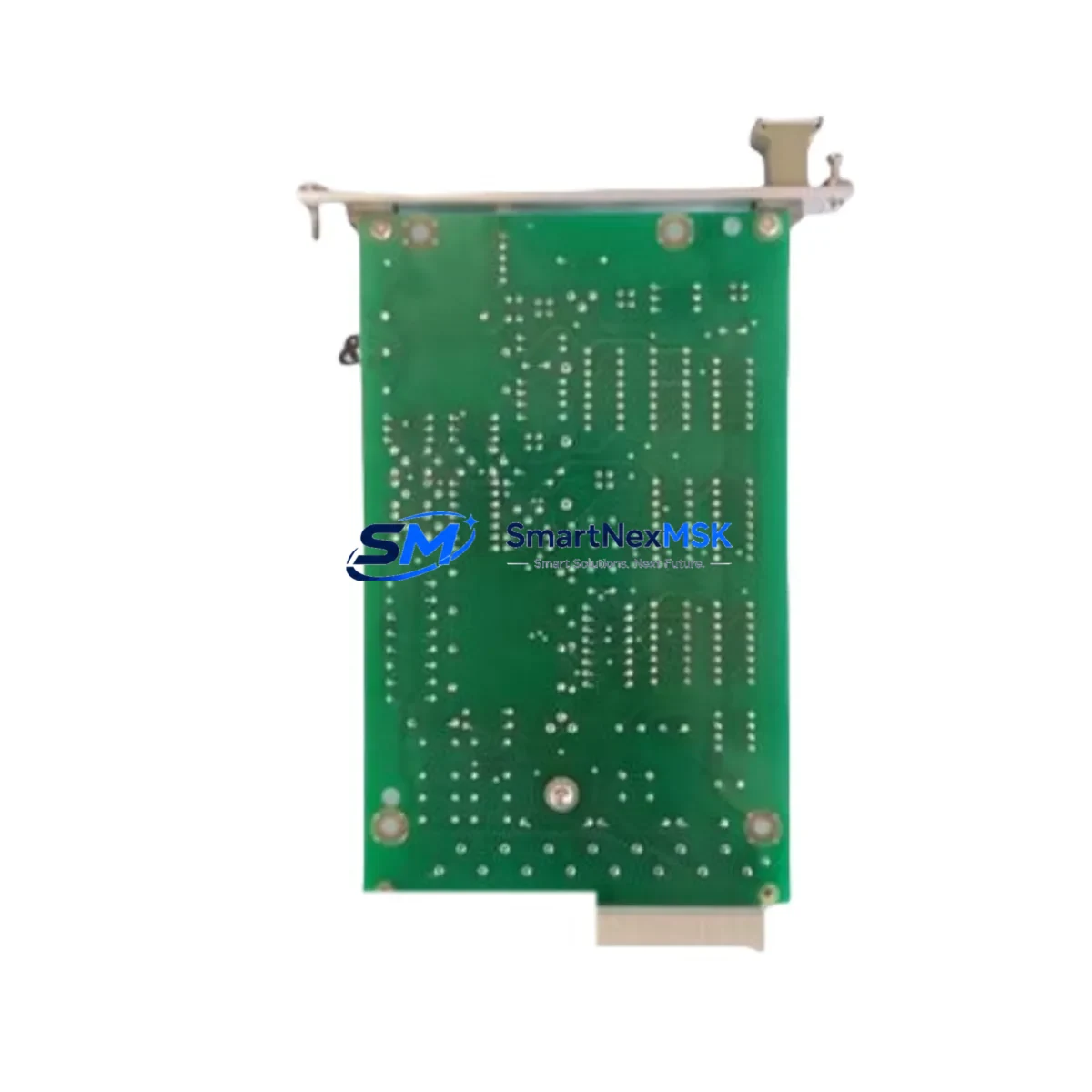

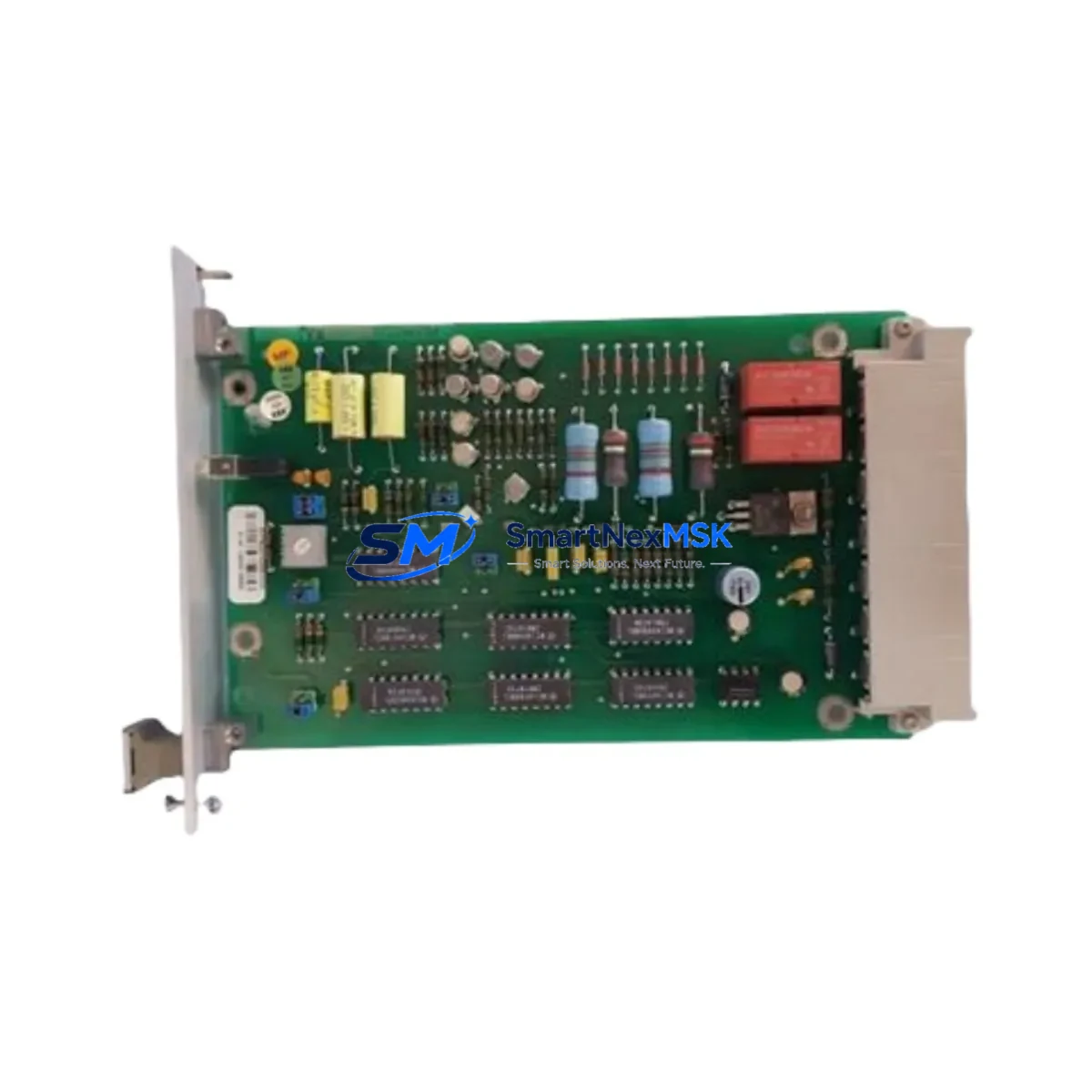

The ABB PFPK122 (3BSE013036R1) is an original DCS communication circuit board designed for the ABB Advant OCS MOD 300 distributed control system. As a critical communication interface module within the MOD 300 control architecture, this board manages data exchange between process controllers, I/O subsystems, and supervisory layers. When this module fails or degrades, the entire control loop can be disrupted — leading to unplanned shutdowns, process instability, and costly production losses.
Sourced directly from verified ABB supply channels, each PFPK122 3BSE013036R1 unit we supply is inspected, function-tested, and shipped with a 12-month warranty. Whether you are managing a planned overhaul, responding to an emergency fault, or building a strategic spare parts inventory for aging MOD 300 systems, this board is available for immediate dispatch.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | PFPK122 |
| Reference Number | 3BSE013036R1 |
| Manufacturer | ABB (Sweden) |
| Product Type | DCS Communication Circuit Board |
| Compatible System | ABB Advant OCS MOD 300 |
| Communication Role | Inter-module data bus / process communication interface |
| Origin | Sweden (SE) |
| Condition | Original, tested before shipment |
| Installation | Direct board-level replacement in MOD 300 rack/backplane |
| Operating Environment | Industrial control cabinet, DCS rack environment |
| Maintenance Recommendation | Inspect annually; replace on first sign of communication fault or CRC error |
| Warranty | 12 Months |
| Shipping | Worldwide, ESD-safe packaging, tested before dispatch |
Maintenance Planning for Continuous Operation
When a PFPK122 3BSE013036R1 communication board is flagged for replacement during a scheduled inspection or emergency fault response, experienced maintenance engineers know that the board itself is rarely the only component requiring attention. A thorough site assessment should include the following associated components within the same MOD 300 control cabinet and electrical circuit:
The PFSK107 (3BSE003641R1) processor module and PFSK112 (3BSE003607R1) communication controller are frequently installed alongside the PFPK122 and should be inspected for firmware integrity and connector wear. The PFBK105 (3BSE003649R1) backplane board provides the physical bus interface for all modules in the rack — any corrosion or contact degradation here can cause intermittent communication faults that mimic a failed PFPK122.
Power supply integrity is equally critical. The PSMB (3BSE005845R1) power supply module feeding the MOD 300 rack should be load-tested and its output voltage verified within ABB-specified tolerances. Voltage ripple or transient spikes are a leading cause of premature communication board failure. Inline fuses and surge protection devices on the 24VDC rail should be replaced as a matter of course during any board-level maintenance event.
On the I/O side, the DSAI130 (3BSE003127R1) analog input module and DSDO115 (3BSE003131R1) digital output module connected to the same process loop should be verified for signal accuracy and channel isolation. Degraded I/O modules can generate erroneous process data that overloads the communication bus, accelerating wear on the PFPK122 board.
Terminal blocks and field wiring connections within the control cabinet should be torque-checked and inspected for oxidation, particularly in high-humidity or chemically aggressive environments. Signal isolators on 4–20 mA loops feeding the MOD 300 system should be tested for drift. If the system includes an Advant OCS operator station or legacy HMI panel, the communication link between the HMI and the MOD 300 controller should be verified after any board replacement to confirm data integrity end-to-end.
For sites running extended MOD 300 installations beyond their original design life, we recommend maintaining a minimum spare inventory that includes the PFPK122 communication board, at least one processor module, one power supply module, and a set of I/O boards matched to your critical process loops. This approach eliminates single-point-of-failure risk and ensures that any unplanned shutdown can be resolved within hours rather than days.
Site Replacement Workflow
Step 1 — Fault Isolation: Use the MOD 300 diagnostic software or the Advant OCS engineering workstation to confirm the PFPK122 as the fault source. Log the error codes and communication fault flags before powering down the rack.
Step 2 — Safe Shutdown: Follow ABB MOD 300 lockout/tagout procedures. De-energize the rack, discharge any residual bus voltage, and document the slot position and wiring configuration of the existing board.
Step 3 — Board Removal & Inspection: Remove the faulty PFPK122 and inspect the backplane connector for bent pins, carbon tracking, or moisture ingress. Clean the slot with approved electronics-grade contact cleaner before installing the replacement.
Step 4 — Replacement Installation: Install the new PFPK122 3BSE013036R1 into the correct rack slot. Verify that all edge connectors are fully seated and that the board locking mechanism is engaged. Restore power and observe the module status LEDs for normal initialization sequence.
Step 5 — System Verification: Confirm communication link restoration via the engineering workstation. Run a full I/O scan and verify that all process values are reading correctly. Document the replacement in the site maintenance log with the new board serial number and warranty start date.
This workflow minimizes downtime, preserves system compatibility, and ensures that the replacement is traceable for future maintenance audits. Our PFPK122 3BSE013036R1 units are pre-tested to ABB functional specifications, reducing commissioning time on site.
Spare Parts Support FAQ
Q1: Is this PFPK122 3BSE013036R1 a direct drop-in replacement for the original ABB board?
Yes. Each unit we supply is an original ABB PFPK122 3BSE013036R1 board, not a third-party substitute or remanufactured clone. It is fully compatible with the ABB Advant OCS MOD 300 system and installs directly into the original rack slot without firmware modification or hardware adaptation.
Q2: How do you verify the board before shipment?
Every PFPK122 3BSE013036R1 unit undergoes a pre-shipment functional test covering power-on initialization, communication bus response, and connector integrity. Units that do not pass all test criteria are not shipped. A test report is available upon request for critical procurement requirements.
Q3: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified by ABB for the MOD 300 system. If the board fails within the warranty period due to a covered defect, we will provide a replacement unit or full refund. The warranty does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling on site.
Q4: Can you support long-term spare parts supply for our MOD 300 fleet?
Yes. We maintain ongoing inventory of ABB MOD 300 and Advant OCS spare parts and can support blanket purchase orders, scheduled delivery programs, and emergency same-day dispatch for critical fault situations. Contact our team to discuss a tailored spare parts supply agreement for your site or fleet of installations.
