ABB PFSK104-YM-322001-EB Retrofit-Ready Control Board Advant DCS

ABB PFSK104-YM-322001-EB Retrofit-Ready Control Board for Advant DCS: Compatible Upgrade for Legacy System Migration

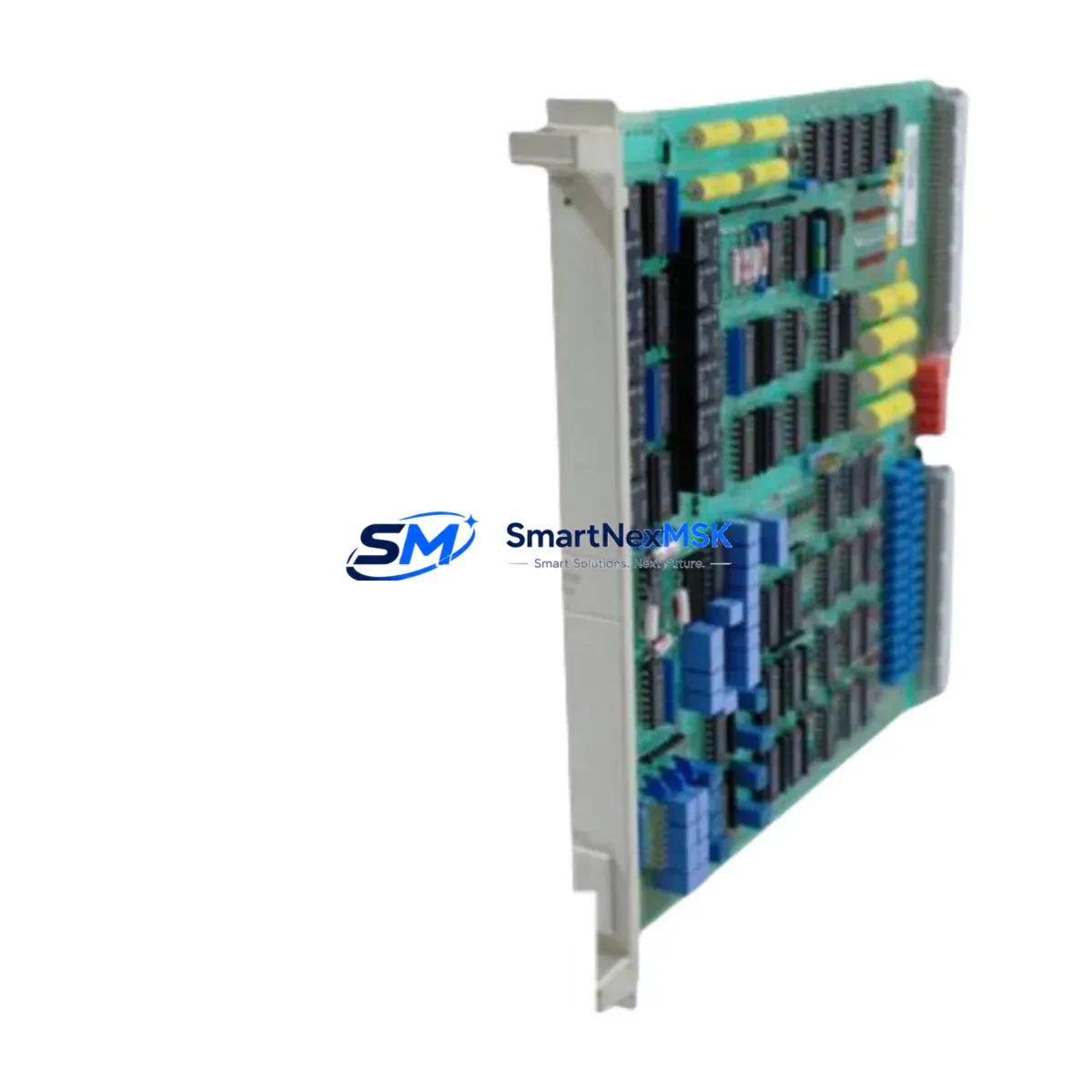

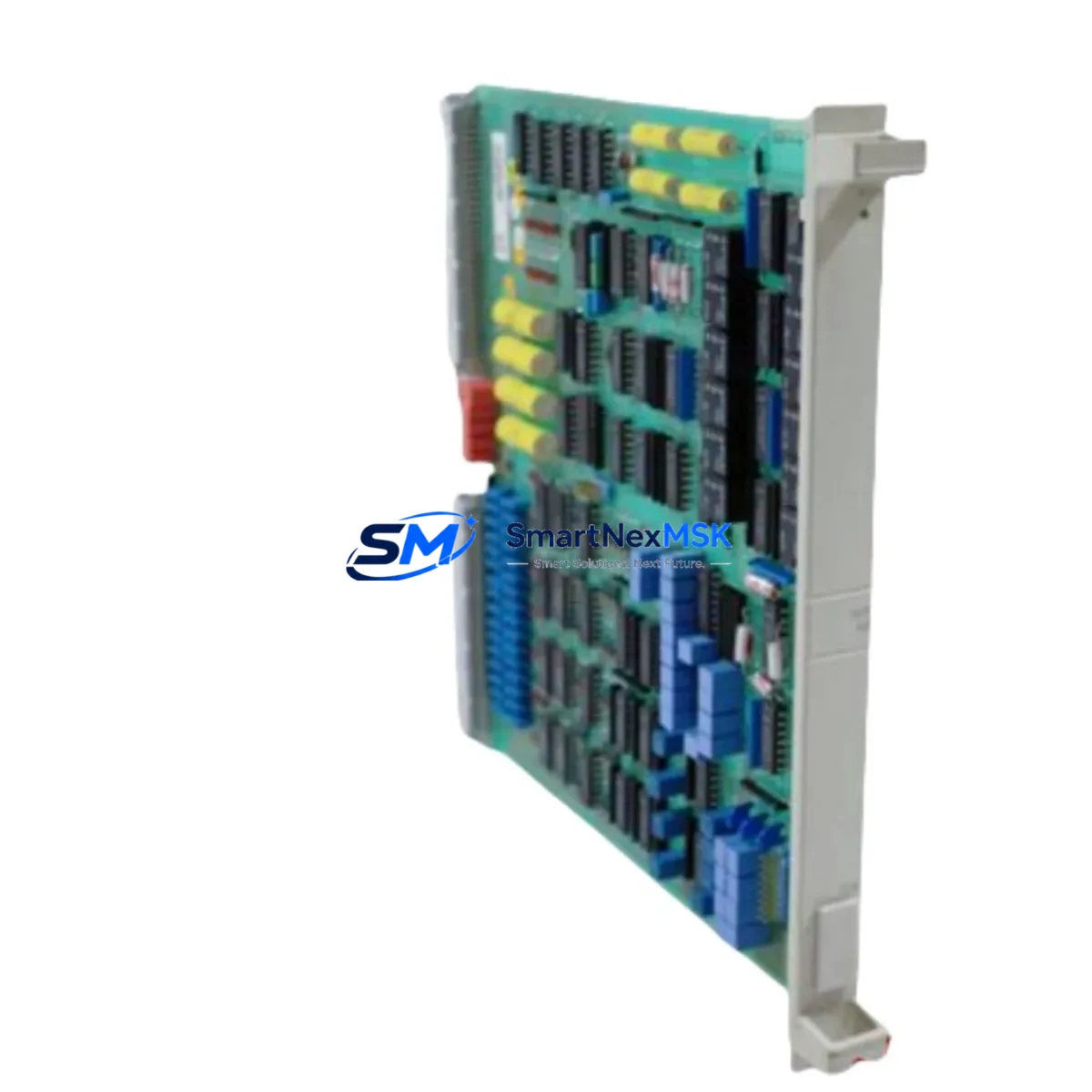

The ABB PFSK104-YM-322001-EB is a processor and communication control board designed for ABB’s Advant OCS/DCS platform — one of the most widely deployed distributed control architectures in power generation, pulp and paper, chemical processing, and heavy manufacturing. As ABB has progressively phased out legacy Advant hardware, sourcing verified replacement boards has become a critical challenge for plant engineers managing aging control infrastructure. This listing provides a tested, warehouse-stocked PFSK104-YM-322001-EB board with full functional verification and a 12-month warranty, specifically positioned to support retrofit projects, emergency spare replacement, and phased system modernization programs.

The PFSK104-YM-322001-EB board operates within the Advant Controller AC450 and AC460 family, interfacing with the S100 I/O bus and communicating via MasterBus 300 (MB300) — ABB’s proprietary fieldbus protocol used extensively across Advant installations. When planning a replacement, engineers must confirm that the existing backplane slot assignment, module address configuration, and MB300 node address are preserved to avoid disrupting the control loop topology. The board’s firmware revision should also be matched or verified compatible with the existing AC450/AC460 controller software version to prevent initialization errors during hot-swap or cold-restart commissioning.

In retrofit scenarios where the Advant platform is being partially migrated toward ABB’s System 800xA or AC800M architecture, the PFSK104-YM-322001-EB often serves as a bridge component — maintaining legacy I/O continuity while new controller nodes are commissioned in parallel. During such migrations, the PFSK104-YM-322001-EB typically coexists in the same control cabinet with components such as the DSBC 176 bus controller, DSMB 127 MasterBus modem board, and DSAI 130 analog input modules. Ensuring that the S100 bus termination resistors are correctly installed and that the DSBC 176 is properly configured for the updated node count is essential before bringing the replacement board online.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PFSK104-YM-322001-EB retrofit begins well before the board arrives on site. The first step is a thorough audit of the existing Advant control cabinet: document the current slot layout of the S100 rack, record the module addresses assigned to each board, and photograph the existing wiring harness and backplane connector positions. This documentation becomes the reference baseline for post-replacement verification.

Power supply capacity is a frequent oversight in legacy DCS retrofits. The Advant S100 rack is typically powered by an ABB DSQC 604 or equivalent 24 VDC power supply module. Before installing the PFSK104-YM-322001-EB, verify that the power supply can sustain the full rack load including any newly added I/O modules such as DSAI 130 analog input cards or DSDO 115 digital output modules. Undersized power supplies are a leading cause of intermittent faults after board replacement.

For plants running mixed Advant and 800xA environments, the PFSK104-YM-322001-EB may need to coexist with an OPC DA/UA gateway or a CI854 PROFIBUS communication interface module that bridges legacy MB300 segments to the 800xA Information Management layer. In these configurations, the MB300 node address of the replacement board must be registered in the 800xA Plant Explorer before the board is powered on, or the system will generate a communication fault alarm that can cascade to supervisory SCADA displays and HMI faceplates.

HMI continuity is another critical consideration. If the plant uses ABB Operate IT or a third-party SCADA system with hardcoded OPC item paths referencing the original board’s node address, those paths must be updated or aliased before cutover. Failure to do so results in stale data on operator displays — a safety risk in process-critical applications. Coordinate with the control system integrator to update HMI graphic bindings and alarm setpoint references as part of the retrofit scope.

For I/O expansion projects where the PFSK104-YM-322001-EB is being added to an existing rack rather than replacing a failed unit, confirm that the S100 bus has sufficient remaining address space and that the DSBC 176 bus controller firmware supports the expanded node count. Adding an DSAI 155 high-density analog input module or a DSDP 150 pulse counter module to the same rack requires re-scanning the bus and updating the controller configuration database in MasterView 800 or Control Builder M.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary engineering objective in any legacy DCS board replacement. For the PFSK104-YM-322001-EB, the recommended approach is a pre-staged swap: configure and address-verify the replacement board on a bench test rack before the maintenance window opens. Use a PFTL 101 programming cable or equivalent Advant service tool to confirm the board initializes correctly and responds to MB300 polling before it is transported to the production floor.

During the maintenance window, place the affected control loops in manual mode at the DCS operator station. Document all active setpoints, PID parameters, and interlock states before de-energizing the rack. After installing the PFSK104-YM-322001-EB, perform a controlled power-up sequence: energize the rack, confirm the board’s status LEDs indicate normal operation, and verify MB300 communication is established before releasing loops back to automatic control. This sequence typically takes 15–45 minutes for an experienced controls technician and can be completed within a standard 2-hour planned outage window.

For sites where a cold-swap is not acceptable, consider a parallel commissioning approach: install the replacement board in an adjacent spare slot, commission it fully, then transfer I/O assignments from the original board to the replacement within the controller configuration — eliminating the need to power down the rack entirely. This technique requires an available spare slot in the S100 rack and is best executed with the support of an ABB-certified system integrator familiar with Advant configuration tools.

All boards supplied by SMARTNEXMSK are pre-tested under simulated load conditions and shipped with a test report. The 12-month warranty covers functional failure under normal operating conditions and includes technical support for commissioning queries.

Retrofit Support FAQ

Q1: Is the PFSK104-YM-322001-EB a direct drop-in replacement for other PFSK104 variants?
The PFSK104-YM-322001-EB is compatible with other PFSK104 series boards within the Advant AC450/AC460 platform, but firmware revision and hardware suffix must be verified against the existing system configuration. In most cases, the board is a functional drop-in replacement; however, if the original board carried a different hardware revision suffix, a firmware update via the Advant service tool may be required before the board will initialize correctly on the MB300 bus.

Q2: What wiring changes are required when installing this board?
The PFSK104-YM-322001-EB connects via the S100 backplane — no field wiring modifications are required for a like-for-like replacement. If the board is being installed in a new slot as part of an I/O expansion, the DSBC 176 bus controller must be reconfigured to recognize the new node address, and the controller application program must be updated to map the new I/O points. Terminal block wiring on associated DSAI or DSDO I/O modules remains unchanged.

Q3: How is compatibility with our existing Advant controller software verified before shipment?
Each PFSK104-YM-322001-EB unit undergoes a functional burn-in test and MB300 communication loop test prior to dispatch. A test report is included with every shipment. For customers who can provide their controller software version and hardware configuration file, our technical team can perform a pre-shipment compatibility cross-check at no additional charge. Contact sales@smartnexmsk.com with your system details.

Q4: What does the 12-month warranty cover, and what support is available during commissioning?
The 12-month warranty covers functional failure of the board under normal operating conditions, including MB300 communication faults attributable to the board hardware. It does not cover damage from incorrect installation, overvoltage, or environmental factors outside ABB’s specified operating range. During the commissioning period, SMARTNEXMSK provides email and telephone technical support for installation and configuration queries. Replacement units are dispatched within 3 business days for confirmed warranty claims.
