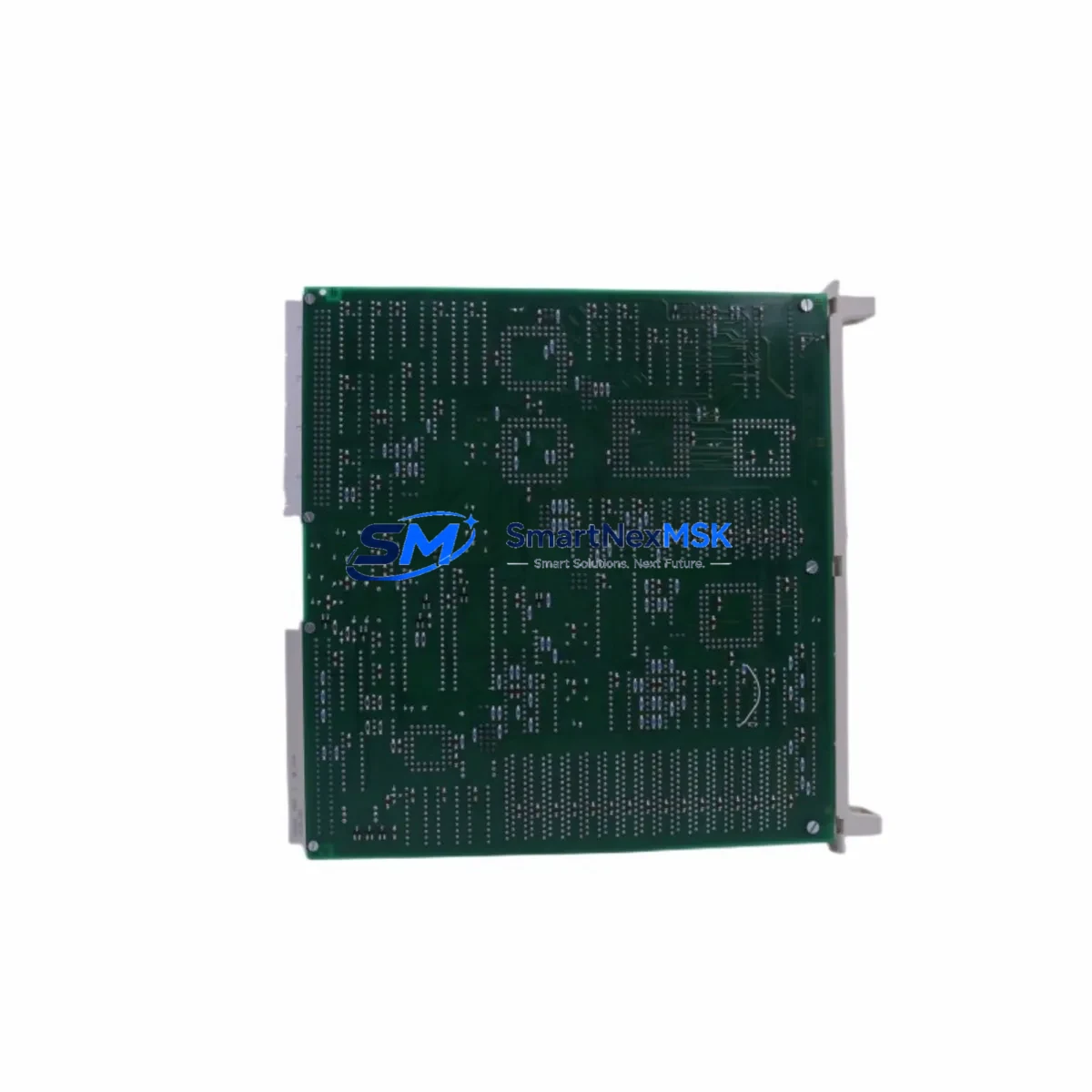

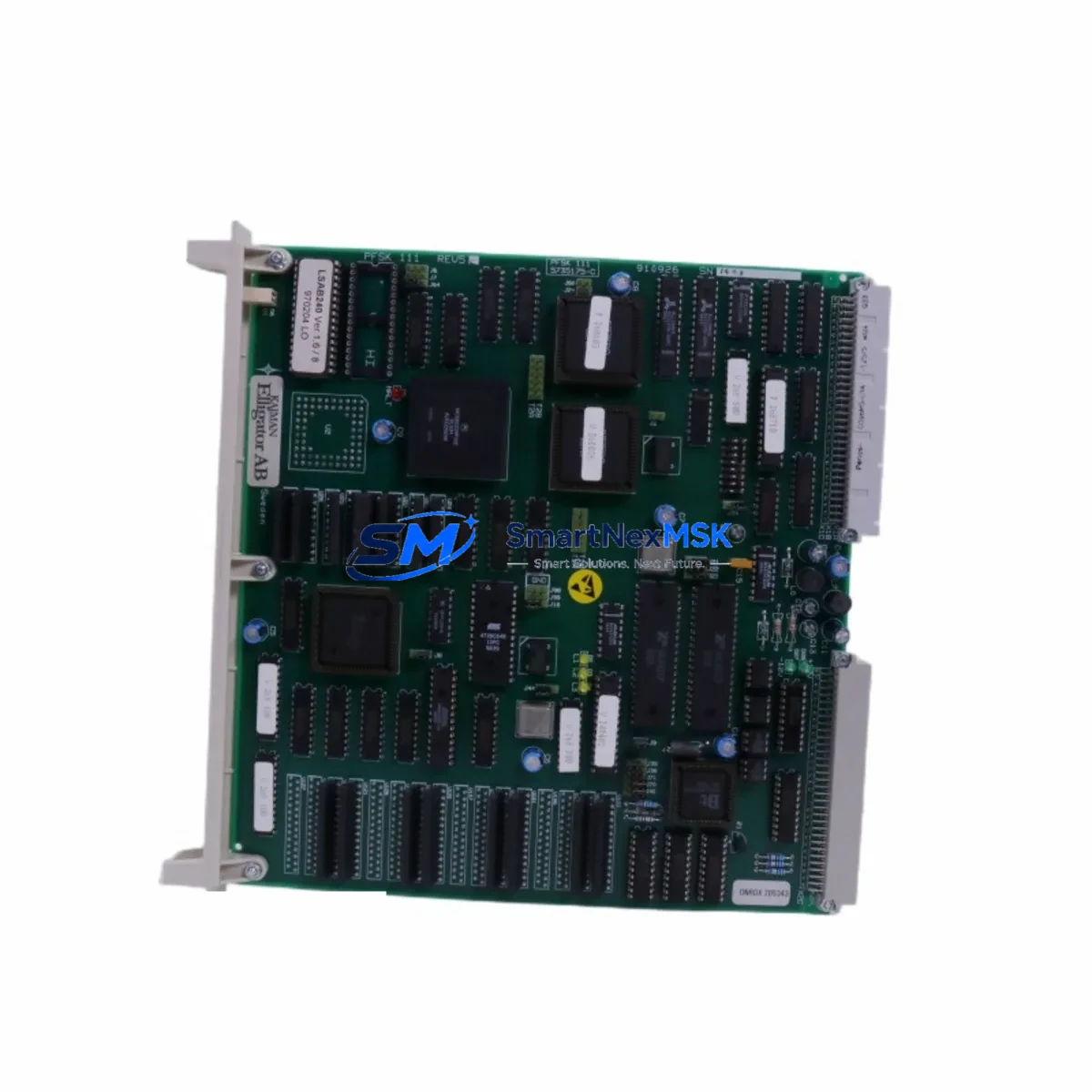

ABB PFSK111 5735175-C Retrofit-Ready Communications Module for Advant AC450 Control Systems
The ABB PFSK111 5735175-C is a field-proven communication and supervisory interface module originally designed for the Advant AC450 Distributed Control System platform. As legacy AC450 installations approach end-of-support milestones, plant engineers and automation integrators increasingly rely on verified replacement units to sustain production continuity without committing to a full platform migration. This module serves as a direct retrofit solution — maintaining rack compatibility, terminal wiring layouts, and supervisory communication links that existing AC450 architectures depend on.
Whether you are replacing a failed unit on an active production line, building a critical spare inventory for a remote facility, or executing a phased control system upgrade, the PFSK111 5735175-C provides the electrical and functional compatibility required to restore system operation with minimal engineering rework. Each unit supplied by SMARTNEXMSK is sourced from verified industrial channels, function-tested prior to dispatch, and backed by a 12-month warranty covering manufacturing defects and operational failures under normal service conditions.
Upgrade Compatibility Table
| Parameter | PFSK111 5735175-C Specification | Retrofit Notes |
|---|---|---|
| Platform Compatibility | ABB Advant AC450 DCS | Direct replacement; no rack modification required |
| Backplane Interface | Advant S100 I/O bus | Verify backplane slot assignment matches original module address |
| Communication Protocol | MasterBus 300 / RCOM | Confirm MasterBus segment address before power-up |
| Power Supply Requirement | 24 VDC via backplane | Verify PSU capacity; check DSQC power modules for load margin |
| Terminal Wiring | Standard Advant terminal block | Existing field wiring reusable; inspect for insulation condition |
| Module Address Setting | DIP switch / jumper configurable | Match address to original unit before insertion |
| HMI / SCADA Compatibility | Compatible with Advant Station AS500 and third-party OPC interfaces | Verify OPC server tag mapping after replacement |
| Firmware / Program Logic | Logic resides in AC450 controller, not module | No program re-download required for like-for-like swap |
| Installation Standard | DIN rail / rack mount per Advant cabinet spec | Confirm cabinet grounding and EMC bonding |
| Warranty | 12 Months | Covers manufacturing defects under normal operating conditions |
Retrofit Planning for Existing Automation Systems
Successful integration of the PFSK111 5735175-C into an operating AC450 system begins well before the physical swap. A structured retrofit plan reduces risk, protects existing program logic, and shortens the commissioning window significantly.
Start by auditing the existing rack configuration. The AC450 system typically houses the PFSK111 alongside processor modules such as the DSPC110 or DSPC172, power supply units like the DSQC604 or DSQC661, and a range of analog and digital I/O modules including the DSDP170 digital input module and DSAI130 analog input module. Confirm that the backplane — whether a 9-slot or 19-slot Advant S100 rack — has the correct slot reserved and that no address conflicts exist with adjacent modules.
Next, review the communication architecture. In most AC450 installations, the PFSK111 handles supervisory data exchange over MasterBus 300, linking field controllers to the operator station network. If the plant also uses a CI520 or CI522 communication interface for Profibus DP connectivity, verify that the MasterBus segment addressing does not overlap after the module replacement. Plants running parallel Profibus and MasterBus segments should document all node addresses before any hardware change.
Terminal wiring on the PFSK111 follows the standard Advant cabinet layout. In most cases, existing field cables can be reconnected directly to the replacement module without re-termination, provided the wiring was installed to original ABB specifications. Inspect each terminal for corrosion, loose ferrules, or insulation degradation — particularly in installations that have been in service for more than ten years. Where the original cabinet also contains a DSDO115 digital output module or DSAO120 analog output module sharing the same terminal rail, confirm that the replacement does not disturb adjacent wiring during installation.
For plants where the AC450 communicates upstream to a DCS historian or MES layer via an OPC DA server, plan for a brief OPC tag verification step after the module is seated and powered. The Advant Station AS500 operator interface typically reconnects automatically, but custom HMI faceplates referencing specific module addresses may require a manual refresh or tag re-scan depending on the SCADA configuration in use.
Finally, if the retrofit is part of a broader migration toward a more modern control platform — such as transitioning selected loops to an ABB System 800xA environment — the PFSK111 5735175-C can serve as a stable interim solution, maintaining legacy loop control while new engineering work proceeds in parallel. This staged approach avoids the risk of a full cutover and allows production to continue uninterrupted during the transition period.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary operational concern when replacing a communication module in an active DCS environment. The PFSK111 5735175-C supports a structured hot-swap procedure when the AC450 system is configured for redundant communication paths, but even in non-redundant installations, downtime can be controlled through careful pre-staging and a disciplined commissioning sequence.
Before initiating the physical replacement, export and archive the current AC450 application program from the engineering workstation. Even though program logic resides in the controller rather than the PFSK111 module itself, having a verified backup eliminates recovery risk in the event of an unexpected fault during power cycling. Confirm that the backup file matches the currently executing version by comparing the program checksum or version timestamp recorded in the engineering tool.
Schedule the replacement during a planned maintenance window whenever possible. Coordinate with the operations team to place the affected control loops in manual mode at the DCS operator station, ensuring that field actuators — control valves, motor starters, and variable speed drives — hold their last commanded positions during the module swap. Document the manual setpoints for each loop before initiating the changeover.
The physical replacement sequence should follow the standard Advant module extraction procedure: power down the rack segment if required, extract the failed PFSK111 using the module ejector levers, verify the address settings on the replacement unit match the original, seat the new module firmly into the backplane, and restore power. In most installations, the AC450 controller will automatically re-establish communication with the replacement module within 30 to 60 seconds of power restoration.
After power-up, verify communication status at the operator station, confirm that all I/O points associated with the module are reading correctly, and return control loops to automatic mode in a controlled sequence — starting with the least critical loops and progressing to primary process control loops. Log the completion time and module serial number in the plant maintenance record for warranty and traceability purposes.
Retrofit Support FAQ
Q: Is the PFSK111 5735175-C a direct drop-in replacement for the original ABB PFSK111 installed in my AC450 system?
A: Yes. The PFSK111 5735175-C is functionally and electrically equivalent to the original ABB factory unit. It uses the same backplane connector, terminal wiring layout, and MasterBus 300 communication interface. No rack modification or wiring change is required for a like-for-like swap. Confirm the module address DIP switch settings match the original unit before insertion.
Q: What commissioning steps are required after installing the replacement module?
A: After seating the module and restoring power, verify that the AC450 controller establishes communication with the PFSK111 within 60 seconds. Check the system diagnostic display at the operator station for any fault codes. Confirm that all associated I/O points are reading correctly and that MasterBus communication status indicators on the module front panel show normal operation. If the plant uses an OPC interface, perform a tag scan to confirm data integrity before returning loops to automatic control.
Q: Does SMARTNEXMSK test the PFSK111 5735175-C before shipment?
A: Yes. Every unit undergoes functional testing prior to dispatch, including power-up verification, communication interface checks, and visual inspection for physical condition. Units are shipped in anti-static packaging with individual test records. The 12-month warranty covers manufacturing defects and operational failures under normal service conditions from the date of delivery.
Q: What is the lead time and what warranty coverage applies?
A: In-stock units are typically dispatched within 1–3 business days. Express shipping options are available for urgent breakdown situations. All units carry a 12-month warranty. Warranty claims are supported by SMARTNEXMSK’s technical team, and replacement or repair is arranged without requiring the customer to return to the original equipment manufacturer.
