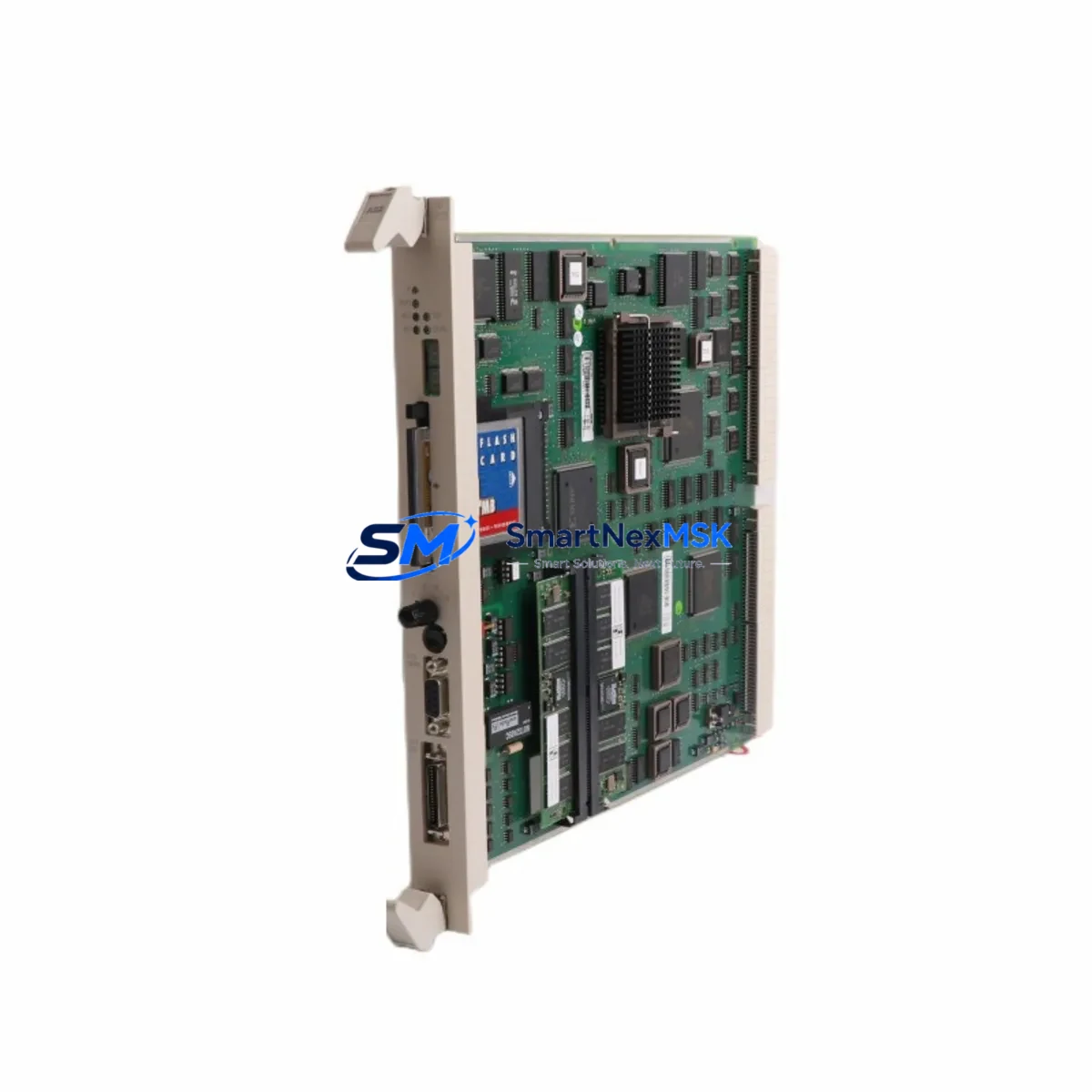

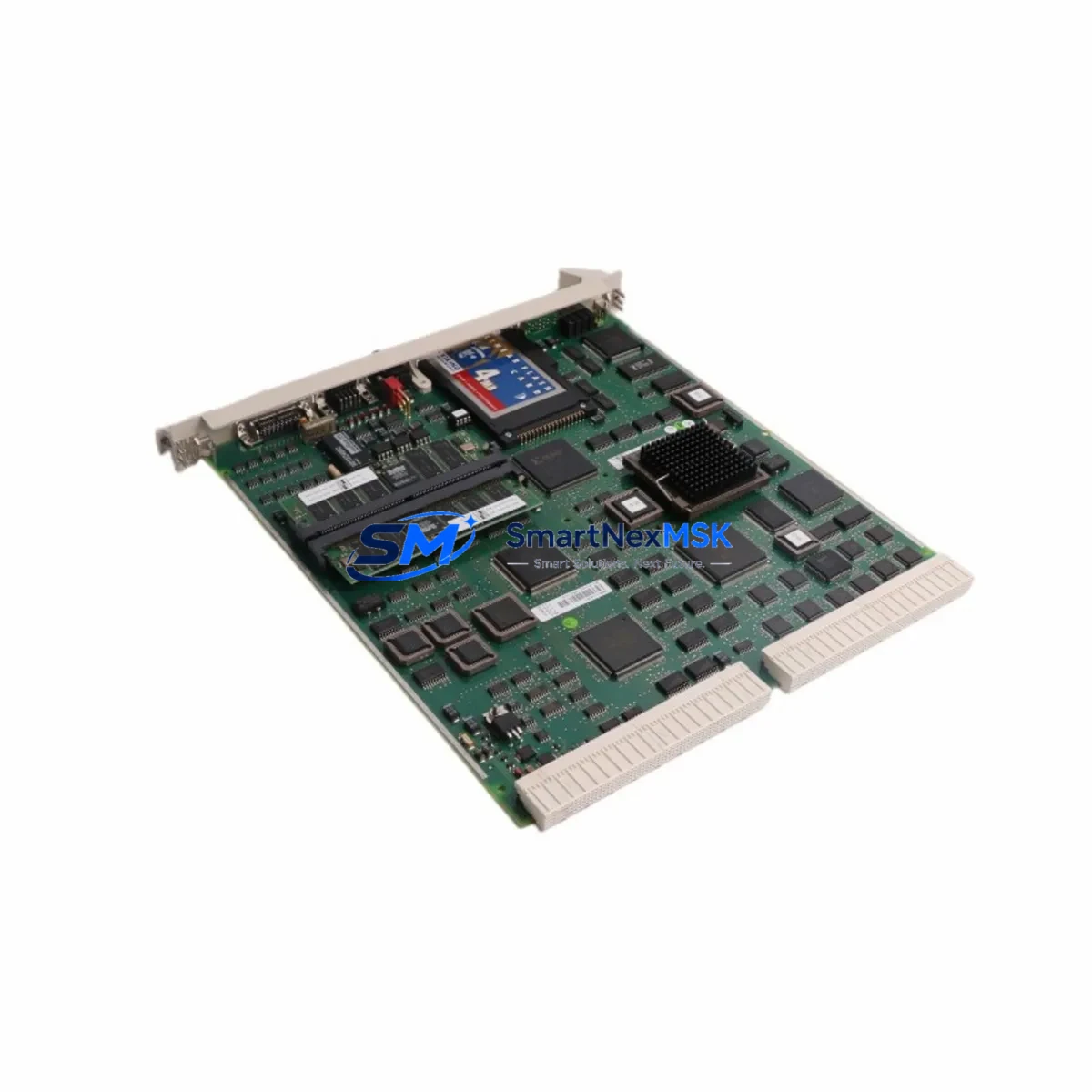

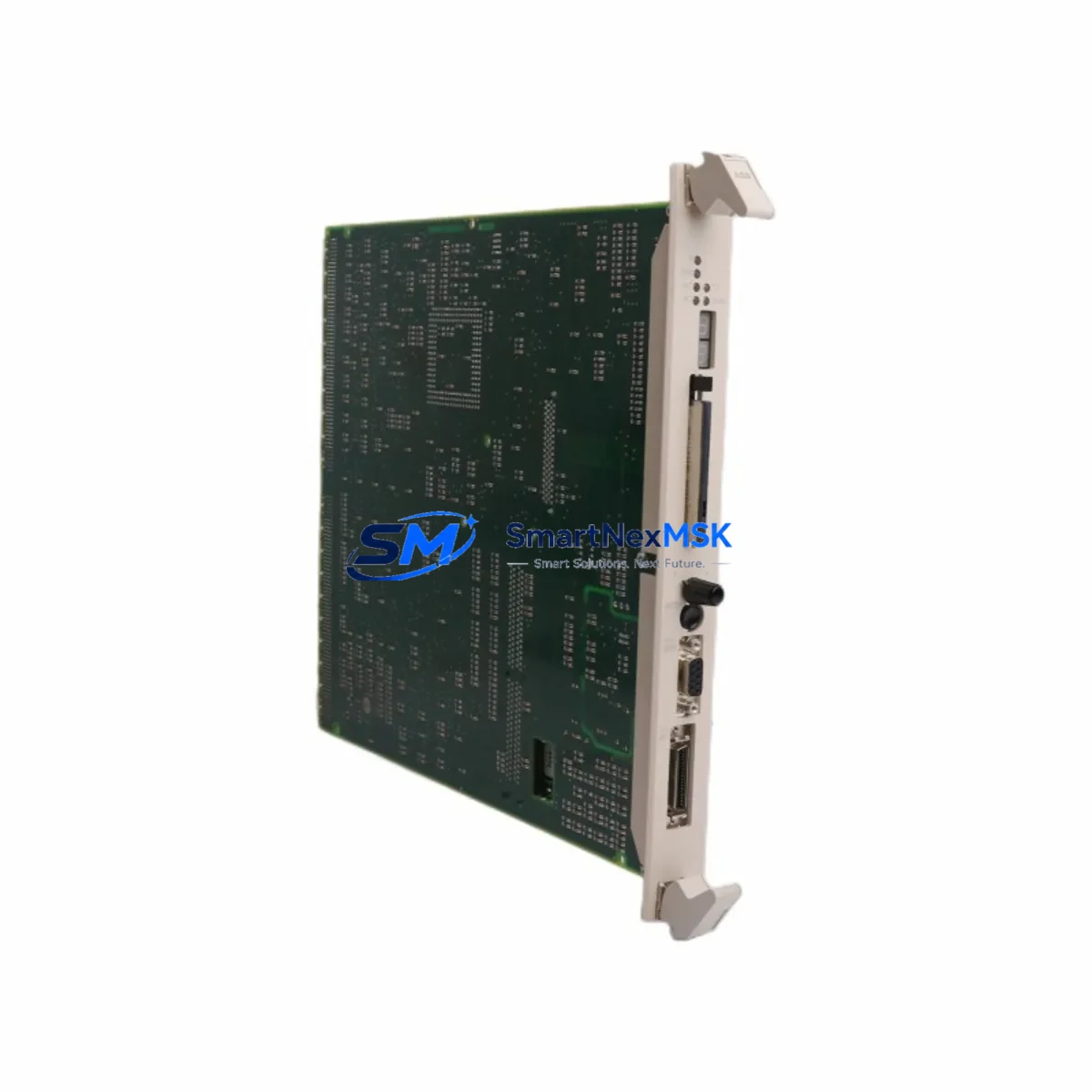

The ABB PM511V16 is a high-performance CPU module designed for the AC500 programmable logic controller platform — one of ABB’s most widely deployed automation architectures in process control, machine automation, and infrastructure applications. As a maintenance-ready spare, the PM511V16 is sourced as an original unit, inspected, and tested prior to shipment to ensure drop-in compatibility with existing AC500 control cabinets. With 16 MB of program memory and full support for the AC500 I/O bus, this module is engineered to restore system operation with minimal reconfiguration and zero firmware compromise.

For maintenance engineers managing aging AC500 installations, unplanned CPU failure represents one of the highest-risk downtime events in a control system lifecycle. The PM511V16 addresses this risk directly: it supports the same communication interfaces, program execution environment, and I/O expansion architecture as the original installed unit, enabling a verified swap-out without re-engineering the control logic or rewiring the cabinet. Procurement engineers can stock this module with confidence — it ships with a 12-month warranty and full pre-shipment functional verification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PM511V16 CPU module is flagged for replacement during a scheduled inspection or emergency fault response, experienced maintenance engineers know that the CPU is rarely the only component that warrants attention. A thorough cabinet audit at the time of CPU replacement significantly reduces the probability of a secondary failure within the same maintenance window.

Begin with the power supply module — the AC500 platform relies on a dedicated 24 V DC power supply (such as the CP502 or equivalent) to feed the CPU and backplane. A degraded power supply can cause intermittent CPU resets that mimic firmware or hardware faults; replacing the CPU without verifying supply voltage ripple and load capacity is a common maintenance oversight. Alongside the power supply, inspect the terminal base (TB511 or TB521) that the PM511V16 seats into — contact corrosion or mechanical wear on the terminal base can cause communication errors even with a new CPU installed.

Next, audit the S500 I/O expansion modules connected to the AC500 backplane. Digital input modules (DI524, DI572) and digital output modules (DO524, DO572) are frequent wear items in high-cycle applications; their status LEDs and diagnostic registers should be read before the CPU is swapped to establish a pre-replacement baseline. Analog I/O modules (AI523, AO523) in process control loops should be verified for signal drift and calibration status, particularly in temperature-sensitive environments.

Communication infrastructure deserves equal attention. If the PM511V16 is operating as a MODBUS TCP master or slave, verify the Ethernet switch ports, patch cables, and any CM572-DP PROFIBUS communication modules in the same cabinet. A CPU replacement that disrupts network addressing or PROFIBUS node configuration can extend downtime well beyond the physical swap time. For systems using CS31 remote I/O, inspect the CS31 bus termination resistors and cable shielding continuity.

Finally, review the 24 V DC distribution fuses and circuit breakers feeding the I/O field devices. Relay output modules and their associated relay coils, as well as any signal isolators or barriers in the analog loops, should be checked for contact wear and insulation resistance. HMI panels connected to the AC500 via serial or Ethernet — including CP600 series operator panels — should be tested for communication re-establishment after the CPU is restarted with the replacement module. A complete maintenance record covering all these components transforms a reactive CPU swap into a proactive system health event.

Site Replacement Workflow

Step 1 — Backup and Documentation: Before removing the PM511V16, use ABB Automation Builder to export the current PLC program, hardware configuration, and IP address settings. Store the backup on a local engineering laptop and a network share. Record the firmware version currently running on the CPU.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. De-energize the AC500 system via the main cabinet isolator. Confirm 24 V DC bus voltage is zero before touching the CPU module.

Step 3 — Module Removal: Release the PM511V16 from the TB511/TB521 terminal base by pressing the release lever and sliding the module upward. Note the orientation of any memory card (SD card) installed in the CPU — this card may contain the program and retain data across the swap.

Step 4 — Replacement Installation: Seat the new PM511V16 onto the terminal base, ensuring the module clicks into the locking position. If the original SD card is intact and the program is stored on it, re-insert it into the replacement CPU. This allows the system to boot directly from the stored program without requiring a download from the engineering station.

Step 5 — Power-On and Verification: Re-energize the cabinet. Confirm the CPU RUN LED illuminates and no fault LEDs are active. Reconnect Automation Builder and verify the program is executing correctly. Check all I/O module status indicators and confirm field device communication is restored.

Step 6 — System Handover: Document the replacement in the site maintenance log, including the serial number of the replaced and installed modules, date, technician name, and post-replacement test results. Update the spare parts inventory to trigger reorder of a replacement PM511V16 for the next maintenance cycle.

Spare Parts Support FAQ

Q1: Is the PM511V16 compatible with both AC500 V2 and V3 systems?
The PM511V16 is designed for the AC500 V2 platform. Before installation in a V3 system, verify the terminal base version and firmware compatibility using ABB’s hardware compatibility matrix in Automation Builder. In most cases, V2 CPU modules operate correctly in V2-generation backplanes and terminal bases; cross-generation mixing requires engineering confirmation.

Q2: What pre-shipment testing is performed on the PM511V16?
Each unit undergoes a power-on functional test to verify CPU boot, LED status, and communication port activity before dispatch. Units sourced as original new stock are shipped in original or equivalent protective packaging. Refurbished-to-spec units are tested to the same functional standard and carry the same 12-month warranty.

Q3: How should the PM511V16 be stored as a long-term spare?
Store in a dry, temperature-controlled environment (10 °C to 40 °C, <75% RH non-condensing). Keep in anti-static packaging. Avoid storage near strong magnetic fields or vibration sources. Inspect annually for physical damage and verify the SD card (if included) is readable. For critical infrastructure sites, a minimum of one PM511V16 per installed AC500 system is recommended as a cold-standby spare.

Q4: What is the warranty coverage and return process?
All PM511V16 units are covered by a 12-month warranty from the date of shipment. Warranty covers manufacturing defects and functional failures under normal operating conditions. To initiate a warranty claim, contact our technical support team with the order number, serial number, and a description of the fault. We will arrange return shipping and provide a replacement or repair within the agreed service timeline.
