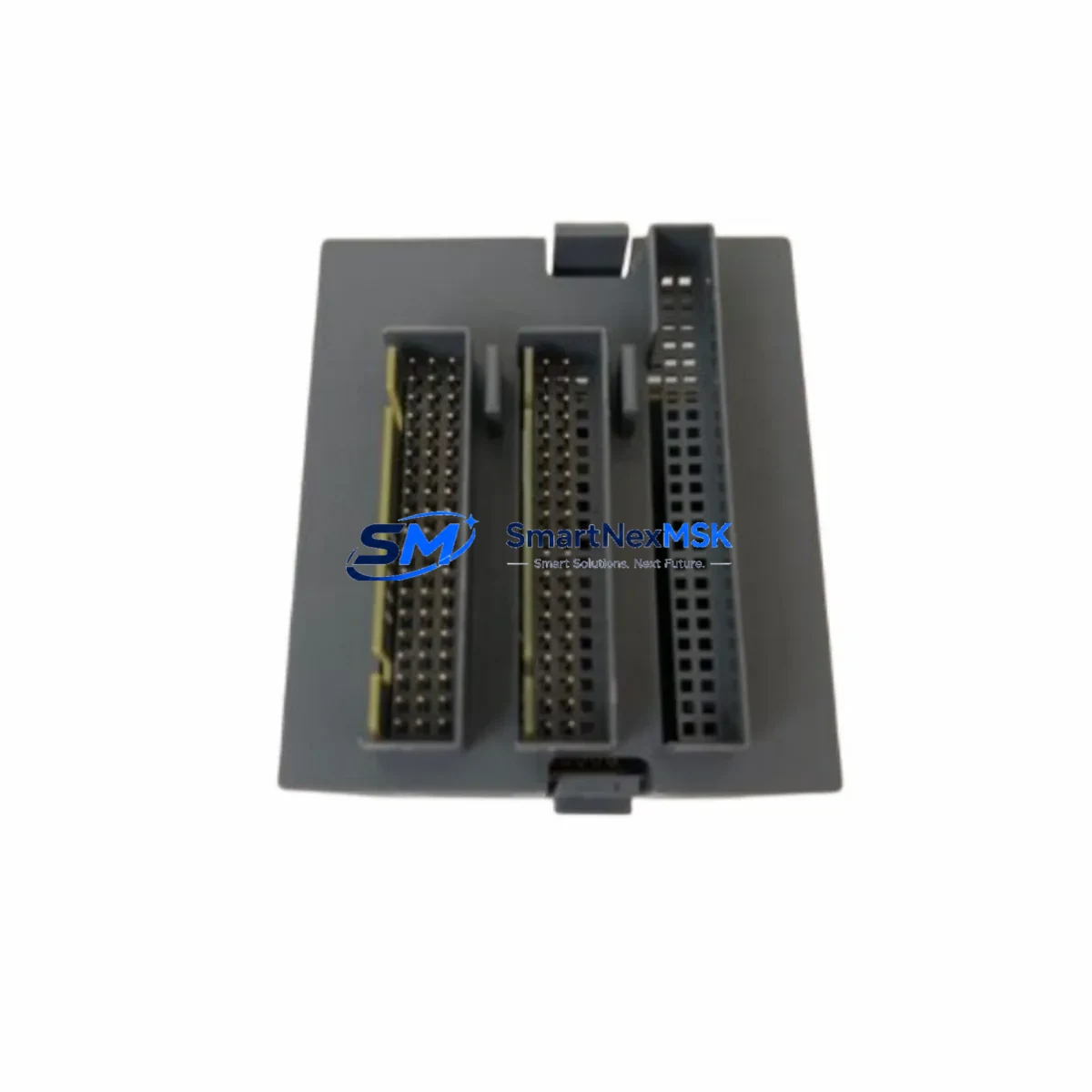

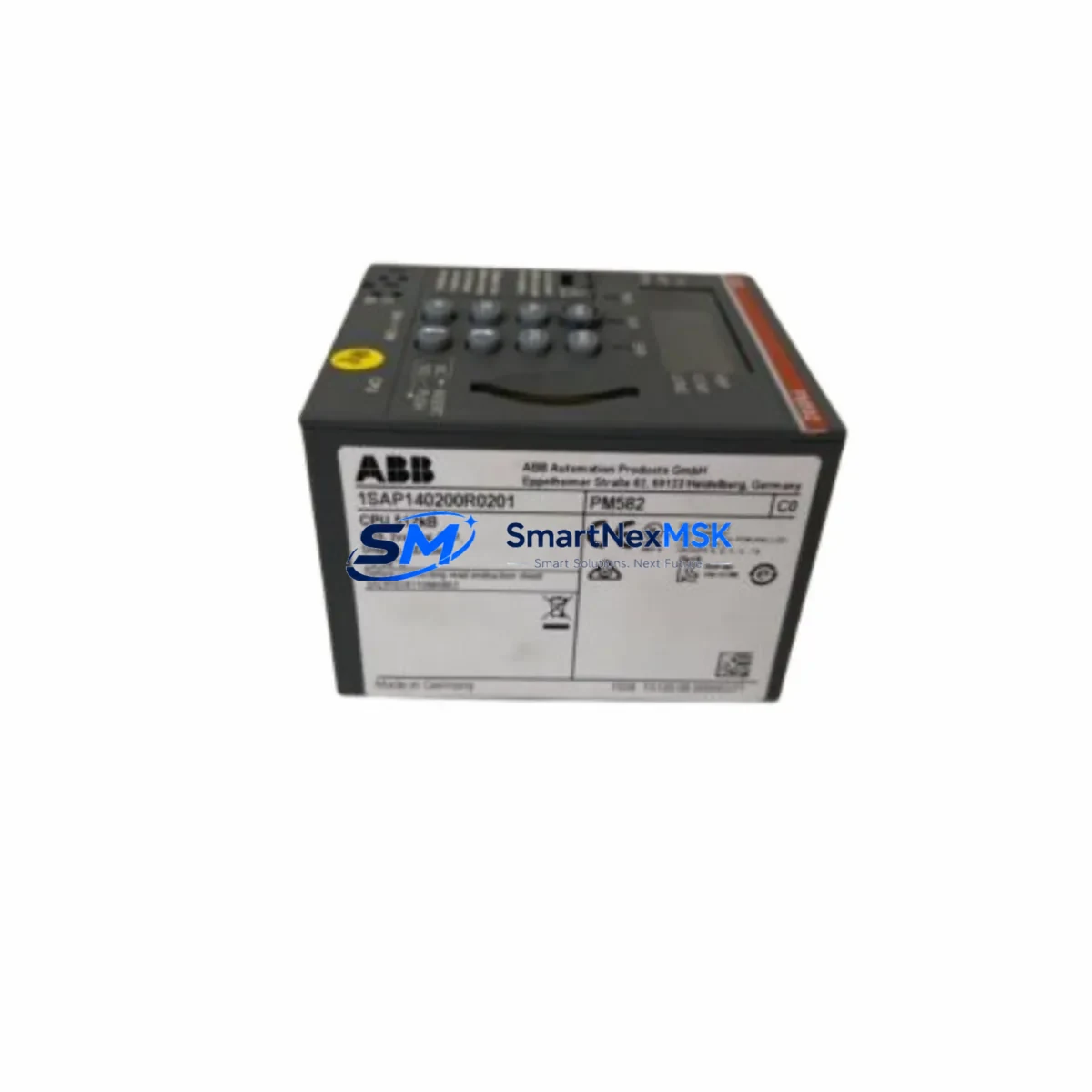

The ABB PM582 (order reference 1SAP140200R0201) is a high-performance CPU module within the ABB AC500 programmable logic controller platform — one of the most widely deployed modular PLC families in industrial automation, process control, and critical infrastructure applications worldwide. Maintaining an on-hand spare of the PM582 is a proven strategy for reducing unplanned downtime, accelerating fault recovery, and extending the operational life of legacy AC500 control systems without requiring a full platform migration.

For maintenance engineers and spare parts procurement teams, the PM582 represents a mission-critical node in the control architecture. When this CPU fails or degrades, the entire control loop — including I/O scanning, program execution, and communications — is interrupted. Having a verified, tested replacement unit available on-site or through a reliable supplier with short lead times is essential for any facility operating under tight production schedules or safety-critical uptime requirements.

Each unit supplied by SMARTNEXMSK is sourced from authorized channels, inspected against ABB factory specifications, and tested prior to shipment. A 12-month warranty is included with every order, covering functional defects under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PM582 CPU module is flagged for replacement during a scheduled inspection or emergency fault response, experienced maintenance engineers know that the CPU is rarely the only component that requires attention. A thorough site assessment should accompany any CPU swap to prevent repeat failures and ensure the restored system operates reliably.

Begin by inspecting the TB521 or TB541 terminal base that the PM582 seats into — worn connector pins or cracked housings can cause intermittent communication faults that are often misdiagnosed as CPU failures. Verify the 24 V DC power supply module (such as the ABB CP502 or CP504) is within voltage tolerance; an under-voltage condition is a common root cause of CPU resets and memory corruption events.

Check all SM500-series digital and analog I/O modules connected to the AC500 backplane. A failed SM560-S safety I/O module or a degraded SM532 analog input module can generate bus errors that stress the CPU and accelerate wear. Inspect the I/O bus ribbon connectors and backplane slots for oxidation or mechanical damage.

For systems using fieldbus communication, audit the CM589-PNIO PROFINET communication module or CM572-DP PROFIBUS DP master module — these are frequent failure points in high-cycle industrial environments and should be part of any planned maintenance kit alongside the PM582. Similarly, review the RS-232/RS-485 serial communication wiring for impedance mismatches or ground loops that can corrupt Modbus RTU traffic.

If the control cabinet includes an ABB CP600 or CP620 HMI panel, verify that the Ethernet link to the PM582 is stable and that the HMI project firmware is compatible with the replacement CPU firmware version. Firmware mismatches between the CPU and HMI are a common source of post-replacement commissioning delays.

Finally, inspect terminal blocks, fuse holders, and 24 V DC distribution rails within the control cabinet. Loose terminations and blown fuses on I/O supply circuits are often discovered only after a CPU replacement reveals previously masked faults. Proactively replacing aging signal isolators on analog input loops and checking surge protection devices on communication lines will further reduce the risk of repeat failures after the PM582 is restored to service.

Site Replacement Workflow

Step 1 — Pre-replacement backup: Using ABB Automation Builder, export the full PLC project (program, hardware configuration, and symbol table) to a secure location. Confirm the firmware version of the existing PM582 and download the matching firmware package for the replacement unit.

Step 2 — Safe isolation: Follow site LOTO (Lockout/Tagout) procedures. De-energize the AC500 system via the main cabinet isolator. Confirm zero-energy state on the 24 V DC supply rail before handling the CPU module.

Step 3 — Module removal: Release the PM582 from the TB521/TB541 terminal base by pressing the release lever and sliding the module upward. Note the SD memory card slot — if a program SD card is installed, transfer it to the replacement unit to preserve the onboard program backup.

Step 4 — Replacement installation: Seat the new PM582 onto the terminal base, ensuring the connector engages fully. Re-energize the system and confirm the CPU status LEDs indicate normal boot sequence (RUN LED solid green, ERR LED off).

Step 5 — Program restore and verification: If the SD card method is not used, download the project from Automation Builder via Ethernet. Perform a full I/O force test to verify all digital and analog channels respond correctly. Confirm PROFINET or Modbus TCP communication with remote devices is re-established.

Step 6 — Documentation: Record the replacement date, new unit serial number, and firmware version in the site maintenance log. Update the spare parts inventory to trigger reorder of a replacement PM582 unit for the next maintenance cycle.

Spare Parts Support FAQ

Q1: Is the PM582 1SAP140200R0201 compatible with both AC500 V2 and V3 systems?
The PM582 is designed for the AC500 V2 platform. Compatibility with AC500 V3 hardware should be verified against ABB’s official compatibility matrix, as V3 introduced architectural changes to the CPU and I/O bus. SMARTNEXMSK recommends confirming your existing terminal base model (TB521 vs. TB541) and firmware baseline before ordering.

Q2: What testing is performed before shipment?
Every PM582 unit is powered on and subjected to a functional boot test, communication port verification, and visual inspection for connector integrity and physical damage. Units that do not pass all checks are not shipped. A test report is available upon request for critical procurement orders.

Q3: What does the 12-month warranty cover?
The warranty covers functional defects arising under normal operating conditions — including CPU boot failures, communication port faults, and I/O bus interface errors — for 12 months from the date of shipment. Physical damage caused by incorrect installation, overvoltage, or environmental exposure outside the rated operating range is excluded.

Q4: Can you support long-term or blanket spare parts orders for AC500 systems?
Yes. SMARTNEXMSK supports scheduled procurement programs for maintenance teams managing multiple AC500 installations. Contact our sales team to discuss volume pricing, reserved stock arrangements, and lead-time commitments for PM582 and associated AC500 components including power supplies, I/O modules, and communication modules.
