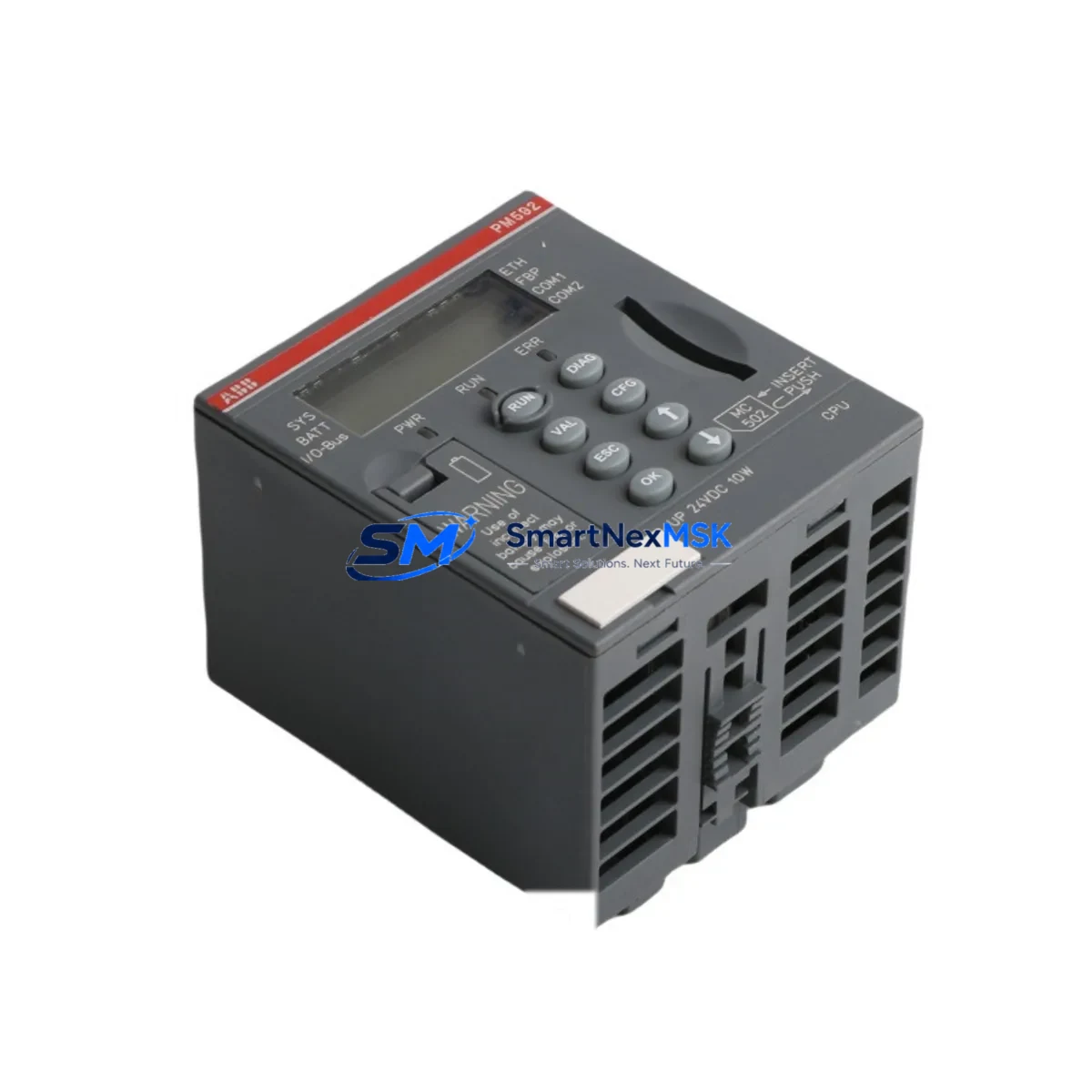

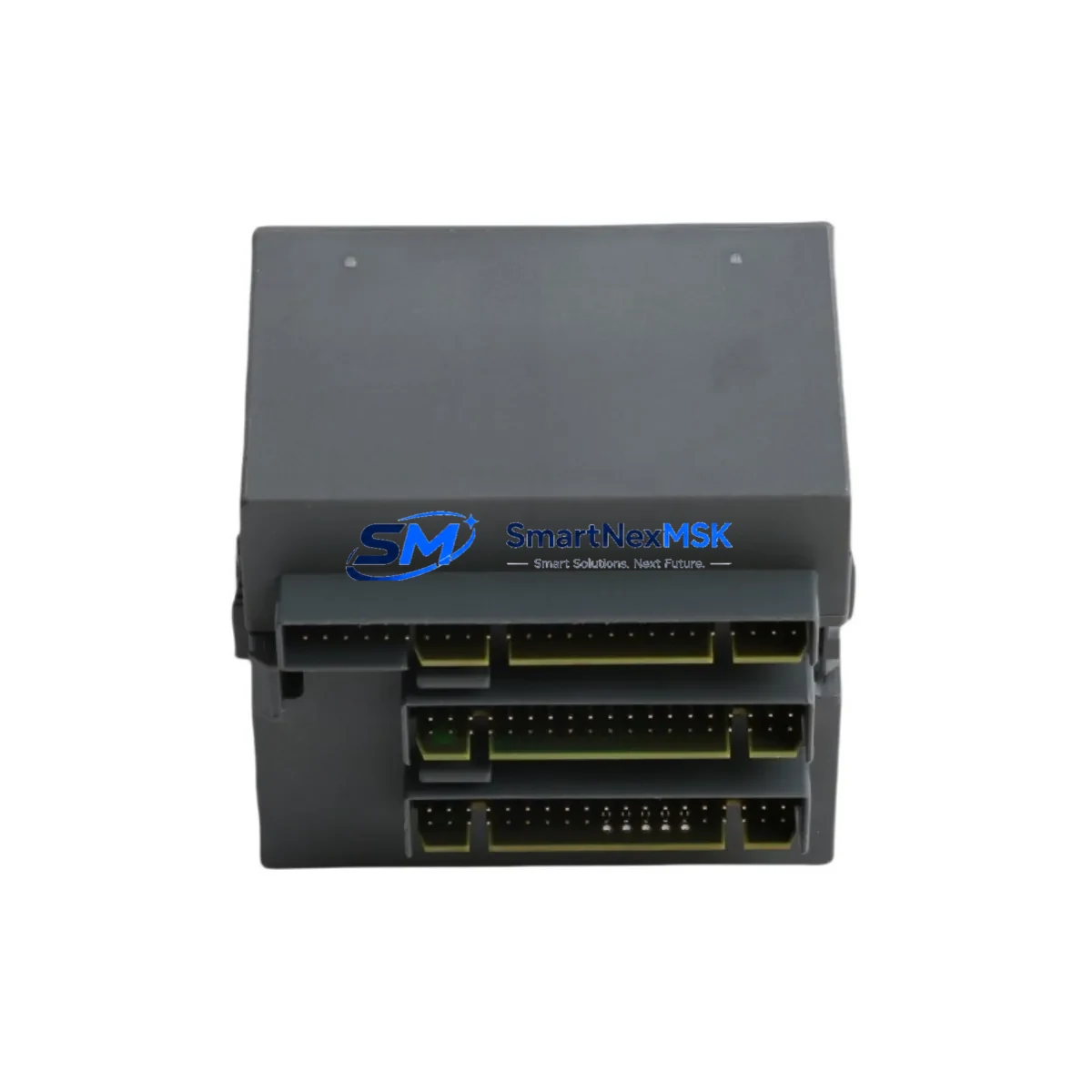

The ABB PM592-ETH (1SAP350200R0271) is a high-performance Ethernet CPU module designed for the AC500 programmable logic controller platform. As a maintenance-ready spare, this unit is sourced, tested, and stocked to support rapid replacement in production environments where unplanned downtime carries significant operational and financial risk. Whether you are managing a scheduled overhaul, responding to an unexpected CPU fault, or building a strategic spare parts inventory for aging AC500 systems, the PM592-ETH delivers the compatibility, reliability, and documentation traceability that industrial maintenance and procurement engineers require.

The PM592-ETH integrates onboard Ethernet communication, enabling direct connectivity to PROFINET, Modbus TCP, and FTP-based programming environments without requiring an additional communication module. This makes it a compact and cost-effective CPU choice for mid-range AC500 control cabinets. Its compatibility spans both AC500 V2 and AC500 V3 hardware generations, allowing maintenance teams to standardize on a single spare SKU across multiple installed system variants — a critical advantage for facilities managing large fleets of ABB controllers.

When replacing the PM592-ETH in the field, maintenance engineers should treat the CPU swap as an opportunity for a broader control cabinet inspection. The CPU interfaces directly with the AC500 backplane bus, and any degradation in the TB511-ETH or TB521-ETH terminal base can introduce intermittent faults that persist even after a CPU replacement. Inspect the terminal base contacts, verify the SD memory card (if used for program backup), and confirm that the 24 VDC supply rail — typically sourced from a CP-E 24/10.0 or equivalent power supply module — is within tolerance before powering up the replacement unit.

I/O expansion modules connected to the CPU via the S500 local bus — including digital input modules such as the DC532 or DC522, analog input modules such as the AI531, and digital output modules such as the DO531 — should be inspected for loose terminal connections and verified against the existing hardware configuration stored in Automation Builder. Communication modules such as the CM572-DP (PROFIBUS DP master) or CM589-PNIO (PROFINET IO controller), if present in the rack, should be checked for firmware compatibility with the replacement CPU firmware version to avoid bus initialization errors on restart.

For facilities operating legacy AC500 systems beyond their standard product lifecycle, the PM592-ETH spare provides a practical path to system life extension without requiring a full platform migration. Pairing this CPU spare with a documented backup of the application program, a tested SD card image, and a verified set of I/O configuration parameters allows maintenance teams to achieve cold-start recovery in under two hours in most installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for AC500-based control systems requires more than stocking the CPU module alone. A complete spare parts strategy for a PM592-ETH installation should include the following components, evaluated based on system age, duty cycle, and criticality:

• TB511-ETH / TB521-ETH Terminal Base: The mechanical and electrical interface between the CPU and the backplane. Worn or corroded contacts are a common source of intermittent CPU faults in high-vibration environments.
• CP-E 24/10.0 Power Supply Module: Provides the 24 VDC rail for the CPU and I/O bus. Voltage ripple or dropout events are a leading cause of unexpected CPU resets. Verify output voltage under full load before commissioning the replacement CPU.
• DC532 / DC522 Digital Input Modules: Inspect for blown input channels or damaged terminal wiring. A faulty input module can generate diagnostic alarms that are incorrectly attributed to the CPU.
• DO531 Digital Output Module: Check output transistors for short-circuit damage, particularly in applications with inductive loads lacking adequate suppression.
• AI531 Analog Input Module: Verify signal wiring integrity and shielding continuity. Analog signal noise can cause process instability that is misdiagnosed as a CPU processing error.
• CM572-DP PROFIBUS DP Master Module: Confirm firmware version compatibility with the replacement CPU. Mismatched firmware can prevent bus initialization and delay restart.
• CM589-PNIO PROFINET IO Controller: Verify IP address configuration and device name assignments are preserved in the replacement CPU program backup.
• SD Memory Card (AC500 compatible): Used for program backup and fast cold-start recovery. Inspect for write-protect switch position and verify backup integrity before relying on it for emergency restart.
• 24 VDC Fuse / Circuit Breaker (S-ARC1 or equivalent): Inspect upstream protection devices for signs of thermal stress or nuisance tripping that may indicate an underlying wiring fault.
• CP-B 24/10.0 Buffer Module (if installed): Provides ride-through capability during brief power interruptions. Verify capacitor health if the system has been in service for more than five years.

Site Replacement Workflow

Replacing the PM592-ETH in an operational AC500 system follows a structured sequence designed to minimize downtime and eliminate configuration errors:

1. Pre-Replacement Backup: Export the full application program from Automation Builder, including hardware configuration, variable lists, and communication settings. Save the SD card image if the system uses card-based program storage.
2. Power Down and Isolation: De-energize the control cabinet following site lockout/tagout procedures. Verify zero voltage on the 24 VDC supply rail before handling the CPU module.
3. Module Removal: Release the CPU from the terminal base by pressing the release lever. Note the SD card position and remove it for transfer to the replacement unit if applicable.
4. Terminal Base Inspection: Inspect the TB511-ETH or TB521-ETH contacts for corrosion, deformation, or debris. Clean with appropriate contact cleaner if required.
5. Replacement CPU Installation: Seat the PM592-ETH replacement unit firmly onto the terminal base until the locking mechanism engages. Insert the SD card if used.
6. Firmware Verification: Power up the CPU and verify firmware version via the front panel display or Automation Builder. Update firmware if required to match the application program version.
7. Program Download and Commissioning: Download the application program, verify I/O mapping, and perform a controlled test start. Monitor diagnostic LEDs and Automation Builder online diagnostics for any residual faults.
8. Documentation Update: Record the replacement date, new CPU serial number, and firmware version in the site maintenance log.

This workflow is compatible with both hot-standby and simplex AC500 configurations and supports replacement of legacy PM591-ETH and PM590-ETH units where hardware generation compatibility permits.

Spare Parts Support FAQ

Q1: Is the PM592-ETH 1SAP350200R0271 compatible with both AC500 V2 and V3 systems?
Yes. The PM592-ETH is designed for use across AC500 V2 and V3 hardware generations when paired with a compatible terminal base (TB511-ETH or TB521-ETH). Always verify the firmware version against your installed application program before commissioning.

Q2: What testing is performed before shipment?
Each PM592-ETH unit undergoes functional power-on testing and visual inspection prior to dispatch. Units are verified for communication port integrity and basic CPU initialization. A 12-month warranty from the date of shipment covers manufacturing defects and functional failures under normal operating conditions.

Q3: How should I manage PM592-ETH spare inventory for a multi-site AC500 installation?
For facilities operating five or more AC500 systems, we recommend maintaining at least one PM592-ETH spare per site, with a centralized regional buffer stock for emergency dispatch. Given the CPU’s compatibility across V2 and V3 generations, a single SKU can cover multiple system variants, simplifying inventory management and reducing carrying costs.

Q4: Can the PM592-ETH replace older AC500 CPU models such as the PM591-ETH or PM590-ETH?
In many installations, yes — subject to hardware generation compatibility and terminal base type. The PM592-ETH offers expanded memory and communication capabilities compared to earlier AC500 CPU models. A firmware and hardware configuration review in Automation Builder is recommended before substituting CPU models to confirm full compatibility with the existing I/O and communication module set.
