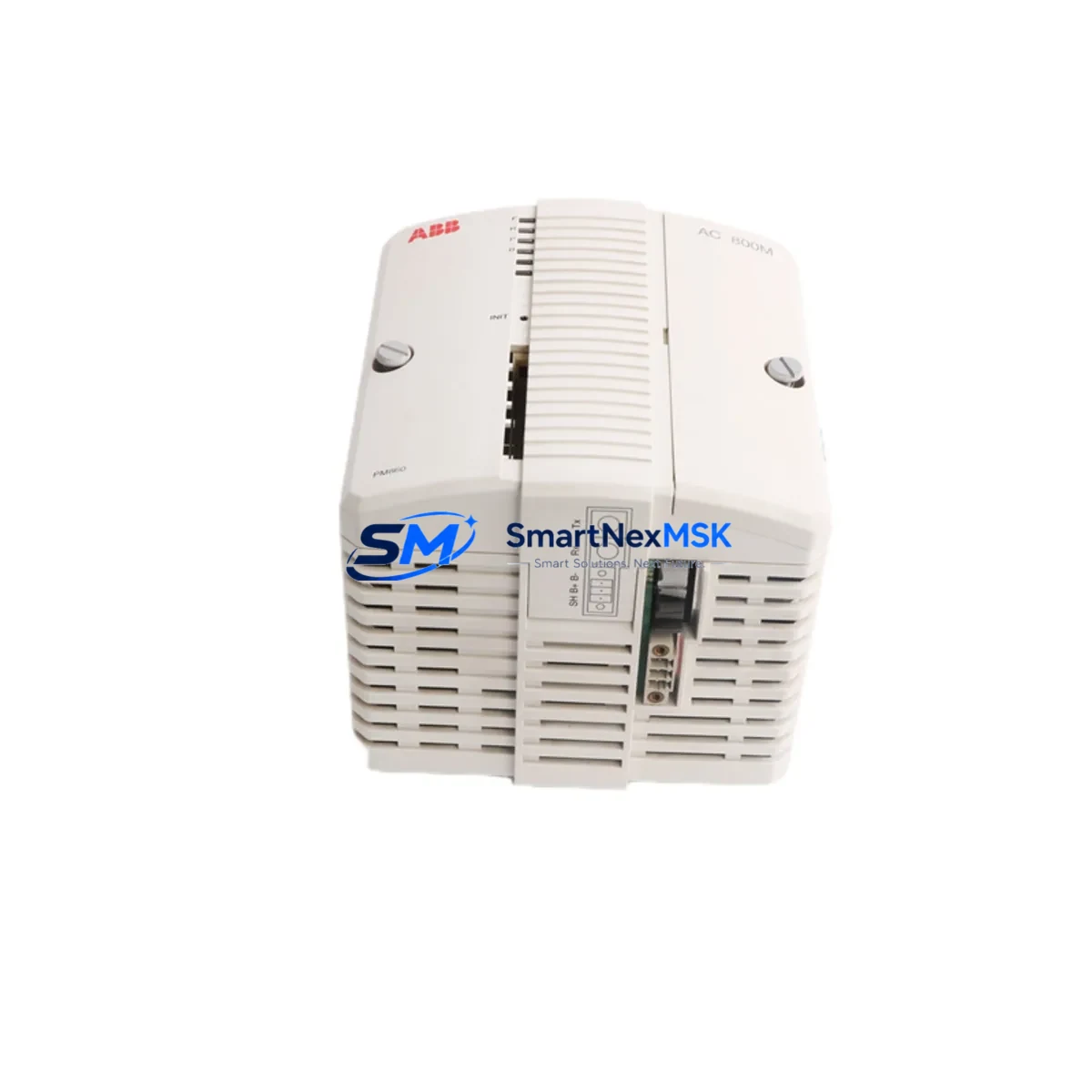

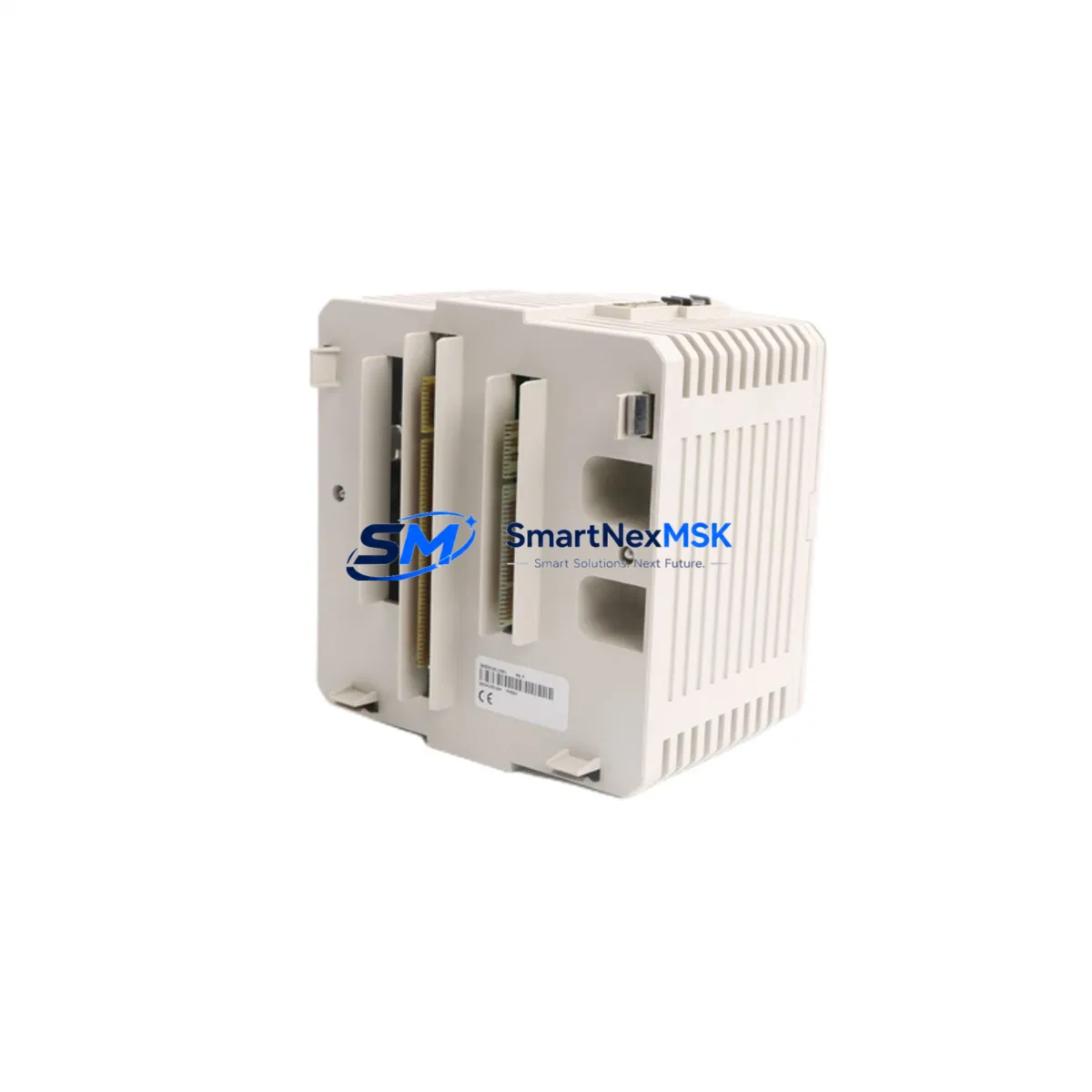

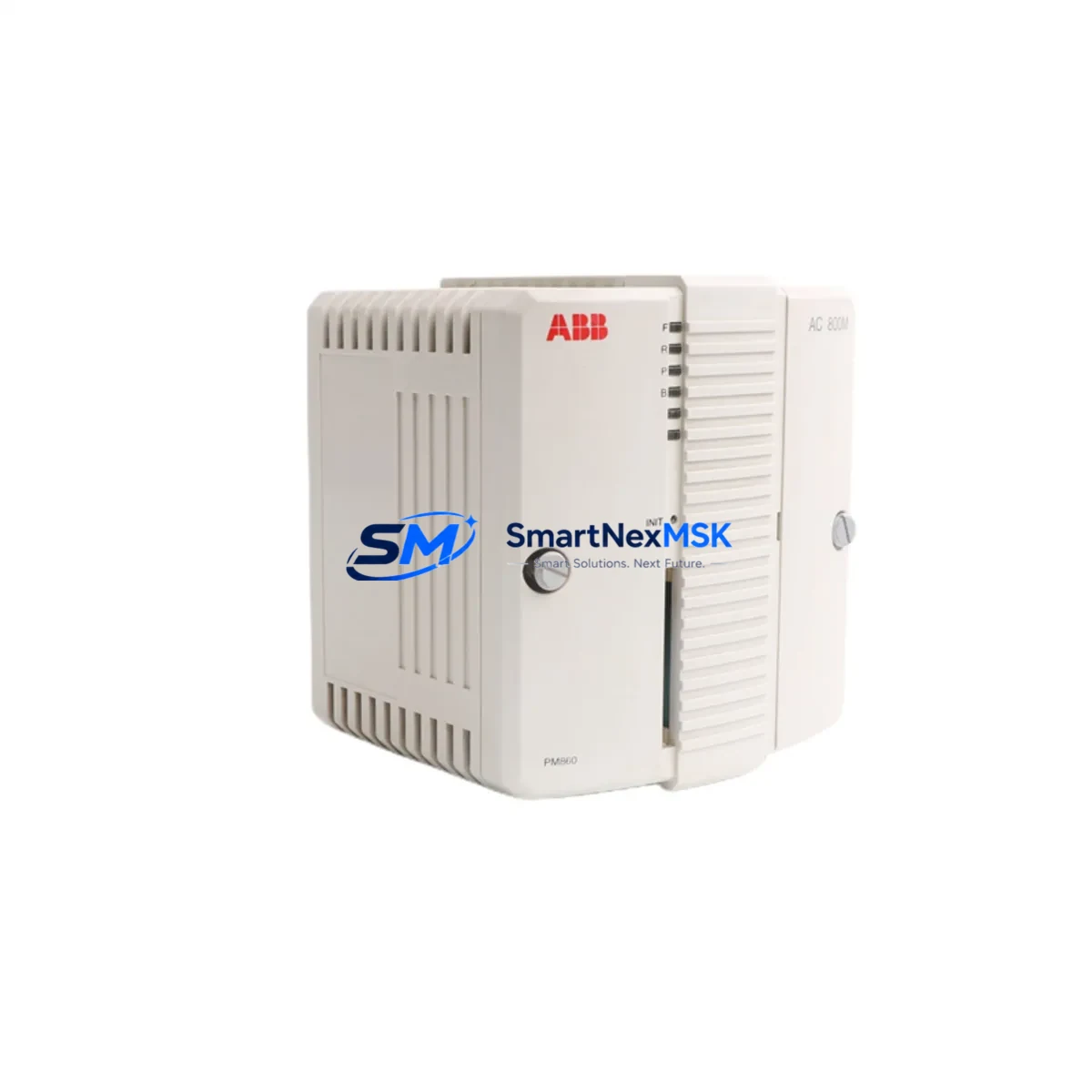

ABB PM860 3BSE018110R1 Maintenance-Ready Spare AC800M Automation

ABB PM860 3BSE018110R1 Maintenance-Ready Spare AC800M Automation

Unplanned downtime in process automation is costly. When the central processor module of an AC800M controller fails, every minute of lost production translates directly into financial and operational risk. The ABB PM860 (3BSE018110R1) is the original central processor unit for the AC800M controller family — a cornerstone of ABB’s distributed control system (DCS) and PLC architecture deployed across power generation, oil & gas, pulp and paper, chemical processing, and water treatment facilities worldwide. Stocking a verified, tested PM860 3BSE018110R1 spare is not optional for any site running AC800M-based control loops — it is a fundamental element of a sound maintenance strategy.

This listing provides an original ABB PM860 3BSE018110R1 processor module, sourced through verified industrial supply channels, pre-shipment tested, and backed by a 12-month warranty. Whether you are building a critical spare inventory, executing a planned turnaround, or responding to an emergency fault, this module ships ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The PM860 3BSE018110R1 sits at the heart of the AC800M control node. When planning a replacement or conducting a scheduled inspection, maintenance engineers should treat the processor module as part of a broader system health review — not an isolated swap. A thorough site replacement workflow should include inspection of the following associated components:

Begin with the PM856 or PM861 power supply module, which feeds regulated 24 VDC to the processor backplane. A degraded power supply is a leading cause of intermittent CPU faults and should be replaced proactively if it has been in service for more than five years. Alongside the power supply, inspect the TB840 or TB842 terminal base on which the PM860 is mounted — check for oxidized contacts, loose locking tabs, and proper seating.

The AC800M system relies on the CEX-Bus (Controller Extension Bus) for communication between the processor and I/O modules. Inspect CEX-Bus cables and connectors for continuity and secure termination. Any S800 I/O modules — such as AI810 analog input, AO810 analog output, DI810 digital input, or DO810 digital output modules — connected to the controller should be verified for correct addressing and signal integrity after a CPU replacement, as module configuration is stored on the processor.

For sites using CI854 PROFIBUS DP communication interface modules or CI857 Industrial Ethernet fieldbus modules, confirm that network parameters and node addresses are correctly restored from the control builder project backup following the PM860 swap. Communication module firmware compatibility with the replacement processor version should also be verified.

If the AC800M node is part of a redundant controller pair, inspect the redundancy link cable and the partner processor module (PM860 or PM861) to confirm synchronization is re-established after the replacement. Battery-backed SRAM on the PM860 retains process data during power interruptions — replace the backup battery (ABB 3BSC950107R1 or equivalent) whenever the processor module is replaced, regardless of the battery’s apparent charge state.

Finally, review the SA811 or SA801 power distribution modules in the cabinet for correct voltage output, and inspect terminal blocks and field wiring for tightness and insulation integrity. A complete cabinet inspection at the time of CPU replacement significantly reduces the risk of secondary faults following restart.

Site Replacement Workflow

Step 1 — Preparation: Download and archive the current AC800M project from ABB Control Builder M before any hardware change. Confirm the firmware version of the replacement PM860 3BSE018110R1 is compatible with your project version. If a firmware upgrade is required, perform it on the bench before installation.

Step 2 — Safe Isolation: Follow site lock-out/tag-out (LOTO) procedures. Switch the controller to manual or transfer control to the redundant node if available. Do not remove the PM860 while the system is in automatic control of live process loops.

Step 3 — Module Removal: Release the locking lever on the TB840/TB842 terminal base and slide the PM860 out of the backplane slot. Note the slot position — the replacement must be installed in the same slot to preserve I/O module addressing.

Step 4 — Installation: Insert the replacement PM860 3BSE018110R1 into the correct backplane slot. Engage the locking lever fully. Reconnect the Ethernet and RS-232 cables if applicable.

Step 5 — Restore and Verify: Power on the controller. Download the archived project to the new processor using Control Builder M. Verify all I/O modules are recognized, communication interfaces are online, and process values are within expected ranges before returning the loop to automatic control.

Step 6 — Documentation: Record the replacement date, new module serial number, firmware version, and battery installation date in the site maintenance log. Update the spare parts inventory to reflect the consumed unit and initiate a replenishment order to maintain minimum stock levels.

This workflow applies equally to planned turnaround replacements and emergency fault recovery scenarios. The PM860 3BSE018110R1 is a direct replacement for earlier PM860 and PM860A variants, enabling backward-compatible upgrades without control system redesign — a key advantage for extending the operational life of legacy AC800M installations.

Spare Parts Support FAQ

Q1: Is this PM860 3BSE018110R1 an original ABB module or a third-party compatible?
This is an original ABB PM860 3BSE018110R1 processor module, not a clone or third-party compatible. All units are sourced through verified industrial supply channels and undergo pre-shipment functional testing. A 12-month warranty is provided covering manufacturing defects and functional failure under normal operating conditions.

Q2: How do I confirm compatibility with my existing AC800M system before ordering?
The PM860 3BSE018110R1 is compatible with the full AC800M controller family, including systems using TB840 and TB842 terminal bases. If your site runs an older PM860A or PM860AK01, the PM860 3BSE018110R1 is a direct replacement. For firmware compatibility with your Control Builder M project version, contact our technical team with your current firmware revision and project version number before ordering.

Q3: What is your recommended spare parts stocking strategy for AC800M processor modules?
For sites with two or more AC800M controllers, we recommend maintaining a minimum of one PM860 3BSE018110R1 on-site at all times. For critical process applications — such as safety instrumented systems or continuous production lines — a two-unit minimum is advisable. Processor modules should be stored in anti-static packaging in a climate-controlled environment and inspected annually. Battery replacement should be performed every three to five years regardless of storage conditions.

Q4: What pre-shipment checks are performed, and what documentation is included?
Each PM860 3BSE018110R1 undergoes a power-on functional verification prior to dispatch, confirming processor boot, memory integrity, and communication interface status. Units are shipped in original or equivalent anti-static packaging with a test record. A 12-month warranty certificate is included. For customers requiring additional documentation such as country-of-origin certificates or material declarations, please contact us at the time of order.
