ABB PM866K01 3BSE050198R1 Retrofit-Ready CPU for AC 800M

ABB PM866K01 3BSE050198R1 Retrofit-Ready CPU for AC 800M Control Systems

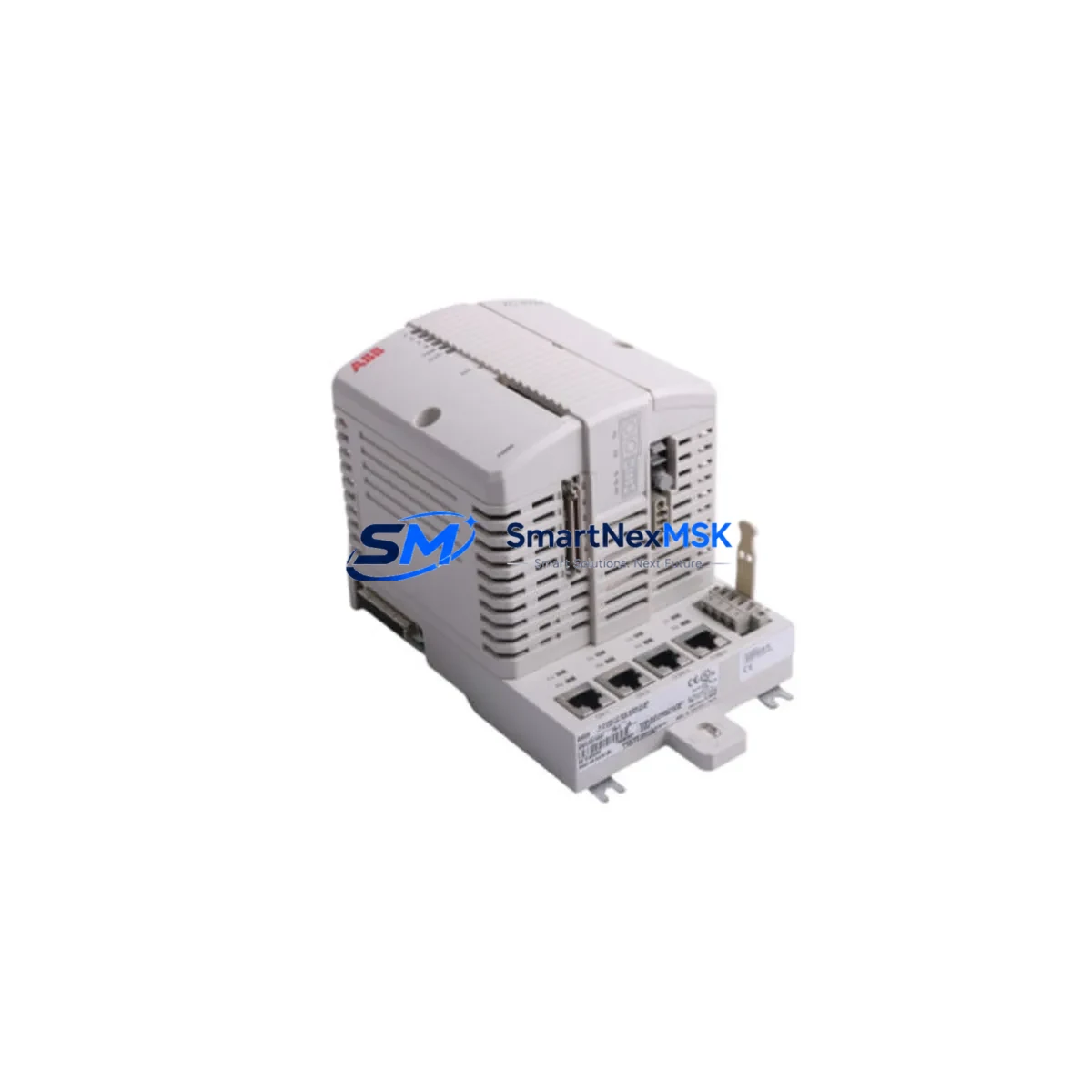

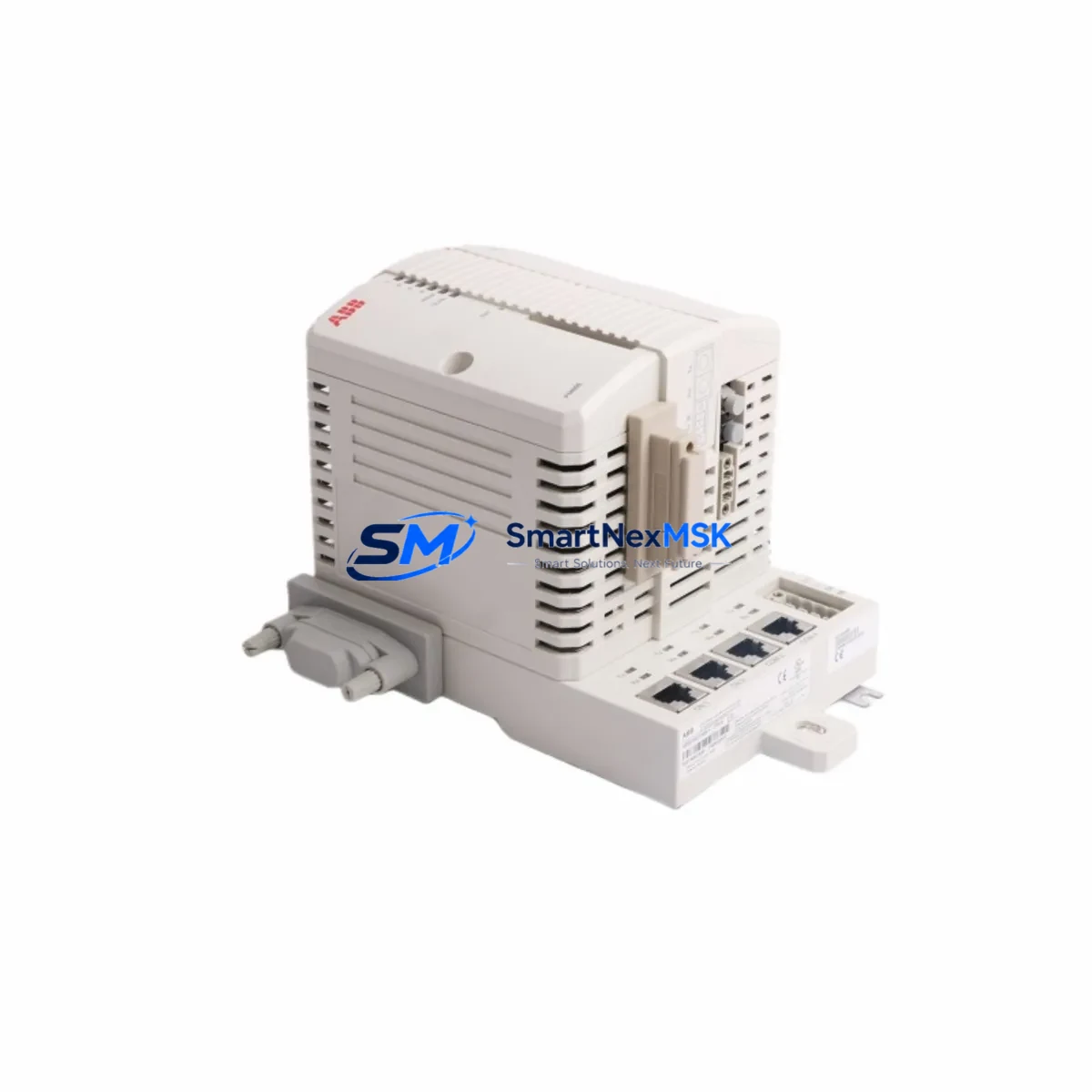

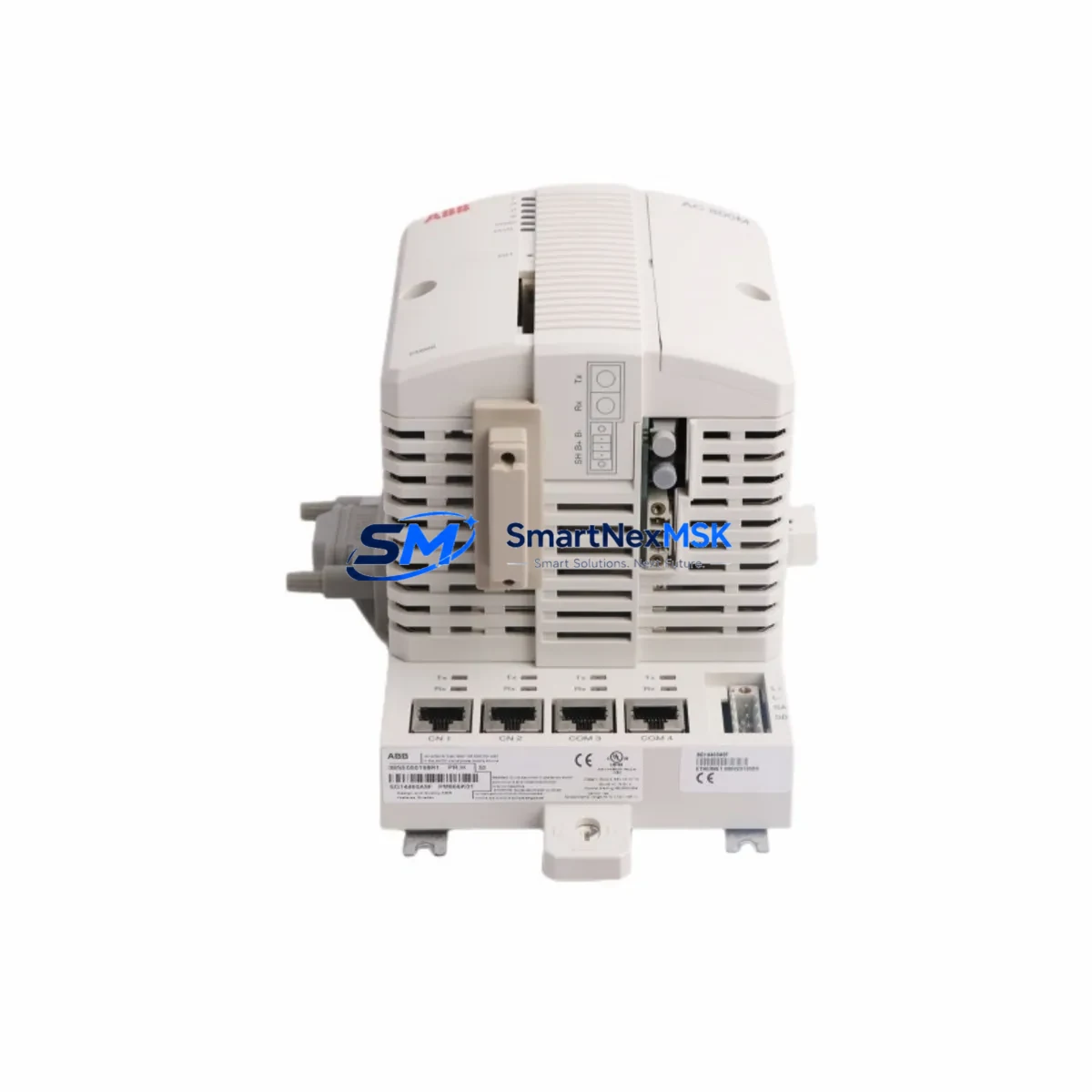

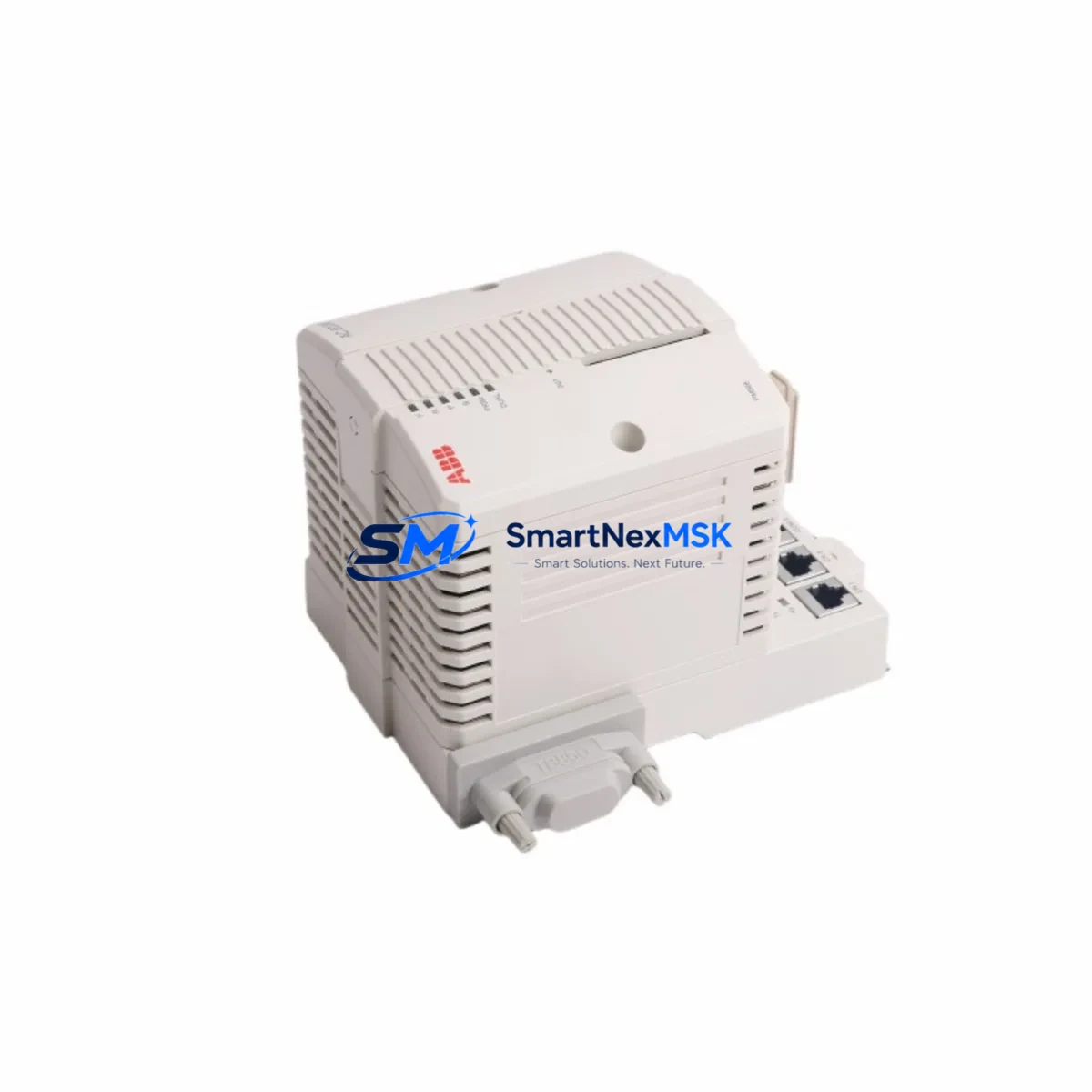

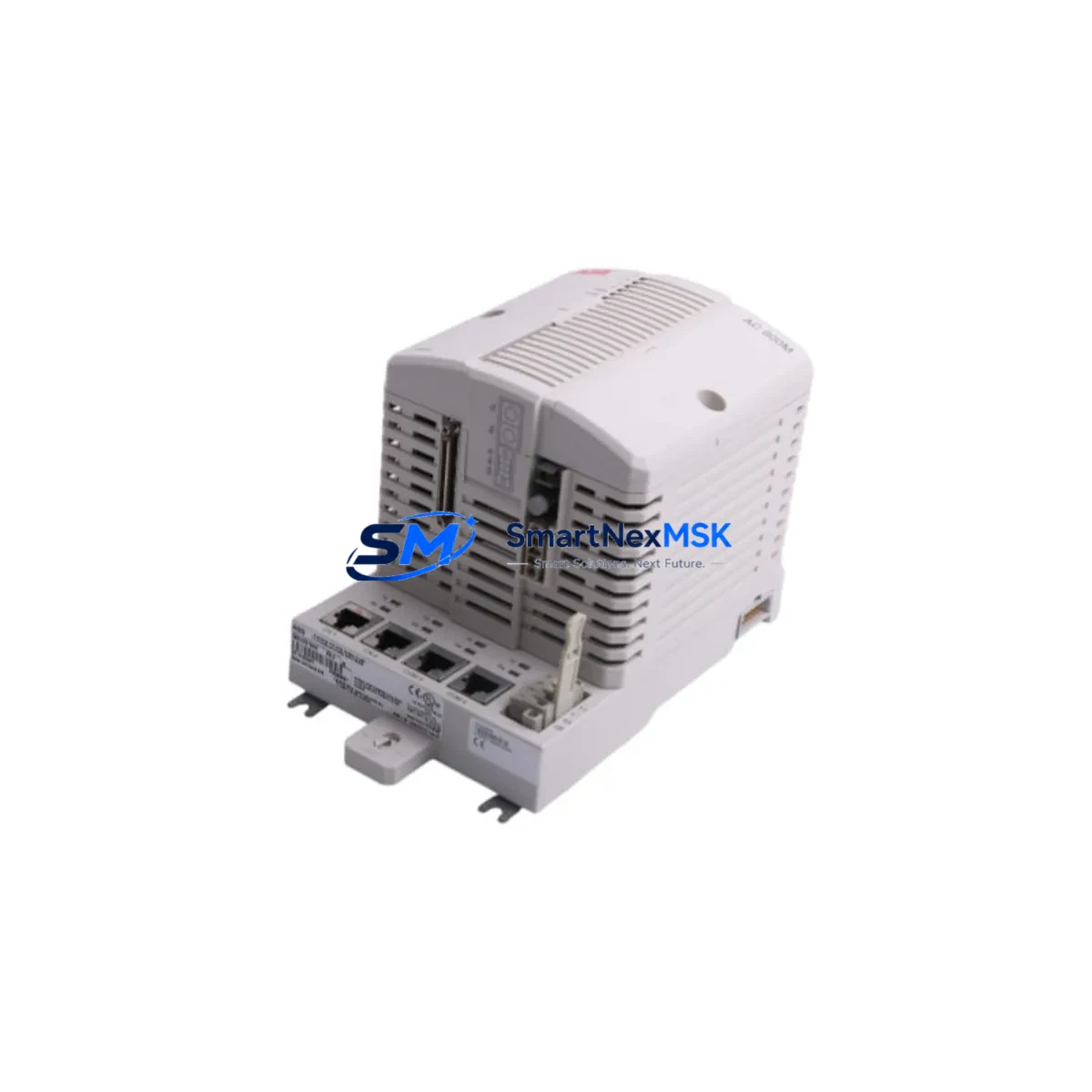

The ABB PM866K01 (Part No. 3BSE050198R1) is a high-performance processor module engineered for the AC 800M Distributed Control System platform. As legacy AC 800M installations approach end-of-support milestones, plant engineers and system integrators increasingly rely on the PM866K01 as the definitive retrofit-ready replacement for earlier CPU variants such as the PM861A, PM862, and PM864A. Whether you are recovering from an unplanned processor failure, executing a scheduled control-cabinet upgrade, or migrating an aging DCS backbone to a more capable processing tier, the PM866K01 delivers the backward-compatible architecture and expanded memory headroom needed to protect your existing application logic investment.

Sourced directly from authorized distribution channels and subjected to full functional verification prior to shipment, every PM866K01 unit supplied by SMARTNEXMSK is backed by a 12-month warranty and ships from in-stock inventory to minimize your plant downtime exposure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PM866K01 retrofit begins well before the module arrives on-site. The first step is a thorough audit of the existing rack assembly. Most AC 800M installations use the TB820V2 ModuleBus Modem or TB807 rack termination unit as the backplane communication bridge; confirm that these units are present and serviceable before proceeding, as a degraded TB820V2 can mask CPU faults and complicate post-swap diagnostics.

Power budget verification is equally critical. The PM866K01 draws its supply from the rack’s SD821 or SD822 power supply module. If the existing power supply is already loaded near capacity — particularly in racks populated with high-density AI810, AO810V2, or DI810 I/O modules — a power audit must be completed before the new CPU is inserted. Undersized supply voltage will cause intermittent resets that are difficult to distinguish from application software faults.

Terminal wiring on the I/O side typically does not require modification during a CPU swap, provided the physical rack and S800 I/O cluster remain unchanged. However, if the retrofit also involves migrating from a legacy CI854A PROFIBUS DP communication interface to a newer CI871 PROFINET interface, field wiring at the junction boxes must be reviewed for impedance matching and cable shielding compliance. Similarly, any CI840A DeviceNet interface modules in the rack should be re-addressed after the CPU replacement to ensure the new processor correctly enumerates all network nodes on startup.

For plants running ABB Freelance DCS or hybrid architectures that bridge AC 800M controllers with third-party SCADA systems via OPC-DA or OPC-UA servers, the PM866K01’s expanded Ethernet stack simplifies the migration path. The module natively supports dual-port Ethernet separation, allowing the plant network and the engineering workstation network to remain logically isolated without additional managed switches.

HMI integration should be validated in a staging environment before live cutover. If the plant uses ABB Operate IT or System 800xA Information Management as the operator interface layer, confirm that all faceplates, trend displays, and alarm group definitions reference tag names rather than hardware addresses. Tag-based referencing ensures that HMI screens remain valid after the CPU swap without requiring a full display rebuild. Plants still running older Conductor NT operator stations should plan for a parallel HMI migration as part of the broader modernization scope.

Programming cable connectivity is another pre-commissioning checkpoint. The PM866K01 is configured exclusively via Ethernet using ABB Control Builder M Professional; there is no serial RS-232 programming port. Engineers migrating from older CPU variants that relied on a dedicated programming cable must ensure that the engineering workstation has a valid Ethernet path to the controller’s service port before the legacy CPU is removed from the rack.

Downtime Control During System Migration

Minimizing unplanned downtime during a CPU replacement requires a structured pre-outage preparation protocol. Begin by creating a full online backup of the existing application using Control Builder M’s project archive function. Store the backup on at least two independent media — a local engineering workstation and a network share — before any hardware is disturbed. This backup preserves all function block logic, PID tuning parameters, interlock configurations, and communication object definitions that would otherwise require manual reconstruction if the replacement encounters an unexpected complication.

Where the process permits, schedule the physical swap during a planned maintenance window rather than responding reactively to a CPU failure. A proactive swap allows the engineering team to pre-configure the PM866K01 on a bench rack using a mirrored project download, verify all I/O channel responses against the existing loop drawings, and confirm communication link integrity with upstream System 800xA Operations servers before the module enters service. This bench validation step typically reduces live commissioning time from several hours to under thirty minutes.

For installations where CPU redundancy is already configured using a paired PM866 architecture, the hot-standby switchover mechanism allows the replacement to be performed on the standby unit while the primary continues to execute control. After the new module synchronizes its application image from the active primary, a controlled switchover transfers control authority with sub-second interruption — well within the tolerance of most regulatory and process control loops. This approach effectively reduces the process impact of a CPU replacement to zero for redundant configurations.

Post-swap, verify all analog input and output channels against their engineering range limits, confirm that all PROFIBUS DP slave devices have re-established communication (check the diagnostic LEDs on each CI854A or equivalent interface module), and review the System 800xA alarm list for any latent faults that may have been masked by the previous CPU’s degraded state. Document the as-found and as-left configuration in the plant’s maintenance management system before returning the loop to automatic control.

Retrofit Support FAQ

Q1: Is the PM866K01 3BSE050198R1 a direct replacement for the PM864A and PM861A?
Yes. The PM866K01 is mechanically and electrically compatible with the same AC 800M rack slots used by the PM864A and PM861A. The application project compiled under Control Builder M for the predecessor CPU can be downloaded directly to the PM866K01 after a firmware version check. No rack wiring changes are required for a like-for-like CPU swap. Minor project adaptations may be needed if the replacement also involves enabling new communication interfaces not present in the original configuration.

Q2: What commissioning steps are required after installing the PM866K01?
After physical installation, connect the engineering workstation to the CPU’s Ethernet service port and open the existing project in Control Builder M Professional. Perform a full download to the new module, then execute an I/O force-check on a representative sample of analog and digital channels to confirm correct signal mapping. Verify PROFIBUS DP and Modbus communication links by checking the diagnostic status of each connected interface module. Finally, confirm that the System 800xA or Operate IT HMI is receiving live data from all controller objects before releasing the system to operations.

Q3: How is terminal wiring compatibility handled when replacing an older CPU?
The PM866K01 does not have direct field terminal connections — all field wiring terminates at the S800 I/O modules or at dedicated terminal units mounted on the rack. As long as the I/O modules and their associated terminal units (such as the TU810V1 or TU830V1) remain in place, no field wiring changes are required during the CPU swap. If the retrofit scope includes replacing I/O modules as well, refer to the ABB S800 I/O wiring compatibility matrix to confirm terminal unit interchangeability before disturbing any field connections.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
Every PM866K01 unit supplied by SMARTNEXMSK undergoes functional verification testing prior to dispatch, including power-on self-test confirmation, Ethernet port link integrity check, and firmware version validation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped in anti-static packaging with full traceability documentation. In the event of a warranty claim, SMARTNEXMSK provides advance replacement to minimize plant downtime, subject to confirmation of the fault condition.
