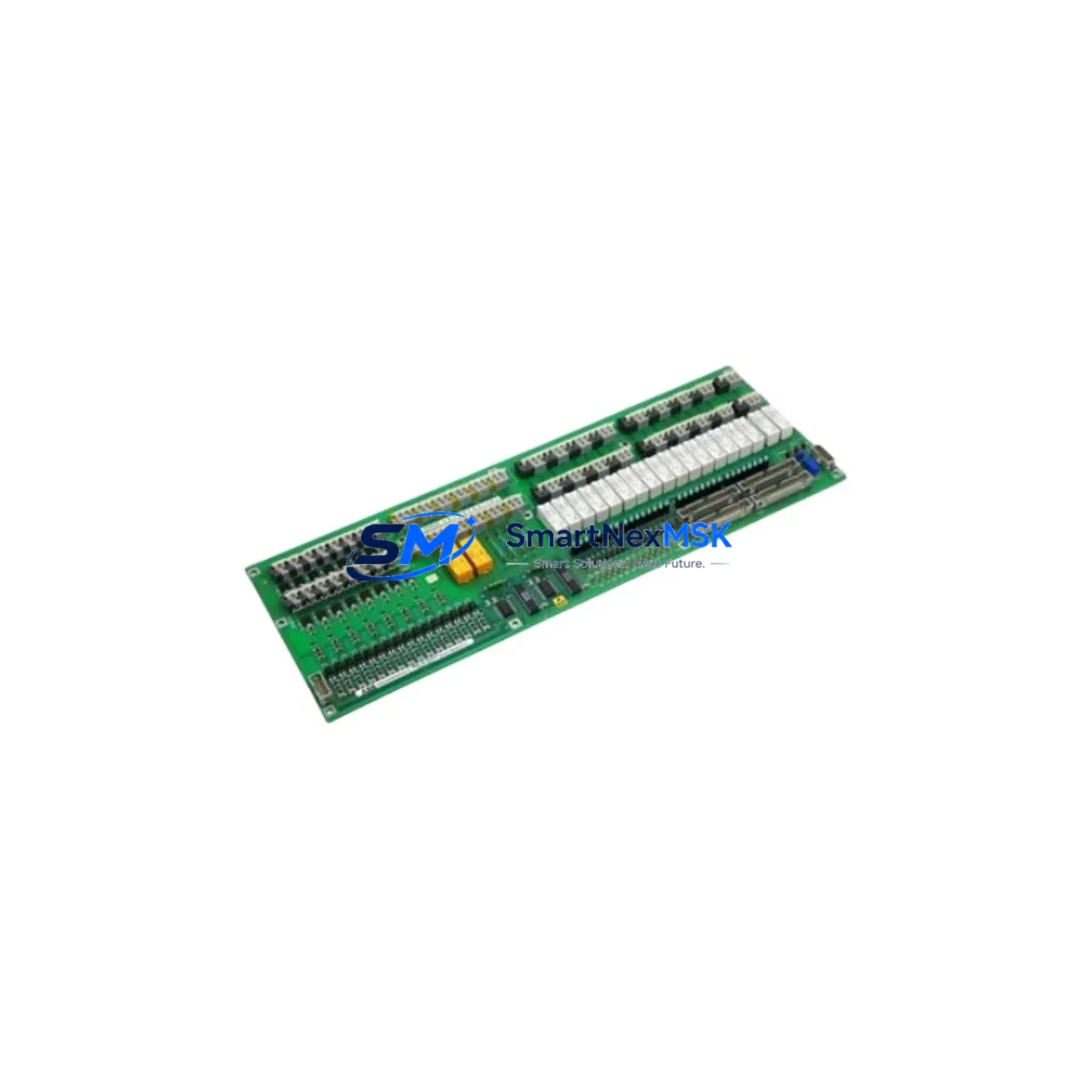

ABB PP B624 A01 HIET404828R0001 Retrofit-Ready PCB Control Module for HIET Series Control Systems
The ABB PP B624 A01 (part number HIET404828R0001) is a retrofit-ready PCB control module engineered for seamless integration into HIET Series distributed control and automation platforms. As legacy ABB control systems approach end-of-life or face discontinued spare parts availability, this module serves as a verified drop-in replacement that preserves existing backplane architecture, terminal wiring layouts, and communication protocol compatibility. Whether you are managing a planned upgrade cycle or responding to an unplanned failure in a critical production environment, the PP B624 A01 is stocked and ready for immediate dispatch with full pre-shipment functional testing and a 12-month warranty.
Industrial facilities operating ABB HIET Series control cabinets frequently encounter challenges when sourcing obsolete PCB modules. The PP B624 A01 addresses this directly by maintaining electrical and mechanical compatibility with the original HIET Series rack and backplane interface. Engineers undertaking retrofit projects should verify power supply capacity at the control cabinet level — the module draws from the same 24 VDC rail as adjacent I/O modules, and any degraded ABB PS501 or equivalent power supply unit should be assessed and replaced prior to module installation to prevent nuisance faults or premature failure.
Terminal wiring on the PP B624 A01 follows the original HIET Series pinout standard. Field technicians should reference the existing loop drawings and confirm that signal commons, shielding connections, and analog reference grounds are correctly terminated before powering the replacement module. In systems where the original module shared a common terminal block with adjacent ABB AI810 analog input modules or ABB DI810 digital input modules, the wiring sequence must be preserved exactly to avoid cross-channel faults during commissioning.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| Part Number | PP B624 A01 / HIET404828R0001 |
| Brand | ABB |
| Series Compatibility | HIET Series DCS / Control Systems |
| Module Type | PCB Control Module |
| Backplane Interface | Compatible with HIET Series standard rack backplane |
| Power Supply Requirement | 24 VDC (verify existing PS501 or equivalent capacity) |
| Communication Protocol | Compatible with HIET Series internal bus architecture |
| Terminal Wiring | Matches original HIET Series pinout — no rewiring required |
| Installation Type | Direct slot replacement — no mechanical modification required |
| Module Address Configuration | Retain original DIP switch or software address settings |
| Program Compatibility | Existing control logic retained — no reprogramming required in standard retrofit |
| HMI Screen Compatibility | Tag names and I/O mapping preserved; verify HMI driver version |
| Pre-Shipment Testing | Full functional test performed on every unit |
| Warranty | 12 Months from date of shipment |
| Origin | China (CN) |
| Weight | 900 g |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the ABB PP B624 A01 into an existing HIET Series control system requires systematic pre-installation planning. Begin by documenting the current rack slot assignment and confirming that the replacement module occupies the identical slot position as the original — the HIET Series backplane assigns I/O addresses based on physical slot location, and any deviation will require address remapping in the control program. If the system uses an ABB AC500 or AC800M controller as the upstream CPU, confirm that the firmware version supports the HIET Series I/O bus protocol revision associated with this module generation.
Power budget verification is a critical step that is frequently overlooked during emergency replacements. Audit the total current draw of all modules installed in the rack, including any ABB TB820 communication interface modules, ABB DP820 PROFIBUS interface modules, or ABB CI854 fieldbus communication modules that share the same power rail. If the existing ABB PSTX or equivalent power supply is operating near its rated capacity, install a supplementary power supply before commissioning the replacement module.
For systems that include PROFIBUS DP or PROFINET communication links, verify that the GSD or GSDML device description file associated with the PP B624 A01 is correctly loaded in the engineering workstation. In retrofit scenarios where the original module’s GSD file is no longer available from the manufacturer, the replacement module’s device description file must be imported into the PLC programming environment — typically ABB Automation Builder or the legacy ABB Control Builder — before the communication link can be re-established. Confirm that the PROFIBUS node address or PROFINET device name matches the original configuration exactly.
I/O expansion considerations are also relevant in retrofit projects. If the control system is being upgraded to accommodate additional field instruments, the PP B624 A01 can be paired with ABB AI810 analog input modules or ABB DO810 digital output modules installed in adjacent rack slots, provided that the total I/O count remains within the CPU’s configured I/O table. Any expansion beyond the original I/O count will require a program modification and a full functional test before returning the system to production.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary operational concern when replacing a PCB control module in a live production environment. The recommended approach is to perform a controlled hot-standby switchover where the system architecture supports redundancy — for HIET Series systems with redundant CPU modules such as the ABB PM891 or PM864A, the standby controller can assume full control while the faulty module is replaced in the primary rack without interrupting the production process.
For non-redundant systems, the replacement procedure should be executed during a scheduled maintenance window. Before powering down the rack, export a full backup of the control program from the engineering workstation, including all function block configurations, PID tuning parameters, and alarm setpoints. This backup serves as the recovery baseline if the commissioning process encounters unexpected behavior after the module swap. Store the backup on an isolated engineering laptop and verify the file integrity before proceeding with the physical replacement.
After installing the PP B624 A01, restore power to the rack in a controlled sequence — energize the power supply first, allow the CPU to complete its self-diagnostic cycle, then verify that all I/O channels report their expected states before releasing the system to automatic control. Field technicians should confirm that HMI screens connected via ABB Panel Builder or equivalent SCADA software display correct process values and that no spurious alarms are generated during the first 15 minutes of operation. Communication links to upstream DCS historians or MES systems should also be verified to confirm that data logging resumed correctly after the module replacement.
Retrofit Support FAQ
Q1: Is the ABB PP B624 A01 HIET404828R0001 a direct replacement for the original HIET Series module?
Yes. The PP B624 A01 is designed as a form-fit-function replacement for the original HIET Series PCB control module. It occupies the same rack slot, uses the same backplane connector, and maintains the same terminal wiring pinout. No mechanical modification or rewiring is required in standard retrofit applications. Confirm the slot address configuration matches the original before powering the system.
Q2: What commissioning steps are required after installing the replacement module?
After physical installation, verify the module address settings (DIP switch or software-configured), confirm communication link status on the engineering workstation, and perform a full I/O channel check against the original loop drawings. For systems with PROFIBUS or PROFINET links, confirm that the device description file is correctly loaded and that the node address or device name matches the original. Run the system in manual mode for a minimum of 15 minutes before returning to automatic control.
Q3: Has the module been tested before shipment, and what does the warranty cover?
Every PP B624 A01 unit undergoes full functional testing prior to shipment, including power-on self-test, I/O channel verification, and communication interface checks. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the module’s rated specifications.
Q4: Can this module be used in systems that have been partially upgraded to newer ABB hardware?
Yes, in most mixed-generation HIET Series installations. The PP B624 A01 is compatible with the standard HIET Series backplane and can coexist with newer ABB I/O modules installed in adjacent slots, provided that the CPU firmware supports the mixed I/O configuration. If the system has been partially migrated to an ABB AC800M or AC500 platform, consult the system integrator to confirm that the I/O bus protocol version is compatible before installation.
