ABB PP845A 3BSE042235R2 Retrofit-Ready HMI for 800xA Systems

ABB PP845A 3BSE042235R2 Retrofit-Ready HMI for 800xA Control Systems

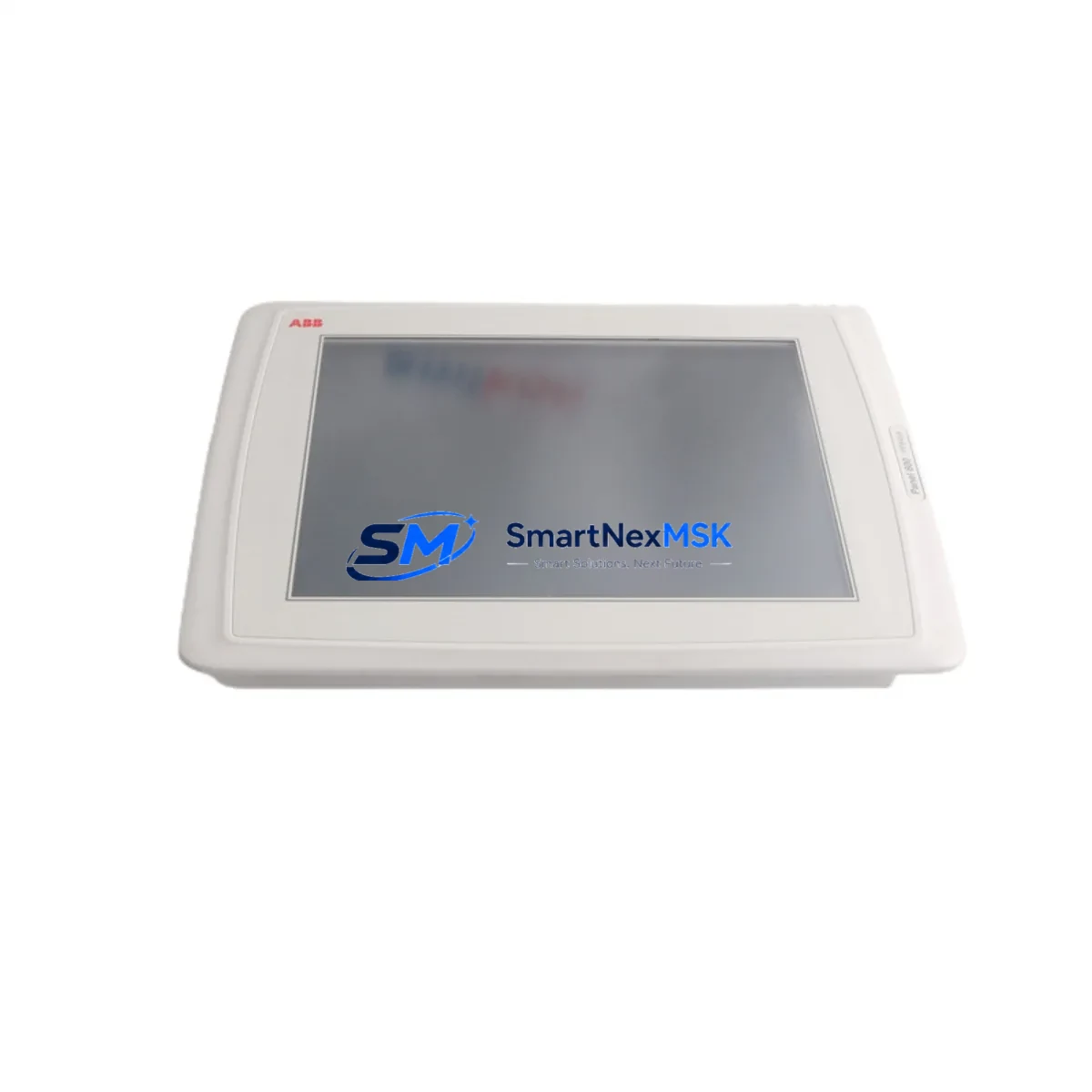

The ABB PP845A (part number 3BSE042235R2) is a high-performance operator panel engineered for seamless integration into ABB System 800xA distributed control environments. Designed as a retrofit-ready replacement for aging or discontinued HMI hardware, the PP845A delivers full compatibility with existing 800xA network architectures, operator station configurations, and process visualization layers — enabling industrial facilities to modernize their human-machine interface without disrupting live production or rewriting established control logic.

Whether you are replacing a failed PP845 unit, upgrading from an earlier-generation operator panel, or consolidating a multi-panel control room into a standardized hardware platform, the PP845A 3BSE042235R2 provides a verified drop-in upgrade path. Its compatibility with the 800xA Operator Workplace software suite means that existing graphic displays, alarm hierarchies, trend configurations, and user access profiles can be migrated with minimal rework. Facilities running legacy ABB Advant OCS or MOD 300 systems that have already transitioned to 800xA will find the PP845A a natural fit within their modernized architecture.

Before installation, engineers should confirm the following: the panel power supply rating (typically 24 VDC from a dedicated PM866 or PM891 controller power module), terminal block wiring compatibility with existing cabinet harnesses, backplane slot assignment and module addressing within the 800xA topology, and Ethernet port configuration for OPC connectivity to the 800xA server. If the existing installation uses an AC800M controller paired with a CI854 PROFIBUS communication interface module, the PP845A integrates without protocol conversion, preserving the existing fieldbus segment structure.

For sites where the control cabinet also houses an S800 I/O cluster — including AI810 analog input modules, AO810 analog output modules, DI810 digital input modules, or DO810 digital output modules — the PP845A replacement does not affect I/O addressing or marshalling wiring. The operator panel communicates upstream via the 800xA OPC server layer, keeping field I/O logic fully intact during the panel swap. This architecture also means that any connected ABB AC800M controller program, including SFC sequences, function block diagrams, and structured text routines compiled in Control Builder M, remains unmodified.

HMI graphic migration is a critical step in any PP845A retrofit. Existing 800xA Operator Workplace displays built with Process Graphics 2 or the legacy PG1 environment can be exported and re-imported to the replacement panel’s operator station profile. Alarm and event list configurations, including priority mappings and suppression rules, should be validated against the new panel’s display resolution and aspect ratio before go-live. If the site uses an ABB 800xA Information Management server for historian integration, the PP845A operator station reconnects to the IM server using the existing OPC DA or OPC HDA subscription without reconfiguration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PP845A retrofit begins with a thorough audit of the existing control cabinet. Technicians should document the current panel’s IP address, subnet mask, gateway, and OPC server hostname before powering down. The replacement PP845A 3BSE042235R2 must be assigned the same IP address or the 800xA topology node table must be updated to reflect the new address — failure to do so will break the operator station’s connection to the AC800M controller and the 800xA OPC server simultaneously.

Cabinet power budgeting is equally important. The PP845A draws power from the 24 VDC bus shared with other panel components. If the existing installation includes a TB820 Modulebus Optical Port or a CI854A PROFIBUS DP interface module on the same power rail, the total current draw must be recalculated to ensure the cabinet power supply — often an ABB-specified 24 VDC / 10 A or 20 A unit — has sufficient headroom. Adding a PP845A to an already-loaded cabinet without verifying power margin is a common cause of intermittent resets during commissioning.

For facilities upgrading from a legacy Advant OCS Master Station or a MOD 300 operator console, the migration path typically involves installing a new 800xA node, connecting it to the existing AC800M or AC450 controller via the CI858 DNP3 or CI856 IEC 60870-5-101 communication interface module, and then deploying the PP845A as the new operator interface. In these scenarios, the PP845A’s Ethernet port connects directly to the plant LAN or a dedicated control network switch, with VLAN segmentation recommended to isolate OPC traffic from general IT traffic.

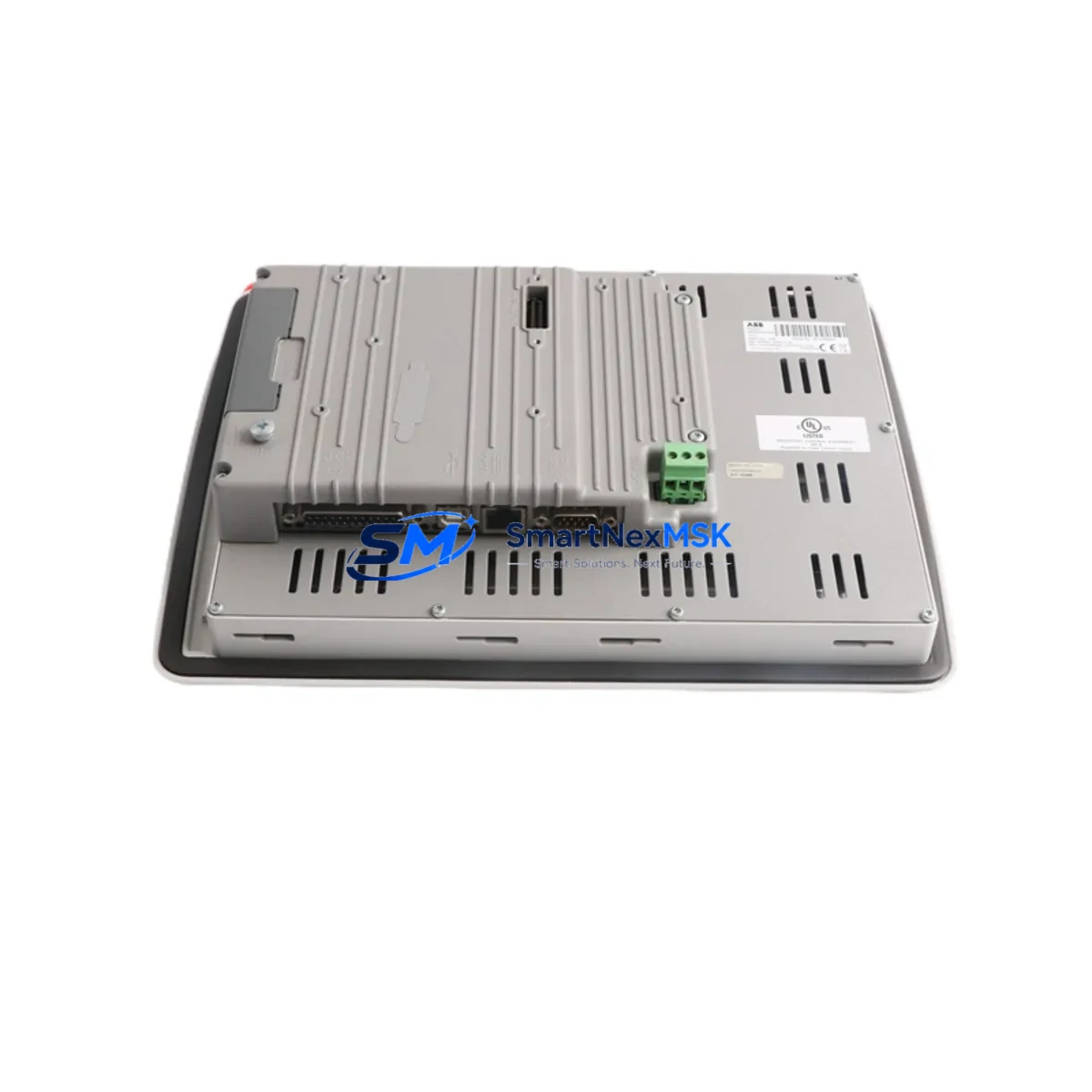

Terminal wiring adaptation is straightforward for most PP845A retrofits. The panel uses standard RJ45 Ethernet and USB connections for peripherals, eliminating the proprietary serial cables required by older operator panels. If the existing cabinet uses an ABB TK212A programming cable or a TK209A USB-to-serial adapter for controller access, these remain usable for AC800M maintenance tasks independent of the PP845A replacement. Keyboard and mouse connections to the new panel use standard USB HID, removing the need for legacy PS/2 adapters.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any PP845A swap in a live production environment. The recommended approach is a staged cutover: prepare the replacement panel offline, pre-configure its IP settings and OPC subscriptions using a test 800xA server, validate all graphic displays and alarm pages, and then execute the physical swap during a planned maintenance window. Total panel replacement time for a prepared PP845A is typically under 30 minutes for an experienced controls technician.

To protect existing program logic during the swap, the AC800M controller should remain powered and in RUN mode throughout the panel replacement. The 800xA OPC server continues to poll the controller independently of the operator panel connection, meaning process data collection and historian logging are uninterrupted even while the panel is offline. Alarm and event buffering in the 800xA server ensures that any events generated during the panel swap are captured and available for review once the PP845A reconnects.

For critical processes where even a brief loss of operator visibility is unacceptable, a temporary laptop running 800xA Operator Workplace client software can be connected to the control network to provide monitoring continuity during the physical swap. This approach requires no additional licensing if the 800xA server has an available client seat, and it allows the field team to confirm that the replacement PP845A has successfully reconnected and all displays are rendering correctly before releasing the temporary workstation.

Post-swap commissioning should include: confirming all process graphic displays load without errors, verifying alarm and event list population, testing operator command functions (setpoint changes, mode switches, interlock overrides) on at least one representative control loop, and confirming historian trend continuity across the cutover timestamp. A signed commissioning checklist should be retained for maintenance records and warranty documentation.

Retrofit Support FAQ

Q: Is the PP845A 3BSE042235R2 a direct replacement for the PP845 and PP836A?
A: Yes. The PP845A is the current-generation successor to the PP845 and PP836A operator panels. It uses the same mounting footprint and connects to the 800xA system via Ethernet OPC, making it a drop-in replacement in most installations. Minor IP reconfiguration and OPC subscription updates are required, but no hardware modifications to the cabinet or backplane are needed.

Q: Will my existing 800xA graphic displays work on the PP845A without modification?
A: In most cases, yes. Displays built with Process Graphics 2 are fully compatible. PG1 displays may require a resolution adjustment if the PP845A’s screen resolution differs from the original panel. We recommend a pre-swap display validation on a test node before the live cutover.

Q: What pre-shipment testing is performed on the PP845A 3BSE042235R2?
A: Each unit undergoes functional power-on verification, display integrity check, and port connectivity testing before shipment. Units are shipped with original or equivalent protective packaging. A 12-month warranty from the date of shipment covers manufacturing defects and functional failures under normal operating conditions.

Q: Can the PP845A be used with a CI873 PROFINET interface module and an AC800M PM891 controller?
A: Yes. The PP845A communicates with the 800xA OPC server over Ethernet, independent of the fieldbus protocol used between the AC800M and field devices. Whether your installation uses CI854 PROFIBUS DP, CI873 PROFINET, or CI858 DNP3, the PP845A operator panel connection is unaffected by the fieldbus selection.
