ABB PPC902CE101 Retrofit-Ready CPU for AC800PEC Systems

ABB PPC902CE101 Retrofit-Ready CPU for AC800PEC Control Systems

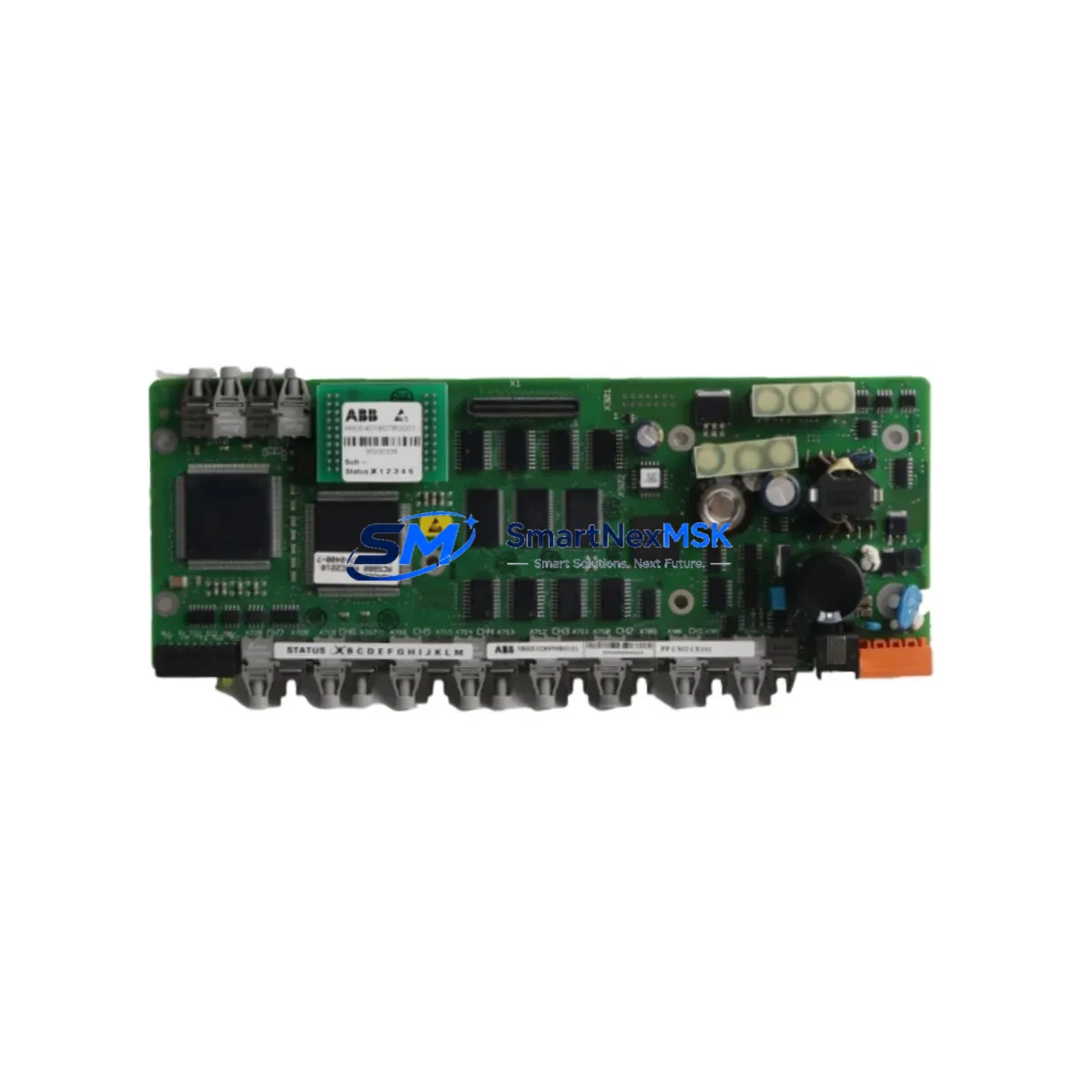

The ABB PPC902CE101 (part number 3BHE028959R0101) is a high-performance CPU controller module designed for the AC800PEC platform — ABB’s dedicated process excitation control system widely deployed in power generation, drives, and heavy industrial applications. As legacy AC800PEC installations age and original spare parts become increasingly difficult to source, the PPC902CE101 has become a critical retrofit component for engineers tasked with extending the operational life of existing control architectures without committing to a full system replacement.

SMARTNEXMSK maintains verified stock of the PPC902CE101, with each unit subject to functional power-on testing, firmware version inspection, and backplane interface verification prior to shipment. Every module ships with a 12-month warranty covering hardware defects and operational failures under normal industrial service conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a CPU module in an active AC800PEC installation requires careful pre-work to avoid configuration loss and unplanned downtime. Before removing the existing processor, engineers should export the full project backup from ABB’s Control Builder M or the applicable engineering workstation, confirming that all function block libraries, excitation control parameters, and drive setpoint tables are captured. The PPC902CE101 slots directly into the AC800PEC rack, but the surrounding module ecosystem must be validated as part of the retrofit plan.

On the power side, the AC800PEC rack’s power supply module — typically an ABB PP825 or equivalent PSU — must be confirmed to deliver adequate current headroom for the replacement CPU, particularly if the existing installation has accumulated additional I/O expansion modules since original commissioning. Terminal wiring on adjacent I/O modules such as the DI810 digital input module or the AO810 analog output module does not require modification during a CPU swap, but all field wiring should be documented and photographed before work begins.

Communication continuity is a common concern during AC800PEC CPU replacement. If the system uses a CI854 PROFIBUS-DP communication interface module or a CI873 PROFINET interface, these modules remain in their rack slots and retain their network configuration independently of the CPU. However, the new PPC902CE101 must be assigned the correct module address within the AC800PEC project to re-establish communication with these interface modules after restart. Similarly, if the plant uses an ABB Panel 800 HMI or a third-party SCADA system connected via Modbus TCP, the IP address and communication parameters stored in the CPU project file must be verified against the replacement module’s configuration before going live.

For installations that include an SD822 or SD823 drive interface module handling excitation current regulation, the PPC902CE101’s program logic must be validated against the existing drive parameter set. Any mismatch between the CPU’s internal setpoint tables and the drive’s configured operating range can cause instability during the first energization sequence. A staged commissioning approach — bringing the system online in manual mode before switching to automatic excitation control — is strongly recommended.

Where the control cabinet also houses an ABB SNAT 601 or SNAT 607 thyristor control board as part of a legacy excitation bridge, the PPC902CE101 retrofit provides an opportunity to evaluate whether the analog reference signals from the CPU to the thyristor firing board remain within specification. Calibration of the analog output channel and verification of the firing angle feedback loop should be included in the commissioning checklist.

Downtime Control During System Migration

Minimizing production interruption during a CPU module replacement on an AC800PEC system depends on preparation quality more than execution speed. The most effective approach is to complete all engineering preparation — project backup, firmware version confirmation, module address documentation, and I/O list verification — during normal operation, so that the physical swap window is reduced to the minimum necessary time.

Where a redundant AC800PEC configuration is in place, the standby CPU can be brought to a warm-standby state before the primary module is removed, allowing the system to transfer control without a full process shutdown. In non-redundant installations, coordinating the replacement with a scheduled maintenance window and pre-staging the PPC902CE101 with the correct firmware load and project file significantly reduces the risk of extended downtime.

After physical installation, the recommended restart sequence is: power the rack, confirm the CPU’s status LEDs indicate normal boot, verify communication with all I/O modules and interface cards, and perform a controlled test of each output channel before releasing the system to automatic control. Retaining the original CPU module as a tested spare during the initial post-retrofit operating period provides an additional safety margin if unexpected compatibility issues arise.

SMARTNEXMSK can provide pre-shipment functional test reports on request, allowing site engineers to confirm module operability before scheduling the maintenance window. All units are dispatched with ESD-protective packaging and include a certificate of testing. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units.

Retrofit Support FAQ

Q: Is the PPC902CE101 a direct replacement for earlier AC800PEC CPU revisions?
A: The PPC902CE101 (3BHE028959R0101) is designed for AC800PEC racks and is compatible with the standard backplane bus. For cross-revision replacements, firmware alignment between the new CPU and the existing project file should be confirmed with ABB’s compatibility matrix or your engineering team before installation.

Q: What wiring changes are required when replacing the CPU module?
A: The PPC902CE101 connects via the AC800PEC backplane — no direct field wiring terminates on the CPU module itself. Field wiring on I/O modules such as digital input, analog output, or communication interface cards remains undisturbed during the CPU swap. Only the backplane connector and any front-panel communication cables (e.g., programming port or Ethernet patch cable) need to be reconnected.

Q: How is the replacement module tested before shipment?
A: Each PPC902CE101 unit undergoes power-on functional testing, firmware version verification, and backplane interface inspection at our facility. A test report is available on request. All modules are covered by a 12-month warranty from the date of shipment.

Q: Can SMARTNEXMSK support urgent or emergency replacement orders?
A: Yes. For critical production situations, contact our team directly at sales@smartnexmsk.com or +86 18259474341 to confirm real-time stock availability and expedited dispatch options. In-stock units can typically be dispatched within 24 hours of order confirmation.
