ABB PPC907BE 3BHE024577R0101 Retrofit-Ready Inverter Control Board for ACS800 Control Systems

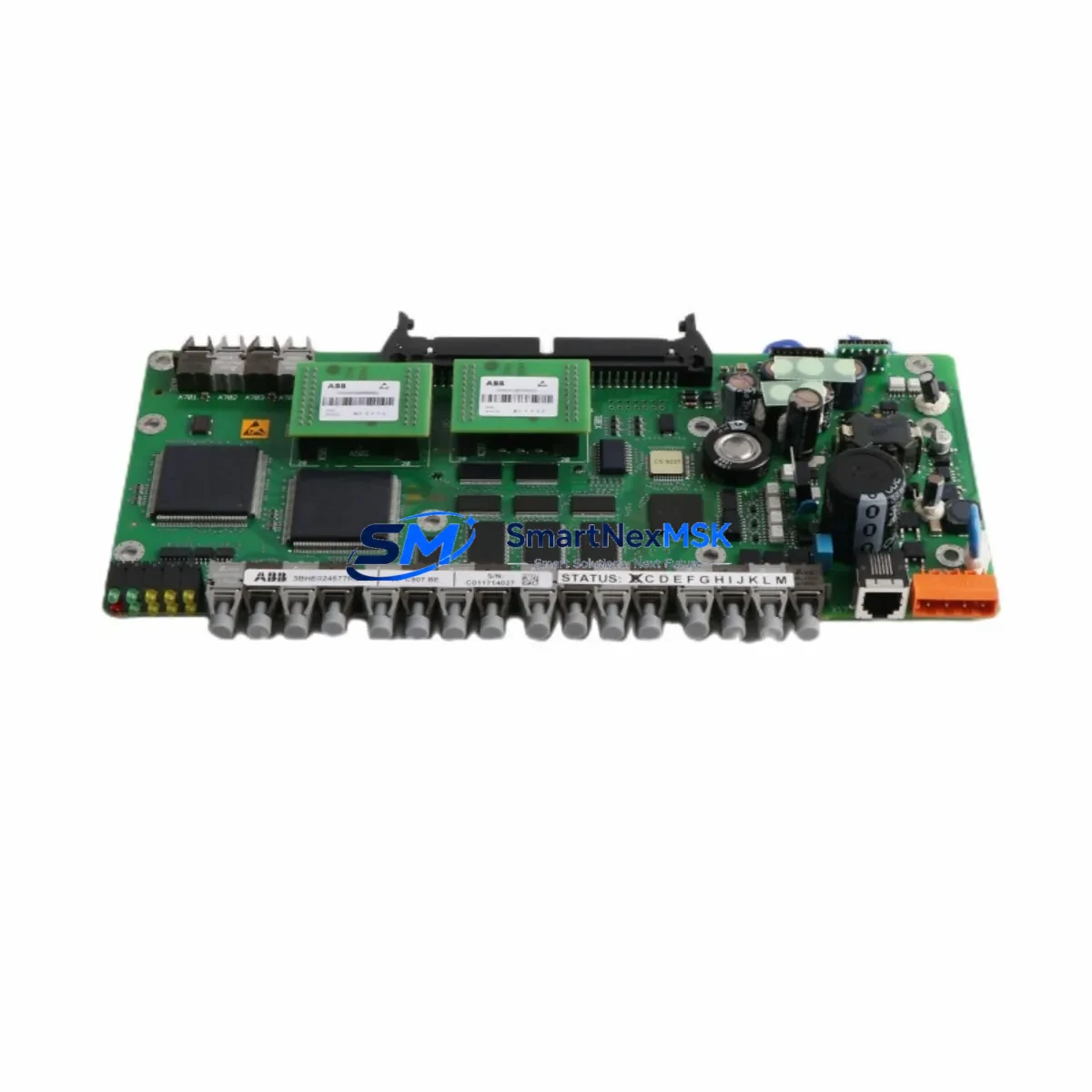

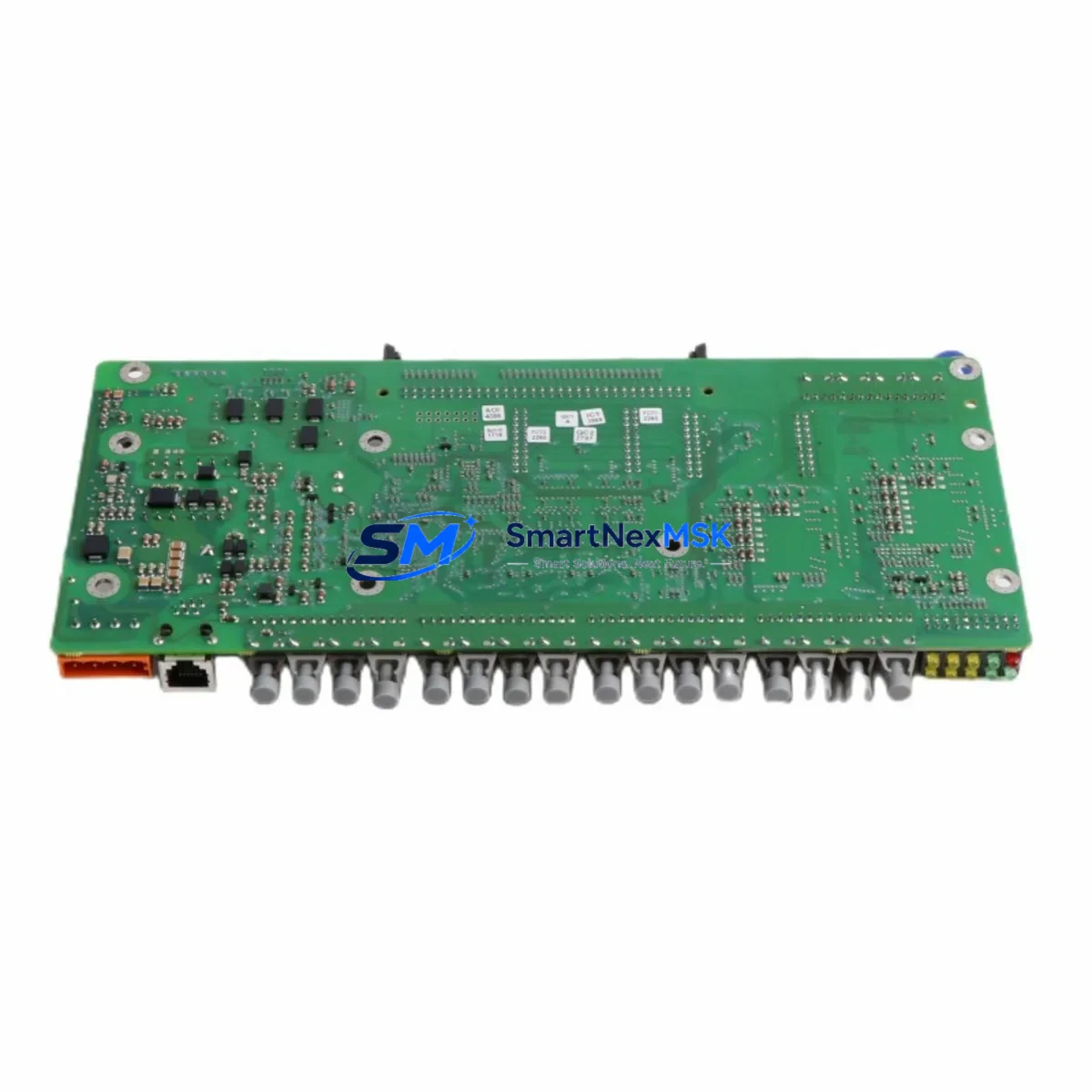

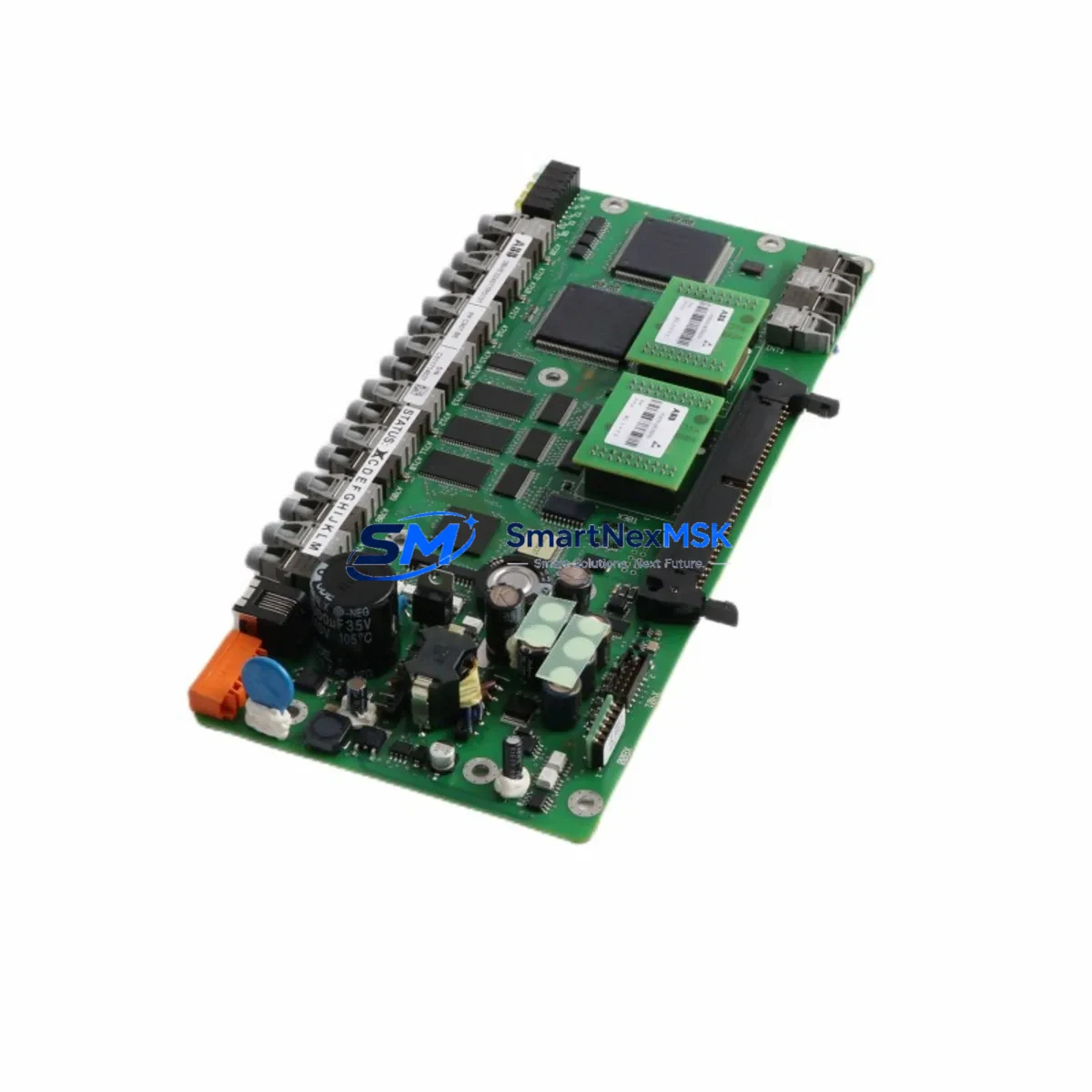

The ABB PPC907BE (Part No. 3BHE024577R0101) is a high-performance inverter control board engineered for the ABB ACS800 series variable frequency drive platform. As legacy ACS800 installations age and original control boards reach end-of-life, the PPC907BE serves as the definitive retrofit and replacement solution — enabling industrial facilities to restore full drive functionality without replacing the entire drive unit or redesigning the control cabinet.

This board governs the core pulse-width modulation logic, IGBT gate drive signals, fault diagnostics, and real-time communication between the drive’s control layer and power stage. Whether you are recovering from a sudden board failure, executing a planned upgrade of aging ACS800 units, or migrating a legacy production line to a more maintainable configuration, the PPC907BE provides a verified, compatible path forward with minimal downtime exposure.

Each unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, is backed by a 12-month warranty, and ships from in-stock inventory to minimize your system’s offline window.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ACS800 control board retrofit requires systematic planning across the entire drive and control cabinet ecosystem. Before removing the failed PPC907BE, engineers should document the existing parameter set using the ABB DriveWindow or DriveWindow Light software via the drive’s panel port or DDCS link — this preserves motor data, ramp times, PID configurations, and all application-specific parameter groups that would otherwise need to be re-entered manually.

The ACS800 control section interfaces directly with the AINT-xx interface board and, in multi-drive configurations, with the APBU-44C or APBU-12C pulse encoder interface units. Verify that these boards are seated correctly and show no signs of corrosion or thermal damage before installing the replacement PPC907BE. In cabinet-mounted ACS800 configurations, the RDIO-01 digital I/O extension module and RAIO-01 analog I/O extension module should also be inspected, as I/O faults are sometimes misdiagnosed as control board failures.

For drives communicating over PROFIBUS-DP, confirm that the RPBA-01 PROFIBUS adapter module is correctly addressed and that the master PLC — often a Siemens S7-300 or S7-400 in legacy installations — retains the correct GSD file and drive node address. In MODBUS RTU environments, verify baud rate, parity, and stop-bit settings in parameter group 52 after board replacement. Drives integrated into ABB AC500 PLC control architectures via DDCS fiber links should have the fiber connections inspected for contamination or bend-radius violations before recommissioning.

Power supply integrity is critical. Confirm that the SPSU-01 or SPSU-02 auxiliary power supply unit within the ACS800 cabinet is delivering stable +24 VDC and ±15 VDC rails before powering up the replacement board. Undervoltage on the internal supply is a common root cause of repeated control board failures and must be resolved before the retrofit is considered complete. In larger ACS800 cabinet assemblies, also verify the BAMU-01 battery module condition if real-time clock retention is required for the application.

HMI integration should be validated post-swap. If the drive is connected to an ABB CP600 or CP400 series HMI panel, confirm that the drive’s node address and communication profile match the HMI project configuration. Panel displays showing “Drive Not Responding” after a board swap are almost always a communication parameter mismatch rather than a hardware fault.

Downtime Control During System Migration

Minimizing production downtime during an ACS800 control board replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the replacement PPC907BE should be on-site and verified against the drive’s nameplate data. All parameter backups should be completed, and the maintenance team should have the drive’s wiring diagram, terminal block layout, and fiber-optic routing diagram available.

The physical swap of the PPC907BE typically takes 20–45 minutes for a trained technician. The board is accessed by removing the drive’s control panel and front cover, disconnecting the flat-ribbon and fiber-optic cables from the board, releasing the board retention clips, and sliding the board free from the backplane connector. Installation of the replacement board is the reverse sequence. Torque specifications for any terminal screws disturbed during access should be observed per the ACS800 hardware manual.

After installation, power the drive in a controlled sequence: apply auxiliary 24 VDC first if available, then main AC supply. Monitor the drive’s control panel for fault codes — particularly F-0001 (overcurrent), F-0002 (DC overvoltage), and F-0009 (motor stall) — which may indicate parameter mismatch rather than hardware fault. Restore the parameter backup, verify motor nameplate data in group 99, and perform a motor ID run before returning the drive to automatic control. This sequence typically allows full recommissioning within a 2–4 hour maintenance window, preserving the original control program logic and HMI screen configurations without modification.

For critical continuous-process applications, consider staging a pre-configured spare PPC907BE with parameters pre-loaded to reduce the active outage window to under 60 minutes. SMARTNEXMSK maintains in-stock inventory of the PPC907BE 3BHE024577R0101 to support emergency same-day dispatch requirements.

Retrofit Support FAQ

Q1: Is the PPC907BE 3BHE024577R0101 a direct replacement for all ACS800 frame sizes?
The PPC907BE is compatible with the ACS800 single-drive series across multiple frame sizes (R2–R8 and cabinet-mounted configurations). However, compatibility depends on the drive’s firmware revision and the specific AINT interface board variant installed. Always cross-reference the drive’s type designation label and existing board part number before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: Do I need to re-enter all drive parameters after replacing the control board?
Yes — the PPC907BE does not retain parameters from the previous board. A full parameter backup must be taken before removal using DriveWindow or the ACS800 control panel (CDP-312R). After installation, restore the backup and perform a motor ID run to re-establish motor model data. Application macros and user-defined parameter sets are fully restorable from backup files.

Q3: What commissioning steps are required after installation?
After physical installation, verify auxiliary power supply voltages, restore parameter backup, confirm communication module addresses (PROFIBUS node, MODBUS ID, or DDCS node as applicable), perform motor ID run, and test all digital and analog I/O signals against the original wiring diagram. Run the drive at low speed under no-load conditions before returning to full production load. Document all commissioning steps for the maintenance record.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating and environmental conditions as specified in the ACS800 hardware manual. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside rated parameters. To initiate a warranty claim, contact SMARTNEXMSK with the order reference, fault description, and drive nameplate data. Replacement or repair will be processed within the agreed lead time after fault verification.
