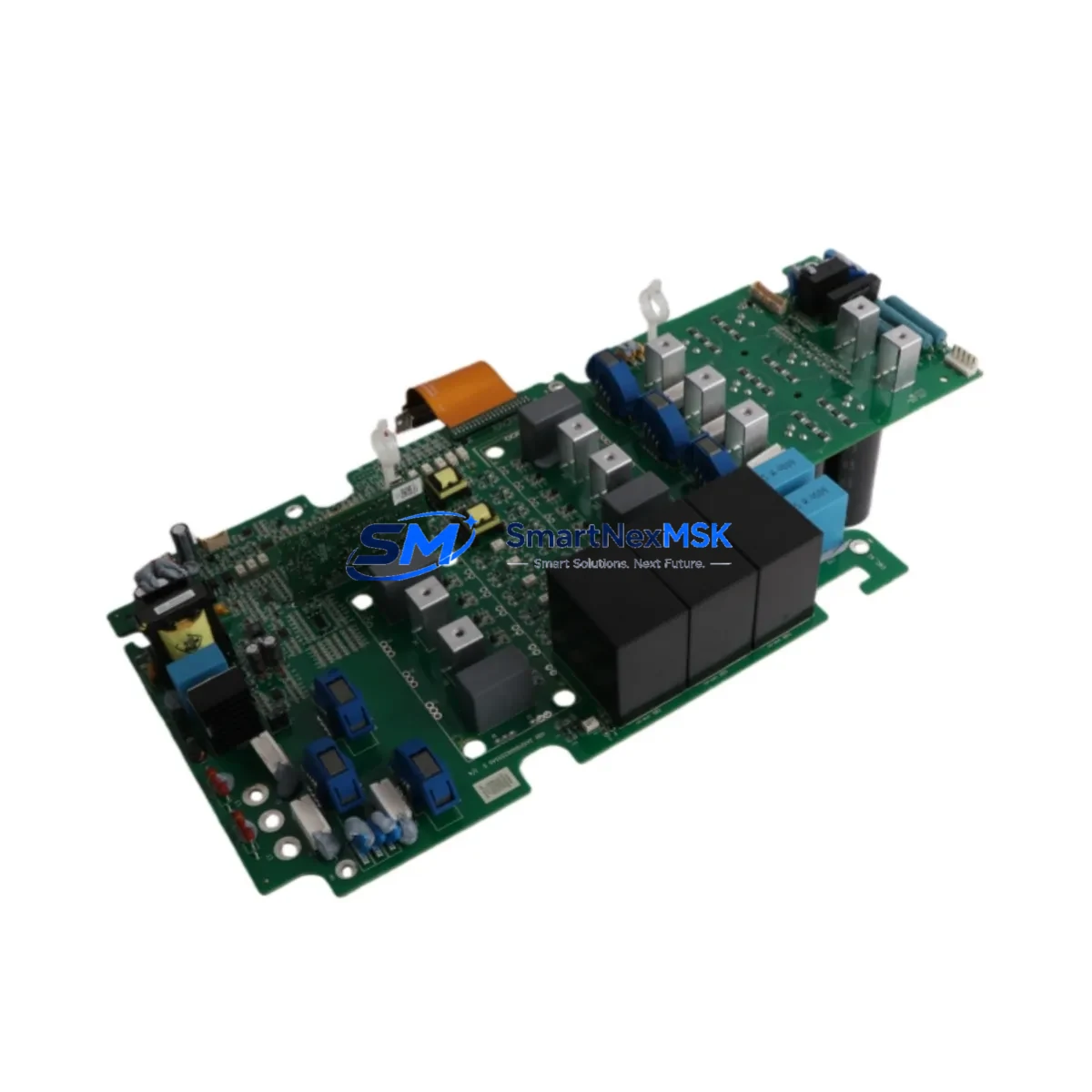

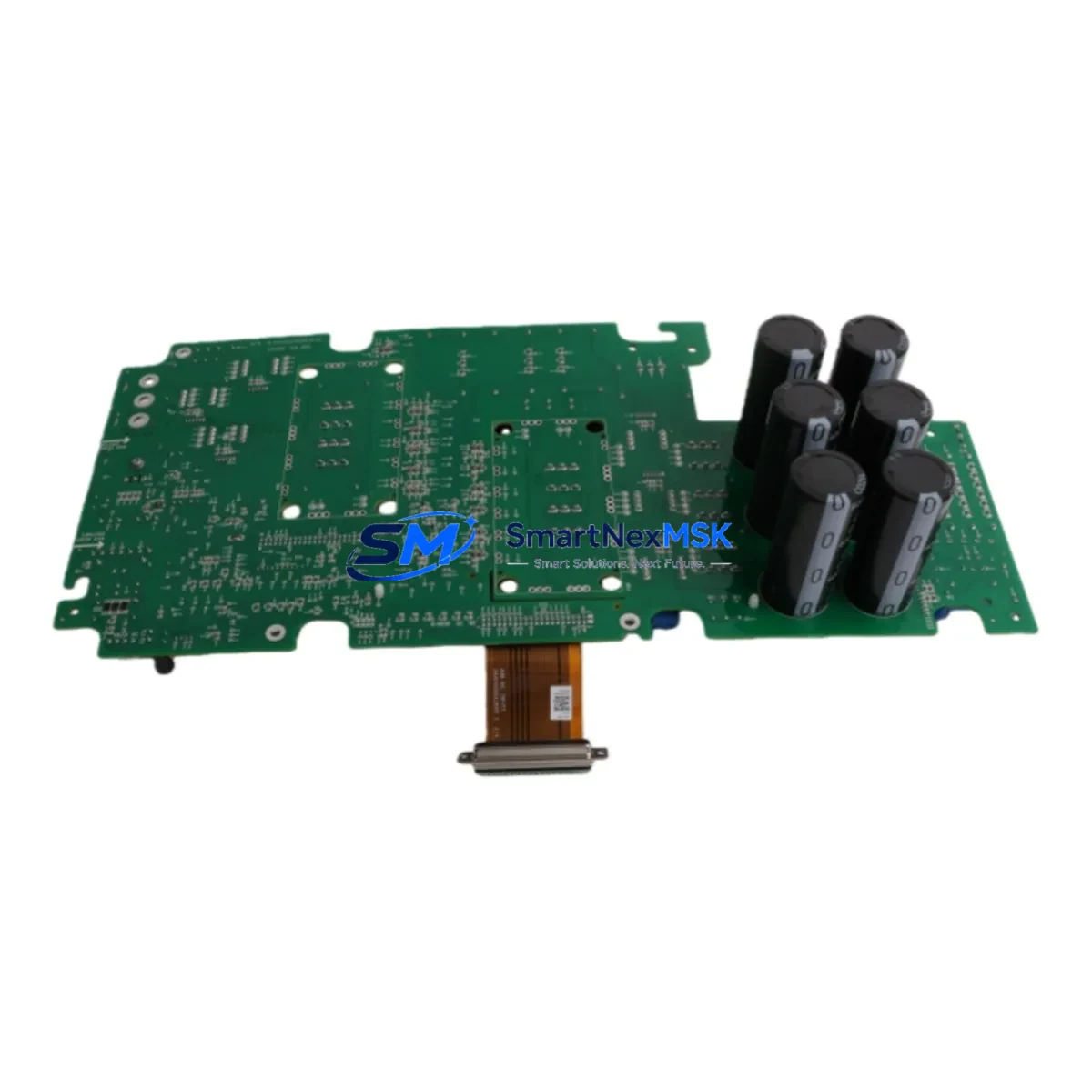

ABB QPWR-5621 Retrofit-Ready Power Supply for Advant Controller Systems

The ABB QPWR-5621 is a rack-mounted DC power supply module engineered for the ABB Advant Controller platform, including the AC110, AC160, and AC450 controller families. As legacy Advant systems approach end-of-life and original spare parts become increasingly scarce, the QPWR-5621 serves as a critical retrofit component for engineers tasked with sustaining, upgrading, or migrating aging automation infrastructure. Whether you are replacing a failed unit in a running production line or pre-staging spares for a planned shutdown, the QPWR-5621 delivers the electrical stability and backplane compatibility required to maintain control system continuity.

This module provides regulated DC output to power I/O sub-modules, communication processors, and controller logic cards seated within the Advant rack assembly. Its terminal block layout and backplane connector pinout are fully compatible with original ABB Advant rack configurations, eliminating the need for custom wiring adapters or backplane modifications during a like-for-like swap. Engineers performing a direct replacement should verify the existing rack’s power budget against the module’s rated output capacity before installation, particularly in high-density I/O configurations where multiple analog input modules such as the AI810 or digital output modules such as the DO810 are installed in the same rack segment.

For sites running mixed Advant and AC800M architectures, the QPWR-5621 is commonly deployed alongside the PM861 or PM864 processor modules to maintain power integrity across the transition period. During phased migration projects, it is not uncommon for the QPWR-5621 to remain in service within the legacy rack while new AC800M racks are commissioned in parallel, allowing engineers to validate the new control logic against the live process before cutting over. This parallel-run approach significantly reduces unplanned downtime and protects the integrity of existing IEC 61131-3 program structures stored in the controller’s non-volatile memory.

When planning a retrofit involving the QPWR-5621, the following pre-installation checks are recommended: confirm the incoming AC supply voltage matches the module’s input specification; inspect the rack’s backplane bus for corrosion or mechanical damage at the power connector seats; verify that the total current draw of all installed modules — including the CI522A or CI532V communication interface modules — does not exceed the QPWR-5621’s rated output; and document the existing module address assignments to avoid conflicts after reinsertion. If the site uses an S800 I/O cluster connected via an AF100 fieldbus, ensure the fieldbus coupler module retains its configuration during the power cycle associated with the module swap.

For control cabinets that also house an OP7 or TP270 HMI panel communicating with the Advant controller over MPI or PROFIBUS DP, the HMI screen tags and alarm setpoints should be backed up prior to any power supply replacement. Although the QPWR-5621 swap itself does not alter controller memory, an unexpected power interruption during the procedure can trigger a cold restart that clears volatile runtime data. Having a current project backup on the programming workstation — whether using Control Builder M or the legacy Advant Builder environment — is a non-negotiable step before any live-system intervention.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful QPWR-5621 retrofit begins well before the module arrives on site. The engineering team should audit the existing Advant rack population, cataloguing every installed module by slot position, including processor cards, communication modules, and I/O sub-modules. In a typical Advant AC450 cabinet, the rack may host a combination of the PM511 or PM531 processor module, one or two CI522A PROFIBUS communication modules, and a bank of S800 I/O modules connected via an S800 I/O bus coupler. Each of these components draws current from the rack power bus, and the cumulative load must be within the QPWR-5621’s rated output to ensure stable operation after replacement.

Wiring adaptation is rarely required for a direct QPWR-5621 swap, but engineers should inspect the existing terminal block connections for signs of thermal stress or loose ferrules, particularly on sites where the original module has been in continuous service for more than a decade. If the cabinet also contains a TB820 or TB840 termination board for field signal wiring, these boards remain undisturbed during the power supply replacement and do not require reconfiguration. Similarly, any PROFIBUS DP segment connected through a CI532V module will retain its GSD-based configuration in the master controller’s project file, provided the controller memory is not cleared during the swap procedure.

For sites migrating from Advant to the AC800M platform, the QPWR-5621 is often retained in the legacy rack during the transition phase while the new PM864 or PM866 processor module is commissioned in a separate AC800M rack. This staged approach allows the control engineer to run both systems simultaneously, validate I/O mapping, and confirm that all analog and digital signals are correctly represented in the new Control Builder M project before the final cutover. The AF100 to PROFIBUS migration, if applicable, should be completed and tested before the legacy Advant rack is decommissioned.

Downtime Control During System Migration

Minimizing unplanned downtime during a QPWR-5621 replacement or broader Advant system migration requires a structured approach to pre-work, execution, and post-swap verification. The recommended sequence is: (1) back up the full controller project using Control Builder M or Advant Builder, including all function block diagrams, sequential function charts, and HMI variable lists; (2) document the current module slot assignments and fieldbus node addresses; (3) power down the rack in a controlled manner, following the site’s lockout/tagout procedure; (4) replace the QPWR-5621 and reseat all adjacent modules to ensure backplane connector integrity; (5) restore rack power and confirm the controller enters RUN mode without fault codes; (6) verify all I/O channels are reporting correctly against the process values observed before shutdown; and (7) confirm HMI communication is re-established and all alarm states are consistent with the current process condition.

For critical processes where even a brief interruption is unacceptable, a hot-standby configuration using a redundant power supply module — where the rack revision supports it — should be evaluated. In non-redundant configurations, scheduling the swap during a planned maintenance window and pre-staging a tested QPWR-5621 unit on the shelf significantly reduces the mean time to repair. All units supplied by SMARTNEXMSK are function-tested prior to dispatch, reducing the risk of commissioning delays caused by infant failure.

Retrofit Support FAQ

Q1: Is the QPWR-5621 a direct drop-in replacement for the original ABB Advant power supply module?
Yes. The QPWR-5621 is designed as a direct replacement for the original ABB Advant rack power supply. The backplane connector, terminal block layout, and mechanical form factor are compatible with standard Advant rack assemblies. No wiring modifications or adapter plates are required for a like-for-like swap. Engineers should verify the rack revision and power budget before installation.

Q2: What commissioning steps are required after installing the QPWR-5621?
After installation, restore rack power and confirm the controller enters RUN mode. Check that all I/O modules — including any AI810, DI810, or DO810 cards — are reporting correctly. If a CI522A or CI532V communication module is installed, verify that the PROFIBUS or AF100 fieldbus link is re-established and that all remote I/O nodes are online. Confirm HMI communication and review the controller diagnostic log for any fault codes generated during the power cycle.

Q3: How do I verify wiring compatibility before replacing the power supply?
Compare the terminal block pinout of the existing module against the QPWR-5621 datasheet. In most Advant rack configurations, the AC input terminals and DC output sense lines follow a standardized layout. Inspect existing ferrules and cable lugs for wear. If the cabinet uses a TB820 termination board for field wiring, those connections are independent of the power supply module and do not require modification.

Q4: What does the 12-month warranty cover, and what is the dispatch process?
All QPWR-5621 units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes function testing prior to dispatch. In the event of a warranty claim, contact sales@smartnexmsk.com with the order reference and a description of the fault. Replacement or repair will be arranged promptly to minimize impact on your production schedule.
