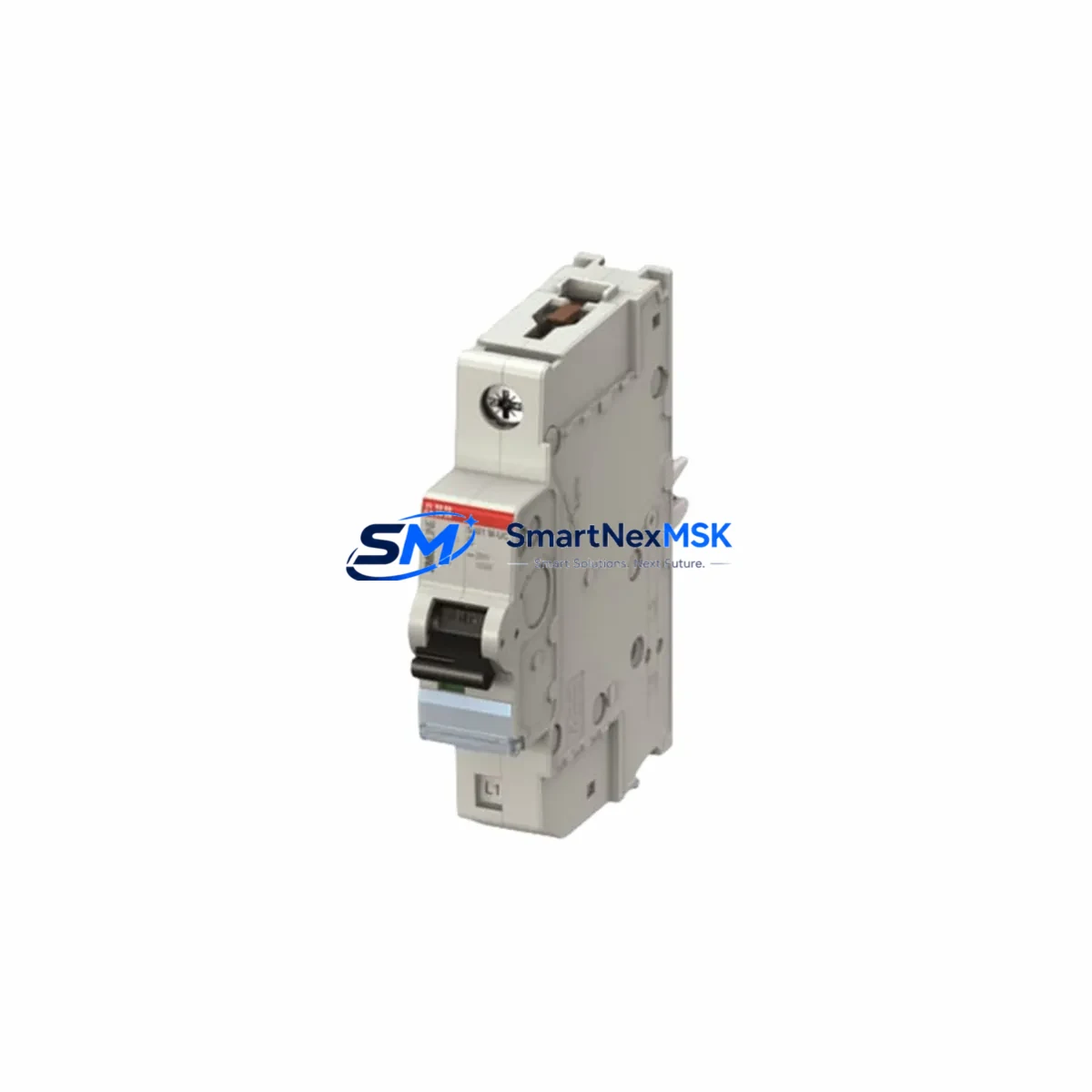

ABB S401M-UCC25 Retrofit-Ready MCB for S400M Control Systems
The ABB S401M-UCC25 is a 1-pole, 25A, 10kA miniature circuit breaker from the S400M UCC series, engineered to IEC 60898-1 and designed for seamless integration into existing S400M-series control panels, distribution boards, and industrial automation enclosures. Whether you are replacing a discontinued S401-UCC25 from the legacy S400 line, upgrading an aging MNS or ArTu distribution cabinet, or modernizing a control system built around ABB’s SACE or System pro M compact platform, the S401M-UCC25 delivers a verified drop-in retrofit path with minimal re-engineering.
This MCB is widely deployed in retrofit projects involving older ABB S200 and S280 series breakers, where panel engineers need to maintain the same DIN rail footprint, terminal pitch, and C-curve tripping characteristic while gaining improved breaking capacity and compliance with current IEC standards. The UCC (Universal Current Characteristic) designation confirms compatibility across a broad range of load types, including motor branch circuits, transformer secondaries, and mixed resistive-inductive loads common in PLC control cabinets.
Upgrade Compatibility Table
| Parameter | ABB S401M-UCC25 | Legacy S401-UCC25 / S400 | Retrofit Notes |
|---|---|---|---|
| Poles | 1P | 1P | Direct replacement, no busbar change |
| Rated Current | 25A | 25A | No cable re-sizing required |
| Breaking Capacity | 10kA (IEC 60898-1) | 6kA / 10kA (varies) | Verify upstream fault level; 10kA covers most industrial sites |
| Tripping Curve | C-curve (UCC) | C-curve | Identical trip characteristic; no relay coordination change |
| Mounting | 35mm DIN rail (EN 60715) | 35mm DIN rail | Same rail; no panel modification |
| Terminal Type | Screw clamp, 25mm² max | Screw clamp, 25mm² max | Re-use existing cable lugs; verify torque spec (2.5 Nm) |
| Auxiliary / Signalling | Compatible with S400M accessories | S400 accessories | Confirm auxiliary contact model (e.g. S2C-H6R) before ordering |
| Communication | N/A (standalone MCB) | N/A | For PROFIBUS/Modbus monitoring, pair with ABB CMS-700 sensor |
| Installation Standard | IEC 60898-1, IEC 60947-2 | IEC 60898-1 | Fully compliant; no re-certification of panel required in most jurisdictions |
| Warranty | 12-Month Warranty — covers manufacturing defects; includes pre-shipment functional test report | ||
Retrofit Planning for Existing Automation Systems
Successful integration of the S401M-UCC25 into a live automation environment requires a structured pre-retrofit assessment. Begin by auditing the existing panel layout: confirm the DIN rail type (35mm EN 60715 is standard across ABB S400M, S200, and S280 installations), measure the available width per pole position, and verify that the upstream MCCB or ACB — often an ABB Tmax XT or SACE Emax — has sufficient breaking capacity margin above the 10kA rating of the S401M-UCC25.
Terminal wiring is the most common source of commissioning delay. The S401M-UCC25 accepts conductors up to 25mm² with a recommended torque of 2.5 Nm. If the existing installation uses ferrule-terminated cables from an older S401-UCC25 or S401-C25 breaker, the ferrule size and insulation colour should be verified against the new terminal depth. In panels where the ABB S9H busbar system or a 3-phase busbar comb is used for multi-pole grouping, confirm that the busbar pitch matches the S400M module width (17.6mm per pole) before ordering additional poles.
For control cabinets that integrate ABB’s AC500 PLC or AC31 legacy controllers, the S401M-UCC25 is typically used to protect the 24VDC power supply rail — often an ABB CP-E 24/5.0 or CP-S 24/10.0 SMPS — and the I/O module supply branches. When replacing breakers in these cabinets, document the existing wiring schedule and cross-reference with the AC500 I/O module datasheets (e.g. DC532, AI531, AO523) to confirm that branch circuit ratings remain within the module’s input power specifications. If the cabinet also houses an ABB ACS355 or ACS580 variable frequency drive, ensure the MCB upstream of the drive input is rated for the drive’s inrush current — the C-curve characteristic of the S401M-UCC25 is well-suited for this application.
Where the existing system uses an ABB CP600 or CP400 HMI panel, no software or communication changes are required when replacing the MCB, as the S401M-UCC25 is a passive protection device. However, if the panel includes an ABB CMS-700 current monitoring sensor or an ABB Ekip Touch trip unit on a higher-rated breaker, verify that the sensor’s CT ratio and alarm thresholds are still appropriate after the MCB swap. For systems migrating from older PROFIBUS DP networks to PROFINET or Modbus TCP, the MCB replacement can be performed independently of the communication upgrade, allowing the two workstreams to proceed in parallel and reducing total project downtime.
Downtime Control During System Migration
Minimising unplanned downtime during an MCB retrofit requires a disciplined sequence of pre-work, isolation, swap, and recommissioning steps. Before any live panel work begins, export and archive the current PLC program from the AC500 or AC31 controller using ABB Automation Builder or the legacy PS501 programming tool. Store a verified backup on an offline medium — this protects the control logic in the event of an unexpected power interruption during the swap.
Schedule the MCB replacement during a planned maintenance window, ideally aligned with a shift changeover or a scheduled production stop. Isolate the affected branch circuit at the upstream MCCB, verify absence of voltage with a calibrated tester, and apply lockout/tagout (LOTO) per site safety procedures. The physical swap of the S401M-UCC25 takes under five minutes for a trained electrician: release the DIN rail clip, disconnect the load and line conductors, seat the new breaker, reconnect conductors to the specified torque, and restore the upstream supply.
After restoration, perform a functional check of the downstream load — confirm that the PLC I/O modules, SMPS output voltage, and any connected field instruments (sensors, actuators, transmitters) are operating within normal parameters. If the panel includes an ABB CMS-700 or similar power monitoring device, verify that the current reading on the new breaker matches the expected load profile. Log the replacement in the panel maintenance record, including the new breaker’s serial number, installation date, and torque verification. This documentation supports the 12-month warranty claim process and satisfies most site audit requirements.
For multi-panel or multi-cabinet projects where several S401M-UCC25 units are being installed simultaneously, a rolling replacement strategy — replacing one branch at a time while keeping adjacent branches live — maintains partial system availability and limits the blast radius of any commissioning issue to a single circuit.
Retrofit Support FAQ
Q1: Is the ABB S401M-UCC25 a direct replacement for the discontinued S401-UCC25 from the S400 series?
Yes. The S401M-UCC25 is the current-generation successor to the S401-UCC25. It shares the same 1P configuration, 25A rating, C-curve tripping characteristic, and 35mm DIN rail mounting. The terminal dimensions and conductor capacity are identical, allowing direct substitution without panel modification. Confirm that any auxiliary contacts or residual current add-ons (e.g. F204 RCD block) are ordered in the S400M-compatible variant.
Q2: What pre-shipment testing is performed, and what documentation is provided?
Each S401M-UCC25 unit undergoes a functional trip test and insulation resistance check before dispatch. A test report is available upon request. All units are supplied with the ABB product datasheet, CE declaration of conformity, and packing list. The 12-month warranty covers manufacturing defects and is valid from the invoice date. Warranty claims are processed via email with the test report and purchase record as supporting documents.
Q3: Can the S401M-UCC25 be used upstream of an ABB ACS355 or ACS580 variable frequency drive?
Yes, with the following considerations. The C-curve (UCC) characteristic provides a 5–10× In magnetic trip threshold, which accommodates the inrush current of most small-to-medium VFDs at startup. For drives above 7.5kW, verify the drive manufacturer’s recommended upstream MCB rating and confirm that the 25A rating covers the drive’s full-load input current with an appropriate safety margin. If the drive includes an integrated EMC filter, ensure the filter’s leakage current does not cause nuisance tripping — if it does, consult ABB’s drive-MCB coordination table.
Q4: What is the lead time and are units available from stock?
Units are held in stock at our Xiamen warehouse and are available for immediate dispatch. Standard lead time for in-stock orders is 3–5 business days for domestic China delivery and 7–15 business days for international shipment via DHL, FedEx, or sea freight. For urgent retrofit projects requiring same-day dispatch, contact our sales team directly. Bulk orders of 10 units or more qualify for a volume pricing review.
